Used Mori Seiki Cnc Lathe for sale (200)

Condition: good (used), Year of construction: 2005, turning length: 450 mm, travel distance X-axis: 135 mm, travel distance Y-axis: 80 mm, travel distance Z-axis: 450 mm, C-Axis rapid traverve 400 Min Turret indecing time 0,2 sec for 1 station Heavy duty cutting (depth cut 6mm) 162.7 mL/Min LNS Bar feeder new 2017 Large package tooling driven / live tools 8 axis controlled with 2 spindles and turrets Helhcdoydcvzjwvonh Max. turning Ø: 250mm X-Axis: 135mm Y-Axis: 40+40 = 80mm Z-Axis: 450mm B Axis: 510° Spindle bore: 49mm Speedrange: 6000Rpm Spindle power: 30kW Subspindle speeds: 6000Rpm Subspindle bore: 49mm ATC / revolver: 12 Speed live tools: 6000Rpm Positions lower revolver:12 Speed live tools: 6000Rpm Length: 2800mm Width: 2000mm Height: 2000mm Weight: 5000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Year of construction: 2008, condition: refurbished (used), Oscillating base: 800mm Oscillating cross slide: 800mm Maximum distance between large spindle noses: 1,130mm Maximum machining diameter: 320mm Maximum turning length: 810mm Bar machining capacity: 52mm X1, X2 axis: 210mm Y1 axis: 110mm (+65, -45) Y2 axis: 110mm (+45, -65) Z1, Z2 Axis: 810mm Hnslhcdwexuguuovjh B-axis (spindle 2): 920mm CNC control: MSX-701 III Spindle 1, 2 Max. spindle speed 1, 2: 6,000 1/min Spindle nose 1, 2: JIS A2-5 Bore diameter through spindle 1, 2: 61mm Turret type: 16 stations x 2 Max. tool spindle speed motorised: 6,000 1/min Speed x1, x2: 30,000 Speed y1: 20,000 Speed z1, z2: 50,000

Condition: used, Year of construction: 2008, Swing over bed 923,8 mm Swing over cross slide 755 mm Max. turning diameter 356 mm Max. turning length 510 mm X/Z-axis movement 260/590 mm Turret w/12 stations Spindle speeds 5000 rpm Spindle bore 73 mm Hnelju Sn Hzjhcdwveh Control: MSX-850 III Equipped with: Collet chuck w/collets Chip conveyor 3 standard tool holders No Gantry loader incl.

Condition: used, Year of construction: 2001, Turning length 470 mm Max. torning dia. 390 mm Spindle speeds 3500 rpm Hslhcexdfi Nodwvonh Movements X/Z - 235/520 mm No of stations in turret 12 pcs. Control: MSG 500 Accessories: Various tool holders

Condition: used, Swing Diameter Over Bed: 400 mm Swing Diameter Over Longitudinal Slide: 350 mm Distance Between Centers: 610 mm Travel Limit: 240 mm Suggested Workpiece Diameter: 200 mm Max Longitudinal Travel: 560 mm Machining Length: 550 mm Max Cross Travel: 40 mm + 120 mm Height of Spindle Axis from Floor: 1135 mm Programmable Spindle Speed Range: 40 to 4000 rpm Hnolhcdsxg Nd Aswveh Spindle Bore Diameter: 52 mm Spindle Interior Cone: MK 6 Slide/Bed Slope: 45/45° Turret Positions: 12 Tools Main Motor: 15 kW Control: Fanuc 6T Equipped with: See photos

Year of construction: 1990, condition: used, total length: 4,800 mm, total width: 1,700 mm, total height: 2,000 mm, Empty weight: 5.500 kg Price: On request - Year: 1990 - Documentation available: Yes - CE certificate present: No Hnolhcdox Ivnyswvsh - Serial number: 3242 - Drive system: CNC - Control system brand: Fanuc - Swing over bed [mm]: 520 - Carriage turning diameter [mm]: 350 - Distance between centres [mm]: 1125 - Spindle bore [mm]: 50 - Min. spindle speed [rpm]: 42 - Max. spindle speed [rpm]: 4200 - Options: Chip conveyor, Turret - └ Tool magazine [pcs.]: 10 - X-axis travel [mm]: 1090 - Y-axis travel [mm]: 160 - Transport dimensions: 4800mm x 1700mm x 2000mm (l x w x h) - Transport weight [kg]: 5500kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: ready for operation (used), Year of construction: 1999, operating hours: 24,364 h, functionality: fully functional, travel distance X-axis: 560 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 510 mm, controller model: Fanuc MSC 501 (Fanuc 16i), spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS X-axis travel: 560 mm Y-axis travel: 510 mm Z-axis travel: 510 mm Spindle speed range: 10,000 rpm Spindle motor power: 22 kW Rapid traverse (x/y/z): 32 mm/min Tool magazine capacity: 40 (SK40) Pallet size: 2 x 400 x 400 mm Table load: 0.5 t Table indexing: 1° MACHINE DETAILS Control: Fanuc MSC 501 (Fanuc 16i) Total power requirement: 56 kVA Dimensions & Weight Required space: approx. 2.9 x 4.1 x 3 m Machine weight: approx. 8.7 t Operating hours: 24,364 h Heleyc Unmehcdwvonh EQUIPMENT Chip conveyor Interface for internal coolant supply

Condition: like new (used), Year of construction: 1999, functionality: fully functional, MORI SEIKI SL-600B/2000 CNC LATHE Category: CNC Turning Centers Reference No.: 400212 Capacity: Ø900 X 2000 MM Year of Construction: 1999 Technical Specification: CNC Control : Fanuc 18iT WORKING CAPACITY Max Turning Diameter : 900 mm Max Turning Length : 2000 mm Swing over bed : 994 mm Distance Between Centers : 2300 mm Swing over cross slide : 733 mm Travels (X) : 485 mm (440 + 45) mm Travels (Z) : 2150 mm TURRET Turret : 12 Station Square tool shank size : 32 mm Boring bar shank diameter : 65 mm TAILSTOCK Tailstock : MT5 Tailstock Quill Travel : 150 mm Tailstock Quill Dia : 150 mm SPINDLE Max Rotation Speed : 1500 RPM Main Spindle Nose : JIS A2-15 Holjx Nv Shjhcdwvsnh Main Spindle Bore : 185 mm Spindle Type : 3 Step Gearbox Spindle bearing inner diameter : 260 mm MACHINE DIMENSIONS Weight : 16T Additional Details: All Specifications are found online, and subject to verification by buyer.

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, turning diameter over cross slide: 755 mm, turning length: 510 mm, turning diameter: 366 mm, spindle bore: 73 mm, spindle speed (max.): 5,000 rpm, travel distance X-axis: 260 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 590 mm, spindle motor power: 15,000 W, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 10 m/min, rapid traverse Z-axis: 30 m/min, rotational speed (max.): 6,000 rpm, total height: 2,120 mm, total length: 5,705 mm, total width: 1,922 mm, feed length X-axis: 260 mm, feed length Y-axis: 100 mm, feed length Z-axis: 590 mm, quill travel distance: 564 mm, quill diameter: 80 mm, swing diameter over cross slide: 755 mm, turning diameter over bed slide: 923 mm, type of input current: three-phase, overall weight: 5,700 kg, swing diameter over bed slide: 923 mm, bar passage: 65 mm, bar diameter (max.): 65 mm, Equipment: documentation/manual, rotational speed infinitely variable, 2006 Mori Seiki NL2000Y/500 CNC Lathe with Y-Axis and live tooling. Plastics-only medical device use. Available now in Ireland. Machine Type: CNC Turning Centre with Y-Axis & Live Tooling Manufacturer: Mori Seiki (DMG MORI) Model: NL2000Y/500 Year: 2006 Location: Ireland Availability: Immediate Machine Overview Available now from Used Machine Tools Ireland, this 2006 Mori Seiki NL2000Y/500 CNC Lathe is presented in excellent working condition with a very clean operational history. The machine was used exclusively for machining plastics by a medical device manufacturer, resulting in: Minimal spindle and guideway wear Clean internal condition Long remaining service life Unlike many plastics-only machines, this example is fully equipped with coolant, making it immediately suitable for both plastic and metal machining applications. The NL2000Y/500 is widely regarded as one of the most capable and reliable Y-axis CNC lathes in its class, featuring Mori Seiki’s renowned BMT turret technology for rigidity, accuracy, and thermal stability. Key Features & Highlights Y-Axis CNC Lathe – complex milling and turning in one setup Live Tooling (6,000 RPM) – drilling, tapping, and milling capability BMT (Built-in Motor Turret) – exceptional rigidity and precision Plastics-Only Medical Use – exceptionally low wear Full Coolant System Installed Coolant Tank Capacity: 235 Litres Tailstock & Workpiece Unloader – production-ready configuration MSX-850 III Control – powerful and reliable Mori Seiki control Technical Specifications – Mori Seiki NL2000Y/500 Capacity Distance Between Centres: 500 mm Chuck : Collet Chuck Max Turning Diameter: 366 mm Standard Turning Diameter: 275 mm Max Turning Length: 510 mm Bar Capacity: 65 mm Swing Over Bed: 923.8 mm Swing Over Cross Slide: 755 mm Axis Travel X-Axis Travel: 260 mm Z-Axis Travel: 590 mm Y-Axis Travel: ±50 mm (100 mm total) Spindle Max Spindle Speed: 5,000 RPM Spindle Nose: JIS A2-6 Through-Spindle Bore: 73 mm Spindle Motor: 15 / 15 / 11 kW Turret & Tooling Turret Type: BMT (Built-in Motor Turret) Number of Tool Stations: 16 Max Live Tool Speed: 6,000 RPM Max Live Tool Torque: 29 Nm Turret Index Time: 0.2 seconds Feed Rates Rapid Traverse (X / Z): 30,000 mm/min Rapid Traverse (Y): 10,000 mm/min Tailstock Tailstock Travel: 564 mm Hnslhcdweyhqmpevsh Spindle Diameter: 80 mm Tailstock Taper: MT4 Live Centre Automation Workpiece Unloader: Yes Max Workpiece Diameter: 80 mm Max Workpiece Length: 200 mm Max Workpiece Weight: 3 kg Coolant System Coolant Equipment: Yes Coolant Tank Capacity: 235 Litres Electrical & Dimensions Power Requirement: 31.5 kVA Machine Dimensions (L × W × H): 2705 × 1922 × 2120 mm Machine Weight: 5,700 kg Included with Machine ✔ Selection of axial driven toolholders ✔ Selection of radial driven toolholders ✔ Selection of static toolholders Additional Notes Used exclusively for plastic machining in a medical device environment Fully equipped with coolant equipment, suitable for plastics or metals Specifications provided in good faith but not guaranteed Ideal Applications Medical device manufacturing Precision plastic machining CNC turning & milling with Y-axis Aerospace, electronics & high-precision components

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, turning diameter over cross slide: 755 mm, turning length: 510 mm, turning diameter: 366 mm, spindle bore: 73 mm, spindle speed (max.): 5,000 rpm, travel distance X-axis: 260 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 590 mm, spindle motor power: 15,000 W, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 10 m/min, rapid traverse Z-axis: 30 m/min, rotational speed (max.): 6,000 rpm, total height: 2,120 mm, total length: 5,705 mm, total width: 1,922 mm, feed length X-axis: 260 mm, feed length Y-axis: 100 mm, feed length Z-axis: 590 mm, quill travel distance: 564 mm, quill diameter: 80 mm, swing diameter over cross slide: 755 mm, turning diameter over bed slide: 923 mm, type of input current: three-phase, overall weight: 5,700 kg, swing diameter over bed slide: 923 mm, bar passage: 65 mm, bar diameter (max.): 65 mm, Equipment: documentation/manual, rotational speed infinitely variable, 2009 Mori Seiki NL2000Y/500 CNC Lathe in very good condition. Plastics-only medical device use. Y-Axis, live tooling, tailstock, workpiece unloader. Available now in Ireland. Hslhjyhqkzjcdwvenh Machine Type: CNC Turning Centre with Y-Axis & Live Tooling Manufacturer: Mori Seiki (DMG MORI) Model: NL2000Y/500 Year: 2009 Location: Ireland Availability: Immediate Machine Overview We are pleased to offer this 2009 Mori Seiki NL2000Y/500 CNC Lathe in very good condition, available exclusively through Used Machine Tools Ireland. This machine was used only for dry machining of plastics by a medical device manufacturer, meaning: No heavy metal cutting No coolant contamination Exceptionally low mechanical wear The Mori Seiki NL Series is globally recognised as a benchmark for high-precision CNC turning, and the NL2000Y/500 is especially sought after due to its Y-axis capability, live tooling, and BMT (Built-in Motor Turret) design. Key Features & Benefits Y-Axis CNC Lathe – complex milling and turning in one setup BMT Turret Technology – superior rigidity, accuracy, and thermal stability Live Tooling up to 6,000 RPM – ideal for milling, drilling, and tapping Medical / Plastics-Only Use – extremely clean operating history Tailstock & Workpiece Unloader – ideal for automated production MSX-850 III Control – powerful, reliable Mori Seiki control system Technical Specifications – Mori Seiki NL2000Y/500 Capacity Distance Between Centres: 500 mm Chuck : Collet Chuck Max Turning Diameter: 366 mm Standard Turning Diameter: 275 mm Max Turning Length: 510 mm Bar Capacity: 65 mm Swing Over Bed: 923.8 mm Swing Over Cross Slide: 755 mm Axis Travel X-Axis: 260 mm Z-Axis: 590 mm Y-Axis: ±50 mm (100 mm total) Spindle Max Spindle Speed: 5,000 RPM Spindle Nose: JIS A2-6 Through-Spindle Bore: 73 mm Spindle Motor: 15 / 15 / 11 kW Turret & Tooling Turret Type: BMT (Built-in Motor Turret) Tool Stations: 16 Max Live Tool Speed: 6,000 RPM Live Tool Torque: 29 Nm Turret Index Time: 0.2 seconds Feed Rates Rapid Traverse (X / Z): 30,000 mm/min Rapid Traverse (Y): 10,000 mm/min Tailstock Tailstock Travel: 564 mm Spindle Diameter: 80 mm Taper: MT4 Live Centre Automation Workpiece Unloader: Yes Max Workpiece Diameter: 80 mm Max Workpiece Length: 200 mm Max Workpiece Weight: 3 kg Electrical & Dimensions Power Requirement: 31.5 kVA Machine Dimensions (L × W × H): 2705 × 1922 × 2120 mm Machine Weight: 5,700 kg Included with Machine ✔ Selection of axial & radial driven toolholders ✔ Selection of static toolholders ✔ Extraction unit for plastic machining Additional Notes Used exclusively for dry plastic machining No coolant system fitted, however the machine is prepared for coolant installation Specifications provided in good faith but not guaranteed Ideal Applications Medical device manufacturing Plastic & polymer machining Precision CNC turning & milling Aerospace, electronics & high-tolerance components This Mori Seiki NL2000Y/500 CNC Lathe represents a rare opportunity to acquire a premium Japanese turning centre with an exceptionally clean usage history.

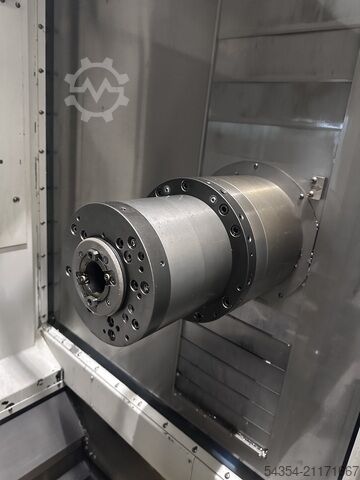

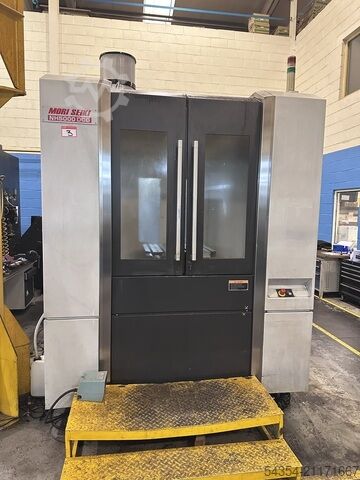

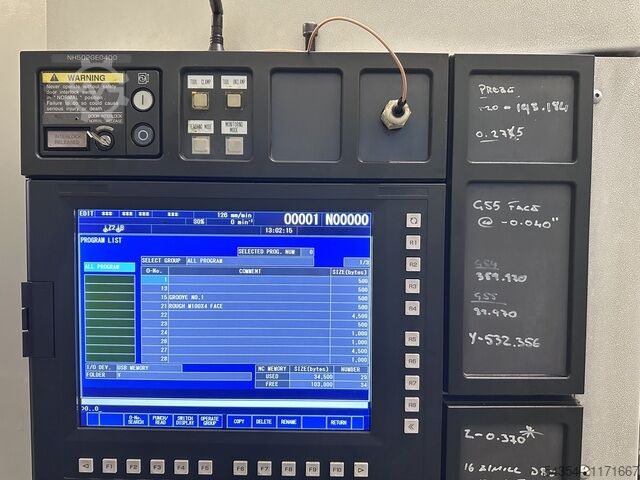

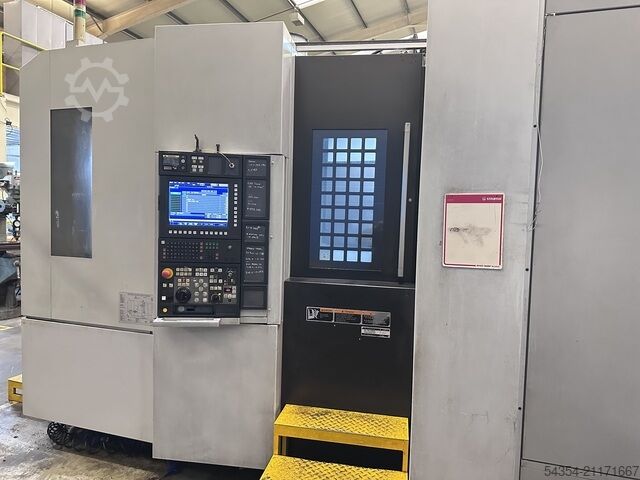

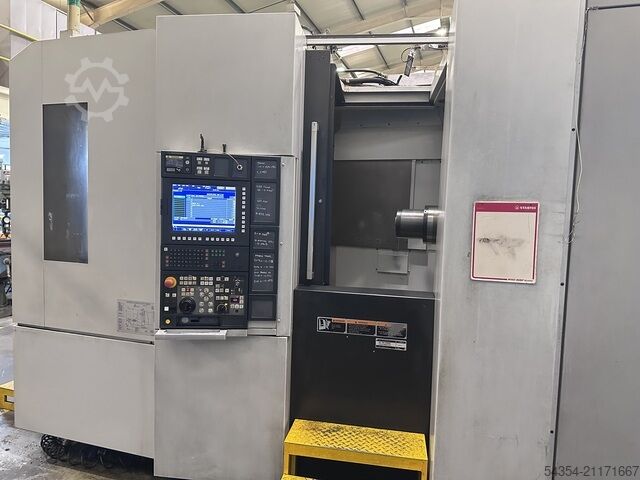

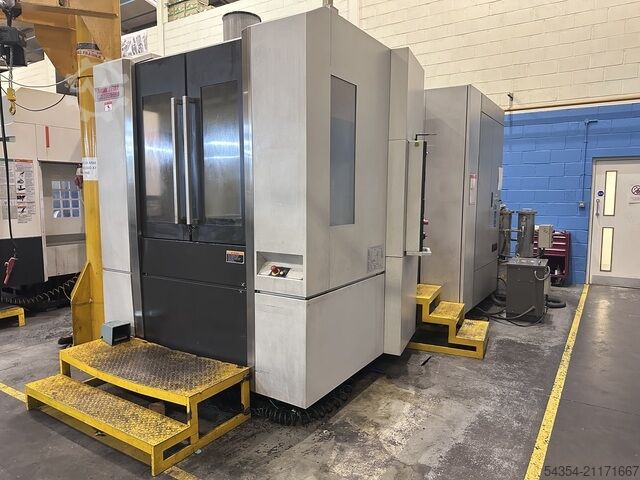

Condition: used, Year of construction: 2007, Mori Seiki NH5000/40 DCG Twin Pallet Horizontal Machining Centre with Mori Seiki CNC Control, Table Size 500mm x 500mm (500kg), 60 Tool ATC, BT40 Spindle Taper, Travels X Axis 730mm, Y Axis 730mm, Z Axis 850mm, Max Work Piece Size 800mm Diameter x 1000mm High, Spindle Speed Max 14,000rpm, Hydra-Jet G10-1000 High Pressure, Coolant Filtration System, Filtermist Oil Mist Extractor, Machine Weight 12400kg. S/No. NH502GE0400 (2007). Country of Origin: Japan Location: These lots are located in Dundee, Scotland, UK. Unfortunately there are no loading facilities on-site, dismantling and loading will be at the cost of the Purchaser. All/Any tooling is being offered as specifically described. Hslsyhdrxjhcdwvonh

Condition: ready for operation (used), Year of construction: 2009, functionality: fully functional, travel distance X-axis: 560 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 630 mm, workpiece diameter (max.): 630 mm, workpiece weight (max.): 400 kg, TECHNICAL DETAILS Travels & Axes Travel X-axis: 560 mm Holhjyk A S Njcdwvenh Travel Y-axis: 560 mm Travel Z-axis: 630 mm B-axis: 1° increment index table Rapid Traverses Rapid traverse X-axis: 50 m/min Rapid traverse Y-axis: 50 m/min Rapid traverse Z-axis: 50 m/min Workpiece Dimensions Maximum workpiece height: 900 mm Maximum workpiece diameter: 630 mm Maximum workpiece weight: 400 kg Spindle & Tools Maximum spindle speed: 14,000 rpm Distance spindle center to pallet surface: 80–640 mm Distance spindle nose to pallet center: 100–730 mm Tool magazine: 60 positions Tool change time: 0.9 s Tool holder: BT 40 Pallets Pallet dimensions: 400 x 400 mm Number of pallets: 2 Pallet change time: 6 s Feed Feed rate X-axis: 50,000 mm/min Feed rate Y-axis: 50,000 mm/min Feed rate Z-axis: 50,000 mm/min Work Table Table width: 400 mm Table length: 400 mm Table load capacity: 400 kg MACHINE DETAILS Control model: MSX-701IV Power consumption: 32.8 kVA Dimensions & Weight Dimensions (L x W x H): 4,000 x 2,400 x 2,600 mm Total weight: 9,800 kg Operating Hours Power-on hours: 46,259 h Operating hours: 26,725 h Machining hours: 17,691 h

Condition: like new (used), Year of construction: 2017, operating hours: 3,493 h, turning diameter over cross slide: 742 mm, turning length: 705 mm, spindle speed (max.): 4,000 rpm, travel distance X-axis: 260 mm, travel distance Y-axis: 50 mm, travel distance Z-axis: 795 mm, spindle motor power: 15,800 W, total height: 2,200 mm, total length: 3,350 mm, total width: 2,110 mm, swing diameter over cross slide: 742 mm, workpiece weight (max.): 500 kg, overall weight: 5,820 kg, bar passage: 80 mm, Year of construction: 2017 CNC controller: Mitsubishi M730UM mit CELOS Capacity Y-axis travel mm:±50 Hjlhcjykt Dcsdwvonh Turning length mm: 705 Max. turning diameter mm: ø 356 Swing over bed mm: ø 920 Swing over cross-slide mm: 742 Bar work capacity mm: 80 Upper turret X-axis travel mm: 260 Z-axis travel mm: 795 Number of tool slots St .: 12 Speed ​​driven tools RPM: 10000 Main spindle Speed ​​spindle rpm: 4000 Drive power spindle kW: 15.8/15 Spindle bore mm: 111 Chuck type: 10" Manufacturer: KITAGAWA Spindle nose: JIS A2-8 Counter spindle Speed ​​spindle rpm: 6000 Drive power spindle kW: 11/7.5 Spindle bore mm: 73 Chuck type: 6" Manufacturer: KITAGAWA Spindle nose: JIS A2-5 Counter spindle travel mm: 734 Equipment Chip conveyor Rotating inspection windows Signal lamp Workarea light Air or water through spindle center RENISHAW Measuring probe Working time hours Under power: 3493 Spindle 1: 1700 Rated power kVA: 45 Basic machine dimensions / weight Length mm: 3350 Width mm: 2110 Height mm: 2200 Weight kg: 5820

Condition: used, Year of construction: 1990, functionality: fully functional, Equipment: documentation/manual, rotational speed infinitely variable, Lathe Mori Seiki Holsykkzxshcdwvsnh Type SL-3H CNC Fanuc Complete Without conveyor Without jaw chuck

Condition: used, Year of construction: 1995, functionality: fully functional, Equipment: documentation/manual, rotational speed infinitely variable, Mori Seiki Lathe 3 Axes X, Z, C Model SL-45 MC Year 1995 Fanuc CNC Without jaw chuck Holhcdsykkzfjwvonh With tooling With chip conveyor With documentation Complete

Condition: ready for operation (used), Year of construction: 1997, travel distance X-axis: 800 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 510 mm, spindle speed (max.): 10,000 rpm, number of axes: 3, This 3s MORI SEIKI SV-50s was manufactured in 1997. The CNC milling machine is in good working condition and has been used only a few times for prototype work. It features a FANUC spindle with a speed of 10,000 rpm and a tool changer with 30 positions. Consider the opportunity to buy this MORI SEIKI SV-50 vertical machining centre. Contact us for further details. • Condition: Used, in good working condition; reportedly used only a few times for prototype work • Spindle: FANUC (as provided) Helhcdwoyk Awfevonh • Tool changer: 30 positions • Table dimensions: approx. 270 x 250 x 230 mm (to be reconfirmed) Additional equipment • Chip conveyor (based on visual confirmation only) • Tool cabinet / cabinet with tooling • Machine vice (based on visual confirmation only) • Approx. 15 tool holders with collet chucks (based on visual confirmation only) • Elastic collets • Approx. 20 milling cutters, various sizes (based on visual confirmation only) • Dial indicator (noted twice; included once)

Condition: ready for operation (used), Year of construction: 2003, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, table load: 350 kg, spindle speed (max.): 12,000 rpm, number of axes: 3, This 3-axis MORI SEIKI NV4000 was manufactured in 2003. It features a CNC control system, typically FANUC/MAPPS, and a vertical machining center design. Key specifications include a 600 mm x 400 mm x 400 mm axis travel, a table size of 700 mm x 450 mm, and a maximum spindle speed of 12,000 rpm. The tool magazine holds up to 40 tools. Consider the opportunity to buy this MORI SEIKI NV4000 vertical machining center. Contact us for more information. • Table size: 700 × 450 mm • Max workpiece size (L × W × H): approx. 750 × 450 × 400 mm • Tool holder type: BT40 (Big Plus option common) • Tool magazine capacity: typically 40 tools • Rapid traverse (X/Y/Z): 42 m/min • Machine technology: DCG – Driven at the Center of Gravity design to reduce vibration and increase accuracy and surface quality Helhcdjx Imudjwvonh Technical Specification Taper Size BT 40

Condition: used, Year of construction: 2013, Mori Seiki NVX5100-II/40 Vertical Machining Centre with MAPPS IV/M730BM Control, Travel X/Y/Z = 1050/530/510mm, Table Size 1350 x 600mm x 1200kgs, Spindle Taper BT40, 30 Position ATC, Max Spindle Speed 13,000rpm, High-Pressure Through Spindle Coolant, Swarf Conveyor, Qty of Spindle Tooling as Lotted, Machine Weight 7,000kgs, Floor Space (L x W x H) 3084 x 2851 x 2597mm. S/No. NV502130614 (2013) Location: These lots are located in Tamworth, UK. Unfortunately there are no loading facilities on-site, dismantling and loading will be at the cost of the Purchaser. All/Any tooling is being offered as specifically described. Hnelhcsyhdhgodwveh

Condition: used, Year of construction: 1988, ohne Gewähr Hjlhcsyiu Tpedwvenh weight of the machine ca. 4 t

Condition: used, Year of construction: 2007, Mori Seiki NH5000/40 DCG Twin Pallet Horizontal Machining Centre with Mori Seiki CNC Control, Table Size 500mm x 500mm (500kg), 60 Tool ATC, BT40 Spindle Taper, Travels X Axis 730mm, Y Axis 730mm, Z Axis 850mm, Max Work Piece Size 800mm Diameter x 1000mm High, Spindle Speed Max 14,000rpm, Hydra-Jet G10-1000 High Pressure, Coolant Filtration System, Filtermist Oil Mist Extractor, Machine Weight 12400kg. S/No. NH502GE0400 (2007). Country of Origin: Japan Hnelhsyfgxvecdwvjh Location: These lots are located in Dundee, Scotland, UK. Unfortunately there are no loading facilities on-site, dismantling and loading will be at the cost of the Purchaser. All/Any tooling is being offered as specifically described.

Condition: ready for operation (used), Year of construction: 2003, turning length: 363 mm, turning diameter over cross slide: 430 mm, spindle speed (max.): 3,500 rpm, spindle bore: 61 mm, overall weight: 2,800 kg, distance between centers 550 mm diameter over bed 510 mm, over carriage 430 mm spindle bore 61 mm maximum spindle speed 3500 rpm Holhjyh Nl Uecdwvonh weight 2800 kg

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 900 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 980 mm, rapid traverse X-axis: 50 m/min, rapid traverse Y-axis: 50 m/min, rapid traverse Z-axis: 50 m/min, rotational speed (max.): 8,000 rpm, spindle nose: ISO 50, number of spindles: 240, CNC MSX 701 III Hnelsykpg Hohcdwvjh Travels (X/Y/Z axes): 900 / 800 / 980 mm Pallet working surface: 630 x 630 mm Pallet load capacity: 1,200 kg High-torque spindle max speed: 8,000 rpm Rapid traverse rate (X, Y, Z): 50 m/min Tool magazine capacity: 240 tools Spindle motor power (30 min / continuous): 37 / 30 kW Machine Configuration: 240-position RACK tool magazine Spindle taper DIN 69871 – ISO 50 Tool breakage detection in magazine Index table with 1° indexing FASTEMS interface, model MLS-MD Spindle speed 8,000 rpm – 37/30 kW TOOL IC SYSTEM BALLUFF interface No. 600 macro variables No. 1 load monitor No. 200 storable programs No. 512 tool life management No. 999 tool offsets No. 48 workpiece coordinate systems Data server + ATA card Mori Seiki scraper-type chip conveyor with drum filter MARPOSS application, model MIDA T25G, with E86N radio transmission system META pumping unit, model M 50/50, partial filtration system, 50 bar high pressure COMET drilled pallet Instruction manuals and CE Declaration of Conformity

Condition: like new (used), Year of construction: 2010, CNC controller: FANUC FS-31iA5 (MAPPS 4) Capacity X-axis travel mm: 685 Y-axis travel mm: 125 Z-axis travel mm: 1075 Turning length mm: 1045 Max. turning diameter mm: ø: 600 Bar work capacity mm: 65 Turn-mill spindle Full indexing specifications: YES B-axis degree: 120º FULL INDEXING SPECIFICATION Speed spindle rpm: 12000 Drive power kW: 18.5/11 Tool magazine Magazine places: 80 Tool holder: CAPTO C5 Tool length max. mm: 250 Tool diameter max. mm: 70/130 Tool weight max kg: 5 Lower turret Number of tool slots St .: 12 Drive power driven tools kW: 5.5/3.7 Main spindle Speed spindle rpm: 5000 Drive power spindle kW: 25/22 (100%/40%ED) Spindle bore mm: 73 Chuck type: HOLLOW CHUCK (8") Manufacturer: KITAGAWA Counter spindle Speed spindle rpm: 5000 Drive power spindle kW: 25/22 (100%/40%ED) Spindle bore mm: 73 Hslewwuaashcdwvonh Chuck type: HOLLOW CHUCK (8") Manufacturer: KITAGAWA Equipment Electronic Handwheel Chip conveyor Swivel head Signal lamp High pressure pump Mist collector Workarea light CE conformity Chuck foot switch (double) for main and counter spindle Coolant gun Toolholders are not included Precision NC rotary table, rapid traverse and feed rate 100 1/min incl. direct measuring system Oil skimmer Linear scales Gantry loader LG-10 AII RENISHAW MP700 Working time hours Under power: 76.510 Spindle 1: 11.521 Spindle 2: 9.271 Potencial nominal kVA: 102 Basic machine dimensions / weight Length mm: 8.000 Width mm: 4.000 Height mm: 3.000 Weight kg: 15.000

Condition: excellent (used), Year of construction: 2006, travel distance X-axis: 730 mm, travel distance Y-axis: 730 mm, travel distance Z-axis: 850 mm, workpiece length (max.): 1,000 mm, workpiece weight (max.): 500 kg, number of slots in tool magazine: 120, controller manufacturer: FANUC, total height: 3,138 mm, total length: 2,725 mm, total width: 4,610 mm, overall weight: 12,900 kg, controller model: FS-31IA (MAPPS III), feed rate X-axis: 50 m/min, feed rate Y-axis: 50 m/min, feed rate Z-axis: 50 m/min, spindle speed (max.): 14,000 rpm, tool length: 500 mm, workpiece diameter (max.): 800 mm, CNC controller: FS-31IA (MAPPS III) Helhcdwovw Sc Tsvjnh Axes X-axis travel mm: 730 Y-axis travel mm: 730 Z-axis travel mm: 850 Rapid traverse m/min: 50 B-axis degrees: 360º (1º) Distance spindle nose - table surface mm: 100 – 830 Acceleration in the axes m/s2: 9.8 (X), 10.8 (Y), 6.9 (Z) Worktable Number of pallets: 2 Table dimensions mm: 500X500 Maximum workpiece size (D x H) mm: 800 X 1000 Max. workpiece weight kg: 500 APC time s: 7 Spindle Spindle speed rpm: 14.000 Spindle drive power kW: 22/18.5 Tool holder: No.40 Spindle torque Nm: 220 Tool system Tool holder: BT-40 Tool magazine slots: 120 With free neighboring places mm: 140 With occupied neighboring places mm: 70 Max. Tool Length mm: 500 Max tool weight kg: 12 Tool-to-tool time s: 0,9 Chip-to-chip time s: 3,3 Equipment Chip conveyor Workarea light CE conformity Coolant gun TOOL LIFE MANAGEMENT Cooling Tank capacity: 680 Machine running times Rated power kVA: 49 Basic machine dimensions / weight Length mm: 2.725 Width mm: 4.610 Height mm: 3.138 Weight kg: 12.900

Condition: ready for operation (used), Year of construction: 2004, operating hours: 37,165 h, travel distance X-axis: 560 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 630 mm, rapid traverse X-axis: 50 m/min, controller manufacturer: FS-18IMB (MAPPS 2), workpiece height (max.): 800 mm, workpiece diameter (max.): 560 mm, workpiece weight (max.): 300 kg, table width: 400 mm, table height: 400 mm, table length: 400 mm, spindle speed (min.): 14,000 rpm, tool length: 400 mm, tool weight: 8,000 g, CNC controller: FS-18IMB (MAPPS 2) Axes X-axis travel mm: 560 Y-axis travel mm: 560 Z-axis travel mm: 630 Rapid traverse m/min: 50 Rotary Worktable (4th axis): FULL 4TH AXIS ROTARY TABLE Worktable Number of pallets: 3 Table dimensions mm: 400 Maximum workpiece size (D x H) mm: 560 x 800 Max. workpiece weight kg: 300 APC time s: 6 Spindle Spindle speed rpm: 14.000 Spindle drive power kW: 18.5/11 KW Spindle torque Nm: 120 Nm (10%ED) Tool system Tool holder: BT-40 Tool magazine slots: 120 With free neighboring places mm: 140 With occupied neighboring places mm: 70 Max. Tool Length mm: 400 Max tool weight kg: 8 Tool-to-tool time s: 0,9 Chip-to-chip time s: 2,8 Equipment Chip conveyor Signal lamp 4th axis Ready for internal cooling (40/80 bar) RENISHAW OMP60 CE Round pallet storage Measuring system (worktable) Cooling Tank capacity: 500 High-pressure bar: 70 Machine running times Hnjlhcowx Itvodwveh Under power: 135.042 Rated power kVA: 32,8 Operating Time: 37.165 Basic machine dimensions / weight Length mm: 4.004 Width mm: 2.397 Height mm: 2.711 Weight kg: 9.600
