Used Miyano Cnc Lathe for sale (33)

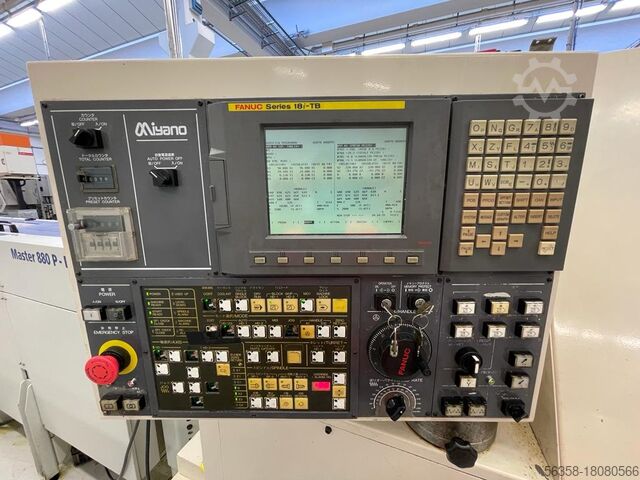

Condition: not inspected (used), Year of construction: 2005, functionality: unexamined, machine/vehicle number: BE55324S, turning length: 300 mm, travel distance X-axis: 100 mm, travel distance Z-axis: 250 mm, overall weight: 5,000 kg, controller model: FANUC SERIES 18i-TB, No reserve price – guaranteed sale to the highest bidder! Placing a bid obligates the buyer to timely collection, either between 11.05.2026 and 13.05.2026 or between 18.05.2026 and 21.05.2026! TECHNICAL DETAILS Turning length: approx. 300 mm Travel distance X-axis: approx. 100 mm Travel distance Z-axis: approx. 250 mm MACHINE DETAILS Control: FANUC SERIES 18i-TB Connected load: 36 kW Operating voltage: 200/220 V Frequency: 50/60 Hz Dimensions & Weight Dimensions (L x W x H): 8,000 x 2,000 x 2,200 mm Weight: 5,000 kg EQUIPMENT Main spindle with HAINBUCH chuck Counter spindle with HAINBUCH chuck Double turret, each featuring 12 tool stations Bar feeder by BREUNING SIMAG, type: 42.1 R-3000 Fgjdsym Ax Iepfx Af Eoa External reference: Pieper – Lot 111

Condition: used, Year of construction: 2011, Technical details: turning diameter: 80 mm turning length: 235 mm max. bar capacity: 42 mm power capacity - driven tools: 1 kW speeds spindle 1: 6000 1/min speeds spindle 2: 5000 1/min numbers of turret head positions: 8 pos drive capacity - spindle motor: SP1 11 / SP2 5,5 kW Tools speed: 60-6000 1/min weight of the machine ca.: ca. 3 t dimensions of the machine ca.: 2,4 x 1,5 x 1,6 m High Performance CNC Turning- and Milling Center - chipconveyor - subspindle - live tools - C-axis Fjdjtpb T Hspfx Af Eega - brake - partscatcher and partsconveyor - tool eye - barloader LNS HYDROBAR MINI-SPRINT approx. 5000 working hours *

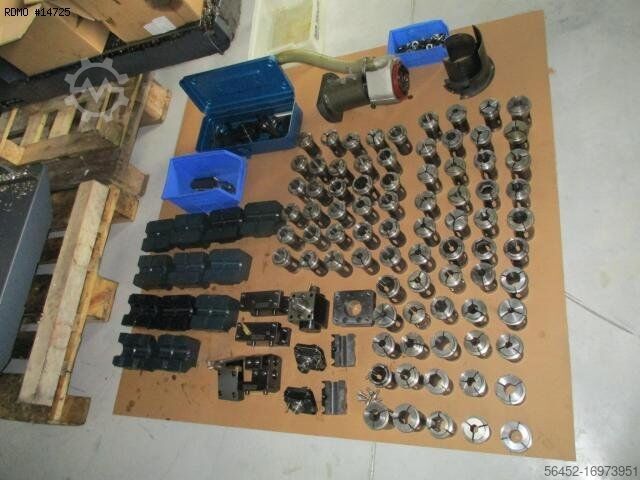

Condition: good (used), Parts shown by hand not come. Technical data shown on picture. Tools in wooden box will come with machine. Fodpfxjwb Em Ss Af Eoga

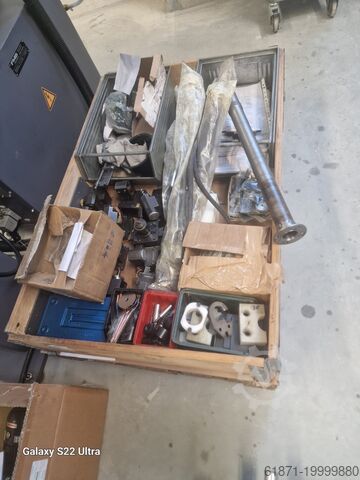

Condition: good (used), Parts shown by hand not come. Technical details shown on picture. Fsdpfx Aowb Eptof Eega Tools in wooden box will come with machine.

Condition: not inspected (used), Year of construction: 1989, We are offering, as part of an insolvency liquidation: 2 x CNC lathes (1 x sub-spindle, 1 x lower turret), used + Bar feeder + Accessories 1. CNC Lathe with Sub-Spindle Fgedpfxex Ed A De Af Eea Make: MIYANO Model: BNC 34-S Year: 1989 Control: Fanuc 0-T - Bar feeder HYDROBAR - 2 x collet chucks - 1 x 3-jaw chuck 2. CNC Lathe with 2 x turrets Make: MIYANO Model: JNC 45-T Year: 1989 Control: Fanuc 0-T Bar feeder HYDROBAR - 1 x collet chuck - 1 x 3-jaw chuck 3. Accessories - Approx. 65 collets - Approx. 40 sets of jaws - Various tool holders + tools - Documentation The machines are untested, but were in operation until the end. The machines have been dismantled and the price includes loading.

Condition: used, TECHNICAL DETAILS - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 42 [mm] - Travel : 100 [mm] Fsdpjuhad Ujfx Af Eoga - Spindle speeds : 6000 [rpm] - Spindle power : 7.5/5.5 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 34 [mm] - Spindle speeds : 5000 [rpm] - Spindle power : 5.5/3.7 [kW] - C axis indexing precision : 0.001 [°] - Number of turrets : 2 UPPER TURRET - Number of positions : 8 - X stroke : 140 [mm] - Z stroke : 235 [mm] - Y stroke : 70 (+/-35) [mm] - Live tools speed : 5000 [rpm] - Live tools power : 1.0 [kW] LOWER TURRET - Number of positions : 6 - X/Z stroke : 140 / 310 [mm] POWER SUPPLY - Total installed power : 30 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.220 x 1.460 [mm] - Machine height : 1.700 [mm] - Machine weight : 3100 [kg] MACHINE HOURS - Number of working hours : 14072 [h] EQUIPMENT - CNC : Fanuc Oi-TD - Parts conveying strip - Ejection of workpiece - Chips conveyor - Predisposition for barfeeder - Electric transformer - Collets collection for guide bush

Year of construction: 2000, condition: good (used), 12 stations main turret (6 are driven) - 6 stations sub turret - LNS sprint 552 barfeed new in 2010 - Fanuc 21TB Control. Fsdpfsm Rglhsx Af Ejga

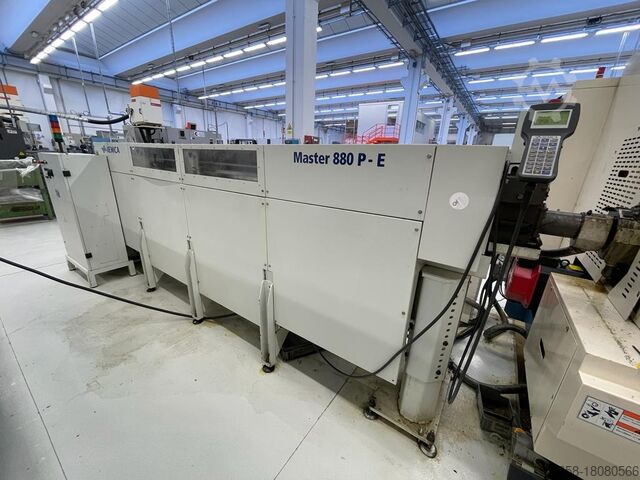

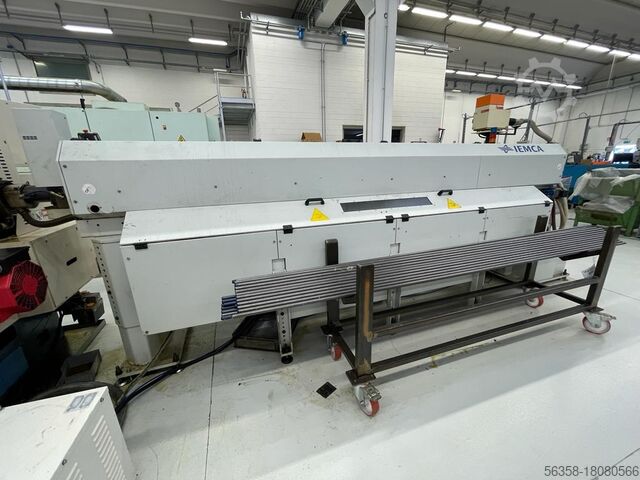

Condition: good (used), Year of construction: 2018, operating hours: 33,361 h, functionality: fully functional, bar diameter (max.): 65 mm, Equipment: documentation/manual, Miyano ABX64YY with IEMCA bar feeder Since 2021, the machine has operated with cutting oil. For sale is a powerful and reliable CNC turning center from the premium manufacturer Miyano, model ABX64YY. The machine is offered as a package together with a high-quality IEMCA bar feeder. Suitable for high-precision series production and is in immediately operational condition. Fgodpfx Ajydr H Njf Eea An inspection under power is, of course, possible and encouraged by prior appointment. Please contact us if you have serious interest.

Condition: used, Year of construction: 2012, functionality: fully functional, machine/vehicle number: LZ1R0503, Technical Specifications: Work Area - Maximum turning diameter: 89 mm - Maximum workpiece length: 80 mm - Chuck size: 152 mm, hydraulic drive - Maximum workpiece weight: 0.7 kg x 2 - X-axis travel: 245 mm / Rapid traverse X: 20 m/min - Z-axis travel: 240 mm / Rapid traverse Z: 24 m/min Main Spindle - Spindle mount: ASA 6 - Maximum spindle speed: 60–6000 rpm - Continuous power (100% duty cycle): 7.5 / 5.5 kW Fgedpsxxr Dvsfx Af Esa Turret with Driven Tools - Tool interface: 20 mm square / 25 mm hole diameter - Number of positions: 12-position lower turret, 6 driven stations - Max speed: 4500 rpm / Milling motor power: 4.5 kW - Turret indexing time: 0.2 s Electrical Equipment - Operating voltage: 200V, 3-phase - Connected load: 21 kVA Dimensions - Machine dimensions (L×W×H): 2,100 × 1,555 × 1,680 mm - Weight: 4,000 kg Key Features and Capabilities: - Horizontal design: Optimal chip evacuation, parts catcher, custom-made parts conveyor strip - CNC Control: Fanuc Series 21i-TB - Chip removal conveyor included Machine Condition: Operational

Condition: used, Year of construction: 2009, functionality: fully functional, machine/vehicle number: 3XR2L03, Technical Specifications: Work Area - Maximum turning diameter: 89 mm - Maximum workpiece length: 80 mm - Chuck size: 152 mm, hydraulic drive - Maximum workpiece weight: 0.7 kg x 2 - X-axis travel: 245 mm / Rapid traverse X: 20 m/min Fodpoxxtu Ajfx Af Eega - Z-axis travel: 240 mm / Rapid traverse Z: 24 m/min Main Spindle - Spindle mount: ASA 6 - Maximum spindle speed: 60–6000 rpm - Continuous power (100% duty cycle): 7.5 / 5.5 kW Turret with Driven Tools - Tool interface: 20 mm square / 25 mm hole diameter - Number of positions: 12-position lower turret, 6 driven stations - Max speed: 4500 rpm / Milling motor power: 4.5 kW - Turret indexing time: 0.2 s Electrical Equipment - Operating voltage: 200V, 3-phase - Connected load: 21 kVA Dimensions - Machine dimensions (L×W×H): 2,100 × 1,555 × 1,680 mm - Weight: 4,000 kg Key Features and Capabilities: - Horizontal design: Optimal chip evacuation, parts catcher, custom-made parts conveyor strip - CNC Control: Fanuc Series 21i-TB - Chip removal conveyor included Machine Condition: Operational

Condition: repair required (used), Year of construction: 2005, functionality: not functional, machine/vehicle number: LZ1R0725, Technical specifications: Work Area - Maximum turning diameter: 89 mm - Maximum workpiece length: 80 mm - Chuck size: 152 mm hydraulic - Maximum workpiece weight: 0.7 kg (per piece, 2 pieces) - X-axis travel: 245 mm / Rapid traverse X: 20 m/min - Z-axis travel: 240 mm / Rapid traverse Z: 24 m/min Main Spindle - Spindle nose: ASA 6 - Maximum speed: 60–6000 rpm - Power at 100% duty cycle: 7.5 / 5.5 kW Tool Turret with Motorised Tools - Tool interface: 20 mm square / 25 mm hole diameter - Number of positions: 12-station lower turret, 6 driven stations - Max. speed: 4500 rpm, Milling motor power: 4.5 kW - Turret index time: 0.2 sec Electrical Equipment - Operating voltage: 200V (3-phase) - Connected load: 21 kVA Dimensions - Machine size (L×W×H): 2,100 × 1,555 × 1,680 mm - Weight: 4000 kg Main Features and Capabilities - Horizontal layout: Optimum chip evacuation, parts catcher, custom-made parts conveyor belt - CNC control: Fanuc Series 21i TB Fgedpfsxxkn Tjx Af Eoa - Chip conveyor Machine Status: NOT WORKING - Servo drive defective - Main spindle motor defective

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, turning length: 81 mm, turning diameter: 99 mm, spindle speed (max.): 4,000 rpm, travel distance X-axis: 300 mm, travel distance Z-axis: 240 mm, TECHNICAL DETAILS Maximum turning length: 81.3 mm Maximum turning diameter: 99.1 mm Fjdpfex Upv Rex Af Eoga X-axis: 300 mm Z-axis: 240 mm Spindle head: A2-6 Spindle bore: 33 mm Variable spindle speed: 4,000 rpm Spindle motor power: 11 kW Number of turret tools: 8 Number of driven tools: 10 MACHINE DETAILS Control: Fanuc 21iT Dimensions & Weight Machine dimensions (incl. chip conveyor): 290 x 235 cm Machine weight: 4,000 kg Transformer station dimensions: 65 x 60 cm Transformer station weight: 150 kg Overall dimensions (L x W x H): 2,600 x 2,300 x 2,400 mm Total weight: 3,900 kg EQUIPMENT Chip conveyor

Condition: excellent (used), Year of construction: 2023, spindle bore: 65 mm, Miyano BNE 65 MYY 2023 Control: Mitsubishi M830W Fgedpfx Afoxy Nfme Eea Max. turning diameter: 160 mm Max. turning length: 380 mm Spindle bore: 65 mm Turret: 12 stations Rotational speed of driven tools: 6,000 rpm Main spindle: 18.5 kW, 5,000 rpm Sub spindle: 11 kW, 5,000 rpm - 2 x Hainbuch Spanntop - FMB SL80 bar feeder - Knoll chip conveyor - Comprehensive tool package

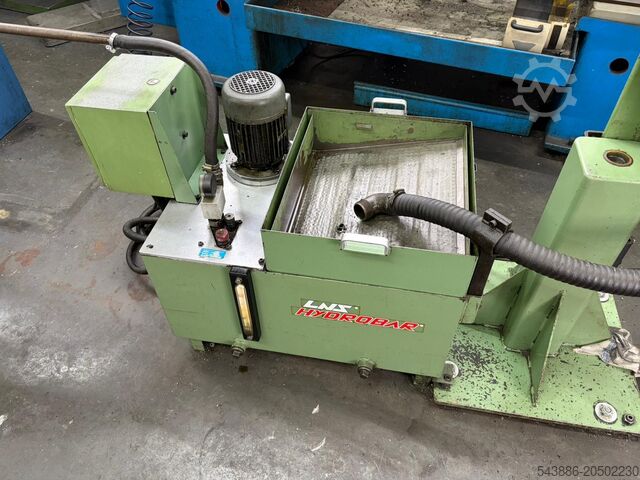

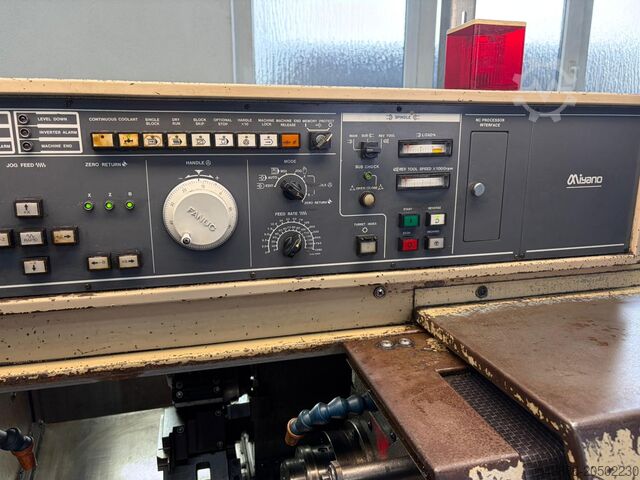

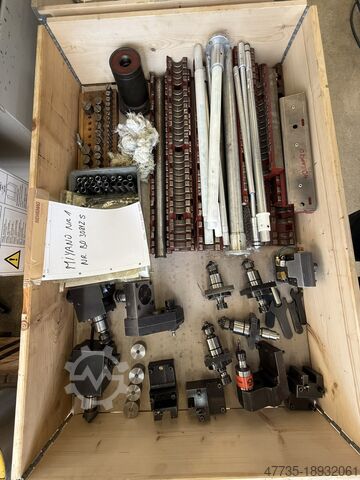

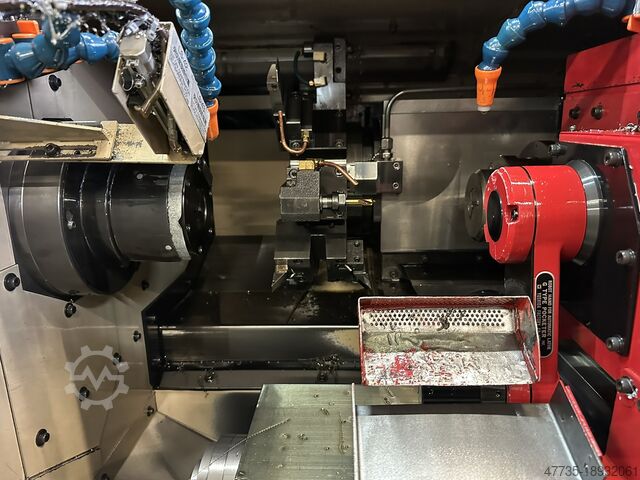

Condition: used, Year of construction: 1991, functionality: limited functionality, For sale: Miyano BND34s lathe incl. LNS bar feeder & accessories A CNC lathe from the manufacturer Miyano is being offered for sale. The BND34s model is ideal for series production and is being sold as a package with various accessories. The unit is in ready-to-use condition and was in operation in our production until recently. Model: Miyano BND34s Fjdpfx Aexvz A Asf Esga Bar feeder: LNS Hydrobar

Condition: ready for operation (used), Year of construction: 2006, operating hours: 12,974 h, functionality: fully functional, MAIN SPINDLE: Variable rotation range rpm 4000 ASA spindle nose 6" Max. bar working diameter mm 51 BA 52 collet group Motor power kW 7.5/11 COUNTER SPINDLE: Variable rotation range rpm 4000 ASA spindle nose 5" Max. bar working diameter mm 51 BA 52 collet group Motor power kW 7/5.5 TURRET 1 + MOTORIZED TOOLS: Number of positions 12 Number of motorizable positions 6 Variable rotation range rpm 50 - 4050 Motor power kW 2.5 Tool shaft for external 25x25 TURRET 2 + MOTORIZED TOOLS: Number of positions 10 Number of motorized positions 5 Variable rotation range rpm 50 - 3600 Motor power kW 1 Tool shaft for external 25x25 AXES: "X1" axis stroke mm 150 "Z1" axis stroke mm 380 "Y" axis stroke mm +/- 40 "X2" axis stroke mm 115 "Z2" axis stroke mm 125 DIMENSIONS-WEIGHT: Overall dimensions with chip conveyor mm 2855 x 2070 x 2083 h Weight with chip conveyor kg 7200 Fgedovi E H Aspfx Af Eoa

Condition: ready for operation (used), Year of construction: 2022, operating hours: 674 h, functionality: fully functional, spindle speed (max.): 6,000 rpm, travel distance X-axis: 140 mm, travel distance Y-axis: 70 mm, travel distance Z-axis: 235 mm, bar diameter (max.): 42 mm, TECHNICAL DETAILS MAIN SPINDLE Max. bar diameter: 42 mm Travel: 100 mm Spindle speed: 6,000 rpm Spindle drive power: 7.5/5.5 kW Minimum C-axis resolution: 0.001 degrees SUB SPINDLE Max. bar diameter: 34 mm Spindle speed: 5,000 rpm Spindle drive power: 5.5/3.7 kW Minimum C-axis resolution: 0.001 degrees Number of turrets: 2 UPPER TURRET Number of positions: 8 Travel X: 140 mm Travel Z: 235 mm Travel Y: 70 (+/-35) mm Driven tools speed: 5,000 rpm Driven tools power: 1.0 kW LOWER TURRET Number of positions: 6 Travel X/Z: 140 / 310 mm Number of spindles: 2 MACHINE DETAILS Dimensions & Weight Fjdexlfu Uepfx Af Eoga Dimensions (L x W x H): 2,220 x 1,460 x 1,700 mm Machine weight: 3,100 kg ELECTRICAL SUPPLY Total connected load: 30 kVA Operating Hours Machining hours: 674 h Control on hours: 4,953 h

Condition: used, Year of construction: 1998, machine/vehicle number: 98BE510071, turning length: 90 mm, spindle speed (min.): 4,000 rpm, spindle motor power: 11 W, overall weight: 6,300 kg, bar passage: 51 mm, 12 position upper turret (6 are driven) -10 position lower turret (5 are driven) - sub spindle - 2 x C axis - equipped with Lns Sprint S2 bar loader with front magazine, fixed and driven tool holders, manuals - Fanuc 18T Control Fjdpfx Afewidp Is Eega

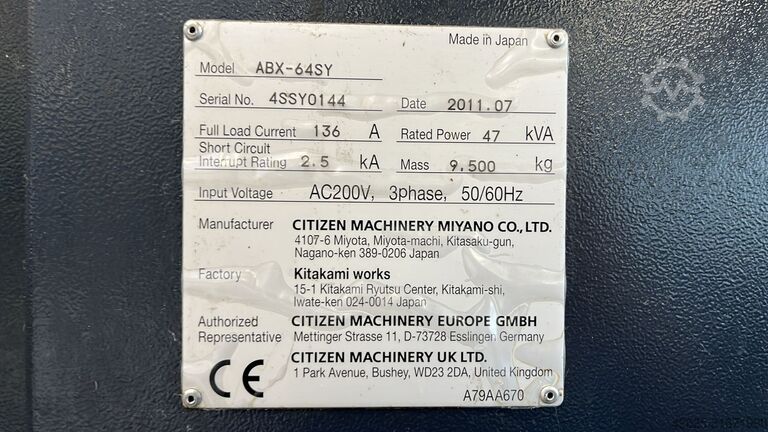

Condition: good (used), Year of construction: 2011, functionality: fully functional, machine/vehicle number: 4SSY0144, CNC turning machine with main/sub spindle, bar feeder, and two 12-station turrets Make: Miyano, Model ABX-64SY Year of manufacture: 2011, Serial No. 4SSY0144 Control: Fanuc 31i-Model A Bar capacity: max. 64 mm Fgodpfx Afoyzpb To Eoa Bar feeder make: FMB Turbo 5-55, chip conveyor make: Yoshida ----- Attractive offer – flexible & hassle-free We offer you not only a high-quality product but also tailored financing options to suit your needs. Whether down payment, installment payment, or customized financing models – together we will find the right solution. Upon request, we will also handle the entire transport logistics. From planning to reliable delivery, we ensure a smooth and on-time process, so you won’t have to worry about a thing. 📞 Please feel free to contact us for further information or a non-binding offer. We offer you professional and personal advice.

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, machine/vehicle number: CJ5Y0190, CNC lathe with main and sub spindle, bar feeder, and both 12-station & 6-station turret Make: Miyano, Model BNJ-51Y3 Year of manufacture: 2011, Serial no. CJ5Y0190 Control: Fanuc Bar capacity: max. 51mm Bar loader: FMB Turbo 5-55, Chip conveyor: LNS Turbo MH500 ----- Attractive offer – flexible & worry-free We offer you not only a high-quality product, but also tailored financing options to suit your requirements. Whether down payment, installment plan, or customized financing models – together we will find the right solution. On request, we also take care of the entire transport logistics. From planning to reliable delivery, we ensure a smooth and punctual process so you have nothing to worry about. 📞 Please feel free to contact us for further information or a non-binding quote. Fodpfx Asyzpa Aof Eega We provide you with expert and personal advice.

Condition: excellent (used), Year of construction: 2022, Standard turning length 125mm, Maximum cutting diameter 210mm, bar capacity 64mm (main), 54mm (sub) spindle speed 4,000 rpm, sub spindle speed 5,000rpm, milling speed 6,000rpm, C axis 0.001 degrees, spindle power 15/11Kw, 12 station upper & lower turrets, Y axis +/- 40mm to both turrets. Fanuc 31i-Bcontrol, swarf conveyor, barfeed unit. Fgedpfx Afeyw Ilvo Eja

Condition: excellent (used), Year of construction: 2011, • 1 CNC lathe (132), manufacturer Miyano, model ABX-64SY, year 2011, control unit Fanuc, model 31i-Model A, main/sub-spindle, 2x 12-position turrets, bar feeder FMB Turbo 5-55, chip conveyor Yoshida. Fodpfx Afsytd Rxj Ejga

Condition: excellent (used), Year of construction: 2011, • 1 CNC lathe (129), manufacturer Miyano, model BNJ-51Y3, year 2011, control Fanuc, main/opposing spindle, 12-position and 6-position turret, chip conveyor, manufacturer LNS, type Turbo MH500 Fgedpfxjytd Dxe Af Esa

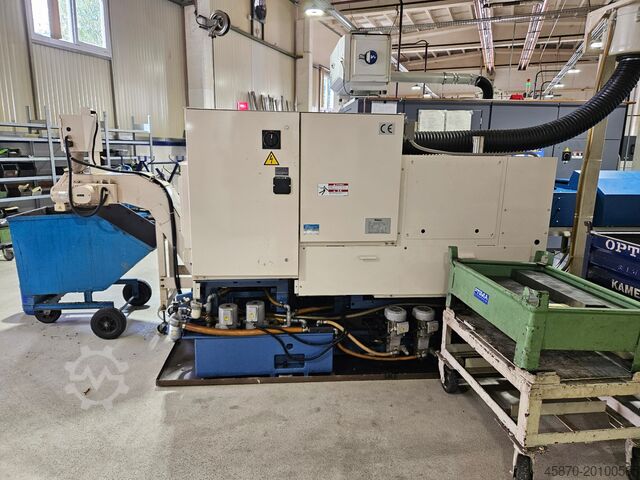

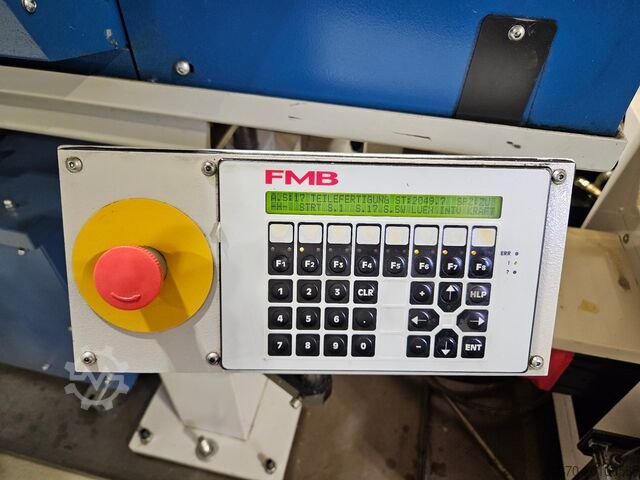

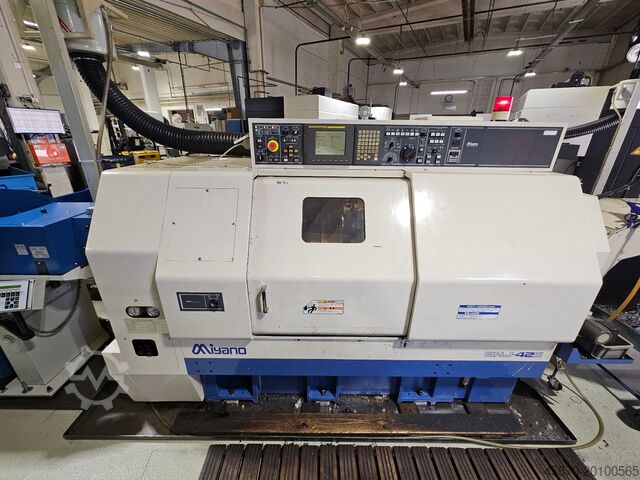

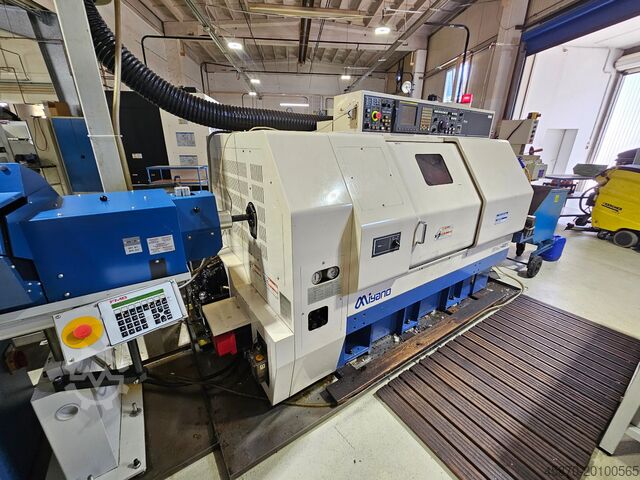

Condition: ready for operation (used), Year of construction: 2004, spindle motor power: 3,700 W, spindle speed (max.): 5,000 rpm, travel distance X-axis: 142 mm, travel distance Z-axis: 250 mm, total height: 1,720 mm, controller manufacturer: FANUC, controller model: 18iT, This 4-axis MIYANO BNJ 42S lathe was manufactured in 2004, featuring dual turrets and a Fanuc 18iT control for precision turning operations. It has a bar passage capacity of 42 mm and spindle speeds up to 5000 rpm. Equipped with a LNS Hydrobar MiniSprint bar loader and both standard fixed and motorized tool holders, this machine optimizes productivity. Consider the MIYANO BNJ 42S machine we have for sale. For more information about this lathe, please reach out to us. Fodpfx Afjx D Eh Ss Ejga Additional equipment • Bar loader: LNS Hydrobar MiniSprint • Tool holders: Standard fixed and 2 driven tool holders Machine Benefits Qualitative Machine Benefits • High spindle speed range, reliable fanuc control unit Technical Machine Benefits • Fixed head lathe with 2 turrets, motorized tool turret Extra Information Machine still under power Dimensions Machine Depth 1450 mm

Condition: ready for operation (used), Year of construction: 2014, total height: 2,222 mm, total width: 2,204 mm, overall weight: 10,600 kg, product length (max.): 3,290 mm, This 8-axis Miyano ABX64 YY2 was manufactured in 2014. It features a maximum work length of 125 mm and a maximum work diameter of Ø 165 mm. The machine is equipped with two turrets, each having 12 positions, and rapid traverse rates of up to 30 m/min. If you are looking to get high-quality turning capabilities, consider the Miyano ABX64 YY2 horizontal turning machine we have for sale. Contact us for further details. • Number of spindles: 2 • Spindle speed: SP1: 40 – 4000 rpm, SP2: 50 – 5000 rpm • Inner diameter of draw tube: SP1: Ø 65.5 mm, SP2: Ø 52 mm • Chuck system: Hydraulic cylinder (SP1 / SP2) • Collet chuck type: SP1: S collet system H-S26 / DIN185E, SP2: S collet system H-S22 / DIN177E • Power chuck: SP1: 6" hydraulic chuck, SP2: 6" hydraulic chuck • Number of turrets: 2 • Turret stations: 12 positions each • Tool shank size: □ 20 mm • Internal tool hole size: Ø 25 mm / Ø 40 mm • Index time: 0.25 sec / position • Turret HD1: X1: 16 m/min, Z1: 30 m/min, Y1: 12 m/min • Turret HD2: X2: 20 m/min, Z2: 30 m/min, Y1: 12 m/min • Sub-spindle axis: Zs: 30 m/min • Number of rotary tools (HD1, HD2, HD3): 12 (max. 24) • Maximum spindle speed: 6000 rpm • Machining capacity: Drilling: max. Ø 20 mm, Tapping: max. M14 × 2, End milling: max. Ø 16 mm • Hydraulic tank capacity: 10 l • Lubricating tank capacity: 4 l • Coolant tank capacity: 400 l • Voltage: AC 200/220 V ± 10% • Frequency: 50/60 Hz ± 1 Hz Fsdpfxeym T Efo Af Esga • Power consumption: 48 kVA • Air supply: 5 bar (5 kgf/cm²)

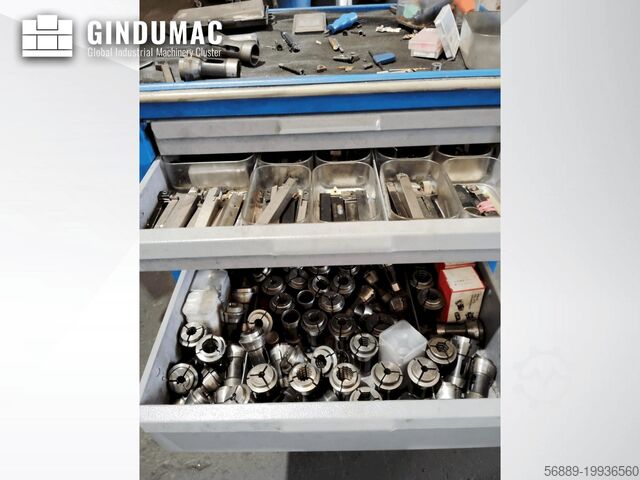

Condition: ready for operation (used), Year of construction: 2010, spindle motor power: 3,700 W, spindle speed (max.): 8,000 rpm, overall weight: 1,350 kg, total height: 1,000 mm, number of axes: 6, This 6-axis Miyano BX-26S was manufactured in 2010, featuring a maximum blank diameter of Ø26 mm and a maximum working length of 330 mm. It includes a dual-spindle setup with rotation speeds up to 8000 rpm and a linear turret with 18 total tools. The machine is equipped with a FANUC 18i-TB control system, supporting 6 controlled axes and 4-axis simultaneous interpolation. If you are looking to get high-quality turning capabilities consider the Miyano BX-26S machine we have for sale. Contact us for more information. Machine Benefits Technical Machine Benefits • Maximum blank diameter: Ø26 mm (Ø20 mm for bx-20s) • Maximum working length: 330 mm • Bed type: flat Extra Information Turret Turret Type: Linear Total Number of Tools: 18 Rotating Tools (Slide 1 / Slide 2): 6 / 4 Flat Tools (Slide 1 / Slide 2): 4 / 4 Tool Size: Slide No.1: Ø16 mm Slide No.2: Ø16 mm Tapping Capacity (L-SP / SP): M8 Drilling Capacity (L-SP): Ø12 mm Injection Unit Chuck Sleeve Type: AR-16 Chuck Sleeve: AR-16 Clamping Force Thrust Force (Z1 / Z2 L-SP and R-SP): 3325 N Other Axes: 1847 N Movement Slide No.1 Travels: X1: 135 mm Y1: 260 mm Z1: 70 mm Slide No.2 Travels: X2: 215 mm Y2: 75 mm Z2: 180 mm Media Tank Capacities: Hydraulic: 10 L Coolant: 140 L Electrical Specifications: Power Supply Capacity: 20 KVA Voltage: AC200/220V Frequency: 50/60 Hz Required Air Pressure: 0.5 MPa Fuse Capacity: 40 A Control Unit Numerical Control (NC) System: FANUC 18i-TB Controlled Axes: 6 axes (X1, Z1, Y1, C1, X2, Z2, Y2, C2) Simultaneous Interpolation: 4 axes Commands: G00, G01, G02/G03, G32, G04, G98/G99 Special Functions: Tool compensation, repetitive cycles, macro programming, backlash compensation Display: 9.5" CRT Operation Panel: Flat keyboard Fodoyaip Tjpfx Af Eega Input/Output: RS-232-C Electric Motors: Spindles (L-SP / R-SP): 3.7 / 2.2 kW Slides (X1, Y1, Z1, Y2, X2, Z2): 0.5 – 0.75 kW Rotating Tool: 0.5 kW Hydraulic Motor: 0.75 kW Coolant Pump: 0.2 kW High-Pressure Coolant Pump: 0.821 / 1.349 kW Dimensions Machine Depth 2140 mm
