Used Weinbrenner Press Brake for sale (20)

Condition: good (used), functionality: fully functional, Year of construction: 1995, operating hours: 32,518 h, control type: CNC control, pressing force: 250 t, Bending length [mm]: 3550 Guedpfoxcmwrjx Afpjh Pressing force [t]: 250 Control: Cybelec DNC 906 PS A Operating hours [h]: 32,518 - Hydraulic quick clamping for punch and die - Hydraulic crowning system via CNC - 2-axis CNC backgauge (X and R) - 4 manually adjustable backgauge fingers - 2 movable bending aids - Comprehensive tooling package

Condition: good (used), functionality: fully functional, Year of construction: 1990, Press force: 250 t Bending length: 4000 mm Distance between uprights: 3000 mm Control: Cybelec ModEva RA Machine weight approx.: 22,000 kg Godjxb Tifepfx Afpjuh Space requirement approx.: 4300x2700x3400 mm Equipment / accessories: - 2 bend supports in front of the machine - Control system retrofit to CYBELEC ModEva 15T - Two-person operation - Upper and lower tools - Die shifting - Crowning system - 2 bend supports - Controlled axes: y1, y2, x, R, z1, z2 - Tool clamping top and bottom

Condition: as good as new (ex-display), Year of construction: 2023, The environmentally friendly CNC servo press brakes from WEINBRENNER, model series WPS, represent a maximum improvement on the previous hydraulic standard machines. Up to 60 % energy savings and higher angular accuracy. The tool holder corresponds to the AMADA system, as do the tools. The stability of the press is optimized by the closed frame construction To compensate for deflection, the press is equipped with a motorized, CNC-controlled table crowning system (System WILA). Technical data: Maximum press capacity: 50 tons Bending length: 2040 mm Table width: 60 mm Table width with WILA lower tool: 90 mm Table height from floor: 930 mm Installation height: 590 mm Max. Press stroke: 300 mm Lowering speed: 150 mm/sec. Pressing speed: 10 mm/sec. Retraction speed: 150 mm/sec. Max. utilization range backgauge (X axis): 750 mm Max. utilization range backgauge (R axis): 160 mm Adjustment speed of the backgauge in the X-axis, servomotor: 330 mm/sec. Positioning accuracy of the backgauge: +/- 0.03 mm Motor power: 2x 5.5 kW Equipment / standard accessories: - CNC control " ESA S875-2D". This enables easy graphic programming of products. After one the control unit calculates the bending sequence and all axis positions (including collision warning), 15" TFT color display touch screen, USB interface, network connection, tool directory for 50 punches and dies each. Gjdsth U Edspfx Afpeuh Graphic 2D programming, 2D display while working, maximum 4 axes + auxiliary functions. - Arm adjustable in height and sideways in 2 axes for ergonomic and convenient operation of the CNC control. - Split upper tool, "Amada" system, manufacturer Italy, material C 50 (HRC 50-52) induction-hardened and ground on the working surfaces. ground on the working surfaces. Load capacity: 100 to per meter. Standard delivery: Pitch: 2 x 835 mm, horn left and right each 100 mm each, rest in smaller pitch. Height 66.6 mm - Bottom tool / 4-fold prism cube CroMo 4, ground 60x60 mm, V-openings standard: 16 - 22 - 35 - 50 mm - 2-axis backgauge "X - R", AC servomotors, travel: X=0 mm, R=160 mm, positioning accuracy + / - 0.03 mm, Travel speed: 330 mm / sec. Including 3 laterally adjustable stop fingers - Laser protection "FIESSLER" with 2-fold beam, type AKAS / LCII, operation of the press only possible with foot pedal. - Automatic motorized table crowning system WILA, integrated in the CNC - front sheet supports (2 pieces) can be moved laterally via linear guide, height adjustment with handwheel. Equipped with wide brush supports - German operating instructions with spare parts list - CE conformity

Condition: ready for operation (used), Year of construction: 2008, Pressing force: 3200kN, enlarged stroke: 810mm, working width: 4050mm, ram speed: downwards: 130mm/s, pressing: 6.5mm/s, upwards: 75mm, stop time: 109ms, safety distance: 174mm, weight: approx. 29000kg, operating hours: 16010h, control: Cybelec ModEva 15S. Including 4 bending aids and angle measuring sensor. Dies, embossing tools, pointed punches, roe foot punches, closing bar, extension for upper tool, radius tool and adapter available on request. Documentation available. Gujdpfx Aswxb Igjfpjh

Year of construction: 1967, condition: good (used), Conversion 2000 hydraulics and electrics, table 3600x400 Guodjlml Drepfx Afpeh

Condition: ready for operation (used), functionality: fully functional, Year of construction: 1999, overall weight: 22,800 kg, pressing force: 250 t, CNC press brake Manufacturer: Weinbrenner Type: GP250 Machine specification:- Crowning -Matrix displacement Godpfx Afsr Sxq Rspeuh -Rear stop type 2 -Front bending aid (removed for transportation) -DNC 900PS control unit All documentation for the machine is available.

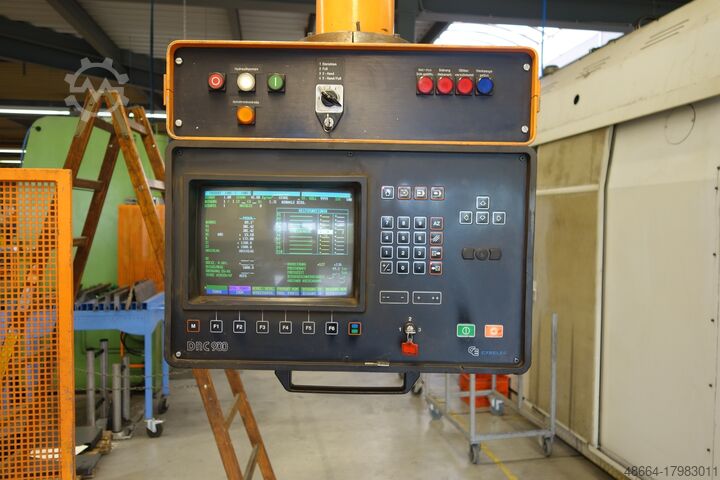

Condition: ready for operation (used), functionality: fully functional, Year of construction: 1998, working width: 3,050 mm, stroke length: 300 mm, distance between stands: 2,550 mm, pressing force: 125 t, PRESS FORCE: 200 tones BENDING LENGTH: 3050 mm DISTANCE BETWEEN COLUMNS: 2550 mm BEAM STROKE: 320 mm CNC CONTROL: DNC 900 Cybelec BACK GAUGE: 5 axes motorised (X1-X2, Z1-Z2, R) Guedjvf Hvdspfx Afpsh BACK GAUGE FINGERS: 2 with support BENDING AID: 2x TOOL CLAMPING: Hydraulic, Weinbrenner type CROWNING: Hydraulic, automatic SHIFTING DOWN TOOLS: 4 positions (foldingand bending without retooling) YEAR OF CONSTRUCTION: 1996 BENDING TOOLS: 1 set used

Condition: ready for operation (used), functionality: fully functional, Year of construction: 1992, actuation type: hydraulic, controller model: Cybelec ModEva Pac, bending force (max.): 200 t, working width: 3,050 mm, stroke length: 274 mm, TECHNICAL DETAILS Press force: 200 t Bending length: 3,050 mm Distance between uprights: 2,550 mm Ram stroke: 274 mm Gedpfx Aow Rci Usfpsuh MACHINE DETAILS Control: Cybelec ModEva Pac Approx. machine weight: 17,000 kg EQUIPMENT 2 bending aids in front of the machine Fiessler light barrier in front of the machine Foot switch

Condition: ready for operation (used), functionality: fully functional, Year of construction: 1995, working width: 2,050 mm, stroke length: 324 mm, pressing force: 63 t, PRESS FORCE: 200 tones Godpfjvf Hk Isx Afpsuh BENDING LENGTH: 3050 mm DISTANCE BETWEEN COLUMNS: 2550 mm BEAM STROKE: 320 mm CNC CONTROL: DNC 900 Cybelec BACK GAUGE: 5 axes motorised (X1-X2, Z1-Z2, R) BACK GAUGE FINGERS: 2 with support BENDING AID: 2x TOOL CLAMPING: Hydraulic, Weinbrenner type CROWNING: Hydraulic, automatic SHIFTING DOWN TOOLS: 4 positions (foldingand bending without retooling) YEAR OF CONSTRUCTION: 1996 BENDING TOOLS: 1 set used

Condition: used, Year of construction: 2002, Pressure 250 t Bending length 3550 mm Frame width 3000 mm Control Cybelec DNC 1200 Machine weight approx. 18,500 kg Space requirement approx. 4300x2750x3750 mm Accessories: Gsdpfx Aswn Ebijfpjuh - 2-hand foot switch - Lasersafe Fisseler - Hydraulic tool clamping top and bottom - Die shifting - Hydraulic crowning - Support arms - Control Cybelec DNC 1200 - 1 set of upper and lower tools - Controlled axes y1, y2, x, r, z1, z2, back gauge tilt - Safety guard

Condition: ready for operation (used), functionality: fully functional, Year of construction: 1998, machine/vehicle number: 1596, working width: 3,050 mm, stroke length: 324 mm, distance between stands: 2,550 mm, pressing force: 200 t, PRESS FORCE: 200 tones BENDING LENGTH: 3050 mm Gedpfxevf E Irs Afpouh DISTANCE BETWEEN COLUMNS: 2550 mm BEAM STROKE: 320 mm CNC CONTROL: DNC 900 Cybelec BACK GAUGE: 5 axes motorised (X1-X2, Z1-Z2, R) BACK GAUGE FINGERS: 2 with support BENDING AID: 2x TOOL CLAMPING: Hydraulic, Weinbrenner type CROWNING: Hydraulic, automatic SHIFTING DOWN TOOLS: 4 positions (foldingand bending without retooling) YEAR OF CONSTRUCTION: 1996 BENDING TOOLS: 1 set used

Condition: used, Year of construction: 1973, pressure 200 t chamfer lenght 3600 mm distance between columns 2650 mm Gujdpfxot I D U Es Afpjh dayligth 500 mm throat 300 mm stroke 250 mm working feed 10,5 mm/sec return speed 100 mm/sec ram stroke speed 150 mm/sec table height 900 mm oil volume 500 l total power requirement 37 kW weight of the machine ca. 17800 kg dimensions of the machine ca. 3710 x 1800 x 3390 mm - DELEM CNC control DA69 - controlled axes: Y1 + Y2 + X + R + Z1 + Z2 - hydr. bombing device - Electric back stop, travel range 600 mm - hydr. Upper tool holder standard R - hydr. Lower tool holder standard R - front laser protection device FIESSLER - 2x CNC electrically movable stop fingers, foldable - side + rear protection device - 1x set of upper tools - Hand and foot controls - Operation manual

Condition: used, Year of construction: 1988, pressure 100 t chamfer lenght 2050 mm distance between columns 1550 mm throat 250 mm stroke 200 mm adjustment of press crosshead 200 mm stroke speed - idle stroke downwards 105 mm/sec stroke speed - idle stroke upwards 180 mm/sec stroke speed - under load 9,5 mm/sec Gusdotqqyqopfx Afpjh table width 200 mm table height over floor 900 mm dayligth 280 - 480 mm back stop - adjustable 3 - 729 mm control CYBELEC SYNCHRO control CNC 7400 PS total power requirement 7,5 kW weight of the machine ca. 10 t dimensions of machine L x W x H 3,70 x 2,00 x 2,80 m - 4 axis controlled - Accessories: programmable back gauge, table extensions, various upper and lower dies segments

Condition: used, Year of construction: 1984, Technical details: pressure: 50 t chamfer lenght: 2550 mm distance between columns: 2045 mm throat: 250 mm stroke: max. 170 mm back gauge - adjustable: ca./approx. 800 mm Gjdpeu Ib D Ejfx Afpouh control: DELEM DA 24 e stroke speed - idle stroke upwards: 80 Hub/min stroke speed - idle stroke downwards: 160 Hub/min total power requirement: ca./approx. 7,5 kW weight of the machine ca.: 6,2 t machine dimensions LxWxH: 3,3x1,8x2,7 m - back gauge motorized adjustable - crowning - biggest distance between table and bottom edge of the ram = 600mm - smallest distance between the table and the lower edge of the ram = 430mm The machine has a control malfunction ( DELEM) and will be sold as is! i.D. *

Condition: used, Year of construction: 1995, pressure 80.0 t chamfer lenght 2050 mm distance between columns 1550 mm column arm 250 mm table width 85.0 / 135 mm stroke ca. 390 mm dayligth ca. 585 mm ajustment speed 180 mm/sec working feed 1.0 - 10.0 mm/sec return speed 135 mm/sec work height max. 1050 mm Number of working hours 32.495 h oil volume 200 l Gedpfexachusx Afpeuh operating pressure 320 bar total power requirement 11.6 KW weight of the machine ca. 7300 kg range L-W-H 3700 x 2000 x 3000 mm Good/well-maintained condition (!!) - in checked conditions - machinevideo - ?v=IKyUmzB0WTI ----- CNC electro-hydraulic press brake with: * Increased installation height .. approx. 550 mm * Increased cylinder stroke .. approx. 390 mm ----- Features: - Robust electro-hydraulic press brake * MADE IN GERMANY (!!) - CYBELEC CNC control "DNC 904 PS-A" (SN 0332) * Pivoting, front right * High-resolution graphic display * Clear, easy-to-read menus in the operator's language * Large tool and product library * Graphic 2D programming * Automatic bending sequence calculation - CNC-controlled axis adjustment: Y1+Y2 / X / R axes - CNC electro-motorized backgauge (X axis) * With 4 manually adjustable stop fingers - CNC Electric height adjustment (R axis) - WEINBRENNER electro-hydraulic upper tool clamp - WEINBRENNER electro-hydraulic lower tool clamp - 1x freely movable 2-hand/foot control - 2x front, movable support arms - Side safety device (swinging doors) - Rear safety device (swinging doors) - Machine/control manual + circuit diagram

Year of construction: 1987, condition: used, machine/vehicle number: 687 T, working width: 3050 mm metal sheet thickness: 6 mm throat: 200 mm rear stop: 1000 mm power: 15 kW space needed: 4100 x 2300 x 2100 mm Gusdpfx Afsb N Erbepjh weight: 8500 kg

Year of construction: 1970, condition: ready for operation (used), Working width: 3050mm, material thickness: 6mm, throat depth: 200mm, back gauge adjustment: 1000mm, drive power: 15kW, cutting angle range: 1°-2°, table height: 900mm. Machine dimensions X/Y/Z: approx. 4100mm/2300mm/2100mm, weight: approx. 8500kg. On-site inspection is possible. Gsdpfx Aovr Efdofpjuh

Condition: good (used), functionality: fully functional, Year of construction: 1995, Working width 3,050 mm Cutting thickness up to 6 mm Stand width 3290 mm Blade length 3090 mm throat 200 mm DNC7000 control unit Table height 900 mm Guodpow R Tbzofx Afpjh Cutting angle 1 - 2° Oil tank volume 210 liters Electrical power 15 kW Speed 1465 rpm Space requirement L/W/H 4,820 x 6,400 x 2,100 mm Weight 9,450 kg

Year of construction: 1970, condition: used, Hand guillotine shears, guillotine shears, sheet metal shears, sheet metal shears, folding machine, edging bench -Hand guillotine shears combined with: folding machine -Cutting width: 610 mm -Max. Section thickness: 1.0 mm -Swivel bending machine -Max. Working width: 610 mm -Max. Sheet thickness: 1.0 mm -Transport dimensions: 845/910/H1230 mm Gedpfxsd E R R So Afpsuh -Weight: 240 kg

Year of construction: 1981, condition: used, working width: 4100 mm metal sheet thickness: 16 mm throat: 300 mm rear stop: 1500 mm power: 400 V, 45 kW space needed: 4800 x 3500 x 2600 mm weight: ca. 28000 kg Gjdpfx Afs Dig Dopeuh
