Used Charmilles Wire Edm Machine for sale (73)

Condition: ready for operation (used), Year of construction: 2001, operating hours: 25,539 h, functionality: fully functional, machine/vehicle number: 0.2633/331852, workpiece weight (max.): 500 kg, travel distance X-axis: 400 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 200 mm, total height: 200 mm, total length: 800 mm, total width: 500 mm, workpiece height (max.): 200 mm, type of input current: three-phase, overall weight: 2,200 kg, table load: 500 kg, positioning accuracy: 0.005 mm, Equipment: cooling unit, documentation/manual, fridge, CHARMILLES TECHNOLOGIES from 2001 Model: ROBOFIL 290 P 0.25MM AND 0.30MM WIRE EROSION MACHINE MAKE AN OFFER TO BUY BACK Features: - Maximum part dimensions: 850 x 500 x 200 [mm] Fodpfx Aev Rfm Segmjft - Maximum weight: workpiece weight: 500 [kg] - X x Y x Z strokes: 400 x 250 x 200 [mm] - U x V stroke: 400 x 250 [mm] - clearance/height angle: ±30 [°] / 200 [mm] - wire diameter: 0.25 [mm] - acceptable coil types: P3 and P5 - tank capacity: 300 [l] - generator: 10 [kVA] - 400/400V isolation transformer - dimensions: 1800 x 1600 x 2130 [mm] - weight: 2200 [kg]

Condition: reconditioned (used), Year of construction: 2017, operating hours: 6,900 h, functionality: fully functional, travel distance X-axis: 350 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 300 mm, Max. Workpiec dimesion 1200 x 850 x 450mm Workpiece wight max. 1600 Kg Fjdpfjv Ai Ukex Agmjft Travel X 600 mm Y 400 mm Z 450 mm C 360 ° Year 2017 Toolchanger 16 Elektrodes RTC

Condition: ready for operation (used), Year of construction: 2010, functionality: fully functional, GF Charmilles EDM FO 550 Sp c/w ATC 16 - 2 units Year 2010 c/w RTC 16 (Robot Tool Change) X-Axis Travel 600mm Y-Axis Travel 400mm Z-Axis Travel 450mm Control Charmilles Touch Tool Changer - RTC16 Ffedpfx Ajx Hp Ukjgmjt Power Source 64 AMP C-Axis - Yes Chuck System 3R

Condition: used, Year of construction: 2003, Diesinking / EDM Travel distance X: 350 mm Travel distance Y :250 mm Travel distance Z: 300 mm table size X: 500 mm table size Y: 400 mm max. workpiece size X: 780 mm Fsdpfx Aovyzf Nogmsft max. workpiece size Y: 530 mm max. workpiece size Z: 300 mm max. electrode weight: 50 kg max. workpiece weight: 500 kg electrode changer: 4 - time generator: 64 Ampere drop tank control Charmilles

Condition: excellent (used), Year 1998 Table size 397 x 300 mm Longitudinal movement 300 mm Transverse movement 250 mm Vertical movement 250 mm Tool changer 4 EROWA holder Magnetic plane, 405 x 200 mm Ffsdpfxovzk Nme Agmot Cooling water system

Condition: used, Year of construction: 2008, operating hours: 5,900 h, travel distance X-axis: 350 mm, travel distance Y-axis: 220 mm, travel distance Z-axis: 220 mm, Wire Diameter 0,1-0,3 mm Fjdpjwzyr Ajfx Agmeft Automatik Threading Working Hours 5900 Std Verfahrwege X 350 mm Y 220 mm Z 220 mm U 350 mm V 220 mm Year 2008

Condition: ready for operation (used), Year of construction: 2010, Agie Charmilles RoboForm 550 Sp Year 2010 c/w RTC 16 (Robot Tool Change) X-Axis Travel 600mm Y-Axis Travel 400mm Z-Axis Travel 450mm Control Charmilles Touch Tool Changer - RTC16 Power Source 64 AMP Ffedpfx Aex Hc Uwjgmet C-Axis - Yes Chuck System 3R Video upon request

Condition: excellent (used), Year of construction: 2001, operating hours: 27,265 h, functionality: fully functional, Charmilles Roboform 35 with QCRI robot Year of manufacture: 2001 Operating hours: 27,265 X, Y, Z travel: 355 x 255 x 305 mm C-axis with Erowa chuck Erowa chuck on the table Erowa probe Magnet 3 x aluminium Erowa pallets 320 x 320 mm 35 x electrode holders 50 x 50 mm Fedsxvq Tdspfx Agmjft QCRI robot 4 x pallet positions on the table 54 x electrode holder locations Documentation and diskettes Machine powered up for inspection

Year of construction: 2004, condition: repair required (used), X-axis: 800 mm // 900 mm/min Y-axis: 600 mm // 900 mm/min Z-axis: 400 mm // 900 mm/min U/V: 60 mm Workpiece: X: 1300 mm Workpiece: Y: 910 mm Workpiece: Z: 400 mm Max. table load: 2,300 kg Main electronic connection: 400 V / 50 Hz / 3P Total power requirement: 10 KVA Air pressure: 6 bar Dielectric tank: 250 liters Technical attributes Z-motion: 400 mm X-motion: 800 mm Y-motion: 600 mm Weight approx.: 4,700 kg Approx. onsite dimensions (L x W x H): 1,950 x 2,550 x 2,000 mm. Manuals and documentation included. Not working; we suspect the power supply. Mechanical condition is very good. Ffodpfx Agox Hxiksmet

Condition: ready for operation (used), 2 KEER OP VOORRAAD Tabledimensions / T slots: 398,8 × 299,7 mm Tank dimensions: 208,2 L Longitidinal displacement X-axes: 300 mm Transversal displacement Y -axes: 200 mm Vertical displacement Z-axes: 250 mm Max weight on table: 350 kg Ffsdpfx Ajx Imk Sogmet

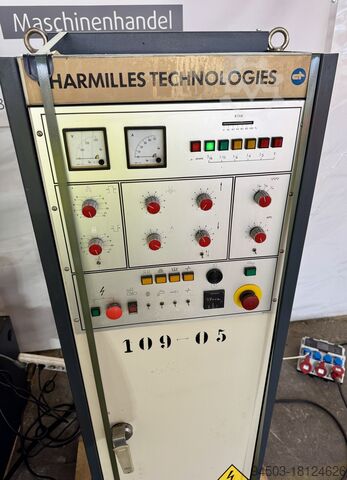

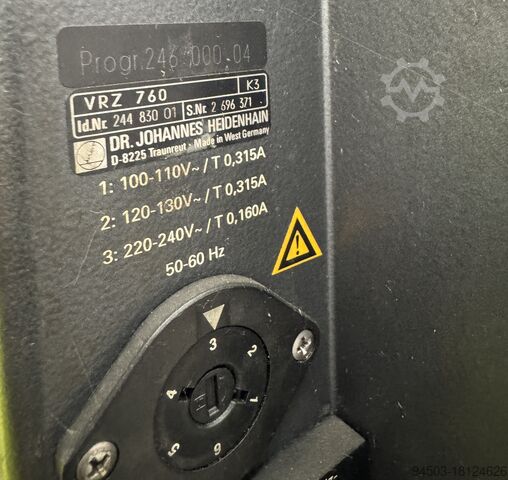

Condition: used, Year of construction: 1992, functionality: unexamined, travel distance X-axis: 300 mm, travel distance Y-axis: 200 mm, travel distance Z-axis: 150 mm, workpiece weight (max.): 500 kg, Sinker EDM Machine CHARMILLES TECHNOLOGIES FORM 2-LC For sale is a precise and reliable sinker EDM machine, model Charmilles FORM 2-LC. This model is renowned for its compact design and high efficiency in tool and mold making. Ffodpfjvld Iwsx Agmet Manufacturer: Charmilles Technologies Model: Form 2 – LC Year: 1992 Generator: 50A Space requirement: 1200 x 1300 x 2200 mm (LxWxH) Weight: 1100kg Work tank: 800 x 480 x 250 mm (LxWxH) Travel X/Y/Z: 300 x 200 x 150 mm Electrode weight: max. 60 kg Workpiece weight: max. 500 kg Equipment: - 3-axis digital display Heidenhain VRZ 760 - System 3R clamping system - Machine light - Fire extinguishing system The machine can be demonstrated under power on site. All information without guarantee Errors and prior sale reserved.

Condition: used, Year of construction: 2012, functionality: fully functional, rapid traverse X-axis: 36 m/min, rapid traverse Y-axis: 36 m/min, rapid traverse Z-axis: 25 m/min, nominal power (apparent): 16 kVA, torque: 95 Nm, controller manufacturer: Heidenhain, controller model: iTNC530, workpiece weight (max.): 1,100 kg, table width: 500 mm, table length: 800 mm, rotational speed (max.): 16,000 rpm, overall weight: 5,000 kg, spindle speed (max.): 16,000 rpm, spindle motor power: 18 W, tool length: 305 mm, tool diameter: 77 mm, input voltage: 400 V, type of input current: three-phase, Equipment: chip conveyor, documentation/manual, We offer this used AGIE CHARMILLES MIKRON VCE 800X PRO vertical machining center, year of manufacture 2012. Year of manufacture: 2012 Control: iTNC530 Supply voltage: 3x400 VAC + PE Frequency: 50/60 Hz Protection current: 32 A Control voltage: 24 V DC Connected load: 16 kW Noise level: 76 dB(A) Weight: 5000 kg Power factor cos φ: 0.9 Serial number: 1033618 Revision: V6.2 Documentation valid as of: 17.03.2010 Prepared for 4th-axis as well as additional Lehmann 4th axis Ffedpjx Nikwjfx Agmjt Complete, fully enclosed machine cabin • Two side windows, large front doors • Efficient work area lighting • Telescopic covers for X, Y, and Z axes • Spiral chip conveyor with mechanical double filter • Automatic central lubrication • Side-mounted tool changer • Manual washdown gun • Manual compressed air gun • Machine status signal lamp • 10,000 rpm spindle (Pro-X 16,000 rpm) • Water-cooled spindle head • Active spindle chiller (14,000 / 16,000 rpm) • Side chip flushing system (Mikron VCE 600Pro – MIKRON VCE 1400Pro) • Coolant and air nozzles on the spindle head • Extendable coolant tank • Threading without compensating holders • Heidenhain iTNC530 control • Portable electronic handwheel • Heidenhain smart.NC • Tool management for up to 30,000 tools • Ethernet network connection and RS-232 interface • Prepared for additional options If you have any questions or need further information, please send us a message or contact us by phone.

Year of construction: 2001, condition: used, CHARMILLES, year of manufacture approx. 2001 Fodpfx Aoxr U Hmjgmsft

Condition: excellent (used), Year of construction: 1996, General Characteristics Total weight: 5,000 kg Maximum height: 2,900 mm Movements X-axis travel: 800 mm Y-axis travel: 600 mm Z-axis travel: 500 mm Positioning resolution: 0.001 mm Min/max traverse speed XYZ: 0/900 mm/min Standard glass optical scale Work Tank Dimensions (LxWxH): 1,500x1,000x600 mm Table dimensions: 1,200x800 mm Maximum distance between table and electrode holder spindle: 230/730 mm Table-to-floor distance: 750 mm Electrode Electrode weight on Z-axis: - Interface system: 350 kg - With C-axis and spindle: 50 kg Workpiece Ffedjxwmbtepfx Agmjt Maximum workpiece weight on table: 4,200 kg Maximum workpiece dimensions: 1,450x950x500 mm Dielectric Tank Capacity: 1,600 l Filtration system: paper filter Work tank capacity: 1,050 l Generator Maximum working current (peak): 128 A Pulse type: ISOPULSE Machine equipped with: • Multifunction remote control • Measuring cycles • Contouring • PROGRAM EXPERT 2 • PILOT EXPERT 2 • SPAC generator Year of manufacture: 1996

Condition: ready for operation (used), Year of construction: 2015, operating hours: 10,615 h, functionality: fully functional, machine/vehicle number: 108.007.00.0065, travel distance X-axis: 1,600 mm, travel distance Y-axis: 900 mm, travel distance Z-axis: 800 mm, table load: 2,000 kg, spindle speed (max.): 10,000 rpm, The payment deadline for the machine is November 20, 2025! Placing a bid obligates you to collect the machine on time, between December 1, 2025 and December 5, 2025! Ffedsxnkqaepfx Agmjt Transport dimensions of the machine body (L x W x H): 4,500 x 2,900 x 3,200 mm TECHNICAL DETAILS Work Areas Travel X-axis: 1,600 mm Travel Y-axis: 900 mm Travel Z-axis: 800 mm Feed Drive Feed rate X-axis: 14 m/min Feed rate Y-axis: 14 m/min Feed rate Z-axis: 12 m/min Rapid traverse X-axis: 24 m/min Rapid traverse Y-axis: 24 m/min Rapid traverse Z-axis: 20 m/min Work Table Table dimensions: 1,700 x 850 mm Maximum table load: 2,000 kg Number of T-slots: 7 T-slot spacing: 100 mm Distance spindle nose–work table: min. 100 mm / max. 900 mm Spindle speed: max. 10,000 rpm Tool holder: ISO 40 Number of magazine slots: 30 Max. tool diameter without adjacent free spaces: 85 mm Max. tool diameter with adjacent free spaces: 150 mm Max. tool length: 305 mm Max. tool weight: 6 kg MACHINE DETAILS Control: HEIDENHAIN TNC 620 Dimensions & Weight Dimensions (L x W x H): 4,600 x 3,900 x 3,300 mm Weight: 16,000 kg Transport dimensions of the machine body (L x W x H): 4,500 x 2,900 x 3,200 mm However, the height can be reduced to 2,900 mm. Coolant system Capacity: 540 l Operating Hours Spindle hours: 10,615 h Power-on hours: 30,204 h EQUIPMENT 3D probe Technical documentation

Condition: reconditioned (used), Year of construction: 2007, operating hours: 16,730 h, functionality: fully functional, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 450 mm, workpiece weight (max.): 1,600 kg, total height: 275 mm, total width: 300 mm, total length: 300 mm, table width: 750 mm, Charmilles FO550S. 16-position rotary tool changer. Erowa ITS50 chuck. Machine currently being serviced at our premises in Semsales, Switzerland. Inspection possible upon request. Further information available on request. Ffjdpfxoxmidpe Agmst

Condition: used, TECHNICAL DETAILS - Travels on X/Y/Z axes : 400 x 300 x 350 [mm] - Rapid traverses rates (X/Y/Z) : 6 / 6 / 15 [m/min] - Min./max. distance between table and chuck : 170 / 520 [mm] - Max. part dimensions : 820 x 580 x 250 [mm] - Max. part weight : 800 [kg] - Max. electrode weight : 50 [kg] - C axis : 0 - 100 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 9.1 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 4.700 x 2.750 [mm] - Machine height : 2.680 [mm] - Machine weight : 3.830 [kg] - Number of working hours : 13659 [h] EQUIPMENT - CNC : AGIEVISION 5 - Workpiece loading / unloading robot - Spindle nose : EROWA Fjdpfx Agjwl Rh Nemsft - Dielectric capacity : 600 [l]

Condition: ready for operation (used), Year of construction: 2005, Pallet changer TOOLPAL 3 R 12 compartment Fodpfxsr Hngle Agmoft

Condition: refurbished (used), Year of construction: 2004, functionality: fully functional, travel distance X-axis: 350 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 300 mm, workpiece weight (max.): 500 kg, Charmilles Roboform 350 Year of manufacture 2004 C-frame design Fixed table with retractable tank Travel: X=350 mm, Y=250 mm, Z=350 mm Max. workpiece size: X=780 mm, Y=530 mm, Z=300 mm Ffodpfxowxwm Eo Agmjt Max. workpiece weight: 500 kg Max. electrode weight: 50 kg Distance table - chuck: 150 - 450 mm Working current 64 Amps Best achievable surface finish Ra 0.1 µm Integrated Accura C-axis Linear glass scales with 0.05 µm measuring resolution Incl. pneumatic chuck Erowa ITS 50 Incl. 16-fold rotary electrode changer Machine weight (net): 2800 kg Machine dimensions (L x W x H): 1900 x 1690 x 2522 mm The machine will be cleaned, serviced, and subsequently tested after receipt of order. We are also happy to commission the machine for you.

Year of construction: 2001, condition: good (used), functionality: fully functional, Machine extensively overhauled worth EUR 18,000 Optional configuration QCRI 54/8: available, see pictures placement automation: available, see video Pressure flushing: 1 x through workpiece 1 x through electrode, 2 x lateral Suction flushing: 1 x through workpiece Central lubrication system automatically via NC in all axes TECHNICAL DETAILS Travel (X, Y, Z): 350, 250 300 mm Max man. Feeding speed: 900 mm/min Weight of electrodes: max. 20 kg Weight of workpieces: max. 40 kg Magazine configuration: 54/8 electrodes: 54 pieces Electrode dimensions: 70 x 70 x 200 Plates: 8 pieces Ffodpfen Arnxex Agmst workpiece dimensions: (4x) 320 x320 x 270 mm, (4x) 320 x 320 x 170 mm work table: 500 x 400 mm T-slots: 3 x 12 mm distance of grooves: 125 mm Available clamping systems: Erowa IST 3R Macro Megatool GPS 70 MACHINE DETAILS Dimensions (H x L x W): 2400 x 1900 x 1690 mm

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, machine/vehicle number: 667007, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 450 mm, controller model: Windows Pentium, TECHNICAL DETAILS X-axis: 600 mm Ffedpfx Agev Tnm Hsmst Y-axis: 400 mm Z-axis: 450 mm Resolution: 0.0001 mm Tank size: 1,220 x 870 x 470 mm Working area Table dimensions: 750 × 600 mm T-slot dimensions (number): 12 mm (5 pieces) Distance between table and fixture: 150 - 600 mm Electrode and workpiece Max. electrode weight: 100 kg Max. workpiece weight: 1,600 kg Max. workpiece dimensions (W × D × H): 1,200 × 850 × 400 mm Dielectric Filter type: 8 integrated paper cartridges Tank capacity: 820 l Dielectric level: 145 - 440 mm (programmable) Container type: Lowerable tank Surface roughness: 0.20 µm Ra MACHINE DETAILS Weight: 4,400 kg Operating voltage: 400 V Installation dimensions: approx. 3,720 x 5,100 x 3,000 mm

Condition: refurbished (used), Year of construction: 1998, operating hours: 20,800 h, functionality: fully functional, travel distance X-axis: 350 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 300 mm, Machine currently undergoing revision at our facility in Semsales, Switzerland. Erowa ITS50 chuck. 16-position rotary tool changer, double gripper. Flat LCD screen. Retractable work tray. Inspection possible upon request. More details available on request. Fsdpfjxlhudsx Agmoft

Condition: good (used), Year of construction: 2012, functionality: fully functional, travel distance X-axis: 400 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 350 mm, table width: 400 mm, table length: 600 mm, TECHNICAL DETAILS Travel paths of axes X / Y / Z: 400 x 300 x 350 mm Positioning speed of axes X / Y / Z: 6 / 6 / 15 m/min Positioning speed in manual mode of axes X / Y / Z: 2 m/min Acceleration of axis Z: 10.0 m/s² Resolution of axes X / Y / Z: 0.1 µm Laser correction of axes X / Y / Z: linearity / angle / spindle pitch Integrated C-axis Max. electrode weight: 50 kg Rotational speed: 0 -100 g/min Max. mass moment of inertia: 5,000 kg cm² Max. working current: 140 A (in rotation mode) Max. working current: 140 A (static) Positioning accuracy according to ISO 230-2: 0.007° Resolution: 0.0005° Dielectric unit Capacity: 490 l Filter type: 4 cartridges Cooling system: Heat exchanger dielectric / water Temperature control: ±1 °C automatic Generator Generator type: ISPG (Intelligent Speed Power Generator) Pulse current: 80 A Best surface roughness Ra: 0.1 µm IQ module (graphite, copper): integrated Control Operating system: Windows XP Data input: 15" LCD screen, mouse or touchscreen, keyboard and remote control User interface: Vision 5 Work area Clamping plate with hole pattern: Hole spacing 50 mm Distance table - chuck: 170 - 520 mm Fodpevuqmfefx Agmjft Distance floor - clamping level: 1,000 mm Max. table size: 600 x 400 mm Max. work basin dimensions: 900 x 630 x 350 mm Workpiece and electrode Max. electrode weight: 50 kg Max. workpiece weight: 800 kg Max. workpiece dimensions: 820 x 580 x 250 mm Bath level: 0–290 mm Compressed air Pressure: 6 - 8 bar Average consumption: 100 ± 10 % m³/h Max. consumption: 270 l/min at a pressure of 6 bar while filling the work tank (duration approx. 40 s) Connection: hose coupling Ø 13 mm Cooling water Temperature: room temperature - 7 °C Quantity: approx. 20 l/min Pressure: 1.5–3 bar Cooling and environment Heat exchanger for control cabinet: integrated Heat exchanger for dielectric: integrated Ambient temperature: recommended 20 °C - 25 °C MACHINES DETAILS Machine dimensions: 2,460 x 1,410 x 2,600 mm Dimensions with electrode changer: 2,460 x 2,100 x 2,600 mm Dimensions with pallet changer: 2,460 x 2,630 x 2,600 mm Weight Total weight: 3,830 kg Dielectric weight: 400 kg EQUIPMENT 1 heat exchanger for control cabinet, integrated. 1 heat exchanger for dielectric, integrated.
