Used Kunzmann Milling Machine for sale (80)

Condition: reconditioned (used), Year of construction: 1999, Universal tool milling machine Make: KUNZMANN Model: WF 4/3 Year of manufacture: 1999 - partially overhauled, newly painted, RAL7035 light gray / RAL3027 raspberry red RAL7016 anthracite gray Mach. no.: 343006 with guarantee geometric acceptance with test report Accessories: - HEIDENHAIN TNC 124 path control - HEIDENHAIN HR 330 electronic handwheel - Fixed table 640 x 350 (T-slot: 14 mm) - Vertical milling head SK 40 Bjdpfxsub R R Ss Ai Tjdi with hydraulic tightening system ISO 7388 - Central lubrication, electric - Coolant system - Splash guard cabin, electrically secured - Control panel on the base - Operating instructions Used as seen The machine is technically corresponding to the state of the year of manufacture.

Condition: used, Year of construction: 1972, Milling machine used Make:Kunzmann Model: UF6N year of construction: 1972 Technical data: Table longitudinal travel automatic: 440 mm Table longitudinal travel by hand: 450 mm Transverse table travel 200 mm Table vertical travel horizontal/ vertical 465/500 mm Table size 860x240 mm Bedpfxeudb N Dj Ai Todi Table swivels 45° on both sides Distance table/spindle 430 mm Spindle holder ISA 30 Quill stroke 60 mm Tiltability of the spindle head +/- 90 18 spindle speeds horizontal 32-1342 rpm 18 spindle speeds vertical 72-2888 rpm 6 automatic feeds lengthwise 13.12-164 mm/min 6 automatic cross feeds 26.24-328 mm/min. Spindle drive 1.8/2.6 kW with inclinable vertical milling head/clamping vice/ Counter holder/collet chuck with collets Weight approx. 850 kg Dimensions approx. 1400x1900x1800 mm

Condition: used, Year of construction: 1995, - Heidenhain position display - Infinitely variable feed in all axes - rapid traverse in all axes - Hydraulic tightening system Bodpfxjvhfqrs Ai Todi - Rigid angular table - electric central lubrication - coolant system - workplace lighting - machine feet - year of construction 1995 Specifications Milling table: - Clamping surface: 650 x 350 mm - Clamping grooves: 5 - Slot width: 14 H7 - Groove spacing: 63 mm - Max. load: 250 kg Working range: - X-axis: 400 mm - Y-axis: 320 mm - Z-axis: 400 mm Max. Max. distances: - Top edge of table to horizontal spindle center: 140 - 540 mm - Max. table top edge to vertical head bottom edge: 430 mm Milling spindle: - Tool holder: SK40 - Vertical/horizontal speeds: 40 - 2550 rpm - Gear stages: 2 - Vertical quill stroke: 60 mm - Vertical head can be swiveled on both sides: 90 ° Feed rates: - Feed lengthwise & crosswise: 0 - 1000 mm/min - Rapid traverse lengthwise & crosswise: 4000 mm/min - Vertical feed: 0 - 1000 mm/min - Rapid traverse vertical: 3000 mm/min General data: - Drive power: 3 kW / 1410 rpm - Dimensions WxHxD: approx. 1600 x 1850 x 1350 mm - Weight: approx. 1300 kg

Condition: used, Year of construction: 1996, x-travel 400 mm y-travel 350 mm z-travel 400 mm Bdsdpow U U Siefx Ai Tji tool taper SK 40 spindle turning speed range 1,0 - 4.000 U/min feeds 0 - 2000 mm/min quill stroke 60,0 mm table-size 650 x 350 mm T-slots 14 H7 Control TNC 124 engine output 5,5 kW weight 1800 kg dimensions of the machine ca. 2000 x 1000 x 2100 mm New price ~ 55.000 euros (!!) Furnishing : - Universal tool milling machine - HEIDENHAIN pattern control TNC 124 - The control panel can be swiveled to the right of the machine - hydraulic tool changer (DIN 69872) - Vertical milling head - SK 40 - X-axis feed .. 0 - 2000 mm / min - Y-axis feed .. 0 - 2000 mm / min - Feed Z-axis .. 0 - 2000 mm / min - Central lubrication, electrical - coolant device - Chip tray - Operating instructions for machine + control Special accessories included: - hydraulic machine vice - many tool holders - HEIDENHAIN HR 410 electronic handwheel

Condition: ready for operation (used), Year of construction: 2026, travel distance X-axis: 610 mm, controller manufacturer: HEIDENHAIN, controller model: TNC 128, spindle speed (max.): 4,500 rpm, number of axes: 3, This new 3-axis KUNZMANN WF 610 M was manufactured in 2026. It features a longitudinal travel of 610 mm, cross travel of 400 mm, and vertical travel of 450 mm. The machine is equipped with an electronically regulated main drive for the vertical milling spindle and a rigid angle table with a clamping surface of 800 x 425 mm. If you are looking to get high-quality machining capabilities, consider the KUNZMANN WF 610 M universal machining centre. Contact us for further details. Bdedpj Afzixofx Ai Tji - New Machine- Main drive: Electronically regulated stepless main drive for vertical milling spindle- Spindle drive power: 8.5 kW (S1 - 100% ED) / 16.2 kW (S6 - 25% ED)- Tool interface: SK 40 DIN ISO 7388-1 Form AD (formerly DIN 69871 Form AD) with pull stud DIN ISO 7388-3 Form AD (formerly DIN 69872)- Feed drives: Electronically regulated stepless servo drive per axis- Rapid traverse rate X / Y / Z: up to max. 5 / 5 / 4 m/min (stepless)- Table type: Rigid angle table (Winkeltisch, starr)- Clamping surface: 800 x 425 mm- T-slots: 6 x 14 H7 (pitch / spacing: 63 mm)- Max. table load: 300 kg- Vertical milling head: Swivelling +/- 90°, manually extendable quill with lever, stroke 70 mm (clampable), speed-dependent air cooling- Tool clamping: Automatic mechanical tool clamping, clamping force 10,000 N (hydraulic release)- Measuring system: Distance-coded linear scale systems, direct, incremental, resolution 0.001 mm- Safety handwheels: In all 3 axes- Electronic handwheel: Portable HEIDENHAIN HR 510 FS with integrated axis selection keys, feed rate potentiometer, and emergency stop button (including bracket on control panel)- Operating voltage: 400 V / 3-phase / 50 Hz- Nominal current / Backup fuse: 20 A / 25 A- Connected load: 13 kVA - Control voltage: 24 V- Base machine installation weight: approx. 2,000 kg (including fluids, without options/tools)- Max. transport weight: 2,100 kg- Coolant system: Free-standing container, capacity 66 liters- Central lubrication: Automatic central lubrication system with separate, easily accessible residual oil container- Work light: LED flexible arm lamp- Machine leveling elements: 1 set = 4 pieces

Year of construction: 1990, condition: ready for operation (used), machine/vehicle number: 350119, table mounting size: 350 x 700 mm x-axis: 500 mm y-axis: 320 mm z-axis: 400 mm spindle retainer: SK 40 spindle rotations: 30 - 2500 rpm operating voltage: 380 V total energy requirement: 2,2 kW Bodpfx Ajgq Dclei Tsdi space needed: 1500 x 1500 x 1800 mm weight: ca. 1700 kg

Condition: reconditioned (used), Year of construction: 2008, Universal tool milling machine Manufacturer: KUNZMANN Model: WF 4/3 Year of manufacture: 2008 - partially overhauled, newly painted, RAL 7035 light gray / RAL 3027 raspberry red Machine no.: 344349 Warranty: 6 months Bdsdpfxjhikrrs Ai Tji Geometric acceptance with test report Accessories: - HEIDENHAIN TNC 124 linear control system - HEIDENHAIN HR 410 electronic handwheel - Fixed table 650 x 350 (T-slot: 14 mm) - Vertical milling head SK 40 with hydraulic clamping system DIN 69872 - Central lubrication, electric - Coolant system - Chip tray - Operating manual - used, as is -

Condition: reconditioned (used), Year of construction: 2002, Universal tool milling machine Make: KUNZMANN Model: WF 4/3 Year of manufacture: 2002 - partially overhauled, newly painted, RAL7035 light gray / RAL3027 raspberry red RAL7016 anthracite gray Mach. no.: 344025 with guarantee geometric acceptance with test report Accessories: - HEIDENHAIN TNC 124 path control - HEIDENHAIN HR 410 electronic handwheel - HEIDENHAIN KT 130 electronic 3D touch probe system for recording the workpiece position for determining workpiece reference points for measuring a finished part incl. Weldon chuck SK40/Ø 16 mm - universal table 650 x 395 mm (T-slot: 14 mm) can be swiveled around 3 axes Bdsdpfx Ajm Nbwtji Tji can be rotated 360° (as 4th axis digital displayed in the control) pivotable +/- 30° tilting range towards the machine 45° tilting range away from the machine 15° centering hole Ø 32 mm table load 150 kg - vertical milling head SK 40 with hydraulic tightening system DIN 69872 - central lubrication, electric - coolant system - splash guard cabin, travelling, electrically secured - operating instructions used as seen The machine is technically corresponding to the state of the year it was built.

Condition: excellent (used), Year of construction: 2004, operating hours: 5,238 h, functionality: fully functional, machine/vehicle number: 120007, travel distance X-axis: 1,200 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 750 mm, controller model: Heidenhain TNC 530, spindle speed (max.): 8,000 rpm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS X-axis travel: 1,200 mm Y-axis travel: 700 mm Z-axis travel: 750 mm Spindle speed: max. 8,000 rpm MACHINE DETAILS Control system: Heidenhain TNC 530 Operating hours: Spindle hours: 5,233.8 h Machine operating hours: 13,455 h Bedpfx Ais Afwxzj Tsdi Control system operating hours: 17,705 h

Condition: excellent (used), Year of construction: 1990, Manufacturer: Kunzmann Type: WF5/3 Year of manufacture: 1990 X-axis: 500 mm Y-axis: 360 mm Z-axis: 420 mm Clamping area: 700 x 350 mm Tool holder: SK40 Spindle bore: 22 mm Quill travel: 60 mm Dimensions: approx. W 1.50 x D 2.40 x H 1.90 m Weight: approx. 1.6 t Bsdpfx Aijffyfrj Tjdi All information is provided without guarantee. The machine is in very good condition. A demonstration can be arranged at any time in our showroom.

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, machine/vehicle number: 370483, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, spindle speed (max.): 5,000 rpm, controller model: HEIDENHAIN TNC 124, TECHNICAL DETAILS Travel X-axis: 600 mm Travel Y-axis: 400 mm Travel Z-axis: 400 mm Table length: 800 mm Table width: 425 mm Max. workpiece weight on table: 250 kg Distance between vertical spindle and table: 560 mm Spindle taper: SK 40 Max. spindle speed: 5,000 rpm Bdedpeyhnmtefx Ai Tji Swiveling range vertical milling head: ± 90° Feed rates: up to 2,000 mm/min Rapid traverse X-axis: 10 m/min Rapid traverse Y-axis: 10 m/min Rapid traverse Z-axis: 8 m/min Vertical quill stroke: 60 mm MACHINE DETAILS Control: HEIDENHAIN TNC 124 Connection: 50 Hz 3x 400 Volt Milling spindle motor: 5.5 / 7 kW Total power consumption: 15 kVA Dimensions & Weight Machine weight: approx. 1,800 kg Dimensions (L x W x H): 2,100 x 1,800 x 2,050 mm EQUIPMENT Rigid angle table Electronic handwheel Heidenhain probe Vertical milling head Full splash guard cabin Coolant system Machine lamp

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, CNC machining center Kunzmann WF 650 Control system: Heidenhain iTNC 640 Year of manufacture: 2015 Internal machine number: 67 Bsdpfx Aozwmbgsi Tjdi Travel ranges: X-axis 650 mm Y-axis 500 mm Z-axis 450 mm Rotary table C-axis: Ø 400 mm Tilting range A-axis: +120/-95° Rotational range C-axis: 360° Tool holder: SK 40 DIN69871 Tool magazine: 40 positions Spindle speed: 1 – 12,000 rpm Spindle tilting range: +5 / -92° - Coolant system - Internal coolant - Electronic handwheel HR 510 FS - Chip conveyor

Condition: used, Counter bearing, bearing block, pillow block, bearing for milling machine, upper support -Dovetail: 11 by 94 mm 16 mm high Bdeded Tx E Nepfx Ai Toi -Drawing: in the photos -Dimensions: 730/160/H110 mm -Weight: 28 kg

Condition: excellent (used), Year of construction: 2004, CNC MACHINING CENTER Kunzmann BA 1200 Year of manufacture 2004 Heidenhain TNC 530 Technical specifications: X-1200 Y-700 Z-750 Bdsdowm Dkyopfx Ai Tei Spindle max. 8000 rpm

Condition: ready for operation (used), Year of construction: 2001, spindle speed (max.): 4,000 rpm, controller manufacturer: HEIDENHAIN, controller model: TNC 124, number of axes: 3, This 3-axis KUNZMANN WF 4/3 was manufactured in 2001. It features a vertical spindle with a swiveling head, CNC-controlled X, Y, and Z axes, and a spindle taper of SK40. The spindle speed ranges from 0 to 4,000 rpm with rapid traverse rates up to 1,000 mm/min on all axes. Consider the opportunity to buy this KUNZMANN WF 4/3 universal machining centre. Contact us for more information about this machine. • Swivel head: ±90° • Spindle & drives (INDRAMAT): • Main spindle motor: 2AD104C-B050A1-CS06-A2N1 • Spindle taper: SK40 • Spindle bore: 22 mm • Quill diameter: 90 mm Bodpfxsya D Svj Ai Tsdi • Quill stroke: 60 mm • Axis drives: • X / Y / Z motor type: MKD071B-061-GG1-KN • Speed & feed: • Spindle speeds: • Range I: 0–1,000 rpm (stepped) • Range II: 1,001–4,000 rpm (stepless) • Rapid traverse: • X-axis: up to 1,000 mm/min • Y-axis: up to 1,000 mm/min • Z-axis: up to 1,000 mm/min • Feed force (X/Y/Z): approx. 4 kN • Electrical & control (INDRAMAT): • Power supply modules: • Net filter: NFD03.1-480-030 • Capacitor module: CZM01.3-02-07 • Controllers: • Spindle controller: DKC11.3-100-7-FW • Axis controller: DKC01.3-040-7-FW • Firmware versions: • Spindle: ESM 2.1-SMT-02V • Axes: ESM 2.1-SMT-02V Technical Specification Taper Size SK 40

Condition: ready for operation (used), Year of construction: 2005, Make: KUNZMANN Type of machine: WF 650 Year of manufacture: 2005 Bdedpfxjzawibs Ai Toi Control system: HEIDENHAIN iTNC 530 Machine's weight: 4.000 kg Tool holder: SK40 x-travel: 650 mm y-travel: 500 mm z-travel: 450 mm Speed range: 10.000 U/min max. Table load: 350 kg Overall dimensions: 3,0 x 2,5 x 2,6 m Table dimensions: 900 x 500 mm

Condition: ready for operation (used), Year of construction: 1998, travel distance X-axis: 400 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 400 mm, table width: 350 mm, table length: 650 mm, table load: 250 kg, spindle speed (max.): 2,500 rpm, number of axes: 3, This 3-axis KUNZMANN WF 4/3 was manufactured in 1998. It features a travel of 400 mm in the X, Y, and Z axes, with a table size of 650 x 350 mm and a maximum table load of 250 kg. The spindle speed reaches up to 2,500 rpm, providing efficient machining capabilities. If you are looking to get high-quality vertical machining capabilities, consider the KUNZMANN WF 4/3 vertical machining centre we have for sale. Contact us for further details. Bsdpezwxlwjfx Ai Todi • Travel X: 400 mm • Travel Y: 350 mm • Travel Z: 400 mm • Table Length: 650 mm • Table Width: 350 mm • Table Load: 250 kg • Spindle Speed: 2,500 rpm • Tool Holder: SK40 • Feed Rate: 2,000 mm/min • Rapid Traverse: 5,000 mm/min Technical Specification Taper Size SK 40

Condition: ready for operation (used), Year of construction: 2025, operating hours: 58 h, travel distance X-axis: 650 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 450 mm, controller manufacturer: HEIDENHAIN, controller model: TNC 640 HSCI, total height: 2,900 mm, total width: 2,650 mm, table width: 398 mm, table length: 398 mm, table load: 300 kg, overall weight: 5,500 kg, spindle speed (max.): 12,000 rpm, spindle motor power: 22,000 W, number of slots in tool magazine: 40, tool weight: 8,000 g, positioning accuracy: 0.005 mm, product length (max.): 2,900 mm, number of axes: 5, This 5-axis KUNZMANN WF 650 5AX was manufactured in 2025. It features a maximum spindle speed of 12,000 rpm and a tool magazine capacity of 40 tools. The machine has an impressive X-axis travel of 650 mm, Y-axis travel of 500 mm, and Z-axis travel of 450 mm. If you are looking to get high-quality machining capabilities, consider the KUNZMANN WF 650 5AX vertical machining centre we have for sale. Contact us for further details. • Control Unit Brand: HEIDENHAIN • Control Unit Model: TNC 640 HSCI • A-Axis Travel: +105° / -120° • C-Axis Travel: ±360° • Table Diameter: 398 mm • Maximum Spindle Speed: 12000 rpm • Tool Magazine Capacity: 40 tools • Rapid Feed X/Y: 25 m/min • Rapid Feed Z: 20 m/min • A-Axis Max. Speed: 25 rpm • C-Axis Max. Speed: 25 rpm • A-Axis Positioning Accuracy: ±5 arcsec • C-Axis Positioning Accuracy: ±5 arcsec • A-Axis Torque: 700 Nm • C-Axis Torque: 450 Nm • Control: HEIDENHAIN Conversational / DIN-ISO Programming • Machine Configuration: CNC Swivel Rotary Table (A/C Axis) • Spindle Cooling: Liquid Cooled Motor Spindle • Operating Hours (Program Run): 58 h Accessories: • 19" Touchscreen • HEIDENHAIN HR 510 FS Electronic Handwheel • Automatic Tool Changer • External Coolant System • Internal Coolant Through Spindle (Optional) • HEIDENHAIN TS460 Probe Preparation • TT460 Tool Measurement Preparation • SE661 Probe Receiver Extra Information • Showroom Machine • 12-Month Warranty • Retrofitting and Commissioning Available on Request (Additional Cost) Bdsdpfxszphg Ij Ai Toi Technical Specification Taper Size SK 40 Through-spindle Coolant No

Condition: excellent (used), Year of construction: 2008, Kunzmann BA1000 Year of manufacture: 2008 Control system: - Heidenhain iTNC530 - Electronic handwheel Main spindle: - max. 12,000 rpm Tool changer: - 32 magazine positions Travel ranges: - X - 1020 mm, Y - 620 mm, Z - 610 mm Table: - Clamping area 1200 x 610 mm - max. table load 800 kg Other: - Chip conveyor - Coolant system Bedpfxo Af U Ete Ai Tjdi Delivery time: - Immediately available

Condition: used, Year of construction: 2000, Kunzmann machining center BA 600 complete with Heidenhain control. Very good condition, however, there are occasional control issues. Bdodpfx Aoxn Av Uei Tei

Condition: good (used), Horizontal milling device – counterholder for KUNZMAN milling machines series WF. This was an accessory for a KUNZMANN WF 4/3 TNC 124 There are 2 pieces available. The new price at Kunzmann is over € 2,000 + VAT. With a corresponding adapter plate it should also fit other machines e.g. EMCO, MIKRON; DECKEL; FPS etc. Bsdpfx Aiovr Stus Todi Price net ex warehouse

Condition: used, Year of construction: 1990, Motor output 5 kW Bdodpjwgnz Nsfx Ai Tei Weight 1.500 kg Control cnc

Condition: reconditioned (used), Year of construction: 2013, functionality: fully functional, CNC vertical machining center "KUNZMANN BA 1000 SK" Bsdpfoyx Ua Aex Ai Todi Equipped with Heidenhain iTNC 530 path control. Year of manufacture: 2013 Travel ranges: X 1020 mm, Y 620 mm, Z 920 mm Spindle speed range: 1 – 14,000 rpm, stepless With the following accessories: - Fixed angular table, 1200 mm x 610 mm clamping surface - NC attachment rotary table WALTER, diameter 500 mm - B-axis swivel head (torque drive), +30 / -120 degrees - Vertical tool changer with 40 magazine positions (SK 40) - 3D Heidenhain touch probe - Electronic handwheel - Fixed full enclosure with internal lighting - Coolant through spindle (IKZ system) - Coolant system - Oil mist extraction - Chip conveyor - Operating manual

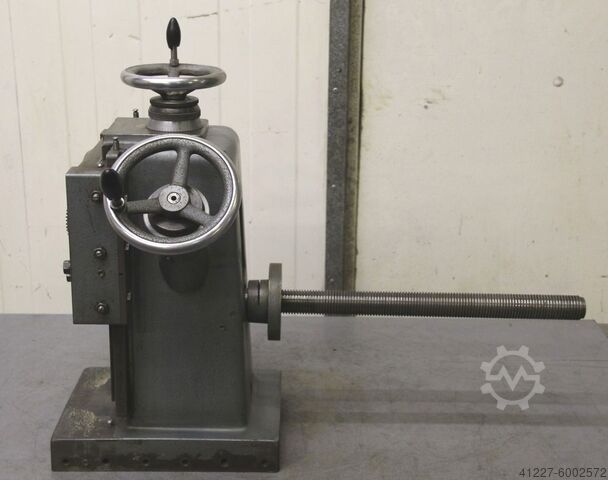

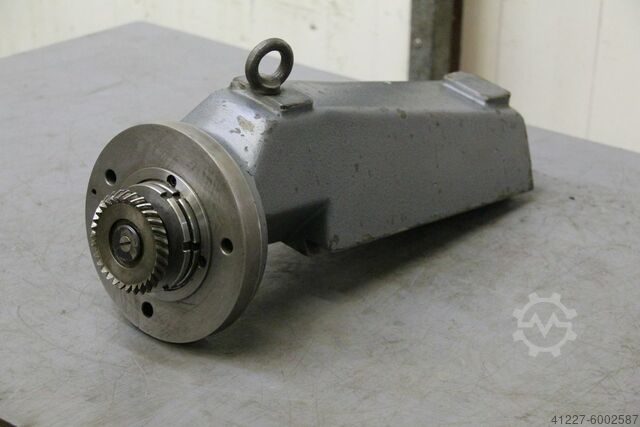

Condition: good (used), Cross support, cross support, cross table, cross-sliding table Bedpeg Dg Rpjfx Ai Tedi -Manufacturer: Kunzmann, top head from milling machine type UFV 600 -Dimensions: 530/420/H730 mm -Weight: 80 kg

Condition: ready for operation (used), Year of construction: 1999, travel distance X-axis: 900 mm, controller manufacturer: HEIDENHAIN, controller model: TNC 410M, spindle speed (max.): 5,000 rpm, number of axes: 3, This 3-axis KUNZMANN WF9 CNC was manufactured in 1999. It features a reliable Heidenhain TNC 410M control system, ensuring precision and efficiency in operations. If you are looking to get high-quality machining capabilities, consider the KUNZMANN WF9 CNC vertical machining centre we have for sale. Contact us for further details. Bjdpfx Aijzbu Nzj Tjdi • Condition: Good / Fully operational • Control System: Heidenhain TNC 410M
