Used Cme Milling Machine for sale (13)

Condition: used, Year of construction: 2000, travel distance X-axis: 9,000 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 1,500 mm, spindle speed (max.): 3,000 rpm, spindle speed (min.): 50 rpm, table width: 1,200 mm, table length: 9,500 mm, total height: 4,025 mm, total width: 6,470 mm, total length: 18,830 mm, workpiece weight (max.): 47,500 kg, overall weight: 61,620 kg, CME FCM 9000 - Bed Milling Machine 5-axis Technical details: Table size 9500 x 1200 mm. Movement x-Axis 9000 mm. y-Axis 1500 mm. z-Axis 1500 mm. Max table load 5000 kg/mtr Swiveling of vertical milling head 1°x1º CNC Control Heidenhain TNC 430 CB If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Kedpfx Ae Aaww Ijkijnc Feel free to view our other advertisements for a complete overview of our stock.

Condition: good (used), Year of construction: 2007, functionality: fully functional, Machine-Details Stock-No. 1022-E06374 Type of machine Travelling column milling machine Make CME Type MB-9000 Knjdpfx Aez S Arpjkijc Year of manufacture 2007 Type of control CNC Storage location Spain Country of origin Spain Delivery time Immediately Freight basis Ex site, without dismantling and loading Technical details x-travel 9000 mm y-travel 4000 mm z-travel 1000 mm W-axis (spindle longitudinal) 700 mm spindle diameter 150 mm tool taper ISO 50 DIN-69871 spindle turning speed range 2350 U/min transmission ratio 2 main drive motor 37 kW weight of the machine ca. 125 t Additional information * CNC-control SIEMENS Sinumerik 840 D * 2 rotary tables (hydrostatic) make RÜCKLE, 2500 x 2500 mm, table load 25 to, travel 2000 mm * Coolant equipment (1000 liter) with coolant through spindle 40 bar * Chip conveyor * 90-station automatic toolchanger - max. tool diameter 125 (240) mm - max. tool length 400 mm - max. tool weight 20 kg * several toolholders

Condition: used, Year of construction: 1996, operating hours: 17,625 h, functionality: fully functional, machine/vehicle number: 03-106, travel distance X-axis: 2,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, rotational speed (max.): 3,000 rpm, type of input current: three-phase, total width: 2,700 mm, total height: 3,000 mm, total length: 7,000 mm, table length: 2,200 mm, table width: 850 mm, table height: 900 mm, spindle motor power: 22 W, workpiece weight (max.): 16,000 kg, grinding spindle motor power: 22 W, Equipment: documentation/manual, Fixed-table milling machine CME bf 03, travels 2000x1000x1000mm, Heidenhain 426 control, 30-tool changer (ISO 50), 4th axis, and internal cooling. It is used regularly and is in full working order. Knsdpfx Asz Tdkiekijc

Condition: excellent (used), functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 230 mm, travel distance Z-axis: 400 mm, spindle speed (max.): 1,800 rpm, spindle speed (min.): 40 rpm, Universal milling machine, CME model FU1S, table size 1100mm x 240mm, longitudinal travel 800mm, transverse travel (Y-axis) 230mm, vertical travel (Z-axis) 400mm, with ram, Huron-type spindle with ISO 40 mount, spindle speeds from 40-1800 rpm, total power 3.75 kW, with steady rest and arbor, with digital readouts, with new mechanical vise, 160mm wide, manufactured in 1992, original paint. Knjdpfoz Tc Itsx Akijc

Condition: ready for operation (used), functionality: fully functional, Universal milling machine CME FU-3 is a tool used to machine metal parts or other hard materials by cutting or shaping them with a rotating cutter. It is equipped with a control panel with various buttons and switches to adjust its parameters and operations. Brand CME MODEL FU3 CM TYPE UNIVERSAL CARNERO MOTORIZADO TRAVELS X, Y, Z 1100 x 350 x 700 TABLE DIMENSIONS 1700 x 360 Kedpfx Akerignwjienc TAPER ISO 50 DIN 2080 SPINDLE ISO 50 DIN 2080 POWER SPINDLE MOTOR 7.5 MAIN MOTOR POWER 5,5

Condition: used, Year of construction: 2003, operating hours: 40,009 h, functionality: fully functional, machine/vehicle number: 211, Technical Specifications (CME FS-2) Working Table: Table clamping surface: 2000 x 850 mm Maximum permissible table load: 3500 kg T-slots: 1 x H-7 / 5 x H-10 (slot spacing: 100 mm) Travels and Feeds: X-axis travel: 1800 mm Y-axis travel: 1000 mm Knedsztrt Hopfx Akijc Z-axis travel: 1000 mm Working feed rate: 5 - 5000 mm/min Rapid traverse: 20,000 mm/min Spindle and Drive: Spindle motor power: 22 kW Spindle taper: ISO-50 / DIN 69871 Spindle speed range: 50 - 4000 rpm Accuracy and Construction: Positioning accuracy (3 axes): +/- 0.005 mm Repeatability (3 axes): +/- 0.005 mm Ball screws (X, Y, Z): diameter 50 x pitch 10 mm Total machine weight: 13,000 kg (13 tons) Auxiliary Drive Motors: Hydraulic motor power: 1.1 kW Lubrication motor power: 0.4 kW Coolant pump motor power: 0.3 kW

Year of construction: 2006, condition: ready for operation (used), CME horizontal milling machine Type MB 3000 FLEX Rotary table size 1.400 x1.400 mm Max. table load 12T Longitudinal travel (X) 3.000 mm Vertical travel (Y) 2.000 mm Cross travel (Z) 1.000 mm Drill travel (W) 700 mm Rotary table (B) 360 - 0,001 degree Boring spindle dia. 150 mm Spindle speed 50-2200 rpm Spindle taper 50 ISO Spindle motor power 30 kw Ram size 580-430 mm CNC Controller Heidenhain iTNC530 Accessories: Cooling through spindle 60 bar ATC 60 pots Hours: Spindle 27.048 hours Machine dimensions: Height 4.856 mm Length 6.663 mm Width 10.000 mm Weight 70 T Kjdpogui Txsfx Akienc Build year 2006

Condition: ready for operation (used), Travel X/Y/Z: 1400mm/1000mm/1000mm, table dimensions X/Y: 1600mm/850mm, max. table load: 2500kg, speed: 4000rpm, spindle power: 22kW, feed: 20m/min, spindle taper: ISO50. Machine dimensions X/Y/Z: approx. 4300mm/2500mm/2600mm, weight: approx. 10000kg. An on-site inspection is possible. Kodpfx Akoy Hk Ulsisnc

Condition: used, Year of construction: 1999, x-travel 2500 mm y-travel 1200 mm z-travel 1000 mm turning speeds 20-1600 U/min spindle taper ISO SK50 Table dimensions 2700x1000 mm control Heidenhain TNC 426 Kedpfxjyqv Tao Akijnc milling head -swivable ° Spindle capacity 20 Kw Tool changer 36 Pos. weight of the machine ca. 18 t The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: like new (used), Year of construction: 2010, functionality: fully functional, travel distance X-axis: 9,000 mm, travel distance Y-axis: 4,000 mm, travel distance Z-axis: 1,000 mm, CME TRAVELING COLUMN MILLING / BORING MACHINE CME TECHNICAL FEATURES - VISIBLE IN OPERATION Brand: CME Model: MB 9000 Year: 2007 CNC: Siemens Sinumerik 840D X-axis: 9000 mm Y-axis (Vertical): 4000 mm Z-axis: 1000 mm Knodpeu R Rk Hsfx Akiec W-axis (Ø 150 mm): 700 mm 2 rotary translation tables (linear travel: 2000 mm) 2500 x 2500 mm (25 TN) capacity Heidenhain optical scales on all axes Direct spindle 90-position tool change ZF range change Internal coolant Chip extractors

Condition: excellent (used), 1 used, very well-preserved universal milling head system "HURON" with automatic 2.5° indexing on 1 axis, internal coolant supply through the spindle, and hydraulic tool clamping Manufacturer: CME, Origin Spain Model: FS Kodpfxjyf Uqtj Akienc Spindle mounting: DIN 69871 AD, ISO 50 Maximum speed range: up to 4,000 rpm Maximum drive power: 22/30 kW Weight: approx. 300 kg This high-quality milling head was used as a loaner milling head and was only put into operation for repair purposes while the other milling head was being repaired and overhauled. Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

Condition: used, Year of construction: 2010, Technical data Manufacturer / model: C.M.E. S.r.l., Ideal I360 / type 1360 Serial number / year: Flow rate / operating pressure: 36 m³/h at 3 bar Maximum pressure: 4 bar Motor power / speed: 5.5 kW / 2,900 rpm Dimensions (L × W × H): 1,350 × 730 × 960 mm Weight: approx. 325 kg Connections: DIN 65 according to DIN 11851 Product-contact materials: AISI 316 stainless steel and NBR elastomers Suitable media: wine, destemmed grapes, must, vinegar, oil, juices, and fruit/vegetable pulp Maximum fluid temperature: approx. 70 °C Knedpfez R Dhvjx Akijc Performance curves: not available Spare parts: see the operating and maintenance manual with spare-parts catalogue Machine-specific operating data according to C.M.E.; dimensions according to the “Ideal 360” manual.

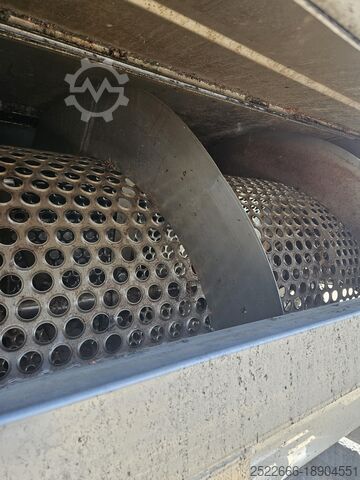

Condition: used, functionality: fully functional, Used in good condition Capacity 20,000 kg per hour Ksdpfx Akowa Stisijnc
