Used Mori Seiki Machining Center for sale (168)

Condition: excellent (used), Year of construction: 2007, TECHNICAL DETAILS: - CNC Control: MSX 803III - X Axis travel: 260 mm - Z Axis travel: 590 mm - Y Axis travel: +/- 50 mm - Maximum Turning Diameter: 356 mm - C Axis Indexing Increment: 0.001° - Maximum Turning Length: - Cutting Feed Rate X, Z, Y: - Swing Over Bed: - Swing Over Carriage: - Bar Capacity: Ø 65 mm (main spindle) - Max. Rapid Traverse X, Z: - Main Spindle 12” - Spindle Speed: 5,000 rpm - Spindle Power: 18.5 kW - Torque: - Main Spindle Bore: mm - Main Spindle Nose: A2-6 - Sub-Spindle - Spindle Speed: 6,000 rpm - Spindle Power: 11 kW - Torque: - Sub-Spindle Bore: mm - Sub-Spindle Nose: A2-5 - Turret Positions: 12 - Number of Driven Tool Stations: 12 - Driven Tool Speed: 6,000 rpm - Driven Tool Power: 5.5 kW EQUIPMENT: - Chip conveyor - 3-color status light - Fixed tool holders - Parts catcher MACHINE DIMENSIONS: - Length: 2,705 mm Ijdpewdrfgsfx Ad Djtp - Width: 2,000 mm - Height: 2,120 mm - Weight: 5,800 kg

Condition: excellent (used), Year of construction: 2009, operating hours: 1,800 h, functionality: fully functional, * Mori Seiki NZ 2000 T2Y. * APPROXIMATE VALUE OF INCLUDED EQUIPMENT: €40,000–45,000. * Both spindles equipped with two high-precision Hainbuch collet chucks. * Opposed-spindle configuration. Itjdpfxexu Rrqs Ad Djp * 9-axis turn-mill center with full CNC control. * Twin spindles. * Spindle nose size A2-6. * 2 superimposed turrets. * 2 C-axes. * 1 Y-axis. * Two integrated 22 kW spindle motors. * Milling spindle power: 7.5 kW. * Two Renishaw automatic tool setting arms. * Mapps 4 conversational automatic programming system. * Automatic load monitoring and tool consumption monitoring system. * Tool life management and wear monitoring. * Dual foot pedal for chuck open/close. * Oil chiller for both spindles. * 340 Nm maximum cutting torque. * Both turrets feature 16 stations each, all fully driven. * Up to 32 tool positions per turret possible. * Interface for bar feeder installation. * Automatic rear parts catcher (special gripper type for long parts). * Large selection of external and internal tool holders included. * Extensive package of axial and radial driven tool blocks. * MQ quick-change tool clamping system. * Maximum swing diameter: 320 mm. * Turning length: 810 mm. * Mori Seiki MSX-701 III CNC control. * Max. distance between main and sub spindles: 1,130 mm. * Main spindle speed: 5,000 rpm. * Sub spindle speed: 5,000 rpm. * Driven tool speed: 6,000 rpm. * Max. bar diameter: 65 mm. * X1 travel: 210 mm. * Y1 travel: +65 / -45 mm. * Z1 travel: 300 mm. * X2 travel: 210 mm. * Z2 travel: 810 mm. * Sub spindle slide travel: 920 mm. * Rapid traverse (X1, X2): 30,000 mm/min. * Rapid traverse (Y1): 20,000 mm/min. * Rapid traverse (Z1, Z2): 50,000 mm/min. * C-axis resolution: 0.001°. * Side-mounted hinged belt chip conveyor. * Communication ports: USB, PCMCIA card, RS 232. * Machine weight: 8,300 kg. * Machine can be inspected under power. * Includes electrical transformer, documentation, parts list, electric schematics, programming and operations manuals. * IMPORTANT: Never used with a bar feeder, only for machining aluminum prototypes. * VERY low cutting hours. * Immediate delivery unless sold prior.

Condition: used, Year of construction: 2002, functionality: fully functional, MORI SEIKI - SL 204 MC Offer Details Stock Number: 1039-9201 Type of Machine: CNC Turning and Milling Center Manufacturer: MORI SEIKI Model: SL 204 MC Year of Manufacture: 2002 Control System: MSG 805 MAPPS Location: D-59302 Oelde, Germany Country of Origin: Japan Delivery Time: by arrangement Freight Terms: ex site Additional Information CNC Turning and Milling Center MORI SEIKI - SL 204 MC WE OFFER YOU: - Workshop-tested machines - Free loading onto truck - NO auction fees - Delivery available (at extra cost) - Unloading and commissioning (at extra cost) Technical Details Turning diameter: 390 mm Turning length: 507 mm Control: MSG 805 MAPPS Maximum turning diameter: 390 mm Swing diameter over bed: 680 mm Swing diameter over cross slide: 510 mm Distance between centers: 618 mm Main Spindle: Speed range – main spindle: 45 – 4,500 rpm Drive power – main spindle: 11 / 7.5 kW Spindle bearing diameter: 110 mm Spindle bore: 73 mm Max. bar diameter: 51 mm Spindle nose: JIS A2-6 Chuck diameter: 210 mm C-axis: 0.001° Axis Travels: x-axis: 235 (195+40) mm z-axis: 520 mm Tool Turret: Number of tool stations: 12 positions Number of driven tool stations: 12 positions Speed range – driven tool stations: up to 3,000 rpm Drive power of driven tool stations: 5.9 / 4.5 kW Shank height for square tools: 25 mm Maximum drill shank diameter: 50 mm Turret indexing time: 0.2 sec Tailstock: Tailstock travel: 490 mm Quill diameter: 85 mm Tailstock taper: MT 4 Quill stroke: 120 mm Feeds: Rapid traverse X: 18 m/min / Z: 24 m/min Feedrate range: 0 – 1,260 mm/min Total power requirement: 30.1 kW Approx. machine weight: 4.5 t Space requirements approx.: 5.0 x 2.5 x 2.5 m Accessories - Documentation - Chip conveyor - Coolant system Itjdjxt Ervjpfx Ad Djp - Tailstock - Hydraulic unit - 3-jaw chuck Kitagawa BB208 - Tool turret - Driven tool system - C-axis - Tool presetting - Parts catcher - 10x driven tools - Various tool holders - Set of 6 clamping jaws

Condition: used, TURNING CENTER "MORI SEIKI" MOD. ZL 200SMC CNC MSC-501 Turning length: 452 mm Maximum turning diameter: 388 mm Maximum diameter over bed: 510 mm Center distance: 751 mm Spindle mount: A2-6 Spindle speed: 4,000 rpm Spindle motor power: 11 kW Number of tools: 12 Ijdpfx Ajxwxwtjd Dstp

Condition: ready for operation (used), Year of construction: 2006, General Data Measurements width 3755 mm Measurements depth 2300 mm Measurements height 2610 mm Machine weight 9600 kg Main Drive Spindle speed range 14000 rpm Tool taper 7/24 Taper No. 40 Iodpsxuw Hhefx Ad Dstp Number of axis 4 Movement X-Axis Movement 560 mm X-Axis Rapid Traverse 50000 mm/min Y-Axis Movement 560 mm Y-Axis Rapid Traverse 50000 mm/min Z-Axis Movement 630 mm Z-Axis Rapid Traverse 50000 mm/min Table Outer length 400 mm Outer width 400 mm Table load 400 kg This 4-axis MORI SEIKI NH 4000 DCG was manufactured in 2006 and features a horizontal machining centre with only 1,300 hours on the main spindle, which was overhauled in April 2022. If you are looking to get high-quality milling capabilities, consider the MORI SEIKI NH 4000 DCG machine we have for sale. Contact us for more information. Application Types Milling

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, WE OFFER a well-maintained CNC turning and milling center DMG MoriSeikiNLX 2500 SY/700, built in 2011 with a Mitsubishi 730 BM control! Only around 9000 processing hours! Travel paths X-axis: 260 mm Y-axis: 100 mm Z-axis: 795 mm Equipment and accessories: Isdpjxt N R Aefx Ad Djtp -Tool turret: 12 positions, all driven -Speed of driven tools: Max. 10000 rpm -Part catcher - Electronic main connection: 400 V - Power consumption: 37.6 KVA - Internal cooling: available - Main spindle chuck: Kitagawa BB210AB - Counter spindle chuck: Kitagawa B206A521F - Turning diameter: 366 mm - Turning length: 705 mm - Hollow spindle: 80 mm - Main spindle max. speed: 4000 revolutions, with three-jaw chuck - Power: 18.5 kW - Counter spindle max. speed: 6000 revolutions, with three-jaw chuck - Chip conveyor, -Tool measurement in the work area -Measuring arm can be used manually for the counter spindle - Short bar loader, make LNS - Incl. tools, 8 fixed tools, 3 driven tools - Incl. extraction system, make Indusa - Incl. complete documentation Machine is available immediately! Machine is completely cleaned and checked! Transport can be organized ALSO BY US FOR THE CLIENT. WE SHIP WORLD WIDE

Condition: good (used), Year of construction: 2002, MSG-501 control MAPPS (Fanuc) Max. turning diameter: 550 mm Max. turning length: 1,020 mm Iodpfewwk Uaex Ad Dotp Travel axes X1/X2/Y/Z1/Z2/W: 565/160/1,077 mm Main spindle drive power: 22 kW Max. spindle speed: 4,600 rpm Bar capacity: 65 mm Spindle nose: A2-6 Sub spindle drive power: 15 kW Max. sub spindle speed: 6,000 rpm Milling spindle max. speed: 7,000 rpm Capto C6 tool system Tool magazine with 60 tool stations Lower turret with 12 tool stations, 6 of which are live stations Max. speed of driven tools: 4,000 rpm Chip conveyor

Condition: like new (used), Year of construction: 2007, operating hours: 1,800 h, functionality: fully functional, * Mori Seiki NL 2500 SY. * Year 2008. * Only 1,900 cutting hours. * 5-axis machine. * Sub-spindle. * 12-position turret, all stations powered. * Y-axis travel ± 60 mm. * C-axis on both spindles. * Integrated main spindle motor 18 kW. * Integrated sub-spindle motor 15 kW. * Direct drive motor for live tools, 5.5 kW. * Spindle start-up torque 640 N/m. * Beltless, stepless direct drive motors. * Main spindle nose size: A2-8. * Sub-spindle nose size: A2-6. * Bar capacity 80 mm. * Main spindle chuck Kitagawa B-210, 250 mm with metric system. * Sub-spindle chuck Kitagawa B-208, 210 mm with metric system. * Box guideways on all axes. * Main spindle speed 4,000 rpm. * Live tool speed 6,000 rpm. Itedpfx Ajxt Dl Isd Dsp * Oil cooler for both spindles (Daikin). * Conversational automatic programming system Mapps 4. * Automatic load control and tool consumption monitor. * Rapid traverse speeds: 30 m/min in X and Z axes. * Turret indexing time: 0.2 seconds. * Two Renishaw automatic tool setting arms. * Communication ports: USB, PCMCIa, and RS232. * Prepared interface for bar feeder installation. * Automatic parts catcher. * Double pedal for independent opening and closing of main and sub-spindle chucks. * Side-mounted chip conveyor (hinge belt type). * Extensive set of live and static tool holders. Bedbqjwyud Dj Hvv Hedi * Electrical transformer. * Documentation: parts list, electrical schematics, programming and operation manual. * Weight: 5,800 kg. * Machine currently in operation. * Precision inspection videos are essential. * Machining only performed on aluminum components. * Cutting hours: 1,800. * Immediate delivery, subject to prior sale.

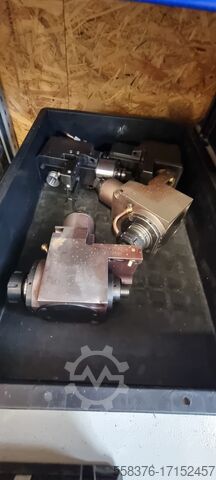

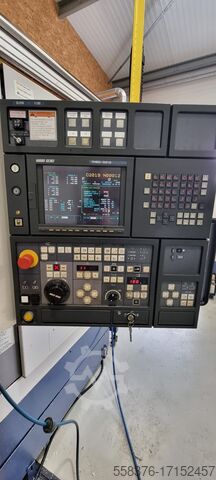

Condition: used, Year of construction: 1998, functionality: fully functional, Mori Seiki SL-250 1998 with gantry loader Itedpfx Adeunrrls Djp - without bar loader - Three-jaw chuck HSP and GSP spindle - Collet chuck HSP - External holder and drill holder approx. 3 pcs. each - AGW face and cross 3 pcs.

Condition: good (used), Year of construction: 2002, operating hours: 18,000 h, CNC MULTITASKING LATHE MORI SEI MOD. MT 2000 SZ Itedpfsu Sg Aujx Ad Dep Main Spindle Kw 22 6,000 RPM X/y/z/b Travels: 565 - +/- 80 - 1077 - +/- 120° Milling Head Capto C6 6,000 RPM Motorized Lower Turret 12 Stations Tool Magazine 40 Posts Year 2002

Condition: ready for operation (used), Year of construction: 1997, General Data Measurements width 4500 mm Measurements depth 2900 mm Measurements height 3428 mm Machine weight 14000 kg Main Drive Number of axis 4 Movement X-Axis Movement 630 Iedpoxpyukjfx Ad Djtp Y-Axis Movement 600 Z-Axis Movement 650 Additional Equipment Tool Storage: 40 pcs This 4-axis MORI SEIKI SH-50 was manufactured in 1997. A reliable horizontal machining centre, it offers robust construction and precision engineering. Ideal for complex machining tasks, this unit has maintained consistent performance over the years. Consider the opportunity to buy this MORI SEIKI SH-50 horizontal machining centre. Contact us for more information. Application Types Milling

Condition: used, Year of construction: 2011, travel distance X-axis: 1,400 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 1,350 mm, controller manufacturer: Fanuc, controller model: i 31A, workpiece weight (max.): 2,200 kg, table width: 800 mm, table length: 800 mm, table load: 2,200 kg, spindle nose: MAS BBT 50, CNC Control MSX-701 lV (Fanuc i 31A) Pallet table size 800 x 800 mm Number of pallets 2x Table load 2200 kg Movement X-axis 1400 mm Iodoxnmftspfx Ad Detp Movement Y-axis 1200 mm Movement Z-axis 1350 mm Table indexing 0,001° Spindle Taper MAS BBT 50 Spindle Speed 10 -8.000 R/min Spindle motor 37/30 kW Magazin capacity 100 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: good (used), Year of construction: 2004, operating hours: 19,400 h, functionality: fully functional, turning length: 750 mm, turning diameter over cross slide: 250 mm, turning diameter: 190 mm, spindle bore: 49 mm, travel distance X-axis: 270 mm, travel distance Y-axis: 80 mm, travel distance Z-axis: 880 mm, rapid traverse X-axis: 18 m/min, rapid traverse Y-axis: 6 m/min, rapid traverse Z-axis: 24 m/min, milling spindle length: 60 mm, rotational speed (max.): 6,000 rpm, Equipment: bar feeder, chip conveyor, Multi Axis Mori Seiki ZT-1000Y Year 2004 8-axis turning milling machine With LNS bar feeder Many tool-holders and live-tools included Isdpow H Dnfefx Ad Djtp Max. workpiece turning diameter: 250 mm Max. distance between spindles: 750 mm Max. turning diameter: 190 mm Max. turning length: 190 mm Standard bar diameter: 170 mm Max. bar capacity: 120 mm X-axis travel: ±135 mm Z-axis travel: ±440 mm Y-axis travel: ±40 mm B-axis (spindle 2) travel: 510 mm Spindle speed range: 60–6000 rpm Spindle bore: 49 mm Spindle nose diameter: 80 mm Min. spindle indexing angle: 0.001° Turret type: 12 stations Tool shank diameter: 20 mm Max. live tool speed: 6000 rpm Live tool machining capacity: Ø13 mm drill / M12 tap Live tool motor power: 3.7 / 2.2 kW Rapid traverse speed: X1/X2: 18000 mm/min, Z1/Z2: 24000 mm/min, Y: 6000 mm/min Main spindle motor power: 7.5 / 5.5 kW Machine dimensions (L×W×H): 2797 × 2010 × 1995 mm Machine weight: 5000 kg Power requirement: 46 kVA

Condition: used, Year of construction: 1999, swing dia. 680 mm max. turning diameter 429 mm turning length 440 mm control MORI SEIKI - MSC-501 turning speeds 5.000 U/min max. bar material dia. 56 mm travel -x axis 233 mm travel -z axis 510 mm number of tapers in turret head 2x12 Itedpfx Aowplulsd Dsp CNC Turning- and Milling Center | MORI SEIKI - ZL-150SMC equipped with main/counter spindle, c- axis, 2x turret for driven tools, bar feeder and chip conveyor. The machine is in a well-maintained condition. Please note that the technical details were added from comparable machines. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: ZL 150SMC | ZL150SMC | ZL-150 SMC | ZL 150 SMC

Condition: good (used), Year of construction: 1997, functionality: fully functional, travel distance X-axis: 510 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 510 mm, CNC control MSC 803 25-fold automatic tool changer coolant device Technische Daten / technical details: Verfahrweg X / X-Travel 510 mm Verfahrweg Y / Y-Travel 510 mm Verfahrweg Z / Z-Travel 510 mm Tischgröße / table size 750x550 mm Drehzahlbereich / spindle speed 8000 UpM /rpm Itodpfxjwhkcxs Ad Djp Anzahl der Werkzeugplätze / tool places in changer 25 fach Spindelaufnahme / spindle taper BT40 Gewicht der Maschine ca. / weight 4500 Kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, turning length: 810 mm, turning diameter over cross slide: 800 mm, turning diameter: 320 mm, spindle motor power: 25,000 W, spindle speed (max.): 5,000 rpm, spindle bore: 73 mm, travel distance X-axis: 210 mm, travel distance Y-axis: 110 mm, travel distance Z-axis: 810 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 20 m/min, rapid traverse Z-axis: 50 m/min, rotational speed (max.): 6,000 rpm, CNC FANUC MSX-701 / MAPPS IV CAPACITY Swing diameter over bed: mm 800 Swing diameter over cross slide: mm 800 Maximum turning diameter: mm 320 Standard turning diameter: mm 200 Maximum distance between the center: mm 1.130 Maximum turning length: mm 810 Maximum workpiece size: mm 300 TRAVELS X axis turret 1 and 2: mm 210 Y axis turret 1 and 2: mm +65 / -45 Z axis turret 1 and 2: mm 810 B axis headstock 2: mm 920 MAIN SPINDLE Maximum speed: rpm 5.000 Drive power (30 min / continuous operation): kW 25/22 Maximum bar diameter: mm 65 Spindle bore: mm 73 Spindle diameter in front bearing: mm 120 Spindle mount: JIS A2-6 C-axis resolution: degrees 0,001 SUB SPINDLE Maximum speed: rpm 5.000 Drive power (30 min / continuous operation): kW 25/22 Maximum bar diameter: mm 65 Spindle bore: mm 73 Spindle diameter in front bearing: mm 120 Spindle mount: JIS A2-6 C-axis resolution: degrees 0,001 FEED DRIVES Rapid traverse turret 1 X/Y/Z: m/min 30/20/50 Rapid traverse turret 2 X/Y/Z: m/min 30/20/50 TOOL TURRET Number of turrets: 2 Number of tool stations per turret: 16 Shaft cross – section for turning tools: mm 20 x 20 Maximum shaft diameter for boring bars: mm 32 Turret switching time (1 station): s 0,18 Maximum speed of the driven tools: rpm 6.000 Drive power for driven tools (5 min/continuous operation): kW 7,5/5,5 DIMENSIONS Installation area with chip conveyor: mm 5.120 x 2.720 Net weight: kg 8.300 Macchina equipped with: • High pressure cooling system • Bar loader interface Itodpfx Ajwlvlgjd Dep • Gantry-type piece unloading arm • Cutting effort management system and load monitor • No. 1 double radial motorized tool holder • No. 3 axial motorized tool holders • No. 2 external tool holders • No. 2 double boring bar holders • No. 2 single radial motorized tool holders • No. 2 internal boring bar holders • No. 2 Kitagawa BD 208 self-centering chucks diam. Mm 210 • No. 1 set of jaws for each self-centering chuck • Instruction manuals and CE declaration Year of manufacturing: 2010

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, machine/vehicle number: NL201IJ3007, MORI SEIKI NL2000/500 CNC TURNING CENTRE YEAR 2005, 2006,2009 CONTROL MSX-850 CONTROL COLLECT CHUCK DRIVEN TOOLING 4 AXIS SWARF TRAY 16 TOOL TURRET TAILSTOCK PARTS CATCHER TOOL SETTING PROBING SPINDLE SPEED MAX 6000 RPM MAX TURNING DIA 356 MM X TRAVEL 260 MM Y TRAVEL 100 (+ - 50) Z TRAVEL 590 MM C AXIS MOVEMENT 0.001 BAR CAPACITY 65 MM MACHINE COMES WITH PLASTIC EXTRACTION TANK Itjdpfxjwxw Ivs Ad Dop MACHINE MAINLY USED ON PLASTIC , CONDITION IS EXCELLENT THANKS FOR LOOKING MACHINE DIMENSIONS: - Length: 2,705 mm - Width: 2,000 mm - Height: 2,120 mm - Weight: 5,800 kg

Condition: good (used), Year of construction: 2008, Parts shown by hand not come. Iedpfxoxhg Eyj Ad Detp

Condition: used, Year of construction: 2011, turning diameter max. 320 mm turning length max. 810 mm control MSX-701 IV greates pass round over bed 800 mm Swing dia. over traverse guideway 800 mm distance between spindles 1.130 mm Number of revolutions max. 5.000 rpm power capacity - main spindel 25 / 22 kW max. Torque 358 Nm spindle diameter in front bearing 120 mm spindle bore 73 mm max. usable bar diameter 65 mm C-Axis 0,001 ° spindle nose JIS A2-6 collet chuck 160 mm Number of revolutions max. 5.000 rpm power capacity - Sub spindle 25 / 22 kW max. Torque 358 Nm spindle diameter in front bearing 120 mm spindle bore 73 mm max. usable bar diameter 65 mm C-Axis 0,001 ° spindle nose JIS A2-6 collet chuck 160 mm number of toolpositions 16 pos. Number of driven toolspositions 16 pos. Spindle speed - driven tools max. 6.000 min -1 power capacity - driven tools 7,5 / 5,5 kW Y - Axis 110 mm Shank diameter 20 x 20 mm Drill shank diameter 32 mm turret change time 0,18 sec. number of toolpositions 16 pos. Number of driven toolspositions 16 pos. Itodpfov E R E Nsx Ad Dsp Spindle speed - driven tools max. 6.000 min -1 power capacity - driven tools 7,5 / 5,5 kW Shank diameter 20 x 20 mm Drill shank diameter 32 mm turret change time 0,18 sec. x-travel 1/2: 210 mm y-travel 110 mm z-travel 1/2: 810 mm Traverses Subspindle B: 870 mm rapid traverse ( X / Y / Z ) 1: 30 / 20 / 50 m/min rapid traverse ( X / Y / Z ) 2: 30 / - / 50 m/min Tipp feed 0 - 5.000 mm/min total power requirement 94 kVA weight of the machine ca. 8,3 t dimensions of the machine ca. 10,0 x 3,0 x 2,5 m CNC - Turning- and MillingCenter MORI SEIKI - NZ 2000 T2Y - Main- and Subspindle - 2 turrets, up and below - Y-Axis - 2x 16 driven tool positions

Condition: ready for operation (used), Year of construction: 2005, operating hours: 5,000 h, functionality: fully functional, turning length: 750 mm, turning diameter over cross slide: 250 mm, travel distance X-axis: 140 mm, travel distance Y-axis: 40 mm, travel distance Z-axis: 410 mm, TECHNICAL DETAILS Axis Travel X-axis travel: 140 mm Y-axis travel: +/- 40 mm Z-axis travel (1+2): 450 / 410 mm Turning Capacity Turning length: 750 mm Swing diameter over cross slide: 250 mm Turning diameter: 190 mm Distance between centers: 750 mm Maximum bar diameter: 52 mm Spindle Spindle speed (max.): 4,000 rpm Spindle bore: 91 mm Spindle bearing diameter: 95 mm Main spindle speed range: 60 - 6,000 rpm Main spindle drive power: 22 / 18.5 kW Maximum torque: 198 Nm Sub-spindle (B-axis) travel: 525 mm Feeds Feed rate X (1+2): 18,000 mm/min Feed rate Y: 6,000 mm/min Feed rate Z (1+2): 24,000 mm/min Feed rate B: 24,000 mm/min Turret Number of turrets: 2 Number of tool stations: 2 x 16 positions Square shank height: 20 mm Drill shank diameter: 25 mm Turret indexing time: 0.2 s Itjdsxgglkopfx Ad Dep Toolholder: VDI 30 Speed range - driven tool stations (max.): 6,000 rpm Drive power - driven tool stations: 5.5 / 3.7 / 2.2 kW Rapid Traverse Rapid traverse X (1+2): 18 m/min Rapid traverse Y: 6 m/min Rapid traverse Z (1+2): 24 m/min Rapid traverse B: 24 m/min Rapid traverse C: 400 rpm MACHINE DETAILS Control: MSX 501 Dimensions & Weight Dimensions: 6500 x 3000 x 2500 mm Machine weight: approx. 5.1 t Total power requirement: 73.9 kVA Operating hours: 5,000 h EQUIPMENT LNS bar feeder

Condition: refurbished (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: SL154SY, turning length: 750 mm, turning diameter over cross slide: 510 mm, turning diameter: 680 mm, spindle motor power: 7,500 W, spindle speed (min.): 50 rpm, spindle speed (max.): 5,000 rpm, spindle bore: 56 mm, travel distance X-axis: 215 mm, travel distance Y-axis: 70 mm, travel distance Z-axis: 550 mm, mount diameter: 20 mm, rapid traverse X-axis: 18,000 m/min, rapid traverse Y-axis: 6,000 m/min, rapid traverse Z-axis: 24,000 m/min, rotational speed (max.): 3,000 rpm, rotational speed (min.): 20 rpm, type of input current: three-phase, feed length X-axis: 215 mm, feed length Y-axis: 70 mm, feed length Z-axis: 550 mm, torque: 70 Nm, bar passage: 56 mm, total height: 2,015 mm, total length: 3,336 mm, total width: 1,873 mm, Equipment: rotational speed infinitely variable, MORI SEIKI SL154SY LATHE WITH LNS BAR FEEDER RENISHAW LASER CHECKED Iedpfsxddfvex Ad Djtp TOOLBOX. MACHINE INSPECTED AND READY TO WORK IN OPTIMAL CONDITIONS.

Condition: ready for operation (used), Year of construction: 2012, operating hours: 8,597 h, functionality: fully functional, turning length: 424 mm, turning diameter: 370 mm, bar diameter (max.): 65 mm, turning diameter over bed slide: 370 mm, milling spindle speed (max.): 12,000 rpm, TECHNICAL DETAILS Turning diameter: 370 mm Turning length: 424 mm Swing diameter: 370 mm X1-axis travel: 380 mm X2-axis travel: 155 mm Z1-axis travel: 460 + 155 mm Z2-axis travel: 610 mm y-axis travel: ±105 mm B-axis travel: ±120° Bar diameter: 65 mm Spindle 1 Maximum speed: 6,000 rpm Number of speed ranges: 2 (winding switch) Spindle mounting: JIS A2-5 Spindle bore: 61 mm C-axis resolution: 0.0001° Spindle diameter (front bearing): 100 mm Maximum torque (40% DC/continuous): 223/158 Nm Spindle 2 Maximum speed: 6,000 rpm Number of speed ranges: 1 Spindle mounting: 80 g6 flat nose Spindle bore: 38 mm C-axis resolution: 0.0001° Spindle diameter (front bearing): 70 mm Maximum torque (15% DC/continuous): 49/22 Nm Tool Spindle Number of tool stations: 1 Tool shank type: C5 Spindle diameter (front bearing): 65 mm Tool change time (tool to tool): 1.2 s Maximum tool diameter with adjacent positions occupied: 70 mm Maximum tool diameter with adjacent positions free: 130 mm Maximum tool length: 250 mm Maximum tool length (over 70 mm diameter): 210 mm Maximum tool weight: 5 kg Minimum indexing increment for B-axis: 0.0001° Maximum spindle speed: 12,000 rpm Maximum torque (15% DC/continuous): 49/22 Nm Turret 2 Number of tool stations: 10 Maximum shank diameter for boring bars: max. 32 mm Feed Drives Rapid traverse X-axis (tool spindle): 40,000 mm/min Rapid traverse Y-axis (tool spindle): 40,000 mm/min Rapid traverse Z1-axis (tool spindle): 50,000 mm/min Rapid traverse X2-axis (lower turret): 30,000 mm/min Rapid traverse Z2-axis (lower turret): 30,000 mm/min Rapid traverse A-axis (workpiece unloading unit): 36,000 mm/min Rapid traverse B-axis: 100 rpm Rapid traverse C-axis: 250 rpm Tool Magazine Tool magazine: chain magazine, 76 positions Control Control: MSX-711-IV Mori Seiki Control system: MAPPS MACHINE DETAILS Power-on hours: 75,992 h Total power consumption: 45 kW Weight and Dimensions Machine weight: approx. 10.5 t Space required: approx. 2.71 × 2.43 × 2.40 m Operating Hours Head 1 Operating time: 48,606 h Machining time: 8,597 h Operating Hours Head 2 Ijdpfx Adexf A Ape Dstp Operating time: 48,382 h Machining time: 2,664 h EQUIPMENT Renishaw HPRA Blum Laser Control Direct measuring system X, Y, Z, B SMW Autoblok KSZ-MB-040-Z140 collet chuck Workpiece conveyor belt Bar feeder Breuning Irco ILS-RBK-10012 Knoll band filter KF10/500 / HPC via milling spindle, 7-stage up to 70 bar Chip conveyor ConSep 2000

Condition: used, Year of construction: 2002, turning diameter 390 mm turning length 507 mm control MSG 805 MAPPS max. turning diameter 390 mm greates pass round over bed 680 mm Swing dia. over traverse guideway 510 mm centre distance 618 mm turning speed range - main spindle 45 - 4.500 min/-1 power capacity - main spindel 11 / 7,5 kW spindle bearing diameter 110 mm spindle bore 73 mm max. bar capacity 51 mm spindle nose JIS A2-6 chucking diameter 210 mm C-Axis 0,001 ° x-axis 235 (195+40) mm z-axis 520 mm number of toolpositions 12 pos. Number of driven toolspositions 12 pos. Spindle speed - driven tool stations max. 3.000 min -1 power capacity driven tool-stations 5,9 / 4,5 kW Shank height for square tool 25 mm Drill shank diameter max. 50 mm turret change time 0,2 sec. tailstock adjustment 490 mm dia. of quill 85 mm taper of center MT 4 quill stroke 120 mm rapid traverse X: 18 / Z: 24 m/min Isdpfsvzhiqjx Ad Dotp Tipp feed 0 - 1.260 mm/min total power requirement 30,1 kW weight of the machine ca. 4,5 t dimensions of the machine ca. 5,0 x 2,5 x 2,5 m CNC - Turning- and Millingcenter MORI SEIKI - SL 204 MC

Condition: used, Year of construction: 2008, turning diameter max. 320 mm turning length 810 mm control MSX 701 MAPPS III standard turning dia. 200 mm Main spindle: Number of revolutions max. 6.000 min/-1 power capacity - main spindel 22 / 18,5 kW Bar feed max. 52 mm spindle bore 61 mm C-Axis 0,001 ° Subspindel: Number of revolutions max. 6.000 min/-1 Itsdpfjtqmqwex Ad Dop power capacity - Sub spindle 22 / 18,5 kW Bar feed max. 52 mm spindle bore 61 mm C-Axis 0,001 ° Turret 1 + 3: number of toolpositions je 16 pos. Number of driven toolspositions je 16 pos. Spindle speed - driven tools max. 6.000 min -1 power capacity - driven tools 7,5 / 5,5 kW Y - Axis 110 (+65 / -45) mm Turret 2: number of toolpositions 16 pos. Number of driven toolspositions 16 pos. Spindle speed - driven tools max. 6.000 min -1 power capacity - driven tools 7,5 / 5,5 kW Y - Axis 110 (+45 / -65) mm axis stroke: x-travel 1-3: 210 mm y-travel 1-3: 110 mm z-travel 1+3: 300 / 2: 810 mm total power requirement 90 kVA weight of the machine ca. 9,3 t dimensions of the machine ca. 4,5 x 3,0 x 2,5 m CNC - Turning- and MillingCenter MORI SEIKI - NZ 1500 T3Y3 - Main- and Subspindle - 3 turrets, 2x upper / 1x below - 3x Y-Axis - 3x 16-pos. tool-drive - incl. 28x collets - incl. Hainbuch changing device

Condition: used, Year of construction: 2010, turning diameter max. 320 mm turning length 810 mm control MSX 701 Number of revolutions max. 6.000 U/min power capacity - main spindel 22 / 18 kW max. usable bar diameter 52 mm C-Axis 0,001 ° spindle nose JIS A2-5 Itedjv E R E Ajpfx Ad Dsp collet chuck 140 mm Number of revolutions max. 6.000 U/min power capacity - Sub spindle 22 / 18 kW max. usable bar diameter 52 mm C-Axis 0,001 ° spindle nose JIS A2-5 collet chuck 140 mm number of toolpositions 16 pos. Number of driven toolspositions 16 pos. Spindle speed - driven tools max. 6.000 min -1 power capacity - driven tools 7,5 / 5,5 kW Y - Axis 110 mm number of toolpositions 16 pos. Number of driven toolspositions 16 pos. Spindle speed - driven tools max. 6.000 min -1 power capacity - driven tools 7,5 / 5,5 kW x-travel 1/2: 210 mm y-travel 110 mm z-travel 1/2: 810 mm b-axis 900 mm total power requirement 86 kVA weight of the machine ca. 8,1 t dimensions of the machine ca. 8,0 x 3,5 x 2,8 m CNC - Turning- and MillingCenter MORI SEIKI - NZ 1500 T2Y - Main- and Subspindle - 2 turrets, up and below - Y-Axis - 2x 16 driven tool positions
