Used Chiron Milling Machine for sale (96)

Condition: good (used), Year of construction: 2006, operating hours: 9,911 h, functionality: fully functional, travel distance X-axis: 450 mm, travel distance Y-axis: 270 mm, travel distance Z-axis: 310 mm, rapid traverse X-axis: 75 m/min, rapid traverse Y-axis: 75 m/min, rapid traverse Z-axis: 75 m/min, nominal power (apparent): 17 kVA, total height: 2,300 mm, total length: 1,500 mm, total width: 2,600 mm, overall weight: 3,400 kg, spindle speed (max.): 30,000 rpm, spindle nose: HSK40, number of slots in tool magazine: 40, input voltage: 400 V, Equipment: documentation/manual, CNC machining center CHIRON FZ08 KS Magnum High Speed Plus (HSP) TECHNICAL CHARACTERISTICS: Year of manufacturing: 2006 CNC control : FANUC 18i-MB5 Number of axes : 7 Stroke X axis : 450 [mm] Stroke Y axis : 270 [mm] Stroke Z axis : 310 [mm] Traversing feeds X, Y and Z axes : 75000 [mm/min] Max. bar diameter in turning spindle : 32 [mm] Main spindle max. speed : 8000 [rpm] Main spindle max. power : 12 [kW] Angular A axis stroke : 360 [°] A axis indexing precision : 0.001 [°] B axis swivelling stroke : -20° / +115 [°] B axis indexing precision : 0.001 [°] Spindle type : HSK40 Max. spindle speed : 30000 [rpm] Tool changer magazin number of stations : 40 Part turnaround by robot (6th side machining) : Yes RS232 Interface : Yes Total power required : 17 [kVA] Supply voltage : 400 [V] Number of running hours : 9911 [h] Dimensions : 1500 x 2600 x 2300 [mm] Weight : 3400 [Kg] EQUIPMENT INCLUDED: x1 RENISHAW TS27R tool probe x1 spindle cooling unit Bodpfx Ajx Iiw Ijd Asdb x1 parts catcher x1 coolant tank x1 unit for 6th face machining (gripping system not included) x29 tool holders type HSK40 BIG KAISER x10 collets type F37 SCHAUBLIN x1 washing gun x1 3-color status light x1 maintenance manual x1 electrical diagrams manual x1 operator's manual x1 programming manual Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed Machine similar to brands such as Okamoto, ELB, GER, Tacchella, Karstens, Jones & Shipman, Jung, Favretto, Blohm. Internal and external grinding (ID/OD) also to be considered. Surface grinder, lathe, machining center, milling machine.

Condition: used, Year of construction: 2011, functionality: fully functional, For sale are 2 CNC milling machines Chiron FZ 08K W, year of manufacture 2011, including automated loading – robot arm cell. The machines are in very good condition, have been regularly maintained, and are ready for immediate operation. They impress with their precision, reliability, and compact design – ideal for series production. Bjdpfx Adsw Rba So Aodb

Condition: excellent (used), Year of construction: 2006, operating hours: 14,300 h, functionality: fully functional, machine/vehicle number: 414-46, Year 2006 with Fanuc Series 18i-MB5 Bodpfjxqmwbex Ad Aodb Country of manufacture: CE - Germany Net machine weight: 3,400 kg Dimensions: 185x259x250 cm TECHNICAL SPECIFICATIONS Travel X / Y / Z: 450 / 270 / 310 mm Acceleration X / Y / Z: 0.7 / 0.7 / 1.0 g Rapid traverse X / Y / Z: 40 / 40 / 60 m/min Spindle speed max.: 15,000 rpm Tool interface: HSK A 40 Milling capacity in St 60: max 60 cm3/min Drilling capacity in St 60: max Ø 16 mm Threading: up to M12 Tool magazine / positions: 24 – special version with 40 on this machine Tool change time: approx. 0.8 sec Chip-to-chip time: approx. 2.2 sec 5-axis version NC rotary tilting table: +/- 100° Rotary plate diameter: 100 mm Grid drill pattern: M6 x 50 mm 4th axis speed: 40 rpm 5th axis speed: 60 rpm Direct measuring system for 4th and 5th axes: +/-20’’ / +/-20’’ Distance spindle nose – table surface: 170 – 450 mm Maximum workpiece weight: 6 kg Technical information is provided without engagement and subject to errors or omissions.

Condition: excellent (used), Year of construction: 2005, operating hours: 9,100 h, functionality: fully functional, machine/vehicle number: 414-38, TECHNICAL DATA Travels  ; X / Y / Z 450 / 270 / 310 mm. Acceleration ; X / Y / Z 0,7 / 0,7 / 1,0 g Fast speeds ; X / Y / Z 40 / 40 / 60 m/min Spindle speeds max. 15’000 min-1 Tool connection HSK A 40 Milling cap. in St 60 max 60 cm3/min Drilling cap. In St 60 max dia. 16 mm Threading up to M12 Magazine / tool posts 24 – special on this one 40 Bjdpfx Ajkx Ek Tod Aedb Tool changing time abt. 0,8 sec. Time clamp-to-clamp abt. 2,2 sec. 5 axes execution NC Table tilting rotating +/- 100° Circular plates 100 mm « Rasterbohrbild » M6 x 50 mm Rotations 4th. axis 40 min-1 Rotations 5th. axis 60 min-1 Direct measuring system for 4th. And 5th. axis +/-20’’ / +/-20’’ Distance spindle nose – table surface 170 – 450 mm Max transportable weight 6 kg errors and omissions excepted-data given without obligation

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 730 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 425 mm, rapid traverse X-axis: 60 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 60 m/min, torque: 90 Nm, controller manufacturer: Siemens, controller model: 840D PL, overall weight: 10,000 kg, spindle speed (max.): 12,000 rpm, coolant supply: 25 bar, number of spindles: 1, number of slots in tool magazine: 20, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, We are Chiron experts. The machine is currently being partially overhauled and is in very good condition. If a probe or another option is needed, we can gladly provide it for an additional charge. Bdodpfxswpcfuo Ad Asb FZ15W with 4th and 5th axis Machine dimensions: approx. 4200mm x 2400mm Travel range -X = 730mm -Y = 400mm -Z = 425mm Control: 840D Powerline Main spindle: -Speed: 12,000 rpm -Tool holder: SK40 -Torque: max. 90NM Tool changer -Tool places: 20 Workpiece changer -Peiseler table with Afrocontroller Chip conveyor Coolant system with internal and external cooling Hydraulic clamping device Complete documentation available Geometry tip-top HS runout 0.008mm QC20 measurement 12.6µm (Manufacturer's tolerance 18µm, new machine 23µm, used machine) The machine can be inspected under power.

Condition: used, Year of construction: 1997, functionality: not functional, The following parts from a Chiron FZ 12 SM, year 1997, are for sale: 9 pcs. tool arms Bdsdjxdhp Ejpfx Ad Asb 1 pc. spindle 1 pc. spindle motor

Condition: good (used), Year of construction: 2000, Chiron FZ 12 W pendulum table Year of manufacture: 2000 Control: Siemens Sinumerik 840 D travel: X 550 / Y 300 / Z 425 spindle speed: 11000 / min spindle mounting: SK 30 Power: 10 kVA weight: 4000 kg Condition: Used, ready for operation, without rifle power Bdsdpemp T Nisfx Ad Aob

Condition: good (used), Year of construction: 2003, machine/vehicle number: 129-41, functionality: fully functional, travel distance X-axis: 550 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 360 mm, number of slots in tool magazine: 48, controller manufacturer: Siemens, table width: 260 mm, controller model: 840D, table height: 540 mm, Equipment: chip conveyor, - Spindle 12,000 1/min - 48 tool positions in chain magazine (chain and guides replaced in 2021) - HSK A63 tool holder Bedpfxetyx Npj Ad Aodb

Condition: good (used), Year of construction: 2004, travel distance X-axis: 6,000 mm, travel distance Y-axis: 630 mm, Chiron Mill 6000 / 2013, completely overhauled by Chiron. Year of manufacture: 2004 / overhauled in 2013. Equipped with Siemens 840D control system. Travel X/Y: 6000/630 mm. Pendulum machining possible. 92-position tool changer. HSK-A 63 tool holder. Spindle speed up to 12,000 rpm. Spindle replaced in 2021. NC swivel milling head. Hydraulic unit with 210 bar. 2 hydraulic clamping circuits. Separate clamping pressure control per pendulum field. Clamping pressure monitoring. Pneumatic workpiece stop. 2 separately controllable pneumatic lifting devices. Brankamp collision monitoring system. Scraper belt conveyor. OKZ prepared. Knoll vacuum rotation filter. Rotating viewing window. Automatic loading doors. 5-axis milling package. IKZ 70 bar (internal coolant supply at 70 bar). Oil mist extraction. Pendulum machining possible. Pendulum machining X-axis travel: 1773 mm with face machining (tool length: 120 mm). Linear clamping system with 8 vices. Bodjw N Nvfspfx Ad Ajdb

Condition: ready for operation (used), Year of construction: 1998, functionality: fully functional, travel distance X-axis: 550 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 425 mm, TECHNICAL DETAILS Control: Sinumerik X travel: 550 mm Bdedpfxewtravj Ad Ajb Y travel: 300 mm Z travel: 425 mm Rapid traverse: 30 m/min Spindle mount: ISO SK 40

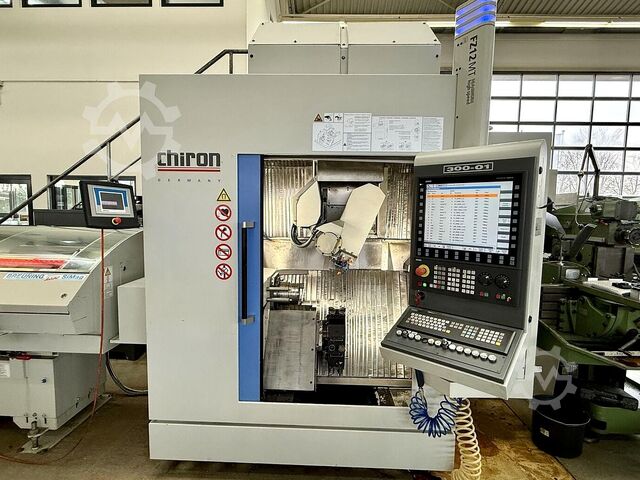

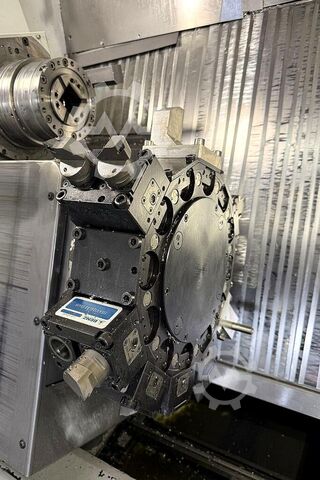

Condition: good (used), Year of construction: 2014, functionality: fully functional, machine/vehicle number: 300-01, spindle speed (max.): 12,000 rpm, travel distance X-axis: 550 mm, travel distance Y-axis: 320 mm, travel distance Z-axis: 425 mm, number of slots in tool magazine: 108, swivel angle B-axis (max.): 101 °, No minimum price - guaranteed sale to the highest bidder! Machine with counter spindle and swiveling turntable TECHNICAL DETAILS Control system: Siemens Sinumerik 840 D X-axis travel: 550 mm Y-axis travel: 320 mm Z-axis travel: 425 mm B1 swiveling axis: 101° BT axis: 0 – 180° V-axis in working area: -40 to -496 mm V-axis outside working area: up to 570 mm Z-axis (rotary axis): approx. 450 mm Spindle data Main spindle speed: 12,000 rpm Rotary spindle: 4,000 rpm C-axis: 6,500 rpm A-axis: 4,500 rpm Speed for driven tools: 4,500 rpm Tool holder Main spindle tool holder: HSKA 63 Turret tool holder: Capto 4 Tool holder diameter: 63 mm Bdsdjwpt Akspfx Ad Asb Tool magazine Tool turret: 12-position with driven tools Tool changer: 32-position Additional magazine: 64-position MACHINE DETAILS Operating voltage: 400 V Frequency: 50 – 60 Hz Rated current: 125 A Connected load: 70 kVA Dimensions and weight Installation size (L x W x H): 8,565 x 5,150 x 2,750 mm Total weight: 18,000 kg EQUIPMENT - Coolant system - Breuning Simag bar loader, year 2014 - Tool measurement system - ICS with 70 bar internal cooling - Motorized safety door - Technical documentation - Manual - Continuously variable speed - Transport possible on standard truck

Condition: used, TECHNICAL DETAILS - Number of axes : 7 MILLING SPINDLE - Tool holder type : HSK40 - Spindle speeds : 30.000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 450 x 270 x 310 [mm] Bdjdpfx Aouhbtqsd Aob - Rapid traverses rates (X/Y/Z) : 75 [m/min] B ROTARY AXIS - Travel : -20/+115 [°] - Indexing precision : 0,001 [°] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 20 A ROTARY AXIS - Max. bar diameter : 32 [mm] - Indexing precision : 0,001 [°] - Travel : 360 [°] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 17 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 1.500 x 2.600 [mm] - Machine height : 2.300 [mm] - Machine weight : 5.100 [kg] MACHINE HOURS - Number of working hours : 20.749 [h] EQUIPMENT - CNC : Fanuc 31i-A5 - Interface : USB, PCMCIA, RJ45 - Fire extinguisher * : KRAFT&BAUER FB703 * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. - Coolant tank - Spindle cooling unit - Oil mist extractor : HIFI FILTER - Tool probe : Renishaw TS27R - Workpiece probe : Renishaw OMP40 - Unit for 6th face machining - Collet chuck : ORTLIEB KSF 30-50 - Tool recognition through RFID scanning : BALLUFF BIS C-650 - Tool-holders : 30

Condition: used, TECHNICAL DETAILS - Number of axes : 7 MILLING SPINDLE - Tool holder type : HSK40 - Spindle speeds : 30000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 450/270/310 [mm] - Rapid traverses rates (X/Y/Z) : 75 [m/min] B ROTARY AXIS - Travel : -20/+90 [°] - Indexing precision : 0.001 [°] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 40 TURNING SPINDLE - Spindle speeds : 8000 [rpm] Bodpsuhbr Tjfx Ad Aodb - Max. bar diameter : 32 [mm] - C axis indexing precision : 0.001 [°] - Travel : 360 [°] POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 1500X2600 [mm] - Machine height : 2300 [mm] - Machine weight : 2850 [kg] MACHINE HOURS EQUIPMENT - CNC : Siemens 840 D - 3 colors status lamp

Condition: used, Year of construction: 2006, functionality: fully functional, travel distance X-axis: 2,000 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 550 mm, Chiron MILL 2000 Machining Center For sale is a Chiron MILL 2000 machining center from 2006. The machine is in good condition and ideally suited for the machining of large and long workpieces. Manufacturer: Chiron Model: Mill 2000 Year of manufacture: 2006 Technical specifications: • Travel: X 2000 mm / Y 500 mm / Z 550 mm • Spindle: 12,000 rpm HSK 63 • NC swivel head • Tool magazine: 40 positions (chain magazine) • Control: Siemens • Machine weight: approx. 9,600 kg Equipment: • 40-position tool magazine • Chip conveyor and coolant system • NC swivel head Bodpfxjxcpy Ns Ad Asdb • High-pressure system Condition & Service: The machine is fully operational and available immediately. Loading and transport can be arranged. Location: Germany (Stuttgart area) Price: negotiable

Condition: good (used), Year of construction: 2000, functionality: fully functional, travel distance X-axis: 300 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 250 mm, workpiece weight (max.): 1 kg, number of slots in tool magazine: 12, controller manufacturer: Fanuc, controller model: 21m 3x / 2x 21iM, coolant supply: 1 bar, number of spindles: 1, rapid traverse Z-axis: 60 m/min, rapid traverse X-axis: 40 m/min, rapid traverse Y-axis: 40 m/min, rotational speed (max.): 10,000 rpm, workpiece diameter (max.): 63 mm, Equipment: documentation/manual, rotational speed infinitely variable, 7 units CHIRON FZ08S with 4th axis Peiseler AWU P100 3 machines were overhauled by Chiron CMS in 2016 and 4 machines in 2018, Bodpfjvx Ugwox Ad Aedb unit price approx. €30,000 each.

Condition: excellent (used), Year of construction: 2013, Heidenheim TNC 530, SK 40, 12,000 rpm, 40 tool positions, through-spindle coolant, direct measuring system on all axes, central lubrication system, automatic loading doors, measuring probe, Bedpfxoxfqyvj Ad Ajdb

Condition: excellent (used), Year of construction: 2017, SIEMENS 840D SL control Working travels 550 x 320 x 420 mm Milling head swivellling +100 / -10 ° Spindle taper HSK A50 Spindle speeds -12'000 rpm Tool changer with 64 Pos. Turning spindle 4'500 rpm NC swivel rotary table with B- + C-axis Tool breakage control system Tool lenght measuring device Bdjdpfowwundex Ad Aob 3D-measuring tracer Misc. accessories MARCELS MASCHINEN CH

Condition: ready for operation (used), Year of construction: 2010, machine/vehicle number: 251-78, functionality: fully functional, operating hours: 28,635 h, travel distance X-axis: 550 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, number of slots in tool magazine: 48, controller manufacturer: Heidenhain, spindle speed (max.): 15,000 rpm, TECHNICAL DATA Control: Heidenhain Bdedjwaai Sopfx Ad Ajb Travel X / Y / Z: 550 / 400 / 400 mm Spindle and axes Spindle speed: max. 15,000 rpm Tool holder: HSK 50 Tool magazine: 48-station Table: Swivel table MACHINE DETAILS On-time: 51,192 h Spindle runtime: 28,635 h Control: On-time: 49,427 h Weight: 6,500 kg Electrical specifications Operating voltage: 400 V Control voltage: 230/24 V Power: max. 41 kVA Rated current: 59 A Fuse protection: 63 A Frequency: 50/60 Hz EQUIPMENT - Handte oil mist extraction system - Tool package - Heidenhain 3D measuring probe - Workpiece measurement IR probe - Turntable - Documentation - Data backup

Year of construction: 2006, operating hours: 82,068 h, condition: good (used), functionality: fully functional, machine/vehicle number: 258-22, Moving column machine in steel-concrete composite construction with workpiece changing device. Low-maintenance model from the world-renowned manufacturer CHIRON. Double spindle - vertical - machining center incl. chip conveyor KNOLL AE 1058.009 and a compound unit (already dismantled). Prescribed maintenance intervals for plant and plant parts have always been observed. TECHNICAL DETAILS Drilling capacity in steel: 60: 2 x 6 36 mm (with insert drill) Guides: with long term grease lubrication speed range: 20-12.000 rpm CNC control: SIEMENS 840D spindle distance in X-axis: 250 mm X-axis: 300 mm Y-axis: 400 mm Z-axis: 425 mm (with variable tool change plane) rapid traverse speed 60 m/min in X-, Y- and Z-axis Main spindle drive: 1 piece with 2 AC motors power at 100 % ED: 9,5 kW power at 15 % ED:14,0 kW Drive: digital direct drives with indirect absolute path measuring system (no reference point approach) tool places: 212 Tool diameter: max. 65 mm Tool diameter with free neighboring places: max. 175 mm Tool weight: max. 2.5 kg (5.0 kg at 2 stations) Tool change time: approx. 0.9 s (depending on control) Chip-to-chip time: approx. 2.1 s (control-dependent) Workpiece changing device: 0 / 180 Tool holder: HSK A 63 1 MACHINE DETAILS type of current: 3 / N / PE - 50/60 Hz operating voltage: 400 V power: 44 kVA Bodpfxjmt A Ive Ad Ajdb rated current: 63 A Coolant system HL 450 / 900 LATE CONVEYOR Manufacturer: KNOLL Type: AE 1058.009 Year of manufacture: 2006 EQUIPMENT - CHIRON maintenance manual on screen - Operating hours and piece counter - Socket 230 V - Socket for portable mini handwheel - Control cabinet cooler as door-mounted unit - Signal lamp - splash guard cladding - chip conveyor - mini control panel - Rinsing gun - Central pneumatic connection - Fixture flushing - 70 bar HP pump - 1 internal cooling package with suction unit - Fully enclosed working chamber - Extraction unit with air cleaner - Extraction capacity 800 m³/h - CHIRON mold life monitoring with: - Automatic loading door of the splash guard - "opening" and "closing", actuation via two-hand start release - Integrated IWW 0/180° workpiece changing device - Chiron Lasercontrol Single F500 - Ethernet connection RJ45 at the control cabinet instead of in the control panel - Pneumatic and hydraulic connections - Central hydraulic and pneumatic connection prepared for max. 20 connections, 6 connections are designed including connection couplings, 4 of them for hydraulics, max. 210 bar and 2 for uncontrolled pneumatics. - 4 Additional hydraulic connection(s) - Hydraulic power unit - 2 Hydraulic aggregate extension for further clamping circuits

Condition: used, Year of construction: 1990, Type/Designation: 307-153/714-750 Serial Number: 82/293 Country of Manufacture: Made in West Germany (before 1990) Technical Data (approximate, for this type of CHIRON machine from the 1970s/80s): Machine Type: Column drill / single-station drilling machine for metal Motor Power: typically from 1.5 kW to 3 kW (three-phase, 380 V) Spindle Speeds: 100 – 4000 rpm (mechanically or electrically switched) Max. Drilling Diameter in Steel: approx. 20–25 mm (depending on the version) Spindle Taper: usually MT2 or MT3 Bodpfsw T U Ubox Ad Aodb Feed: manual or mechanical (some models equipped with automatic feed) Weight: several hundred kilograms (approx. 300–600 kg) Intended Use: serial production in industry (precise hole drilling, light milling operations in metals, use in production lines) Machine Table: cast iron, capable of securing workpieces Full control panel – variable speed adjustment available 2. Key Working Head Parameters (important for riveting): Press Force (kN) – if specified on the cylinder label or in the electrical box (often 10–30 kN for this size) Spindle/Slide Stroke (mm) – measure from top to bottom position Daylight (working clearance: distance between tool tip and table at top position) Throat Depth – from spindle axis to column (working reach) Max. Rivet Diameter / Work Range – specify based on tests or prior use Voltage: usually 380/400 V, 50 Hz 3. Dimensions and Logistics: L×W×H (of base/overall, in cm) Electrical Supply: 3×400 V, protection e.g. C16–C20 (indicate according to power rating) Weight (weigh with pallet jack with scale or estimate)

Condition: excellent (used), CHIRON DZ 18.2 KW, Bdjdpfouviiwsx Ad Asb YOM 2012 Control: Fanuc 31i Path: X / Y / Z 630 x 520 x 400 mm, Pallet changer 2x 940 x 470 mm, 2 spindles Spindle distance 320 mm, 2×32-fold tool changer SK40 tool Max. Spindle rotation 10,000 rpm
