Used Holz Her Vertical Panel Saw for sale (163)

Condition: used, Year of construction: 2019, Used machine Year of manufacture: 2019 Base Machine - DYNESTIC 7532-10.5 Automatic Hodpfx Aswka Upofpsfn Dynestic Table For classic nesting operations with wear plate Processing length: 3100 mm Machine frame of welded construction with ground and hardened prism guides for the gantry, tool head, and consoles Gantry-type carriage Helical rack and pinion drive in X and Y axes, Ball screw in Z axis for precise positioning Technical Data: Processing dimensions: Maximum workpiece area on nesting table: X = 3100 mm, Y = 1560 mm Maximum travel paths: X = 4695 mm, Y = 2100 mm, Z = 293 mm Maximum clearance height on DYNESTIC table: Z = 100 mm from table surface (without wear plate) Maximum programmable speed: Vector speed: 128.0 m/min X = 80 m/min, Y = 100 m/min, Z = 25 m/min DYNESTIC Table: Solid, continuous machining table with grid pattern, continuous grooves in X and Y directions, groove spacing 50 mm with 25 meters of sealing cord for clamping the wear plate Vacuum zones: Single-circuit vacuum system Drilling unit 7877, 19 spindles Drive power: 1.7 kW 13 individually selectable vertical spindles arranged in U-shape 5+4 in X-direction and 4 in Y-direction 32 mm pitch Max. drill diameter: 35 mm Total drill length: 70 mm from mounting end (dependent on panel thickness) Spindle stroke: 70 mm Direction of rotation: alternates clockwise/counterclockwise n(max.) 1000 - 4400 rpm, steplessly adjustable Mount: M10 thread - 11 mm locating seat Without tools, without collet 6 horizontal spindles 2 double drilling spindles in X-direction 1 double drilling spindle in Y-direction Mount: M10 thread, 11 mm locating seat Max. total drill length: 63 mm from mounting end Without tools, without collet Milling unit 7842 Power: 12.0 kW (S6) n(max.) = 1000 - 24000 rpm, steplessly adjustable, Max. output at 12000 - 24000 rpm air-cooled with HSK-F 63 tool holder with right-hand thread (for right-handed tools) with collet chuck with HSK shank Ceramic ball bearings (hybrid bearings) Tool weight max. 6 kg (including holder) Tools: milling and grinding tools max. Ø 160 mm Safety enclosure according to CE standards Safety fence on the sides and rear Vacuum pump 500 m³/h, dry-running Personnel safety via light barriers in the front machine area Handheld remote control for machine operation with the following functions: > Start / Stop machining program > Speed adjustment of machining cycles > Reset button > Manual feed / rapid traverse for all axes > Emergency stop CAMPUS V7 CAD/CAM software 1x machine license Consists of: 1. CAMPUS NC-HOPS 2. CAMPUS MT-Manager 3. CAMPUS Workcenter 4. CAMPUS DXF interface CAMPUS NC-HOPS: Graphical variant system with conversational and CAD/CAM features for creating part variants using macro technology Automatic central lubrication Automatic lubrication at defined intervals Additional dust sealing by positive pressure in each guide carriage Simultaneous lubrication for all linear guides in X, Y, and Z axes, for all ball screws in Y and Z axes, for all milling spindle guides

Condition: ready for operation (used), Year of construction: 2011, operating hours: 25,996 h, functionality: fully functional, machine/vehicle number: 55/1-105 15501954 BAZ11V3, travel distance X-axis: 6,566 mm, travel distance Y-axis: 1,800 mm, travel distance Z-axis: 445 mm, spindle speed (max.): 6,500 rpm, number of slots in tool magazine: 24, No minimum price – guaranteed sale to the highest bidder! Machine already dismantled TECHNICAL DETAILS Workpiece dimensions for cutting (without cutter radius): 6,225 x 1,595 mm Travel range X: 6,566 mm Travel range Y: 1,800 mm Travel range Z: 445 mm Vertical clearance standard consoles – 1st stroke: 498 mm Vertical clearance standard consoles – 2nd stroke: 598 mm Vertical clearance Vario table – 1st stroke: 445 mm Vertical clearance Vario table – 2nd stroke: 545 mm Speed Programmable vector speed: 142.0 m/min Speed X: 100 m/min Speed Y: 100 m/min Speed Z: 25 m/min Drilling unit Type: Drilling unit 7976, 24 spindles Drive power: 3.0 kW Vertical spindles Number: 18, selectable individually Arrangement: L-shape (10 in X axis, 8 in Y axis) Spindle pitch: 32 mm Max. drilling diameter: 35 mm Total drill length: 70 mm (from screw end, depending on panel thickness) Spindle stroke: 70 mm Rotation direction: alternating right-/left-hand Speed range (stepless): 1,000 – 6,500 rpm Connection: M10 thread – press-fit 11 mm Horizontal spindles Number: 6 In X axis: 2 double drilling spindles Spindle pitch (X axis): 32 mm In Y axis: 1 double drilling spindle Connection: M10 thread – press-fit 11 mm Total drill length: 70 mm (from screw end) Consoles & suction cups (VarioTable) Number of consoles (automatic positioning): 6 Work consoles (automatic, X direction): 5, in zones A + D Suction cup holders per console (automatic, Y direction): 3 Vacuum suction cup per holder: 1, 80 x 80 mm with plunger valve Suction cover per holder: 1 Loading aids: 4 Rear positioning pin per console: 1 Note: Only 5 out of 10 consoles function correctly Saw unit / change-over unit Central unit: Central gearbox 7955, for saws (mainly solid wood) Tool holder: HSK-F 63 Max. output speed: 6,750 rpm Number of spindles: 1 Max. saw blade diameter: 220 mm Saw blade bore: 30 mm Driving pins: 2 x Ø 6 mm Clamp cover: self-locking Lubrication: oil sump lubrication MACHINE DETAILS Operating hours: 25,996 h Hedpjwvi Icofx Afpsfn Number of switching cycles: 965 x EQUIPMENT - Drilling unit with 24 spindles (vertical and horizontal) - VarioTable with automatically positionable consoles and suction cups - 4 loading aids - Center unit for sawing with HSK-F 63 holder - Saw blade holder up to Ø 220 mm with oil sump lubrication - New pump installed - Only 5 out of 10 consoles fully operational – long workpieces can still be held without problems - No tools included in delivery

Condition: used, Cutting optimization system HOLZ-HER - used - Optimized for vertical panel saws, PC system with touchscreen, including office version OPTI-BASE V-CUT, label printer, console for mounting on the machine, network connection, USB port. Hedpfjwyvu Dex Afpofn

Condition: reconditioned (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: 558/0-112, Weight approx. 1950 kg Hodpfsh Uyg Esx Afpefn control panel 1888 Pre-milling unit 1961 edge feeding unit 1901 tracer nozzle printing unit 1913 MOT cross-cut unit 1918 Milling unit 1942 top Milling unit 1942 top/bottom for round milling scraper 1929 Form milling unit 1983 Surface scraper 1964 Buffing unit 1944 length approx. 5900 mm Connected load 21.4 A

Condition: used, Year of construction: 1997, HolzHer Edge Bander 1436SE Year of manufacture: 1997 - PVC Primus, 3mm PVC cartridge system - Edgebanding, flush trimming saw, flush trimming, bevel milling, radius milling - Scraper blade, buffing unit - Dimensions: 4700mm x 1400mm; Height: 1650mm Hedpfx Aswv Uq Ajfpsfn - Weight: 1300kg - Working dimensions: Length 4500mm Depth 1020mm Height 1630mm - Connection socket: 140mm Ø - Workpiece width: min. 60mm - Feed speed: 11m/min - 6 bar - 400 Volt compressed air - Edge thickness: 8mm for strips, 2mm for rolls

Condition: excellent (used), Year of construction: 2018, operating hours: 1,020 h, functionality: fully functional, For sale: Nesting machine from Holzher with very few operating hours and top equipment! Manufacturer: Holz-Her Model: Nextec 7707 Year of manufacture: 2018 Weight: 4980 kg Operating hours: 1020 Processing length X: 3100 mm Processing length Y: 2200 mm Vector speed: 110 m/min Equipment: Milling unit: 12 kW, air-cooled, 1000–24000 rpm Drilling unit (XL drilling head): 24 spindles (18 vertical, 6 horizontal) including saw unit in X-direction (grooving in X-direction) Angle gear: e.g. Lamello P-System Workpiece support: High-Flow nesting table with continuous vacuum area, 16-zone vacuum controlled by software Safety device: light barrier Workpiece clamping: 2 × 140 m³/h vacuum pumps, low-maintenance dry-running, additional 250 m³/h dry-running vacuum pump Tool changer: 10-position pick-up changer integrated in the machine frame, 1-position X/Y pick-up changer with tool cover Hsdswtiq Sjpfx Afpjfn NEXTEC module: CabinetSelect DirectCut: line laser in X/Y-direction, incl. software Software: CAMPUS software machine license included, aCADemy CAD/CAM module and CabinetControl Base, “Warehouse” software module, Production software module, BetterNest free-form nesting

Condition: new, Year of construction: 2025, New machine Year of manufacture: 2023 Equipment and technical specifications: BASE MACHINE ARTEA 1030 Extendable workpiece support, spacing 500 mm Additional rigid workpiece extension, length 3080 mm Control system Edge Control BC 15 with 15.6" touchscreen (Visual Setting mode) LED machine lighting for the processing units Hfodpjww Ra Asfx Afpon Jointing unit FG101 with 2 diamond milling heads Edge feed MG101 Adhesive application system Glu Jet GJ101 (2.3 kW, 50 Hz) Storage chute for 1.4 kg cartridges (4 cartridges) GLU JET collection container Automatic reloading function Trimming unit KA101 (50 mm) Pressure unit DW101 End trimming, single-motor, linear-guided Milling unit FR101 multifunctional, flush 5 mm, R 2 mm Corner copying unit FF101, single-motor, linear-guided, 45 mm Scraper unit ZK101 Chip collection box Flat scraper FK101 Buffing unit SW101 Availability: short notice Location: Flörsheim

Condition: good (used), Formwork nails, formwork nails, strip nails, nail strips, compression head nails, nail rolls Hodpfx Ajv D Nugsfpofn -Manufacturer: Holz-Her, nail strips 1 box / approx. 6000 pcs. -Type: KRL 2075 2.8/3.1 x 80 H/A2 -Price/Delivery: complete -Transport dimensions: 410/350/H270 mm -Total weight: 16.6 kg

Condition: new, HOLZ-HER 7405 EVOLUTION CONNECT machining center -Exhibition machine- This offer is an equipment package. Hedpfxou Tid Ho Afpofn The following items and options are already included in the price: - Material support - Height-adjustable infeed roller conveyor - EVOLUTION diamond formatting cutter set - CAMPUS V8 EVOLUTION CAD/CAM software - Flat screen 21.5", 16:9 - Workpiece length measurement LASER - Milling unit 7830 - 7887 tool changer 6-position magazine pick-up - ECO vacuum system - Air conditioning unit for switch cabinet cooling - Tool changer 7874 - Angular gear 7869 - Adapter for Clamex milling cutters - Tool set - 4-axis CLAMEX - Tool holder HSK-F 63 - Drilling unit XL 7885, 19 spindles - Manual control unit - Tool set - EVOLUTION for XL drilling head 7885 - new exhibition machine -

Year of construction: 1995, condition: not inspected (used), Connected load 380V 55A PMS control Pre-milling unit 1961 Magazine 1901 Glue station 1906 Printing unit 1926K Snipping unit 1916 Flush trimming unit 1962 Profile trimming unit 1966, 3 mm rounding up to 15 mm flush Hfsdpfxsnxkm Eo Afpon Rounding scraper 1927 Shaping trimming unit 1983 Buffing unit 1941 Extraction 1x160 1x125 mm Compressed air connection 6 bar

Condition: ready for operation (used), Year of construction: 2007, Brand: Holz Her Model: PRO-MASTER 7123K Serial no: 527/0-705 5010147 Year of manufacture: 2007 - 2 HSK cones included + various drills for drill box - Comes with a number of suction cups and some spare parts Tech. info: 4-axis (c-axis) Hedpferz Irrox Afpofn 6 beams Motor-controlled adjustment of beams Number of vertical boring bits: 24 Number of vertical boring bits in X axis: 10 Number of vertical boring bits in Y axis: 8 Centres distance: 32 mm Horizontal double spindle in X axis: 2 Horizontal double spindle in Y axis: 1 Centres distance: 64 mm Working area: 3200x1260 mm Maximum travel path: X= 3866 mm Y= 1650 mm Z= 325 mm Workpeice pass height for tool change spindle with HSK 63F tool connection: 345 mm Max. machining thickness/ feed-in height (rear stop): 175 mm Max. workpiece size for vertical bores: X=3730R/ 3460L mm Y=1570 mm Max. workpiece size for horizontal bores X: X=3450R/ 3370L mm Y= 1315 mm Max. workpiece size for horizontal bores Y: X=4760R/ 3300L mm Y= 1385 mm Max. workpiece size for edge milling, less cutter radius (tool 25 mmdiameter x 125 mm, HSK): X=3510R/ 3525L mm Y=1445 mm Z=280 mm Max. workpiece size for grooving in X (dim. centre grooving tool approx. 120 mm): X=3300R/ 3760L mm Y=1585 mm Max. workpiece size for grooving in Y (dim. centre grooving tool approx. 120 mm): X=3200R/3860L mm Y=1485 mm Max. travel speed X axis: 100 m/min Max. travel speed Y axis: 100 m/min Max. travel speed Z axis: 25 m/min Max. travel speed C axis: 60 m/min Motor power of boring unit: 3 kW Motor power of saw: 1,5 kW Motor power of electro spindle unit with clamping system: 6 kW Speed electro spindle 1000-18000rpm Power: 22 kW, 50 Hz, 400 V, 3-phase Compressed air: operating pressure 6,0 bar permissible limit pressure 8,0 bar Air requirement: 300 l/min Extraction capacity: approx. 5300 m3/h Dust nozzle diameter: 250 mm Size: Length with control cabinet: 6420 mm Overall width: 3760 mm Height with extractor hood: 2475 mm Weight: 4200 kg Program Campus NC-HOPS Operating system Microsoft Windows Graphic variants system with HOP and CAD/CAM properties For the creation of parts variants with macro technology Program operation Windows-conform surface configuration and operator guidance Macro / variant programming Indication and simulation modes Export and import facility to the various branch programs Interaction possibilities with a variety of branch programs Stock no: 2002061BXA with reservation for incorrectly presented technical data

Condition: new, Year of construction: 2023, MACHINESEEEKER ENQUIRIES: Please understand that we do not offer this new machine outside our sales area in Germany (Rhine-Main area and North Rhine-Westphalia). These inquiries will not be answered. MACHINESEEKER ENQUIRIES: Please understand that we do not offer this new machine outside our sales area in Germany (Rhine-Main area and North Rhine-Westphalia). These inquiries will not be answered. ----- New machine Year of manufacture 2023 Equipment and technical specifications: ARTEA 1030 BASE MACHINE Extendable workpiece support, 500 mm spacing Additional rigid workpiece extension, length 3080 mm Edge Control BC 15 with 15.6" touchscreen (Visual Setting mode) LED machine lighting for the processing units FG101 jointing unit with 2 diamond milling heads MG101 edge feeder Glu Jet GJ101 adhesive application system (2.3 kW, 50 Hz) Storage compartment for 1.4 kg cartridges (4 cartridges) GLU JET collection container Automatic reloading function KA101 trimming unit (50 mm) DW101 pressure unit Trimming, single-motor, linear guide FR101 multifunction trimming unit Flush 5 mm, R 2 mm Corner copying unit FF101, single-motor, linearly guided, 45 mm Scraper unit ZK101 Chip collection box Surface scraper FK101 Buffing unit SW101 Spraying device TR101 for the inlet and outlet areas Horizontal spraying device GM101 after the printing unit Availability: Short term Location: Hochheim Hedpfxjwuwv Ss Afpjfn

Condition: good (used), roofing nails, strip nails, nail strips, roofing nail rolls, coil roofing nails -Manufacturer: Holz-Her, roofing nails, nail rolls, 1 started box/ total approx. 7000 pieces -Type: 3.0x25 A2 stainless steel -Price/Delivery: complete -Transport dimensions: 490/300/H140 mm -Total weight: 12.7 kg Hedpfx Afjv D U A Aspsfn

Condition: new, HOLZ-HER 1308 XL AURIGA POWER Edge Banding Machine -Showroom Machine- New: GLUJET GJ725 Hodpfeu R Sy Asx Afpsfn This offer is an equipment package. The following items and options are already included in the price: - Extendable workpiece support - Edge Control PPC 322 W - ECO MODE energy saving mode - FG201 jointing milling unit with 2 milling heads - Diamond cutter Ø 70 x 64 x 30 mm, 2+2 teeth, counterclockwise rotation - Diamond cutter Ø 70 x 64 x 30 mm, 2+2 teeth, clockwise rotation - 1903 edge feeder - Glu Jet GJ725 NC PUR PRO adhesive application system - 1912-3 pneumatic pressure unit - 1918 pneumatic trimming unit, 60 mm - FR301 MOT6 multi-function milling unit - Diamond cutter Ø 56/60 mm, counterclockwise rotation - Diamond cutter Ø 56/60 mm, clockwise rotation - FF301 MOT1 corner rounding unit - Scraper unit ZK301 MOT4 including high-gloss package - HW indexable inserts for scraper holder - Chip collection box for scraper unit - 1940 buffing unit - TR301 spraying device for the infeed and outfeed areas - Motorized pressure bridge adjustment - iTronic adaptive pressure and adhesive quantity control - Long infeed guide, 1,252 mm - Motorized infeed guide adjustment - DW301 printing unit with motorized NC axis - Extraction hoods for 1918 trimming unit - FK701 flat scraper - GM301 spraying device after printing unit - New exhibition machine -

Condition: reconditioned (used), Year of construction: 1993, functionality: fully functional, machine/vehicle number: 869/9-302, Connected load 380V 21A Hjdpjiamufofx Afpsfn Edge magazine gluing station 1906 printing unit 1914 Crosscut saw unit 1976 Milling unit rounding 1943 Rounding scraper 1927 Buffing unit 1944 Control panel top Suction nozzle D=100 mm operating instructions no exchange unit for flush milling

Condition: new, Year of construction: 2022, Exhibition machine Year of manufacture: 2022 Equipment and technical data: Base machine 7402 with Pin-Jet dowel insertion function Hand control device Hsdpfx Ajwt E Tvofpsfn 2D barcode scanner UPS Quattro-HSK package incl. 4-position tool changer XL drilling head Double drilling spindle in Y-axis Automatic central lubrication Location: Hochheim Availability: approx. week 32/2022

Condition: good (used), Formwork nails, formwork nails, strip nails, nail strips, compression head nails -Manufacturer: Holz-Her, nail strips 2 boxes / approx. 8000 pieces -Type: 2.8 x 65 H/BK .: 25 6714 -Price/Delivery: complete -Transport dimensions: 370/260/H250 mm Hodpfxev D Nvde Afpefn -Total weight: 27 kg

Condition: reconditioned (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: 315/0-110, Top control panel Edge feeding 1902 Glue application station 1906 cross-cut shear 1902 Printing unit 1816 Cross-cut unit 1918 Trimming unit 1942M Hfsdjh Ux Suspfx Afpsn Rounding scraper 1929 Form milling unit 1983 Surface scraper 1964 Buffing unit 1940 Weight approx. 970 kg Compressed air connection 6 bar suction connection Ø 120 mm Length approx. 5300 mm

Condition: used, Year of construction: 2005, Used machine Hodpfewlwn Nox Afpjfn Year of manufacture 2005 Technical specifications: - Base machine 555 - Workpiece support with 8 brackets, pneumatically clamped - Drilling unit 7968, 18 vertical drilling spindles with a 32 mm pitch, individually accessible, T-shaped arrangement, 12 in the X-axis and 6 in the Y-axis, max. drilling diameter 35 mm (depending on panel thickness), spindle extension stroke: 70 mm, direction of rotation: alternating right-hand and left-hand rotation, n = 4725 rpm continuously adjustable, 2 horizontal drilling units in the X-direction, 1 horizontal drilling unit in the Y-direction - Sawing unit 7946, 3.5 kW, pneumatically pivotable 90°, n = 5300 rpm, tool holder A Ø = 200 mm, I Ø = 30 mm, B = max. 3.5 mm Sawing/grooving in X and Y directions - Milling unit 7935 with 16 kW spindle, water-cooled - Milling unit 7982 for lock case milling - Tool changer 7996 with 18-station magazine (disk) - Vacuum pump with 140 m³/h - Handheld control unit - PC control with TwinCAM WOP system - Siemens control system Availability: Short-term Storage location: Poland

Condition: good (used), roofing nails, strip nails, nail strips, roofing nail rolls, coil roofing nails -Manufacturer: Holz-Her, roofing nails, nail rolls, 1 box/ total approx. 7200 pieces -Type: 3.0x22 A2 stainless steel -Price/Delivery: complete Hfsdpfx Ajv D U Ekefpen -Transport dimensions: 490/300/H140 mm -Total weight: 12.6 kg

Condition: not inspected (used), Year of construction: 1991, Power connection 400V / 11kW suction connection Ø 1x100 mm Hfodpfsiw D Udsx Afpsn Compressed air connection 6 bar weight approx. 980 kg width min/max 760 / 1605 mm, length 4425 mm, height 1720 mm workpiece thickness min. 6 mm, max. 45 mm Workpiece length min. 180 mm workpiece width min. 60 mm feed rate 13 m/min edge thickness max. 5 mm, roll material 3 mm Edge magazine 1301 with DAZ 11 gluing station 1906 printing unit 1914 trimming unit 1976 Milling unit flush 1942 Milling unit radius R2 1943 scraper 1927 Buffing unit 1944

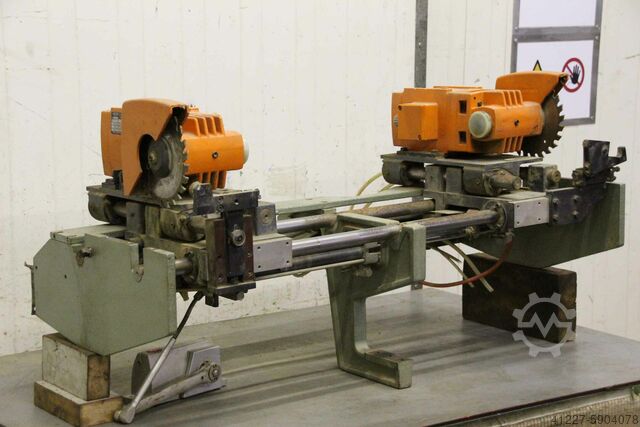

Condition: used, Unit construction kit, format processing unit, cutting unit, milling unit, profile milling unit, jointing milling unit, trimming unit, double-end profiler, edge processing machine, scoring motor, chipper motor, milling motor for edge processing machine Hfjdpfxegyg Are Afpon -Sale: Handover in the current condition as seen -Case: slight damage, see photos -Trimming unit: for trimming the protruding edges on the front and rear edge -Adjustment range: 400 to 840 mm -Clamping: pneumatic -Motors: Holz-Her 750 W / 2600 rpm -Saw blade: Ø 160 mm -Dimensions: 1010/450 / H540 mm -Weight: 94 kg

Condition: used, Electric motor, three-phase motor -Manufacturer: Holz-Her, electric motor type 80S-4 -Power: 550 W -Speed: 1350 rpm Hedpfxsg Ehags Afpjfn -Shaft: Ø 19 x 40 mm -Construction: B3 -Dimensions: 270/210 / H160 mm -Weight: 8.5 kg

Condition: used, Unit construction kit, format processing unit, cutting unit, milling unit, profile milling unit, jointing milling unit, trimming unit, double end profiler, edge processing machine, scoring motor, chipper motor, milling motor for edge processing machine -Number: 1x motor -Motor type: -Power: kW -Voltage: 380 volts Hfsdpfxjc Iprfj Afpjn -Tool holder: SK40 -Spindle speed: 9000 rpm -Dimensions: 340/270/H400 mm -Weight: 35 kg

Condition: used, Chip extraction, filter extraction, bag filter Hfedeb A E Uhjpfx Afpon -Drive: 0.96 kW -Speed: 2800 rpm -Connection: Ø 50 mm -Connection: 380 V -Dimensions: 780/470/H340 mm -Weight: 135 kg
