Used Holz Her Vertical Panel Saw for sale (163)

Condition: excellent (used), Year of construction: 2004, functionality: fully functional, Edgebanding Machine HolzHer 1321, in very good and fully functional condition, regularly in operation, edging programs available, solid industrial machine. - Pre-milling unit/jointing with spare DIA cutter - Glue application unit upgraded approx. 2-3 years ago to continuous slot nozzle pressure track - Glue height and edge thickness fully controllable via display, supports cartridges or granulate, PU glue possible - Panel preheating - Top and bottom pre-milling with separate units Guodexiv Efjpfx Afpjh - Motorized rounding milling up to 2 mm - End trimming unit, straight/angled - Radius scraper - Corner copying unit - Surface scraper - Buffing unit Machine is in ready-to-use condition. Still regularly in use until approx. CW42/43, can be tested on site.

Condition: used, machine/vehicle number: 008018, Type of edging: Thin edge, Thick edge, Solid wood Gluing System: EVA Hotmelt, PUR Premilling Unit: yes Corner Rounding Unit: yes Max feed speed: 20 m/min Maximum panel thickness: 60 mm Operating Units: 7 nr Gujdowv Dfcepfx Afpsh

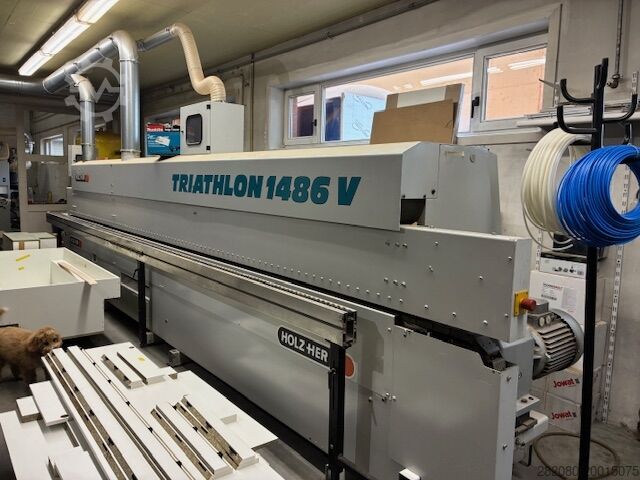

Condition: used, Holzher Triatlon 1486V Available October 2025 Guedpfxjxc H Udo Afpsh Machine currently still in use

Condition: excellent (used), Year of construction: 2011, Edge banding machine for edging and post-processing of panel materials Edge thickness for rolls: 0.4 - 3 mm Edge thickness for strips: 8 mm Max. 15 mm possible with tool change on the milling unit 1826 Edge height: max. 65 mm Workpiece thickness: 6 - 60 mm Workpiece width: min. 60 mm Workpiece length: min. 160 mm Feed speed: stepless 10 - 20 m/min Control unit PPC 221 – with 8.4" VGA color screen Motorized adjustment of the infeed fence, adjustable via control unit Pre-milling unit 1802 400 V (2 x 2.0 kW, 200 Hz, 12,000 rpm) Edge feed 1901 SYNCHRO Automatic feeding of roll and strip material Glue application system Glu Jet GJ301 automatic Automatic glue height adjustment (contact nozzle) Glu Jet hybrid technology – for processing EVA and PUR adhesives Glue application via nozzle technology Heat-up time: 3 minutes Glue granulate container 5 kg for GJ301 PRESSURE UNIT – Pressure section 1914-1 MOT END-TRIMMING UNIT – End-trimming unit KA 701 pneumatic (2 x 0.65 kW, 200 Hz, 12,000 rpm) Pneumatic swivel function 0/10° for coils and strips MULTIFUNCTIONAL END-TRIMMING UNIT End-trimming unit 1826 MOT4 (2 x 0.65 kW) with 4 NC servo drives for flush, radius, and chamfer cuts CORNER ROUNDING UNIT Profile milling unit 1833 MOT4 (2 x 0.65 kW, 200 Hz, 12000 rpm) Milling the top and bottom longitudinal edges, copy milling of the upper and lower front and rear longitudinal edges, corner rounding, postforming of corners with 4 adjustment motors SCRAPING UNIT 1927 MOT5 Carbide reversible blades for scraping knives 1929 R = 2.0 mm (2 pieces required) FLAT SCRAPER 1964 For removing excess glue to achieve a clean glue joint BUFFING UNIT 1944K (2 x 0.2 kW, 400 V, 1,400 rpm) For edge cleaning and polishing, incl. plunge control, incl. 2 textile buffing discs Gsdpfx Asxggmbefpeuh GROOVING UNIT 1841 1 x 3.8 kW, 200 Hz, 12,000 rpm, Saw blade Ø 160 mm, Cutting width 4–9 mm

Condition: used, Year of construction: 2002, Machining dimensions (tool diameter 25mm): X=3015 mm Y=1483 mm Z=325 mm Max. travels: X=3268 mm Y=1483 mm Z=325 mm Max. programming speed: X/Y = 75 m/min / Z = 30m/min Tool holder HSK 63F Drilling unit 7964, 14 vertical drilling spindles with 32 mm grid (10 in x / 4 in y) Sawing unit 7946 3.6 kW, 90° pneumatically pivotable Milling unit 7933 9 kW Wood Her Vector axis (C-axis) Tool magazine (6 disk places) Hand control unit Laser device (positioning of the suction cups) PC control panel with 17" monitor Operating system Windows 2000 Software: TwinCAM32 - office version Vacuum pump 100 m³/h Dry running Selective safety mats (3-field division) Gusdpjvvi Nbefx Afpeh Storage location: Nattheim

Condition: excellent (used), Year of construction: 2016, Machine available at short notice Touchscreen Coiled material 0.3 - 3 mm Bar material 0.3 - 15 mm Gsdpfx Aoxa Enqofpouh Panel thickness 6 - 60 mm Workpiece length min. 140 mm Workpiece width min. 60 mm Feed speed 10 - 20 m/min, stepless Motorized height adjustment Processing systems: Holzher hot-melt adhesive system GLU Jet GJ 302 with interchangeable cart Cartridge chamber Granulate hopper Suitable for EVA and PUR adhesives Motorized glue nozzle height adjustment with sensing nozzle Holzher L-Tronic system with interchangeable cart Release agent spraying at infeed Motor-adjustable infeed fence 1804 jointing unit 2 x 2 kW up to panel thickness 60 mm MG 701 automatic edge feeder for coiled and bar material GF 302 multi glue application LT 702 L-Tronic 1914 motorized pneumatic pressing unit KA 701 motorized/pneumatic cross-cut saw 0-10° 1828 flush milling unit FF 701 multi-profile contour milling unit ZK 501 radius scraper blade FK 701 surface scraper blade unit 1856 cleaning agent spraying 1944 pneumatic buffing unit with plunge control Automatic central lubrication Scissor outfeed, front workpiece support

Condition: used, Year of construction: 2017, Direct Numerical Control NC HOPS with Campus software Working range in X axis mm 3400 Working field in Y axis mm 1600 Working field in Z mm 300 Worktop with 6 adjustable bars No. 3 suction cups each work bar for holding the piece being processed N° 1 5-axis electrospindle, 10 KW, with automatic tool change, Hsk F63 type cones Boring head with 24 spindles as follows: N. 12 Y-axis vertical spindles N. 6 X-axis vertical spindles N. 4 horizontal spindles Y axis N. 2 X-axis horizontal spindles Automatic tool change system with 18 positions - positioned on the back of the machine Frontal protection and safety system with carpets and perimeter nets Automatic lubrication system Air conditioning system for the switchboard No. 1 vacuum pump Guedpfx Afewwiybopsh

Condition: ready for operation (used), Year of construction: 2014, Additional Equipment Gluing Part Snipping Unit Flush Trimming Unit This HOLZHER ARCUS 1334 FV2 was manufactured in 2014. A robust edgebander featuring a gluing part, snipping unit, and flush trimming unit. It handles a maximum edge band thickness of 8 mm and includes belt top pressure. Pneumatic control enhances its functionality. Consider the opportunity to buy this HOLZHER ARCUS 1334 FV2 edgebander. Contact us for more information. Gjdpfx Afew H D Tzepouh Application Types Edge Banding

Condition: used, Year of construction: 1980, Edge thickness: maximum 20mm Workpiece thickness: from 8mm - 60mm Workpiece width: minimum 60mm Glue application: cartridge Cut-off shears: yes Milling station 1: flush Infeed guide adjustment: manual Guodswm Nrijpfx Afpsh Workpiece thickness adjustment: manual Power consumption: 7kW Machine length: 2.8m Machine width: 1.2m Weight: 800kg

Condition: excellent (used), Year of construction: 2019, operating hours: 278 h, Max. Workpiece Size for Peripheral Milling: X = 3,620 mm Maximum Travel Distances: X = 3,865 mm Minimum Room Height: 3.20 m Machining in Y and Z Y = 1,600 mm; Maximum Panel Width 2,000 mm Maximum Workpiece Height 300 mm Measured from the top edge of the vacuum suction cup 125 mm MACHINE OPERATION SOFTWARE CAMPUS V7 Plus CAD/CAM Software, 1 x license incl. CabinetControl Base and material removal simulation 1 software license secured via USB dongle for the machine CabinetControl Base Software for furniture design and production CAMPUS V7 PLUS, software for CNC machining centers ADDITIONAL MODULE – HIGH-SPEED MILLING Control Siemens industrial PC control Handheld remote control unit for machine operation MILLING HEAD 5-axis head 7840, Power: 12 kW n(max) = 0 - 24,000 rpm, steplessly adjustable Cardanic; C-axis +/- 360° rotatable, A-axis +/- 180° rotatable Liquid cooling (cooling unit included) with HSK-F 63 tool holding fixture Max. Tool weight: 6 kg Milling tools: max. Ø 200 mm Saw blades: max. Ø 350 mm with optional 7886 pick-up changer DRILLING UNIT Pressure booster for increasing the standard pressure from 6 to 8 bar Drilling unit 7881, 24 spindles Drive power 3.0 kW, including saw unit 18 individually selectable vertical spindles Arranged in L-shape, 11+2 in X, 6 in Y direction, 32 mm pitch n(max) 1,000 - 5,710 rpm steplessly adjustable 6 horizontal spindles 2 double drilling spindles in X 1 double drilling spindle in Y Including saw unit Integrated saw unit for sawing / grooving in X direction n(max) 1,000 - 7,330 rpm steplessly adjustable MACHINE TABLE Machine table with 6 consoles, pneumatically clamped, adjustable in X direction Display and positioning of consoles and suction cups via software program 2 lateral stops at field A and D, 2 large buttons for clamping and releasing workpieces, 2 tape-measure position displays for console positioning in X relative to stop at field A/D, tape-measure positioning for suction cups at each console in Y relative to rear stop STOPS 2 additional processing fields at the front for 6 consoles (4-field processing) 4 pneumatically controlled stops per field, including 1 stop per console and one side stop in X direction LOADING AIDS 4 pneumatically liftable and lowerable loading aids for easy handling of heavy workpieces Gujdpjxfaf Usfx Afpsh TOOL CHANGERS Tool changer 7996, 18-position magazine (carousel), automatically moves in X-axis direction Moving tool changer 7886, 1-position saw blade magazine Specifically for large saw blade diameters up to 350 mm Pick-up system installed on the gantry, pneumatically operated Max. Tool diameter: Ø 350 mm Tool changer 7892, 16-position linear pick-up VACUUM PUMP 140 m³/h dry-running LED lighting for the machining area. SAFETY OPTIONS Safety enclosure according to CE standards Protective fencing on the side and rear EQUIPMENT VARIANTS AND ACCESSORIES – LUBRICATION Automatic central lubrication Gantry extension – ideal for 4-field processing and large workpieces. 2 controlled pneumatic modules for max. 5 frame clamping elements per field A/D Each module can simultaneously control up to 5 frame clamping elements. Simultaneous opening/closing of connected frame clamping elements, including foot pedal for operation, max. 2 modules per field A and field D available; OPTIONAL: LASER - Laser pointer Consisting of two laser pointers for positioning the vacuum suction cups

Year of construction: 1999, condition: used, Edgebander HOLZHER 1436 SE Location Gorzów Wlkp. Conditions of delivery own collection Cost of delivery to be agreed Start type to be agreed Description Comments Thickness of max. 13 mm Thickness of the roll core max mm 3 Feedrate max m / min 11 Suitable for PUR glue yes Copier tip 1 motor Cyclin. Profile scraping Aggregates that work pneumatically Machine length 4500 mm Control of the SPK 18000 machine Height of the max. Dimensions in mm 51 Material length min mm 180 Material width min mm 60 adhesive tank yes Saw blade 2 motors Milling unit straight and radius 1 scraper unit up down A polishing unit like this Execution: Right-hand machine CE mark yes CE conformity declaration yes Connection power kW 7 Godpjdp R E Iefx Afpsuh Area min. length / width / height mm 4500x1020x1630 Weight kg 1150 Readiness Basic functions prepared for the presentation In good condition

Condition: used, Year of construction: 2019, Edge Control Numerical Control Panel height min - max mm 6 - 60 Pvc/Abs up to mm 3 Minimum panel length \ width mm 140 \ 60 Feed speed up to mt/min 10 / 25 continuously Working height electronically adjustable by C.N Lateral roller conveyor with idle wheels for panel support Rectifier unit with 2 motors Coil holder plate Gluing unit for EVA \ PUR glue with cartridge or granular system Edge pressure group on straight profiles with pressure rollers electronically adjustable by N.C Trimming unit with 2 motors Gleaning group with 2 tilting motors electronically adjustable by C.N. Rounding unit with 4 multifunction motors (edger + rounder) with regulation by numerical control in automatic Edge scraping unit with electronic regulation from N.C. Glue scraper group Brush group Machine length mm 6500 approx Weight Kg 2750 approx Gedpowwhn Defx Afpouh

Year of construction: 1988, condition: used, rolls: 4 Guodpfxow Dd Rhs Afpjh speed: 2 - 30 m/min number of speeds: 2 Getriebe, 2 Motor, 2 Zahnrad-wechsel (8)
