Used Ima Edgebander for sale (136)

Year of construction: 2001, condition: good (used), IMA glue part Spare part for e.g. IMA 680 / 480 /980 Edge banding unit for 4-sided gluing and all-round gluing on butt joints with: -Main pressure roller diameter 100 mm and pneum. controlled squeezing roller, diameter 35 mm -Specification of adhesive for the coating of the Edge material, with temperature control and level control -Servo drive for edge transport with auto- automatic adjustment to the web speed -Hot air re-activation unit 7.5 KW, on the adhesive side -IR radiator 600 watts on the decor side the deformation of the material at small radii -pneumatically driven cutting saw -Bumping edge query Gisdpfobxx Ikex Aa Ijl -NC axis Rotation range up to 740 degrees, pneum. Z stroke 125 mm -separate NC-axis in Y (with portal in X) working independently of the main axis Year of construction of the part 2001 comes from machine IMA 680 V No. 2216 Scope of delivery as shown Please check the possibility of installation in your machine. No return possible Unit was used in production for about 2 years and can be described as good Technical information subject to change

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, Single-Sided Narrow Edge Bander IMA NOVIMAT / CONTOUR / I / G80 / 790 / L20 with Servo Unit for Corner Copying MFA Year of Production: 2009 Condition: Very good Features: * Stable machine frame with mounted processing units * Electronically adjustable feed speed: 6–30 m/min (feed rate of processing units is not synchronized with full feed adjustment) * Feed chain guided in sliding rails with plastic pads and 80 mm wide rubber lining * Automatic lubrication of feed chain controlled by the machine program * Upper pressure roller: double V-belt, 70 mm wide, on ball-bearing rollers; electronically adjustable * CE-compliant machine safety * Noise-reducing and protective covers * Edge banding unit with drive enclosed in sealed oil bath and glue pot (1 main pressure roller + 5 auxiliary rollers); Quick-Lock pneumatic glue pot system for fast replacement * Touchscreen display * End trimming saw unit for cutting excess edge at front and rear corners, including: pneumatic saw adjustment 0–25°, straight cuts, corner chamfering, automatic saw positioning for two edge thicknesses (e.g., 0.4 and 1.2 mm), and excess edge adjustment for corner copying * All processing units equipped with chip extraction * Novimat Contour series maintains high processing quality due to powerful corner copying unit and minimal spacing between workpieces (\~300 mm) Basic Technical Data: * Roll edge thickness: 0.3–3 mm * Paper, PVC, and ABS edges: 0.3–3.0 mm * Veneer: 0.5–3.0 mm * Wooden strips: 0.8–20 mm * Edge height: 14–65 mm * Maximum top edge overhang: * Up to 8 mm thickness: 5 mm * Over 8 mm thickness: 2 mm Workpiece Dimensions: Godpfx Asw R S Sloa Ieil * Minimum length (feed direction): 150 mm * Minimum width (for thickness ≤25 mm): 65 mm * Minimum thickness: 8 mm (without flat planer) / 12 mm (with flat planer) * Maximum thickness: * Without corner copying: 60 mm * With corner copying: 40 mm * Smallest workpiece: 150 × 150 mm or 65 × 300 mm (\*65 mm width for max thickness 25 mm) Machine Parameters: * Electronically controlled feed: 6–30 m/min (may be limited by individual units) * Workpiece protrusion beyond feed chain: * 38 mm (edge thickness 0.3–8 mm) * 30 mm (edge thickness 8.1–20 mm) Power Supply: * Voltage: 400/230 V, ±5/–10% with neutral * Frequency: 50 Hz * Control voltage: 230 V AC / 24 V * Compressed air: 8 bar * Extraction air speed: 28 m/s

Condition: good (used), Year of construction: 2011, functionality: fully functional, machine/vehicle number: 08420, total length: 11,500 mm, edge thickness (max.): 3 mm, overall weight: 8,500 kg, compressed air connection: 7 bar, Used single-sided IMA edge banding machine for straight edges; for jointing, gluing, and finishing various edge materials. Fixed stop side on the right. WORKPIECE & MATERIAL DIMENSIONS: Min. workpiece length : 150 mm Min. workpiece width : 65 mm Min. workpiece thickness : 8 mm Max. workpiece thickness : 40 mm (with corner rounding / copy function) Max. workpiece thickness : 60 mm (without corner rounding / copy function) Smallest workpiece : 150 x 150 mm, or 300 x 65 mm Workpiece overhang : 38 mm Edge thickness min/max : 0,3 – 3,0 mm Edge width min/max : 14 – 65 mm EQUIPMENT / SPECIFICATION BASIC MACHINE - Basic machine with 80 mm wide conveyor chain as workpiece transport device - Feed speed 6 to 30 m/min, adjustable from machine control - Top pressure with pressure-loaded guided rollers and 70 mm wide V-belt - Automatic height-adjustment of top pressure (thickness) - Workpiece support with rollers, extendable up to approx. 700 mm - Infeed table IMA 63.152, 500 x 500 mm, for easy feeding of long & narrow boards - Infeed device (manually) tiltable, with 5 driven rollers from top - Adjustable infeed guide/fence via NC axis AGGREGATES / EQUIPMENT - JOINTING TRIMMING/pre-milling (08.378), 2x4.5 kW, controlled (jumping), tool-Ø 125 mm Electronic horizontal positioning - GLUING AGGREGATE 04.1570 Concept, driven glue roller with automatic feed stop in case of error, Quick-lock system for glue application unit, Glue roller lift-off when feed stops Edge feed controlled by light barrier, upper edge guide w. step-motor, electronically controlled - Automatic PUR pre-melting system 283.203 - 6-fold automatic roll-change edging magazine POST-PROCESSING SECTION - End-trimming (snipping) unit 08.42, horizontal version, 2 motors each 0,65 kW, 200 Hz For straight and chamfer cutting, max. working speed 30 m/min - Fine trimming unit 08.055, 0,66 kW 400V 200Hz, top/bottom, HSK 25 - Corner rounding 08.348, 2 motors 0,66 kW 400V 200 Hz, HSK 25 Max. working speed 20 m/min - Profile scraper 08.516, top/bottom, for multi-profile-knives, automatic positioning by step motors, max. 4 profiles, with electro pneumatic horizontal move-in/-out - Spraying devices for cleaning agent. - Flat scraper 08.521 (glue joint scraping), top/bottom - Profile (corner-) buffing 08.604, 4 motors - Buffing unit 08.617, top/bottom CONTROL / SOFTWARE: • Control system ICOS open compact • Flexible edge control Gijdewyp Nuspfx Aa Ijl • Uninterrupted power supply (UPS) • Power supply 400 V, 50/60 Hz, Control voltage 24 VDC / 230 VAC Machine dimensions (occupied area when installed) L 1150 x W 300 x H 260 cm Available: October 2025

Year of construction: 1955, condition: used, used manufactured by IMA type B55 built in 1955 Masch.-No. 0/650 pressing cylinder pneumatic 4 table 2900x1300 mm working height 750 mm max. material thickness ca. 200 mm Gedpfx Aasvwf Szj Ijil located in 97447 Gerolzhofen, free on truck, unpacked sale in current condition as seen without guarantee and warranty

Condition: used, Year of construction: 2004, Used 75 Litre IMA Model VORTEX 075 stainless steel mixer granulator. Total bowl capacity 75 litre, working capacity approx. 20 - 50 litre. Has jacketed bowl. Main impeller driven by 3,0 kW motor. Chopper blade driven by approximately 1.5 kW motor. Bowl cover is opened using with pneumatic cylinder . Also has top mounted stainless steel dust filter. Side discharge outlet with pneumatically operated valve. Includes local control panels and main switchboard. Gjdpfxowm Atmj Aa Isil

Condition: like new (used), Year of construction: 2021, General parameters: Machine type: Edge banding machine Model: Novimat Compact R3/L12 Year of manufacture: 2021 Manufacturer: IMA Schelling Group Total machine length: 7 m Intended use: Industrial edge processing with high precision Key features: Automation of basic functions for easy operation by one person Massive frame construction for high stability Electronically adjustable upper pressure path Two-band pressure belt for safe guidance of short parts IMA quick glue change system Program-controlled feed speed Multi-profile technology possible with automatic profile change Touch control via 21.5" industrial PC Technical parameters: Part thickness: 8–60 mm Minimum part length: 150 mm Minimum part width: 65 mm Maximum edge band height: 65 mm Edge types: Paper, plastic, veneer (with optional protective coating) Strip thickness: 0.3–3 mm Working speed: 20 m/min Machine equipment: Pre-milling unit with diamond tools Cutting unit with automatic tilting (15° inclination) Milling and copying units with automatic adjustment Edging system with PUR glue option Gijdpfxov D Rhue Aa Ijl Upper and lower spray system for cleaning and maintenance of the part Rounding and polishing units for final edge treatment ICOS open control system with touch screen

Condition: good (used), Year of construction: 2001, and Edgebanding Machine IMA HKA The IMA HKA Hand Edgebanding Machine is a versatile device for manually applying edge strips or veneer strips to flat workpieces. It is suitable for materials such as chipboard, blockboard, and MDF. The machine can be used both manually and with a processing table, providing high flexibility in application. Year of manufacture: 2001. If you require vacuum clamps, they are available new and used in our shop. The HKA consists of two main components: 1. Handheld unit: Automatically feeds the edge strip, applies glue, and presses it onto the workpiece. 2. Processing table: Includes a vacuum pump, temperature regulator, and various control elements. The handheld unit can be suspended on a balancer to facilitate operation. Operating Methods: • Guided workpiece: The handheld unit is mounted on the processing table, and the workpiece is manually moved. • Guided handheld unit: The workpiece is fixed with vacuum clamps, while the handheld unit is guided manually. Technical Data: • Working width: 90 mm • Edge thickness: 0.4 - 3 mm • Panel thickness: 16 - 45 mm • Edge strip feed: 20 - 50 mm • Power consumption: 2.6 kW • Vacuum pump capacity: 6 cbm/h • Minimum outer radius: Depending on the bending suitability of the edge material • Minimum inner radius: 150 mm, depending on material properties Optional Accessories: • Boom for attaching a balancer • Vacuum clamping table Gjdpfjv N Nn Djx Aa Ieil

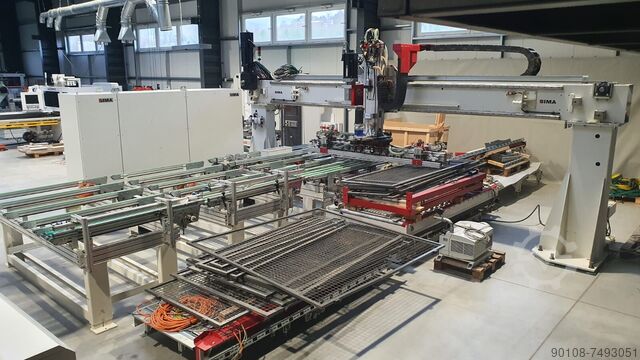

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, 4-Axis Machining Center IMA BIMA 300 Year of Production: 2009 Technical Condition: Very good Technical Data: * Work Table: 4,300 × 1,250 mm * Supports and Suction Cups: 8 supports, total 24 suction cups * Main Spindle: 7.5 kW (max 11 kW), 1,500–18,000 rpm, HSK-F63 holder, cone diameter 38 mm * Tool Magazine: 18 positions, max tool weight 6 kg, max length 150 mm, tool diameter up to 100 mm (150 mm if adjacent slots are free) * Drilling Unit: IMA 14, 14 vertical spindles, 6 horizontal spindles, grooving saw Ø150 mm, 4,500–6,000 rpm, max drill diameter 35 mm * Tool Set: shank cutter Ø18×43/Ø25/110 mm, grooving saw Ø125/Ø30×4/12Z, drills Ø5–10 mm, HSK-F63 tool holder, tool basket * Vacuum Pumps: 2 × 90 m³/h * Protective Mats: operation in alternating mode, front access * Software: IMAWOP installed on the machine + 1 office license * Emergency Power Supply (UPS): computer power backup approx. 10 minutes * Control Cabinet Air Conditioner: ensures trouble-free operation above 35 °C * Main Spindle Horizontal Unit: cross head with 4 spindles, tool diameter 1–16 mm, speed up to 15,000 rpm * Maximum Feed Rates: X 60 m/min, Y 60 m/min, Z 30 m/min * Dust Extraction: central port Ø250 mm, air speed 28 m/s, according to connection diagram * Weight: approx. 5,500 kg * Compressed Air: connection ¾", pressure 6 bar, dry operation recommended with air dryer * Electrical Installation: main switch in a separate control cabinet; complete control cabinet with monitoring; all safety devices CE-compliant; typical cabinet dimensions: H 2,000 × W 1,200 × D 800 mm; power supply 400/230 V, 50 Hz * Working Environment: permissible ambient temperature +15…+35 °C (without cabinet air conditioner) CNC Control: Giedpfx Aaow R S Dns Iol * System: ICOS OPEN 321 (Polish language version) * Interpolation: simultaneous linear interpolation for 3 axes, 2½D circular interpolation on any two axes * Selected IMAWOP Functions: * Operation selection: drilling, milling, grooves * Graphic updates after corrections * Drilling time optimization * Graphical positioning of suction cups * Conditional and formula-based programming * Technological and tool databases * Alphanumeric names/descriptions up to 28 characters * Subprograms, manual input of machining sequences * Error/alert messages * Acceleration/deceleration control (accuracy 0.001 mm) * Automatic zeroing * Corrections from portable console Additional: IMAWOP machining program

Condition: used, Year of construction: 2011, functionality: fully functional, machine/vehicle number: L3B031, IMA MISTRAL Y 16 Bottle/Can Air Rinsing Machine – Used, Immediately Available Machine Data: Model: IMA MISTRAL Y 16 Type: Automatic Bottle/Can Air Rinsing and Extraction Machine Serial No.: L3B031 Year of Manufacture: 2011/2012 Manufacturer: IMA S.p.A. / IMA Swiftpack (Italy) Electrical Specifications: 220/380 V, 3 phases, 50 Hz Space Requirements: approx. 400 × 140 × 220 cm Description & Features: This rotary air rinsing machine is designed for pharmaceutical and medical applications, suitable for GMP-compliant internal cleaning of stable, round glass or plastic bottles using sterile compressed air. • Fully automatic bottle cleaning and extraction • Processes up to 200 containers per minute • Includes format parts for plastic bottles Ø 44 mm × height 95 mm • Additional formats included: Ø 40 × 55 mm, Ø 60 × 130 mm • Operation: Bottles are single-lane fed via conveyor and screw separator, transferred into a carousel, gripped by tongs, rotated 180°, and cleaned with nozzles (blowing) and extraction heads (suction). Bottles are then transferred to the conveyor for downstream processing. • Suitable for bottles and cans made of plastic and glass • High level of automation, GMP-compliant design Documentation & Manuals: • Operating manuals (German, English, Italian) • Electrical circuit diagrams • Layout drawings / guards layout • Spare parts catalog • Blowing diagram / electrical diagram • FAT and SAT documentation • Machine and operator manual in German Scope of Supply: • Complete machine • Spare parts as per catalog Gedpfx Aaow Sfa Es Ioil • All original documentation (PDFs and printed documents) • Size parts for various bottle sizes Condition: • Used, from pharmaceutical production • Immediately ready for operation after installation • Available immediately Location: Çorlu, Turkey Price: On request

Condition: used, Year of construction: 2001, functionality: fully functional, Electronically controlled CNC processing center featuring: • Standard table • Safety mats Godpfx Ajwyvfcsa Ieil • 1 vacuum pump, 100 m³/h • IMATRONIC-NT • Lateral safety grid, right-hand side • With door and left-hand front • Portable workstation for the assembly of fixing dowels and bolts Technical data: • Processing area with standard units X/Y: 6000/1200 mm • Max. clamping height from upper edge of vacuum clamping plate (Z1): 100 mm • Max. panel thickness (Z2): depending on application • Working table height approx.: 1000 mm • Alternative field area without cycle operation (X): 2 x 2650 mm Free space in the center (X): 700 mm • With cycle operation (X): 2 x 2250 mm Free space in the center (X): 1500 mm • Central lubrication • Power supply: 3/N/PE, 400/230 V • IMAwinCAD for BIMA machines including edgebanding • IMAWOP • Main spindle HSK F63, cone diameter 38 mm, 12 kW, water-cooled • 1 boring saw unit • 1 grooving saw unit • Edge gluing unit VT 61

Condition: like new (used), Year of construction: 2021, operating hours: 22,000 h, functionality: fully functional, total length: 4,670 mm, total height: 1,690 mm, total width: 1,370 mm, input voltage: 400 V, overall weight: 1,400 kg, compressed air connection: 6 bar, air demand: 0.2 m³/h, - Installed on April, 2021 - End of use on November, 2023 (Approximately 2 years and 7 months use) - Store from December, 2023 with vinyl wrapping Ilapak's Delta 3000 horizontal flow wrap packaging machine is PC controlled and equipped with long dwell technology for modified atmosphere packaging (MAP) and Ilapak's unique high-speed hermetic sealing technologies to cover the widest range of applications. Its heavy duty and reliable design allows the Delta 3000 to be integrated in automatic packaging systems. All Delta 3000 horizontal flow wrap machines are also available in stainless steel and bottom film feeding versions. One of the most effective ways to extend the shelf life of fresh products is to pack them in a hermetically sealed pack with a modified atmosphere (MAP – Modified Atmosphere Packaging). Our robust Delta flow wrap machines are precisely engineered to ensure hermetic sealing at high speed. Thanks to the flexibility of its design, the Delta series of packaging machines are also ideally suited for non-food applications where a hermetically sealed pack is required, such as medical and personal care products like wet wipes. * Main Feature - Upgradable machine configuration - Long dwell sealing jaws technology - Separated electrical control Gsdpot Dg Itefx Aa Ioil - Electronic machine with commercial available components * Benefits - Possibility to expand & connect the machine with different feeding systems - To perform hermetic sealing and MAP applications while managing a wide range of wrapping material characteristics - Easy accessibility during maintenance operation - Higher reliability components - Easy maintenance * Technical Data - Capacity: 25 - 100spm based on 4 ~ 1 line stack - Modified Atmosphere: N₂/CO₂ Mixer including O2 analyzer - Dimension: 4,666mm(L) X 1,367mm(W) X 1,689mm(H) including infeed line - Power Supply Spec.: 3P, 400V, 50Hz, 7kVA - Air Supply Spec.: 6 bar, 0.2m³/h - Machine Speed: Up to 100 cycles per minute Production output depends on film sealability and product characteristics - Film Cut-off: Min 100mm - 4.0” / Max 1200mm - 47” Depending on film and product characteristics - Film Reel Max Weight: Depending on film reel width, up to 75 kg - 165 lbs - Electronic Platform: Industrial PC
