Used Ott Edgebander for sale (73)

Year of construction: 1994, condition: used, Gluing unit, gluing part, gluing head, heating tank for edge banding, edge banding machine, melting unit with granulate container for edge processing machine -Manufacturer: Paul OTT, aggregate carrier from edge banding machine U 206 -Individual components: see photos -Dimensions: 780/400/H230 mm -Weight: 27 kg/piece Crodpfx Aou Scqujf Hok

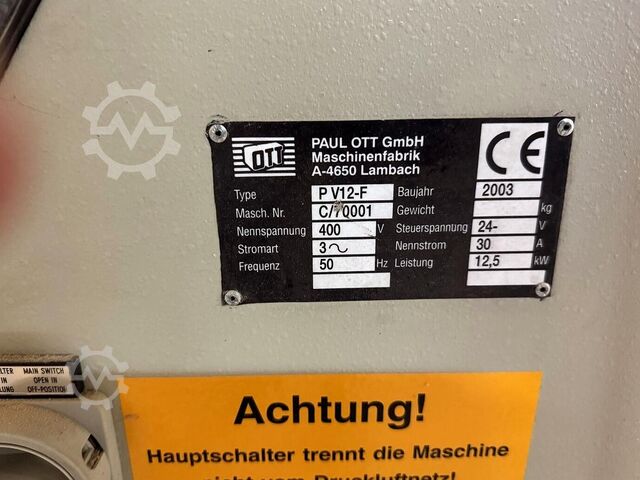

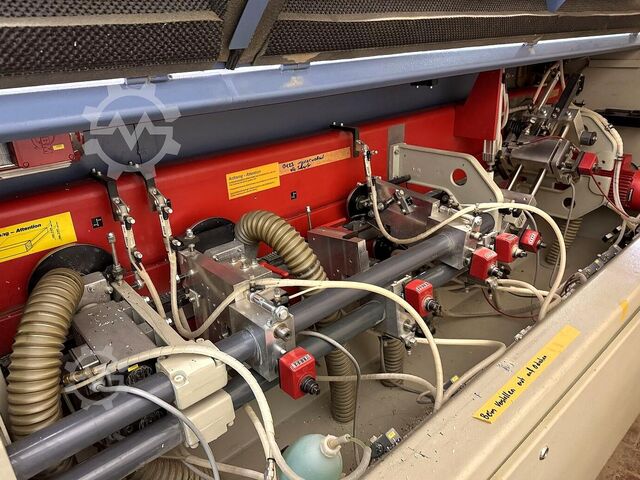

Condition: ready for operation (used), Year of construction: 2003, operating hours: 601 h, functionality: fully functional, machine/vehicle number: C/70001, workpiece height (max.): 42 mm, edge thickness (max.): 3 mm, product length (min.): 160 mm, No reserve price - guaranteed sale at the highest bid! TECHNICAL DETAILS Workpiece height: 8 - 42 mm Workpiece width: min. 70 mm Workpiece length (strip edges): min. 160 mm Workpiece length (endless roll): min. 60 mm Workpiece length (with double end-cutting device): min. 150 mm Edge parameters Edge thickness: max. 3 mm Edging thickness: 0.2 - 12 mm Working height and speed Working height: 800 mm Feed speed: 12 m/min Adhesive application Adhesive application: via application roller Process: Hot melt adhesive, hot-cold process, single-sided, right-hand design Heating time of adhesive tank: 8 min MACHINE DETAILS Total connected load: 12.5 kW Total weight: 2,100 kg Total length: 5,300 mm Total width: 900 mm Total height: 1,300 mm Operating voltage: 400 V, 50 Hz Cedpowlquvsfx Af Herk Input current: 400 A Compressed air connection: 6 bar Air connection: 6 bar, 1/4" Extraction connection: 1 x central extraction nozzle, diameter: 160 mm UNITS - Jointing unit with 2 HF motors, 1.5 kW each, 12,000 rpm, automatically controlled, including DIA MAX DIA jointing set Ø 85 x 30 x 42 mm, 3 teeth (LEUCO system), for panel thicknesses up to 42 mm - Double cross-cutting unit with 2 HF motors, 0.3 kW each, 12,000 rpm, 2 automatic positions (0° / 3°), 2 carbide saw blades Ø 140 x 3.2 x 16 mm Z 36 - Flush trimming machine with 2 HF motors, 0.43 kW each, 12,000 rpm, for solid and plastic edges, single-sided scanning, 2 carbide insert heads Ø 70 x 20 x 16 mm, Z 4 - Fine trimming machine with 2 HF motors, 0.3 kW each, 12,000 rpm, double-sided scanning, quick-change device, 2 AT 73 carbide rounding cutter heads Ø 73 x 16 x 16 mm, Z 3, profile knives R2 – R5 - Scraper with double-sided scanning, automatic control, for PVC and plastic edges - Corner rounding machine with 2 motors, 0.35 kW each, 12,000 rpm, 200 Hz, double-sided scanning, 1 work spindle each top/bottom AR 73 radius cutter heads Ø 73 x 16 x 16 mm, 3 teeth, profile cutters R2 – R5 EQUIPMENT - Double-roll top pressure with electronic positioning - Single feed for strip and solid edges - Automatic roll magazine for rolls up to 800 mm in diameter, with pneumatic cutting device up to 3 mm thick - Rapid heating tank for hot melt adhesive granules, with electronic temperature control - Automatic reversal of adhesive dosing via PLC (same and counter-rotating) - Automatic infeed guide, no manual adjustment of edge thickness required - Central control via PLC-controlled control panel, including plain-text error display - Program memory with name and number programs

Condition: used, Year of construction: 1984, Special pressing size, large pressing depth 1600 mm Pressing length 2750 mm Plate size 2750 mm x 1600 mm - 2.75 x 1.60 m - with 3 heating plates 2 levels incl. control system – newly retrofitted retrofitted Used, in good condition Manufacturer: Ott Model 300 K 135 Year of manufacture: 1984 Machine number: 13741 Number of levels: 2 pieces Credpev Hhudjfx Af Hsk Cover sheets hard-anodized Plate size approx. 2750 mm x 1600 mm Opening width approx. 185 mm Tip control Safety cable below Side guidance Electrical heating Specific pressing pressure max. 5.5 Piston diameter 90 mm Lower pistons: 6 units Original price approx. €40,000 Space required approx. 3600 mm x 1600 mm x 2000 mm Total connected load 49 kW Storage location: 97447 Gerolzhofen, loaded free, unpacked Delivery in the current as-inspected condition, without warranty or guarantee

Condition: ready for operation (used), Shelf length 250 cm Shelf width 110 cm Clearance 40 cm Motor 1.1 kW 4 hydraulic cylinders Cjdpowx H Hbsfx Af Hork

Condition: used, Year of construction: 1994, operating hours: 5,373 h, functionality: fully functional, machine/vehicle number: M/6176, total length: 9,000 mm, total width: 1,400 mm, total height: 2,000 mm, overall weight: 4,000 kg, Edgebander Operating hours: 05373.33 h (read) Processing units: Upper pressure line KAM 4-2 01 Rapid heating tank KAM 4-61-02.01 Lower pressure line KAM 4-1-01 Edge feeding table KAM 4-4-01 Automatic Magazine for solid edges and foils Feed roller KAM K4-51-01 KAM travelling foil shear Cutting device model type K 17 Fixed milling machine KAM 4-50-00 model type NF 30.1 Crodpfxowf U E Sj Af Hok Fine milling machine KAM 4-26-80 Slot milling machine KAM 4-32-01 Rounding corners Grinding device Scraper unit Oscillating edge cleaning unit KE-0 Dimensions: approx. 9,000 x 1,400 x 2,000 mm Weight: approx. 4,000 kg

Condition: used, Year of construction: 1999, Edge thickness: 0.2 - 12 mm Workpiece dimensions: Minimum width: 70 mm Minimum/maximum height: 8 / 42 mm Minimum length: 160 mm (strip edging) Crodpfxjw Amt Ns Af Hek Minimum length: 60 mm (from coil) Feed speed: 12 m/min Glue application roller Working height: 880 mm Compressed air: 6 bar, 1/4 inch Extraction port diameter: 160 mm Machine dimensions (L x W x H): 5600 x 950 x 1300 mm Weight: approx. 2200 kg Connected load: approx. 11.5 kW, 400 V, 50 Hz Equipment/features: - Double top pressure with electronic height adjustment - Automatic magazine for coil edging up to 800 mm diameter - Pneumatic guillotine for strip edging up to 3 mm - Automatic infeed fence Pre-milling unit: with 2 HF motors, 1.5 kW, 12,000 rpm Double cross-cut saw: - 2 HF motors, 0.2 kW, 12,000 rpm 2 automatic positions = 0 + 3 degrees Flush trimming unit: with 2 HF motors, 0.7 kW, 12,000 rpm Radius trimming unit: with 2 HF motors, 0.3 kW, 12,000 rpm Surface scraper Year of manufacture: 1999

Condition: used, Frequency converter, frequency converter, drive converter, controller, variable speed drive -Input: 380 V 6.5 kW Crjdpeu I Hn Njfx Af Hsk -Output: 220 V 200 Hz -Power: 6.5 kW -for edge banding edge banding machine -Dimensions: 330/650/H270 mm -Weight: 105 kg

Condition: good (used), Year of construction: 2002, Edge banding machine with Fuegefraesen otherwise fully equipped PU glue is suitable Codpfjgmn H Aex Af Hsrk

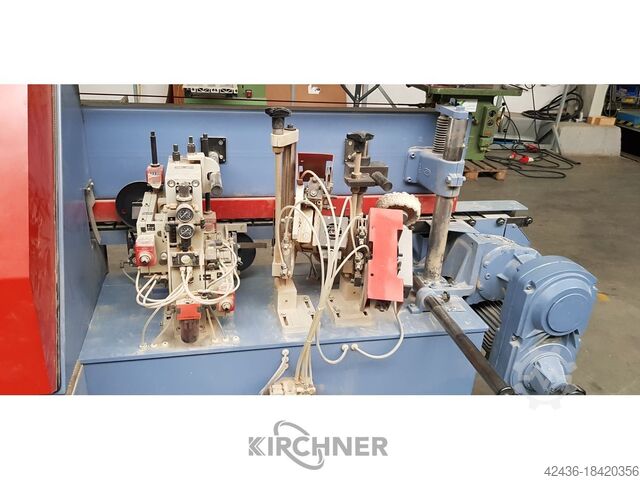

Condition: used, Year of construction: 1993, with prejoiningused, good conditionmake Otttype Kantomat 156- FÜyear 1993glue thickness 15 mmworkpiece height min 10 mm max 60 mmworkpiece width min 60 mmworkpiece length min 60/160 mmthick edges up to 3 mmcaps from the roll up to 3 mmprejoiningcross-cutting unit K 14 / 2 x 1,1 PSflush milling HF15.1 2 x 1,5 PSChamfer 082 2 x 0,8 PS 0-45° swivelingRadius milling 2 x 0,8 PSRadius scraper controlled pneumaticBuffing oscillating pneum. with pneum. feed 2 x 0,3 HPautom. edge magazinefeed speed steplessgranulate quick heating basinsound insulation hoodlarge roller supportsuction connection D 160 mmspace requirement approx. 7400 mm x 1000 mm x 1600 mmtotal connected load 22 kWstorage location 97447 Gerolzhofen, free loaded, unpackeddelivery in as-is condition as viewed,without guarantee and warranty Crodpfxjvwfyfj Af Hok

Condition: excellent (used), 2 pre-cutters gluing unit Guillotine Drip unit with 2 saws Straight cutter Rounding cutter Crjdpfx Afsulh Nus Hjk

Condition: used, Year of construction: 1995, Used machine Year of manufacture: 1995 Equipment and technical data: Glue tank with glue roller Pre-cutting knife 4 pressure rollers 2-motor cutting unit Radius milling unit Flush milling unit Radius scraper Edge thickness: 0.2 - 6 mm Workpiece width min.: 70 mm Workpiece height: 8-42 mm Feed speed: 12 m/min. Shipping dimensions: 370x100x125 cm Crsdpfxjwpm Igj Af Hjk Weight: 1330 kg Location: Röllbach Availability: short term

Condition: excellent (used), Gold anodized panels Working dimensions 2.5 x 1.1 m Electric heating Fully functional, tested You can call or write to us. We speak and write German and Russian. You can also send messages in English. Cjdpfxou I N D Ho Af Hsrk 31.3.5

Condition: excellent (used), Year of construction: 2001, Ott Atlantic V/12 edge banding machine Joining unit snipping, 2 x routing, radius scraper, surface scraper Edge thickness: 0.2 - 12 mm Cedstdz Tqepfx Af Herk Workpiece width min.: 70 mm Workpiece height: 8-42 mm Feed speed: 12 m/min. Condition very little used year of construction 2001 price 10000

Condition: excellent (used), Year of construction: 2007, Edge thickness 0.2 - 12 mm Workpiece thickness 8 - 52 mm Workpiece width min. 70 mm Workpiece length min. 150 mm Automatic edge magazine milling unit 2 x 1.5 kW, application-controlled Cut-off unit 2 x 0.3 kW Flush trimming unit 2 x 0.7 kW, scanning on one side Fine trimming unit 2 x 0.35 kW, tiltable 15/ 30/ 45 degrees Fine trimming unit 2 x 0.3 kW, R=2, scanning on both sides Corner copying unit 2 x 0.3 kW Scraper unit, autom. in/ out Flat scraper unit Buffing unit 2 x 0.2 kW, oscillating 5 x spray device (2 x release agent, 1 x lubricant, 2 x cleaning agent) Color touch screen control OTT C3 Motorized height adjustment Feed 10 - 14 m/min COMBI MELT gluing part for EVA/ PUR, volume 1.5 l CE mark Total connection 12.6 kW Dimensions L x W x H approx. = 6120 x 840 x 1500 mm Crsdpfxolc Ewis Af Hek Weight approx. 2,900 kg

Year of construction: 1998, condition: excellent (used), table height: 2,250 mm, table width: 4,000 mm, Extra large heat press! For sale in excellent technical condition. Cjdjwfp R Ajpfx Af Hsrk

Condition: excellent (used), Adhesive unit Guillotine Chop saws Straight cutters Scraper Polishing machine Without pre-milling Crjdpfxorzaavo Af Hek

Condition: used, Year of construction: 1996, functionality: fully functional, Equipment: CE marking, Brusilica radne sirine 1300 mm. U dobrom stanju. Codpfxswptrrs Af Hsrk

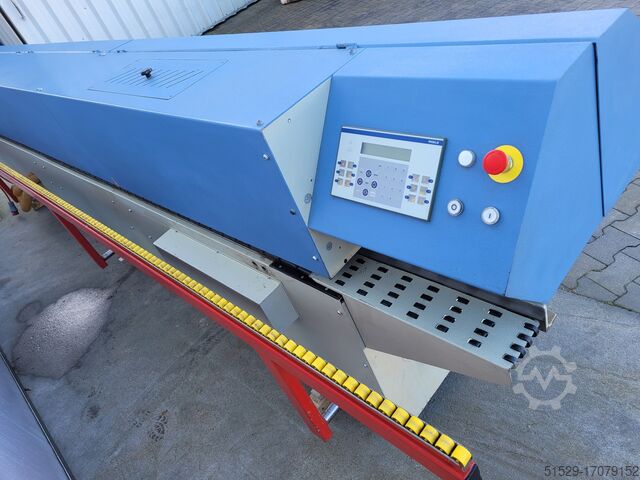

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, Ott Atlantic V6 edge banding machine capping, 2 x milling, radius scraper, cleaning disks Edge thickness: 0.2 - 6 mm Workpiece width min.: 70 mm Workpiece height: 8-42 mm Credpfx Aor Elhvjf Hsk Feed speed: 12 m/min. Condition very little used year of construction 1999 price 5500.-

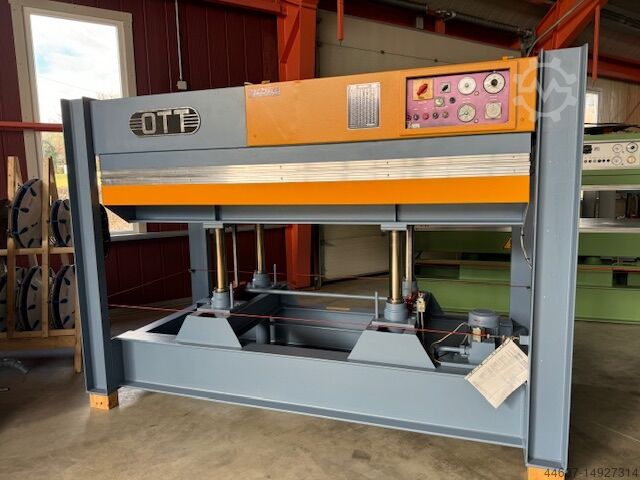

Condition: excellent (used), Pressing area 2500 x 1250 mm Number of press cylinders # 4 Crodpforivrwsx Af Hok Total pressing force 70 t Operating voltage: 3 x 400 V + N, 50 Hz. Total connected load approx. 20.3 kW Space requirement (L x W x H) approx.: 2900 x 1350 x 1900 mm Weight: approx. 3600 kg Hydraulic hot plate press Lower piston design Electric heating plates gold anodized version Press pressure infinitely variable by means of pressure switch unit Two-stage hydraulic pump with automatic changeover valve from low to high pressure Central control panel with all operating and control functions Analog temperature display for both heating plates Safety rip cord Rack compensation Main switch CE LOWER ELECTRIC HEATING PLATE NEW UPPER ELECTRIC HEATING PLATE NEW approx. 4 years ago

Condition: ready for operation (used), Manufacturer: OTT Cedpfxjhir A He Af Hsrk Type: TKS working height: 800 mm Dimension: W 1.060 x L 720 x H 930 mm weight approx.: 120 kg Condition: used

Condition: excellent (used), Year of construction: 2002, edge seize 0,2 - 12 mm work piece dimension width min. 70 mm height min. / max. 8 / 42 mm length min 160 mm (strips) length min 60 mm from roll Durchlaufgeschwindigkeit: 12 m/ min glue coating with roller working height : 880 mm compressed air 6 bar,1/4 Zoll suction connection, DM 160 mm dimensions: L x W x H = 5600 x 950 x 1300 mm weight: ca. 2200 kg total conection: ca. 11,5 kW, 400 V, 50 Hz machine equipped with: - double top roll pressure with electric height adjustment - autom. roll magazine for rolls up to 800 mm DM, pneumatic cutting up to 3 mm - autom. infeed fence - no adjustment of edge seize premilling aggregate with 2 HF-motors 1,5 kW, 12000 n double end trim unit - 2 HF-motors 0,2 kW, 12.000 n 2 autom. positions = 0 + 3 deg. flush trimming aggregate with 2 HF-motors 0,7 kW, 12.000 n radius trimming unit - with2 HF-motors 0, 3 kW, 12.000 n, radius scraping unit, autom. set in flat scraping unit Advise used machines: • Technical data without obligation, mistake and intermediate sale reserve. • Price is considered ex-location price • All articles or machines are bought as seen without any entitlement on warranty. • It is left to the choice of the buyer to view the machines before at its location. Credpfehy Tlrjx Af Hok • Special arrangements are possible but only valid in written form. (We answer your inquiries only with stated address + telephone number!)

Condition: excellent (used), Edge trimming machine Working height: 800 mm Crjdpfswiwnqex Af Hek Dimensions (L x W x H): approx. 1,060 x 720 x 930 mm Compressed air connection: 6 bar Weight: approx. 120 kg Including cutter

Condition: excellent (used), Year of construction: 1993, max. edge thickness coils 0.2 - 3 mm max. edge thickness solid strips15 mm feed speed 12/ 18 m/min glue plot heating time approx. 6 min autom. strip magazine coil magazine granulate heating pot flush trimming unit radius trimming unit Cedsfbr S Repfx Af Herk operating panel extendable work piece support noice cancelation hood machine length 3800 mm Advise used machines: • Technical data without obligation, mistake and intermediate sale reserve. • Price is considered ex-location price • All articles or machines are bought as seen without any entitlement on warranty. • It is left to the choice of the buyer to view the machines before at its location. • Special arrangements are possible but only valid in written form. (We answer your inquiries only with stated address + telephone number!)
