Used Scm Panel Saw for sale (585)

Condition: used, Year of construction: 2005, Working area: X=2970 mm / Y=1725 mm Axis travel speeds: X=60 Y=45 Z=25 m/min Weight: 3200 kg Storage location: Nattheim Gjdpfew Dcccjx Aa Iett

Condition: repair required (used), Year of construction: 1996, functionality: not functional, machine/vehicle number: AA17762, Working dimension X 3.200 mm Working dimension Y 1.400 mm Working dimension Z 400 mm Number of milling spindles 2 Main motor power 7,5 kW Rotation speed max 18.000 rpm Torque support Tool clamping system ISO 30 Gedeufghujpfx Aa Istt Tool changer positions 20 Bauform Standportalmaschine Yes Machine table Matrix table 2 tables Vacuum pump Capacity vacuum pump 500 m³/h Safety device enclosed cabin Control NUM 720 Conformity marking CE mark

Condition: new, DMC SD 90 RCS 135 "C-Plus" version Technical specifications: Useful working width mm 1350 min/max Working height (with fixed table) mm 4 – 200 Abrasive belts mm 1,370 x 2,620 Feed speed m/min 3.5-18 working aggregates: “MESAR 46” 46 sectors (30 mm) flexible electronic link sanding pad complete with B/46 workpiece sensing bar in the infeed • 1st position: "RA" diagonally ribbed steel contact roller D=250 • 2nd position: COMBI with rubber-coated grinding roller D=175 mm 65 Sh • Floating pressure shoe in 1st position with pneumatic adjustment • 2 grooved rubber coated pressure rollers 2nd and 3rd position • Oscillating blow-off device 1st and 2nd unit • Workpiece cleaning unit with rotating blast nozzles • Motor 1st unit 18.5 kW • Motor 2 with inverter 15 kW Table: • Fixed table working height 900 mm • Infeed roller table for long workpieces • Outfeed roller table for long workpieces • Perforated table and transport carpet 50 Sh • Vacuum table with 4 kW electric fan integrated in the machine frame • Stepless carpet feed from 3.5-18 m/min (gear motor 0.75 kW) Gjdpfx Aasd E Ixzs Iett Control: • Electronic programming unit "Pro-Sand" • Touch screen 10.4" screen • Door with viewing window on set-up side for machine with 2 working units • LED interior lighting Advise used machines: • Technical data without obligation, mistake and intermediate sale reserve. • Price is considered ex-location price • All articles or machines are bought as seen without any entitlement on warranty. • It is left to the choice of the buyer to view the machines before at its location. • Special arrangements are possible but only valid in written form. (We answer your inquiries only with stated address + telephone number!)

Condition: new, Year of construction: 2025, New machine Year of manufacture: 2025 Standard Equipment and Accessories - Swiveling operator panel easily accessible for the operator, "eye-S 15" electronic control system. Includes: * 15" touchscreen monitor * Direct control of 6-8 axes with manual, semi-automatic, and automatic operating modes * Operator assistance with the option to manage 3 different points on the tool for accurate determination of the reference point (zero point) * Capability to store up to 1000 programs with associated images * Capability to store up to 1000 different tools with associated images * USB port * Ready for network connection - Operator aid on the electronic control, including: * Tool database management * Display of coordinates at 3 points on the tool for new reference (zero) point determination * Management of tool edge speed Gedpfx Aaex Nbzue Iett * Operator support for common machining tasks - "Flex" milling fence with automatic adjustment via the electronic control system. Complete fence adjusted to tool diameter, infeed jaw for required chip removal. Movable "FLEX" fence from the worktable. - Aluminium fence jaw for the milling fence with inserts for continuous support - "Fast" table insert, manually adjustable, replaces table rings for optimal workpiece support surface - Electrical pre-wiring for a power feed unit - Spindle rotation direction: right/left - Automatic motor start - Version M-E includes: * Electrospindle with max. performance from 3,400 rpm * Electrospindle power 7.5 kW (10 HP) [S6 -40%] * Interchangeable MK5 spindle * Inverter for speeds from 900 to 12,000 rpm - Interchangeable MK5 milling spindle Safety/Protection - Milling guard, max. tool diameter 160 mm - Electronic motor brake effective even without mains power - Safety sensors during tool change for: spindle stop, spindle lock, opening/closing of tool holder - Electropneumatic spindle lock - Microsafety switch on machine door - Emergency stop button - Lockable main switch - Motor protection switch - Control circuit 24V - CE Declaration of Conformity - Frequency 50 Hz - Base - MACHINE LANGUAGE: German - Standard safety regulations - Manual device for feed support height adjustment according to workpiece thickness with mechanical digital display and horizontal adjustment according to tool diameter. Thanks to the operator panel column, this device allows the feed support to be swung away from the work table. - Voltage 400 V, EU - Quick tool clamping system "T-SET" Allows clamping/unclamping of tools via easy application with a compressed air gun. - L'invincibile TI 5 CE version - "LL" version worktable with two cast iron table extensions; total length 2500 mm, complete with extendable support rail for wide workpieces - Emergency stop switch - Milling spindle diameter 30 mm Availability: short-term

Condition: excellent (used), Year of construction: 1998, functionality: fully functional, planing height: 210 mm, spindle diameter: 30 mm, planing width: 260 mm, working height: 210 mm, total width: 2,350 mm, total height: 900 mm, total length: 1,250 mm, chip removal: 100 mm, SCM MiniMax C260E 5-in-1 Combination Machine Specification: • Technical condition – serviced, machine ready for operation • Manufacturer – SCM • Model – MiniMax C 260 E • Planer working width – 260 mm • Thicknesser working height – 210 mm • Planer table length – 1250 mm • Motors: 3 x 1.5 kW • Single-phase (230V) • Motor brakes • 3-knife cutterblock for standard knives • Noise reduction fingers • Manual up/down adjustment • Thicknesser cutterblock speed – 4200 rpm • Spindle moulder shaft – 30 mm • Max blade diameter – 250 mm • Circular saw spindle – 30 mm • Max saw blade diameter: 250 mm • Sliding table length – 90 cm Gsdox Rb Htjpfx Aa Ijtt • Original paint • Complete set of safety mushroom switches • Extraction ports – 100 mm • Weight approx. 300 kg • Year of manufacture – 1998 • Overall dimensions: 120 x 235 x 90 cm (L x W x H) Additional information: • The photos shown reflect the actual state of the item for sale • Option to power up and test the machine on site

Condition: used, Sander SCM TYPE UNO 900 mm Godpfjx I R Smox Aa Iott

Condition: used, Year of construction: 2007, Travel range: X=4400 Y=2195 Z=440 mm Working area in X=3650 mm Y=1560 mm Clearance: 330 mm Electrospindle SCM Power 2000, high speed milling spindle with 13 kW power Rotary axis Vector (C-axis) Cleaning blower for tool on the milling unit Tool holder HSK 63 F Speed range 600 - 24,000 rpm, stepless via inverter Motor power 8.5 kW Tool holders: 6 pcs Tool changer: Rapid 12 (12 positions) Vacuum pump 250 m³/h / 5.5 kW Max. vacuum: 0.9 bar Reference stop at the sides of the table Drilling unit with 11 spindles (7 vertical / 4 horizontal) Control: NUM Series 1000 User interface: XILOG Plus PC Office hardware WINDOWS XP Professional Total connected load: max. 27.5 kW Weight: 5200 kg Storage location: Nattheim Gtjdpjw Dcb Sefx Aa Ijt

Condition: used, Year of construction: 2010, Working area X: 3110 mm Working area Y: 1300 mm Worktable: beam table with vacuum suction cups 4-axis electrospindle (C-axis requires servicing) K2 fixed horizontal motor with 2 outputs for door routing 2 tool changers Gtedjx Rct Ispfx Aa Iot Available May/June

Condition: new, Technische Daten: Abmessungen der Heizplatten 3000 x 1300 mm Anzahl der Heizplatten 2 # Anzahl der Presszylinder 6 # Pressdruck 90 t (900 kN) Zylinderdurchmesser 70 mm Anzahl der Etagen 1 # Etagenöffnung ca. 400 mm Anschlussleistung ca. 21,0 kW ELEKTRISCH BEHEIZBARE TISCHE (ELKOM - Deutschland) Der Tisch besteht aus 2 kalibrierten Aluminiumplatten, in denen die elektrischen Widerstände verlegt sind. Die maximale Betriebstemperatur ist 120 Grad C. Im am Tisch wird eine Dämmplatte montiert, die zur Wärmeisolierung gegenüber der Presse dient. Der Bau des Tisches und die präzise Verarbeitung, die von spezialisierten Firmen vorgenommen werden, gewährleisten eine sehr gleichmäßige Verteilung der Gtjdpfsfh Tmmox Aa Ist Temperatur. Die Heizplatten sind mit speziellen Halterungen an der Presse befestigt um die Wärmeausdehnung zu erlauben, außerdem erleichtern sie die Wartung und das Auswechseln. Spezifischer Betriebsdruck des Tisches bis zu 10 kg/cm2 Max. Temperatur der Heizplatte 120 Grad C Arbeitstemperatur 90 Grad C Schuetzsteuerung Waermeschutzschalter Die Zylinder sind aus spezial geschweissten und gross dimensionierten Stahlrohren hergestellt. Hydraulik: Kompakte hydraulische Einheit Fabrikat HAWE aus Deutschland. Pumpe fuer Schliessphase und Druckaufbauphase. Automatische Nachdruckverstellung Leistung der hydraulischen Einheit 3 kW Bewegung des Presstisch von unten nach oben. Pressengestell: Das Pressengestell besteht aus einer schweren verwindungssteifen und spannungsfrei geschweissten Stahlkonstruktion. Beide Presstische sind aus HEA-Profilen geschweisst. Die Bearbeitung der Baugruppen erfolgt auf CNC-Barbeitungsmaschinen. Bewegung des Presstisches mit Zahnstangen und Parallelfuehrung an 2 Ecken des Presstisches aus selbstschmierenden Material. BEDIENTAFEL mit Display und Tastatur: Bedientafel Siemens mit 7-Zoll-Farb-Touchscreen mit Verbindung zum Ethernet- Netzwerk für den Fernwartungsservice. Das System ist mit einer eigenen Software ausgestattet durch die die Bedienung der Presse einfach und intuitiv erfolgen kann. Sie können folgende Parameter programmieren, abrufen und ändern: - Automatische Regelung des hydraulischen Drucks aufgrund des Werkstückgrösse und des gewünschten spezifischen Drucks. Das System reguliert den Druck der Zylinder automatisch und der Bediener muss keine Berechnungen mit Grafiken oder Tabellen anstellen. - Möglichkeit zum Speichern von bis zu 100 Arbeitsrezepten (Temperatur, spezifischer Druck, Pressdauer, Plattengrösse). - Direkteinstellung des hydraulischen Drucks der Zylinder mit digitaler Kontrolle aufgrund der Grafik. Dieses System kann alternativ zur automatischen Regulierung verwendet werden, falls Sie lieber mit der herkömmlichen Methode arbeiten. - Elektronische Regelung der Pressdauer - Elektronische Kontrolle der Temperatur der Tische - Automatische Wiederherstellung des Drucks aufgrund des Nachgebens des Materials. - Komplette Diagnostik und Störungsanzeige mit Meldungen am Display. WEITERE AUSSTATTUNG UND MERKMALE DER PRESSE Haken zum Anheben der Maschine um das Laden/ Entladen der Maschine beim Transport zu erleichtern. Nivelliervorrichtungen die an den Füssen der Presse montiert sind. In die Presse integrierte Schalttafel; dadurch sind weniger Aussenkabel notwendig, die vorhandenen sind jedoch auf jeden Fall angemessen geschützt. inkl. Option: Fehlbelegungsüberwachung (Ebenheitskontrolle)

Condition: used, functionality: fully functional, planing width: 520 mm, total length: 3,100 mm, total height: 1,500 mm, total width: 800 mm, overall weight: 900 kg, table length: 3,050 mm, planer shaft diameter: 120 mm, working width: 520 mm, number of planer blades: 4, – CE marking – machine as new TECHNICAL SPECIFICATIONS – max. planing width: 520 mm – cutterhead diameter: 120 mm – 4-knife cutterhead – TERSA knives Gtedpew Iqa Njfx Aa Iet – noise reduction comb at cutterhead – jointer shaft guard – table width: 51 cm – table length: 305 cm – hydraulic lifting by pedal – height counter – motor: 7.5 kW – tilting fence – manual star-delta switch – extraction port connection: 120 mm – two adjustable tables – quiet operation – full factory cast iron body – original factory paint – dimensions (L/W/H): 310 x 70 x 150 cm – weight: 900 kg

Condition: used, Spindle moulder SCM T130 NPS - used - fine-adjustable fence, tenoning and slotting table, right-/left-hand rotation Gtsdpow Nv Nfofx Aa Iet ----- Technical Data ----- Table size: 1,080 x 750 mm, Spindle diameter: 30 mm, Speeds: 3,000/4,500/6,000/7,000/10,000 rpm, Extraction port Ø: 120 mm, Lower extraction port Ø: 120 mm

Condition: used, Year of construction: 2014, Price: On request What are Presale Items at Second Owner? Presale items are machines that we sell in their current condition ("as-is"). We have purchased these machines based solely on photos and sell them with the information provided in the advertisement. Unfortunately, we do not have additional details, such as exact dimensions or machine specifications. Additionally, these machines are often not yet in stock and have not been inspected by us. These machines are offered at competitive prices, which means the prices are lower than usual, but the risk lies entirely with the buyer. Please carefully review the information in the advertisement before making a purchase. If you have any questions, feel free to contact us! - Machine available from: 2026-03-30 - Year: 2014 - Documentation available: No Godex Hwhxepfx Aa Iett - CE certificate present: Yes - Serial number: AA1/017825 - Number of milling spindles [pcs.]: 1 - Type milling table: Beam table - Drilling unit present: Yes - Tool changer positions [pcs.]: 12 - CNC documentation available: USB stick - Table length [mm]: 5200 - Table width [mm]: 1550 - Z-axis working range [mm]: 160 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Glenn Smeets

Condition: used, Year of construction: 2016, TECHNICAL DATA AXES Max. workpiece dimensions X-Y-Z mm 3050 x 800 x 50 Min. workpiece dimensions X-Y-Z mm 300 x 90 x 10 Drilling/slotting working area mm 0 x 800/0 x 800 X axis stroke mm 750 Max. travel speed of X-Y axes m/min 25 DRILLING UNIT Vertical spindles Number 7 (4X-4Y one common) Horizontal spindles (along the Y axis) Number 2 (1+1) Horizontal spindles (along the X axis) Number 1 Fixed grooving saw (direction) X Grooving saw diameter mm 100 Max. grooving saw thickness mm 5 Motor power kW (HP) 1.5 (2) Spindle speed rpm 3350 Grooving saw speed rpm 4300 INSTALLATION Power supply V (Hz) 380 / 400 (50 / 60) Installed power KVA 4.5 Compressed air requirement bar 6 Compressed air consumption Nl/cycle 90 Extraction requirement m3 / h 1200 Extraction air speed m / sec 20 Extraction nozzle diameter mm 80+80 F10L Drilling unit Includes: - 7 independent vertical spindles - Drill chuck D10 mm - Distance between spindles 32 mm - 2 horizontal drilling heads, 1 in X direction with one drill, 1 double drilling head in Y direction (1 + 1 drill chuck D10 mm) - Speed 3350 rpm - 1 integrated sawing unit in X (max. Diameter 100 mm) - Saw blade speed 4300 rpm - Motor power 1.5 kW - Vertical pneumatic travel per spindle 70 mm - Horizontal pneumatic travel of the drilling unit. Positioning of the workpiece and drive of the work unit: A CNC-controlled suction cup clamps the workpiece and positions it sequentially under the work unit during machining. Movement in the X and Y axes takes place on THK guides with transmission to reinforced toothed rails. Movement in the Z axis is pneumatically controlled on ball-bushing guides with adjustable stop positioning. The positioning of the work units is carried out using technology and drives with DC motors. CNC CONTROL The control system was specially developed for use in drilling and milling machines. CN - 7" color screen with touchscreen function - Alphanumeric keyboard - Self-diagnosis and any error messages or malfunctions that may occur, in the operator's language Programming - Programming via the CN - Automatic optimization of drilling operations - Option of plate zero point shift - Option of saving and importing drilling programs via USB dongle - Option of importing drilling programs from CAD-CAM external software Configuration - User interface in the same language as the instruction manual Graphic representation of the unit configuration Vacuum suction cups "B-Power Vacuum suction cups with double vacuum connection, recommended for particularly porous panels (e.g. MDF light). Machine user interface software Xilog Maestro USB Hardware and software requirements: - Operating system: Windows XP Professional (SP2), Windows Vista or Windows 7 - Processor: Intel compatible, 2GHz min; Multicore processor recommended - Memory capacity: 1GB min., recommended 2GB - Free disk space: 5GB - Graphic card: Compatible OpenGL (The code includes a DVD for installation and a USB key) Xilog Maestro Features Programming - Parametric, graphic programming - Assisted programming with graphic and syntax help for drilling operations - Possibility to create and save machining macros Integrated additional functions - Self-diagnosis and possible error messages or malfunctions, in the operator's language - User interface in Gtedpfjvvi I Rox Aa Iot

Condition: used, Year of construction: 2007, Tenoning spindle 3 St. Number of milling agregates 5 St. Spindle diameter 50 mm Control Control 100 PC SCM Windor 100 CNC Gtedpow Im Iiefx Aa Iot ----- Powerful and flexible CNC manufacturing system for windows and doors Processing of workpieces up to a maximum length of 4500 mm, width of 250 mm, and thickness of 150 mm Consists of a Windor 60 model B Infeed conveyor Slotting section: ----- Item 1: Miter saw ----- - Motor 4 kW - 3000 rpm - Spindle diameter 40 mm - Maximum tool diameter 400 mm, bore 80 mm Item 2: 1st slotting spindle ----- - High-performance spindle with top bearing, spindle length 620 mm - Spindle diameter 50 mm - Motor 11 kW - 3500 rpm - Maximum tool diameter 370 mm - Locking device "Jolly" - Continuous vertical positioning - Interpolating rotations, automatic inclined window adjustment +/- 60 degrees Item 3: Electric spindle with HSK 63 F tool holder ----- - Min/max. Rotation speed 1000-12000 rpm - Maximum motor power 11 kW - Water cooling - Rapid 24 automatic tool changer with 24 positions Item 4: 2nd slotted spindle ----- - High-performance spindle with top bearing, spindle length 620 mm - Spindle diameter 50 mm - Motor 11 kW - 3500 rpm - Maximum tool diameter 370 mm - "Jolly" locking device - Continuously variable vertical positioning - Interpolating rotations, automatic inclined window device +/- 60 degrees Item 5: 3rd slotted spindle ----- - High-performance spindle with top bearing, spindle length 620 mm - Spindle diameter 50 mm - Motor 11 kW - 3500 rpm - Maximum tool diameter 370 mm - Locking device "Jolly" - Continuous vertical positioning Fleximat ----- Including left and right stops with horizontal CNC adjustment for the following through-feed operations: Lock case milling and 9-degree anuba drilling from the right. Dowel drilling and strike plate marking from the left and right, 7 spindles each. Cup hinge drilling and olive drilling from the top. Profile part ----- Item 5: Power 2000 F4: Electric spindle with HSK 63 F tool holder ----- - Working from the left - Min/Max. Rotation speed 1000-18000 rpm - Maximum motor power 12 kW - Water cooling - Rapid 24 automatic tool changer with 24 positions Item 6: 1st profile spindle from the right ----- - High-performance spindle with top bearing, spindle length 620 mm - Spindle diameter 50 mm - Motor 11 kW - 6000 rpm - Tool diameter min./max. 130-250 mm - Continuously variable vertical positioning - Continuously variable horizontal positioning Item 7: 2nd profile spindle from the right ----- - High-performance spindle with top bearing, spindle length 620 mm - Spindle diameter 50 mm - Motor 11 kW - 6000 rpm - Tool diameter min./max. 130-250 mm - Continuous vertical positioning - Continuous horizontal positioning Item 7: 3rd profile spindle from the right ----- - High-performance spindle with top bearing, spindle length 620 mm - Spindle diameter 50 mm - Motor 11 kW - 6000 rpm - Tool diameter min./max. 130-250 mm - Continuous vertical positioning - Continuous horizontal positioning Item 8: Power 2000 F4...

Condition: used, machine/vehicle number: 008288, Position 1: Panel Feeding and Loading SCM-MAHROS - STEFANI - CELASCHI Gtedpfx Asx Nv S Uja Iet Position 2: Double Sided Squaring/Edgebanding Machines SCM-MAHROS - STEFANI - CELASCHI Position 3: Panel Turning Device SCM-MAHROS - STEFANI - CELASCHI Position 4: Double Sided Squaring/Edgebanding Machines SCM-MAHROS - STEFANI - CELASCHI Position 5: Panel Turning Device SCM-MAHROS - STEFANI - CELASCHI Position 6: Splitters SCM-MAHROS - STEFANI - CELASCHI Position 7: Panel Stacking and Offloading SCM-MAHROS - STEFANI - CELASCHI

Condition: excellent (used), Year of construction: 2024, functionality: fully functional, Outfeed System 5.6m long belt 270mm wide. Min length 400mm Max Length 5000mm Sweeper 500mm push. Gedjtrw N Espfx Aa Iott New control System New Belt New Gearbox for sweeper Q-transport belt reciving belt 900 mm wide and 3250 mm long

Condition: used, Thickness planer SCM S 63 - used - Segmented pressure beam, Under-table roller, Separate feed motor ----- Technical specifications ----- Godpjxm R Uvefx Aa Ijtt Planing width: 630 mm, Number of knives: 4 pcs., Passage height: 235 mm, Feed speed: 6 /9/12/18 m/min., Extraction nozzle Ø: 180 mm, Weight: 1035 kg

Condition: used, Year of construction: 2018, Startech cn MAIN FEATURES FLEXIBLE AND CUSTOMIZED PRODUCTION COMBINED WITH SPEED AND PRECISION DRILLING FROM ABOVE WITH REFERENCE TO THE TOP OF THE PLATE ALLOWS ABSOLUTELY PRECISION MACHINING NUMERICAL CONTROL WITH 7" COLOR SCREEN: SIMPLE AND INTUITIVE TECHNICAL DATA Startech CN AXES Max. workpiece dimensions X-Y-Z mm 3050 x 800 x 50 Min. workpiece dimensions X-Y-Z mm 300 x 90 x 10 Drilling/slotting work area mm 0 x 800/0 x 800 X-axis stroke mm 750 Max. travel speed of the X-Y axes m / min 25 DRILLING UNIT Vertical spindles number 7 (4X-4Y one of them common) Horizontal spindles (along the Y axis) Number 2 (1+1) Horizontal spindles (along the X axis) Number 1 Fixed groove saw (direction) X Diameter of the groove saw mm 100 Max. thickness of the groove saw mm 5 Motor power kW (HP) 1.5 (2) Spindle speed rpm 3350 Speed of the groove saw rpm 4300 INSTALLATION Power supply V (Hz) 380 / 400 (50 / 60) Installed power KVA 4.5 Compressed air demand bar 6 Compressed air consumption Nl/cycle 90 Extraction demand m3 / h 1200 Extraction air speed m / sec 20 Extraction nozzle diameter mm 120 GENERAL CHARACTERISTICS Universal CNC drilling machine with work table with fixed gantry and movable workpiece for performing the following machining operations: - Vertical drilling on the panel surface - Horizontal drilling on all four sides of the workpiece - Groove Milling with integrated groove saw in the "X" direction. Self-supporting structure. Machine frame made of tubular steel to provide a large base for the work table. The structure is positioned on three self-leveling feet. The electrical control cabinet is integrated into the machine frame. "Easy Motion" central Bakelite support table: - an MDF sector for through-hole drilling, automatically pivoting for horizontal drilling - an infeed roller that facilitates panel loading - a rear roller conveyor that facilitates panel sliding - left and right stops - a central aligner with manual adjustment. The left and right stops are required to drill the two opposite sides of the panel horizontally in the "X" direction. Panel positioning along the X axis is achieved by means of suction cups. Unit support. This is a gantry structure made of tubular steel. The main machining unit is installed on the gantry. F10L drilling unit includes: - 7 independent vertical spindles - Drill chuck D10 mm - Distance between spindles 32 mm - 2 horizontal drilling heads, 1 in X direction with a single drill, 1 double drilling head in Y direction (1 + 1 drill chuck D10 mm) - Speed 3350 rpm - 1 integrated sawing unit in X (max. diameter 100 mm) - Saw blade speed 4300 rpm - Motor power 1.5 kW - Vertical pneumatic travel per spindle 70 mm - Horizontal pneumatic travel of the drilling unit Positioning of the workpiece and drive of the machining unit A CNC-controlled suction cup clamps the workpiece and positions it sequentially under the machining unit during machining. The movement in X and Y axis is carried out on THK guides with transmission on reinforced toothed Movement in Z axis is carried out pneumatically on "ball-bushing" guides with positioning on stop adjustable via the positioning of the working units is carried out via technology and drives with -CONTROL The control was specially developed for use Gtedpfsvwbp Asx Aa Iot

Condition: used, Year of construction: 2011, Working size in X-direction: 2770 mm Working size in Y-direction: 1220 mm Working thickness (Z-dimension): 80 mm Machine design: Gantry-type machine Main spindle power: 11.0 kW Main spindle speed: 1500 - 24000 rpm Vector controlled spindle: Yes Clamping system: HSK 63 F Spindle cooling: Air cooling Number of axes: 3 Tool changer: Yes Tool changer positions: 10 Keyboard: Yes Mouse: Yes Gedpfevvi Htex Aa Istt Programming system: Xilog Plus DXF interface: Yes Online connection possible: Yes CD-ROM drive: Yes Table type: Matrix table Stop system: Stop cylinders Number of vacuum pumps: 1 Vacuum pump capacity: 250 m³/h Safety: Safety tread mats Storage location: Sonnefeld

Condition: used, Year of construction: 2004, Storage location: Nattheim Gtjdpfx Aaevvi Hyj Iot

Condition: used, Year of construction: 2020, CNC-CONTROLLED MACHINING CENTER WITH MULTIFUNCTIONAL TABLE - WORK CELL VERSIONX400 CELLDrilling and milling made for you!The numerically controlled machining center is equipped with a wide range of milling/drilling tools to meet every need in the processing of wood and similar materials.- More powerful, with drilling spindles with 8,000 rpm and . Technology, the toughest spindle available on the market, with over 1,000 maintenance-free hours of use. Better and more comprehensively equipped, with various configuration options thanks to the multifunctional table to optimally equip the machine according to your needs. Easier and more understandable programming thanks to the integrated MAESTRO CNC CAD-CAM module. Easier to use: the work table is accessible at all times, the electrical cabinet and vacuum pump are integrated, and in the PRO SPACE configuration there are no guards. Supporting structure. The supporting structure consists of a particularly strong monolithic steel base, heavily ribbed and very rigid. The particularly wide support was specifically designed to give the machine stability, ensuring consistent precision regardless of the working conditions and eliminating the need to anchor the machine to the floor. The base forms a large and solid support for the mobile column: the work unit is thus equipped with a balanced, stable, and durable support that can withstand the most extreme stresses, ensuring higher quality performance and greater precision. The mobile gantry consists of a single, solid unit anchored to the base on both sides and slides on pyrotechnic guides with top-quality ball-return slides. The dual motorization along the X-axis ensures top performance even under demanding working conditions. The movement of the lower moving unit (X-axis) and the working unit along the rod of the moving unit (Y-axis) is achieved thanks to a rack/pinion transmission with helical teeth. this creates a greater tooth-to-tooth thrust which achieves greater acceleration and greater speed along the X and Y axes. The specially designed helical gearing ensures less wear on the mechanical components and less noise. The vertical Z axis is driven by a screw with ball return which ensures perfect balance with dynamic loading and strong acceleration and deceleration. The main milling unit is directly coupled to the Z axis carriage and ensures absolute quality of finishes as any vibrations are completely eliminated. Translation along the X-Y-Z axes is carried out by brushless motors driven by static inverters; These ensure: - Reduced processing times thanks to improved acceleration - Better positioning accuracy thanks to the high-resolution encoder - Zeroing of setup operations when switching on the machine thanks to absolute encoders - Zeroing of general maintenance operations since there are no brushes with the "brushless" system The management of the axis displacement and, in general, of the machine's working elements is carried out by an industrial NS module with digital D Gjdpjvvi N Ijfx Aa Istt

Condition: used, Year of construction: 1999, Storage location: Nattheim Gtodpfevvi Rxex Aa Iot

Condition: used, Year of construction: 2019, Incl. tools CNC-CONTROLLED MACHINING CENTER morbidelli m100 Drilling and milling made for you! This numerically controlled machining center is equipped with a wide range of milling and drilling tools to meet every woodworking requirement. - Highly powerful - with 8,000 rpm drilling spindles and . technology, the most stable spindle available on the market, with more than 1,000 maintenance-free hours of use. - Optimally and comprehensively equipped - the vacuum cleaners can be individually configured with the TV FLEX work table to customize the machine to meet individual requirements. - Easy and understandable programming thanks to the integrated Cad-Cam MAESTRO CNC software - Easy to operate; the lowered machine frame makes the work table accessible at all times. The control cabinet and vacuum pump are integrated into the machine bed, and in the PRO SPACE version, no additional structural protective measures are necessary. Supporting structureThe supporting structure consists of a particularly strong monolithic steel base, ribbed and very robust. The particularly wide support was specifically designed to give the machine stability, ensuring constant precision in all working conditions. The machine does not need to be anchored to the ground. The base provides a large and solid support for the mobile column: the work unit is equipped with a balanced, stable and resistant support that can withstand the most extreme stresses, ensuring superior performance and greater precision. The mobile gantry consists of a solid single part anchored to the base and the work unit is fixed to it and moves along Y and Z axes, also on prismatic guides with ball return sliding blocks of the highest quality. The movement of the lower moving unit (X-axis) and the working unit along the crosshead of the moving unit (Y-axis) is achieved thanks to the power transmission via a rack and pinion with helical teeth; This creates a greater tooth-to-tooth thrust, which achieves greater acceleration and higher speed along the X and Y axes. The specially designed helical gearing ensures less wear on the mechanical components and less noise. The vertical Z axis is driven by a screw with ball return, which ensures perfect balance with dynamic loading and strong acceleration and deceleration. The main milling unit is directly coupled to the Z axis carriage and ensures very high quality finishing as vibrations are completely eliminated. Translation along the X-Y-Z axes is carried out by brushless motors driven by static inverters. These ensure:- Reduced machining times thanks to improved acceleration- Better positioning accuracy thanks to the high resolution encoder- Elimination of setup operations when switching on the machine thanks to absolute encoders- Elimination of general maintenance operations as there are no brushes with the "brushless" systemThe management of the axis displacement and in general of the working elements of the machine is done via e Gjdpevvi Scofx Aa Ijtt

Condition: used, Storage location: Nattheim Gedpfx Aowkirqea Istt

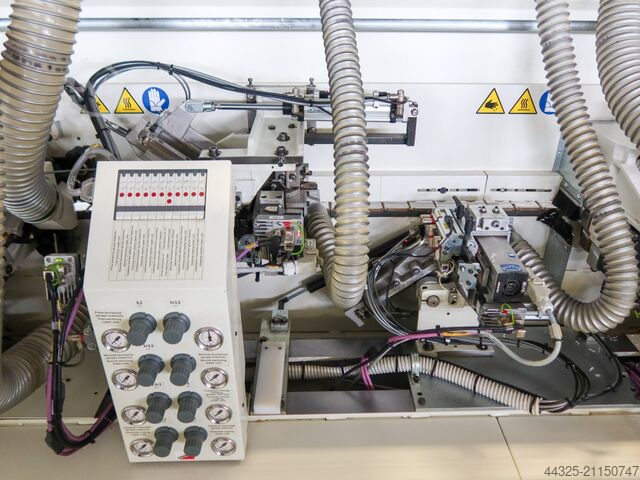

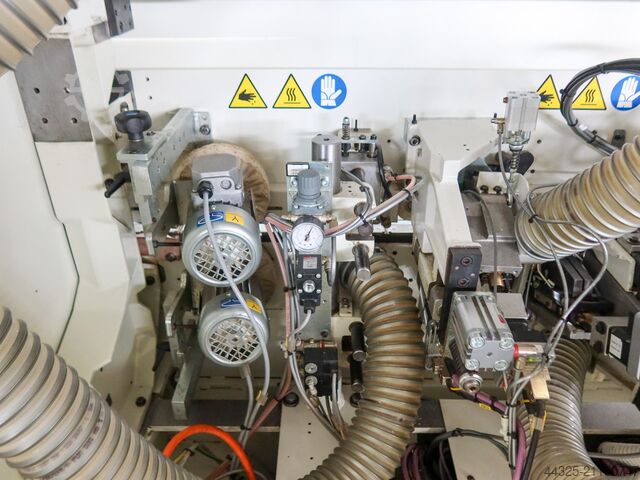

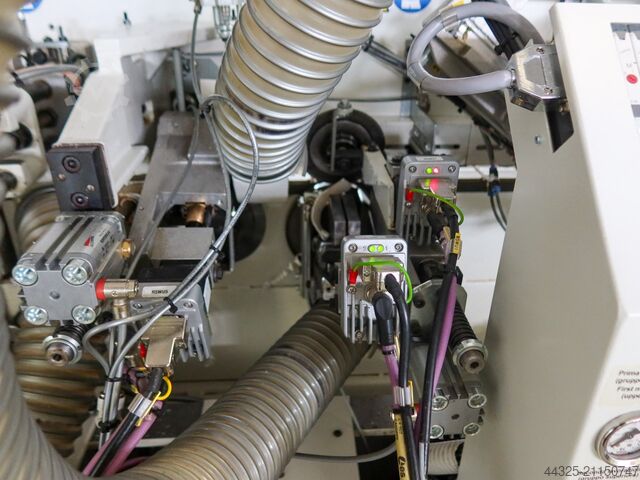

Condition: used, Year of construction: 2022, Incl. 2nd glue pot. Glue thickness for roll edges: 0.4 - 3 mm. Glue thickness for strip edges: 5 mm. Min. - Max. workpiece height: 8 - 50 mm. Feed speed: 9 m/min. Pre-milling unit. Glue unit. Trimming unit. Rounding unit. Flush trimming unit. Radius scraper. Flat scraper. Buffing unit. Spraying unit. Storage location: Customer. Gtsdpjw Aig Sefx Aa Iot
