Used Trumpf Press Brake for sale (416)

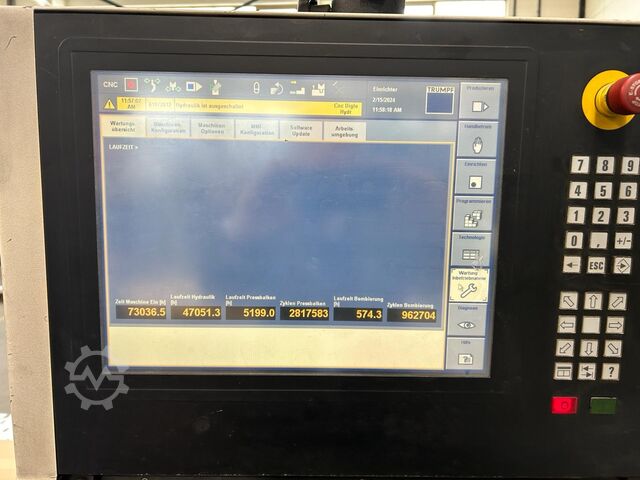

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2005, operating hours: 47,052 h, machine/vehicle number: B0505A0010, stroke length: 445 mm, pressing force: 170 t, working length: 3,000 mm, TECHNICAL DATA Bending length: 3,000 mm Press force: 170 t Stroke (long stroke): 445 mm Drive and control system WILA hydraulics: top and bottom Backgauge: 6 axes MACHINE DETAILS Operating pressure: max. 300 bar Stop time: 95 ms Voltage: 3×400 V Rated current: 38.0 A Frequency: 50 Hz Connected load: 26.0 kVA Control voltage: 24 V Compressed air connection: 6 bar Press weight: 12,200 kg Operating times Machine on: approx. 73,037 h Lhedewa T E Hepfx Abzjc Hydraulics: approx. 47,052 h Press beam: approx. 5,200 h Strokes: approx. 2,817,583 Crown: 575 h / 962,704 cycles EQUIPMENT - Laser light barrier - Die shift - 2x support arms Last service performed: 10/2023

Condition: like new (used), Year of construction: 2022, pressing force: 100 t, Very well-maintained TRUMPF press brake. Number of strokes: approximately 860,000 (the machine is in continuous operation). The quoted price is the net amount for lease transfer. If interested, please contact me to receive the repayment schedule. The lease is denominated in EURO. Currently, 30 out of 61 lease installments have been paid. Lhsdpfx Absv E Nvaszoc

Condition: excellent (used), functionality: fully functional, Year of construction: 2009, Options: ACB, BendGuard for manual bending, HQ version, interface to 2nd machine Lhodpjwykccjfx Abzoc

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2006, operating hours: 38,091 h, controller model: T 3000, bending force (max.): 66 t, working width: 2,000 mm, number of axes: 4, travel distance X-axis: 600 mm, TECHNICAL DETAILS Number of axes: 4 Working length: 2 m Max. press force: 66 t Travel ranges Lhodpewxtpvofx Abzec Stroke Y-axis: 200 mm Travel X-axis: 600 mm Max. backgauge range in X: 880 mm Travel R-axis: 340 mm Distance between uprights: 2,364 mm Control Control system: T 3000 MACHINE DETAILS Length × Width: 2,600 × 1,750 mm Height: 2,330 mm Weight: 5,400 kg Electrical connection: 11 kVA Oil capacity (approx.): 100 l

Condition: used, Year of construction: 2021, Max. pressure 100 ton Max. bending length 3060 mm Distance between uprights 3384 mm Ledpoxr U Nhsfx Abzohc X-axis movement 600 mm Length of stroke (extended) 350 mm Daylight (Extended) 580 mm Automatic crowning on lower tool base Controlled axis: Y1, Y2, X1, X2, Z1, Z2, R1 & R2 Control: Trumpf T3500T (3D colour/grafic visualization ) Equipped with: Tool package for 15.000 euro. 2 manual “lay up” arms Trumpf manually quick clamp top tool holders in full width - made by Wila Machine appears as brand new. Price when bought in 2021: Euro. 115.000

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2007, operating hours: 28,459 h, machine/vehicle number: A0220A2141, controller model: Siemens Sinumerik 840 D, laser power: 4,000 W, sheet thickness (max.): 20 mm, working length: 3,000 mm, working width: 1,500 mm, TECHNICAL DETAILS Working area: 3,000 x 1,500 mm Maximum sheet thickness, mild steel: 20 mm Maximum sheet thickness, stainless steel: 15 mm Ljdsyilfaspfx Abzehc Maximum sheet thickness, aluminium: 10 mm Laser power: 4 kW MACHINE DETAILS Control system: Siemens Sinumerik 840 D Laser type: TruFlow 4000 Laser power: 4 kW Type: CO2 Dimensions & weight Dimensions (L x W x H): 9,300 mm x 4,600 mm x 2,200 mm Weight: 12,000 kg Operating hours (as of January 2026) Beam-on hours: 28,459 h Laser-on hours: 51,970 h EQUIPMENT TruTops license (additional charges may apply for license transfer to Trumpf)

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2013, operating hours: 41,657 h, controller model: SINUMERIK 840 D SL, laser power: 5,000 W, working length: 3,000 mm, working width: 1,500 mm, TECHNICAL DETAILS Working area: 3,000 x 1,500 mm Laser power: 5,000 W Current laser power: 5,335 W (as of 27/04/2023) MACHINE DETAILS Control system: SINUMERIK 840 D SL Power supply: TruDisk via the machine Solid-state laser: TruDisk 3001 with 1 fiber optic output Operating hours Operating hours: 67,508 h Laser on-time: 41,657 h EQUIPMENT Excitation via pump diodes Laser power control Automatic shut-off Torque drive in combination with linear direct drives Enclosed beam guide with fiber optic cable (LLK) Machine chiller unit (water-air) Integrated control cabinet lighting Automatic longitudinal pallet changer 17" touch color display Wide longitudinal conveyor belt Workspace lighting Positioning laser diode Spray device PierceLine FocusLine NitroLine PlasmaLine Automatic nozzle cleaning Copper cutting package (includes cutting data) Brass cutting package (includes cutting data) Universal cutting unit with fully adaptive lens system Piercing head strategy Protective glass against lens contamination Lhsdpfx Aeyhmvtsbzoc Protective glass monitoring ControlLine: height control and sheet edge detection Simple workshop programming Advanced workshop programming Fast re-run Integrated technology data Programmable cutting gas/pressure selection FastLine FlyLine AdjustLine Teleservice via internet Data transmission via USB interface RJ-45 network connection Safety with CE marking Light barriers Multi-chamber extraction system Compact extraction unit Machine enclosure with certified viewing window Right-hand door and electric roll-up roof

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2018, operating hours: 7,790 h, controller model: B&R APC 910, laser power: 3,000 W, sheet thickness (max.): 20 mm, working length: 3,000 mm, working width: 1,500 mm, TECHNICAL DETAILS Table length: 3,000 mm Table width: 1,500 mm Laser power: 3,000 W Sheet thickness (steel): 20 mm Sheet thickness (stainless steel): 16 mm Sheet thickness (aluminium): 12 mm Travel speed: 100/140 m/min Accuracy: 0.1 mm MACHINE DETAILS Control: B&R APC 910 Connected load: 33 kVA Dimensions & Weight Space requirement: approx. 7,800 x 5,900 x 2,300 mm Machine weight: approx. 11,400 kg Controller power-on hours: 2,472 h Operating hours: 15,907 h Laser power-on hours: 7,790 h EQUIPMENT Integrated solid-state laser TruDisk 3001 with 1 fiber output Fully automatic pallet changer (with light barrier) Enclosed machine frame with integrated components Motion unit for high-precision processing Drives with maintenance-free three-phase servo motors Sheet support accessible from both sides Enclosed beam guidance via laser light cable (fiber optic cable) Fully integrated chiller for laser and machine Integrated control cabinet Travelling fume extraction system Slag drawers 19" touch colour screen TruDisk power supply via machine Workspace lighting Lhsdpfxjyhmxus Abzjc Positioning laser diode PierceLine FocusLine NitroLine Transport and installation device Copper cutting package (includes cutting data) Brass cutting package (includes cutting data) TRUMPF Laser Fiber optic cable as per standard layout (laser placed directly next to machine) Excitation via pump diodes Laser power control Laser logbook function Universal cutting unit Pierce head strategy Protective glass against lens contamination ControlLine: Height control and detection of sheet outer edge Simple drawing module Easy workshop programming Quick reproduction Integrated TRUMPF technology data Auto shut-off Programmable cutting gas/pressure selection ContourLine FastLine Microweld Tele-service via Internet Microjoint - handling at the control panel Adjustable dynamics Data transfer RJ45 network connection and USB interface CE mark Compact extraction unit Machine enclosure with certified viewing windows Motorised front door and rear access Enclosed machine roof

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2010, laser power: 3,000 W, sheet thickness steel (max.): 20 mm, sheet thickness stainless steel (max.): 15 mm, table length: 3,000 mm, table width: 1,500 mm, TRUMPF TruLaser 5030 3kW Fiber with LiftMaster! Laser head replaced in 2024 TECHNICAL DETAILS Table length: 3,000 mm Table width: 1,500 mm Cutting heads: 1 Maximum sheet thickness (mild steel): 20 mm Maximum sheet thickness (stainless steel): 15 mm Maximum sheet thickness (aluminium): 15 mm Maximum sheet thickness (copper): 4 mm Maximum sheet thickness (brass): 3 mm Laser power: 3,000 W Lhjdpfsygw Rlsx Abzsc Laser source: TruDisk3001 (4C) MACHINE DETAILS Control unit: CNC Last documented maintenance: 10-12 September 2025 Operating hours: as of September 2025 – 53,082 h (currently approx. 54,000 h) Dimensions & Weight Required space: 9,300 x 4,700 x 2,200 mm Weight: 12,700 kg Electrical connection: 40 kVA / 80 A Power consumption: 23 - 33 kW EQUIPMENT CE documentation and manuals LiftMaster Automatic nozzle changer Extraction/filtration system Operating manual Chiller + extraction Compressor not included Please note: Transport of the machine requires 1 standard truck and 1 truck with 3 m width.

Condition: excellent (used), functionality: fully functional, Year of construction: 2019, control type: CNC control, laser type: fiber laser, laser power: 10,000 W, table length: 4,000 mm, table width: 2,000 mm, working length: 4,000 mm, working width: 2,000 mm, Equipment: CE marking, dust extraction, emergency stop, fume extraction, safety light barrier, Used Trumpf10kw 5040 4metre x 2metre Trumpf fiber laser for sale Year 2019 Lhedsylax Nspfx Abzoc Complete with active cut control option Selling without automation 10kw / 10,000 w 4metre x 2metre cutting bed

Condition: like new (used), Year of construction: 2022, functionality: fully functional, punching force: 18 t, working range: 2,500 mm, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,250 mm, Used Trumpf TruPunch 3000 S20 with Sheet Master Compact sheet load and unload for sale Technical data TruPunch 3000 medium format (S20) Dimensions, weights Width 6282 mm Depth 6548 mm Height 2195 mm Weight with all units 10700 kg Control, hardware, electrics Hard disk type SSD Number and size of the hard disc 2 GB x 120 GB Hard disk memory for customer programmes 10 GB Screen Touch screen Lhsdpfxeykt N Sj Abzoc Screen size 21.5 in Interface USB Network connection RJ45 Control type Bosch CML75 Operating system Windows 10 IoT Axis data X/Y/C axis drive NC-controlled, maintenance-free three-phase current servo motors Punching head drive Electric drive Maximum axis speeds - X axis 90 m/min Maximum axis speeds - Y axis 60 m/min Maximum axis speeds - Simultaneous 108 m/min Maximum axis speeds - C axis (punching) 350 rpm Maximum axis speeds - C axis (tapping) 350 rpm Maximum punching stroke rate (E = 1 mm) 800 1/min Maximum marking stroke rate 1000 1/min Precision - Positioning deviation Pa +/- 0.1 mm Precision - Position range Ps +/- 0.03 mm Precision - Smallest programmable increment 0.001 mm Working range and workpiece size Maximum sheet thickness 6.4 mm Maximum workpiece weight 150 kg Working range - X axis 2500 mm Working range - Y axis 1250 mm Punch-specific data Maximum punching force 180 kN Maximum presser foot force 20 kN Maximum tool size, punching (outer circle) 76.2 mm Maximum tool size, forming (outer circle) 101.6 mm Single tool changing time 2.8 s MultiTool changing time 0.5 s Number of linear magazine stations 20 pieces Number of tools when using MultiTool / clamps 18 pieces - 180 pieces Loading / part removal Maximum part size, part removal flap, punching 400 mm x 600 mm Flap size (X x Y) 400 mm x 1250 mm Maximum part size, fixed chute, punching 180 mm x 180 mm Connected loads, ambient temperature Pressure range, compressed air connection minimum (same direction) / maximum (static) 7 bar / 14 bar Painting Main colour white, NCS S 0505-R80B Secondary colour blue, RAL DESIGN 250 20 20 Switch cabinet/periphery grey, RAL 7040 SheetMaster Compact 2500 x 1250 mm (AK05) General Maximum Y1 axis traverse speed (suction frame) 27 m/min Maximum Y2 axis traverse speed (unloading cart) 18 m/min Maximum Z axis traverse speed 20 m/min Y/Z axis drive Asynchronous motors controlled by frequency converter Loading Maximum sheet size 2500 mm x 1250 mm Minimum sheet size 1000 mm x 1000 mm Minimum sheet thickness 1 mm Maximum sheet thickness 6.4 mm Maximum sheet weight 160 kg Unloading Minimum sheet thickness 1 mm Maximum sheet thickness 6.4 mm Maximum sheet weight 160 kg Maximum stack height 190 mm Painting Main colour white, NCS S 0505-R80B Secondary colour blue, RAL DESIGN 250 20 20

Condition: excellent (used), functionality: fully functional, Year of construction: 2018, operating hours: 23,150 h, control type: CNC control, degree of automation: automatic, controller manufacturer: TRUMPF, laser type: fiber laser, laser source manufacturer: TRUMPF, laser hours: 8,067 h, laser power: 5,000 W, sheet thickness (max.): 25 mm, sheet thickness steel (max.): 25 mm, sheet thickness stainless steel (max.): 25 mm, sheet thickness aluminum (max.): 20 mm, table length: 4,000 mm, table width: 2,000 mm, working length: 4,000 mm, working width: 2,000 mm, Equipment: CE marking, cooling unit, documentation/manual, dust extraction, nozzle changer, TRUMPF TruLaser 5040 Fiber 5KW Lhodpfxjyl R Eao Abzsc

Condition: used, Welding edge shaper, edge shaper, edge chamfering machine TRUMPF Chamfering of steel plates for weld seam preparation Type TKF 103 Sheet thickness: 4 - 25 mm Bevel length max: 10 mm Bevel angle: 30° Power: 2000 watts Lsdpfsdz Sq Eox Abzshc Mains connection: 220 Volt, 50 Hz - equipped with guide bracket for 30° bevel angle - resharpenable steel for high tool utilization - Set up for 20 mm sheet metal For chamfering straight and curved edges with a radius of at least 40 mm. For chamfering edges on flat and curved workpieces as well as pipes with an internal diameter of at least 80 mm. Weight: 14 kg

Condition: used, Year of construction: 2009, sheet width 3050 mm plate thickness 6 mm rear stop 10-1000 mm cutting angle 0,5 - 2,5 ° down holder 20 Stk Lsdpjyk Dhxefx Abzjhc no. of strokes 14 - 23 Hub/min work height max. 900 mm oil volume 140 l total power requirement 11 kW dimensions of the machine ca. 4000 x 2150 x 1900 mm weight 7800 kg Equipment: - ELGO control unit type P50 - Automatic cutting angle adjustment - Automatic cutting gap adjustment - electric back gauge - Pneumatic sheet holding device - Light barrier behind the machine - 4 support arms - front finger guard - foot switch - Angle stop Operating instructions

Condition: excellent (used), functionality: fully functional, Year of construction: 2018, operating hours: 21,346 h, laser power: 3,200 W, X working area max.: 3000 mm Y working area max.: 1600 mm Control: Rexroth IndraMotion MTX Laser power: 3000 watts Lhsdpfxsylk S Te Abzjc Machine - Enclosed machine frame - Hybrid axis system - Linear magazine with 20 slots for clamps and tools - Hydraulic clamps (3 pieces) - Maintenance-free three-phase motors for drives - Repositioning device with programmable hold-down - Foot pedal for clamp closing - Beam protection with direct access - Parts chute on the right - Parts flap on the left - Sensor for parts flap - Work area illumination - FocusLine - Retrofittable for SortMaster Compact - Protective tool - Transport and installation device TRUMPF Laser - Laser light cable (LLK) according to standard layout (10m) - Laser power control - Laser logbook function - Closed beam guidance via laser light cable (LLK) - Separate power supply for TruDisk Compact Cutting Unit - Solid-state laser compact cutting unit - Protective glass - Collision protection - ControlLine Punching Head - Delta Drive - Rotatable mono-tool adapter - Programmable hold-down position - Tool length compensation - Punch spray lubrication - Punch slug extraction - Forming function - Stroke counter for punch Control - TRUMPF control based on Rexroth IndraMotion MTX - Touch panel with 19'' TFT color screen - Integrated technology data - Programmable cutting gas pressure - Remote support interface - Auto shut-off with wake-up function - Program management - Production plan Data Transmission - USB interface - RJ-45 network interface - Central Link - Online Update Manager Safety - CE marking - Two-beam safety light curtain Extended Standard Equipment - TruDisk 3001 solid-state laser with 1 LLK output - Chiller (water-air) - Compact dust extraction system - 1st locating pin (right inside) - Ball tables - Good parts container for parts chute - Chip container for rear removal Extended Laser Equipment - Copper cutting package - Brass cutting package Extended Punching Equipment - MultiShear function - Multitool function - MultiBend function - Thread forming with thread counter Thread former breakage monitoring Lubricant level monitoring - Marking/fast embossing function - Engraving function - Deburring and roller technology function - Ejecting small parts function Parts Ejection - Integrated sorting function for parts chute • Sensor for parts chute • Tray line for 4 standard trays 300 x 400 mm • Customer-supplied trays Extended Machine Equipment - 1x additional clamp - Machine rated for ambient temperatures up to 43°C Special Sheet Metal Processing - Brush tables - Warping detection Options for Compact Dust Collector - CO2 extinguishing system for the compact dust collector Data Transmission - Wireless Operation Point Machine Accessories - 1 set RTC cassettes incl. die plate SheetMaster Compact - SheetMaster Compact 3000 x 1500 mm (AK05) • Loading station with spreader magnet for sheet separation • Suction frame • Vacuum sensor system • Double sheet detection • Unloading cart for scrap grid and microjoint sheets • 2nd operator's station for loading and unloading.

Condition: good (used), functionality: fully functional, Year of construction: 2013, laser power: 2,700 W, X working area max.: 2500 mm Y working area max.: 1250 mm Control system: Rexroth IndraMotion MTX (basic version) Laser power: 2700 Watt Standard Equipment Machine - Sturdy, easily accessible C-frame - Coordinate guide system for high-precision machining - Linear magazine with 23 tool stations and 2 clamps - Maintenance-free three-phase drive motors - Repositioning unit with programmable hold-down device - Foot pedal for clamp closing - Alignment pin (right inside) - Ball tables - 2 parts flaps 500 x 500 mm incl. sensor for parts ejection - Two good parts containers - NitroLine - Focus Line - FastLine - FlyLine - Slag cone detection - Ejector cylinder for laser parts TRUMPF Laser - TruFlow 2000 laser with LensLine and optimized standby mode - High-frequency excitation - Cooling unit - Laser control - Enclosed beam guidance - Fine filtration of compressed air for beam tube ventilation Cutting Head - Lens cutting head with 170 mm focal length - Universal cutting head quick-change system UTI with bus connection - ControlLine Punching Station - Electro-hydraulic punching head - Rotatable mono-tool holder - Tool length compensation - Programmable hold-down device with manually adjustable holding force - Stroke counter for punch and thread-forming - Punch spray lubrication - Punch slug extraction - Measurement of fill level in punching console - Level monitoring for thread-forming and tool lubrication Control - TRUMPF control based on Rexroth IndraMotion MTX - Operating panel with 17" touch screen - Integrated technology data - Teleservice via internet - Programmable cutting gas pressure - Automatic shutdown incl. wake-up mode - Program management - Production scheduling Data Transfer - Network connection RJ45 and USB interface Safety - CE marking - Two-beam light curtain - Monitoring system for gas pressure, temperature, and cooling water - Emergency stop - Protection against stray radiation Ledpfxoylk U Is Abzohc - Compact extraction unit + Brush tables + Lowerable die + MultiTool function + Softpunch function + Marking function + Chip conveyor with tilting container + Roll technology functions: roll knurling, roll deburring, roll shearing, roll offsetting, roll bead forming, roll cutting + Die spray lubrication + Blow-off device for small parts + 1 pc. additional clamp + Smart Punch Monitoring (punch breakage monitoring) + Vibration-damped installation + Repositioning cylinder + Warping detection + Parts conveyor belt in punching area + Parts conveyor belt in laser area + GripMaster (2500x1250) + Scissor lift table + Scrap grid pallet + SheetMaster (2500x1250) (AK04) + Peeling system + Automatic clamp closing + HZP loading/unloading + TwinCarts loading station with toothed belt drive + TwinCarts unloading station with toothed belt drive

Condition: excellent (used), functionality: fully functional, Year of construction: 2010, laser power: 4,000 W, X working area max.: 3050 mm Y working area max.: 1550 mm Control: Rexroth IndraMotion MTX Laser power: 4,000 watts Standard equipment: Machine - Sturdy, easily accessible C-frame - Coordinate guidance for high-precision machining - Linear tool changer with 21 tool stations and 4 clamps - Maintenance-free three-phase drive motors - Repositioning device with programmable hold-down - Foot switch for closing clamps - 2 good parts containers - Automatic shutoff Laser station - TruFlow laser - High-frequency excitation - Cooling unit - TASC 3 laser controller - Enclosed beam guidance - Beam tube ventilation with compressed air - Programmable cutting gas pressure - Laser cutting head with 170 mm focal length - Universal quick-change cutting head device UTI with bus connection - LensLine - FocusLine - ControlLine - NitroLine - SprintLine - ContourLine - FlyLine - PlasmaLine - High-speed cutting - Additional Xp and Yp axes - Ejector cylinder for laser parts - Fast flap for laser parts 500 x 500 mm - Liftable laser cutting support - Slag cone detection - Laser logbook function Punching station - Electro-hydraulic punching head - Rotatable mono-tool holder - Tool length compensation - Programmable hold-down with adjustable force - Stroke counter for punches - Spray lubrication for punches - Punch slug extraction - Warp detection - Flap for punched parts 500 x 500 mm - Fill level monitoring in the punching console Control - Open control system based on Bosch Rexroth IntraMotion MTX - Operating panel with 15" TFT touchscreen - Program management and 80 GB storage capacity - Diagnostic function with laser logbook - Integrated technology data - Teleservice Lodpeylk Nxjfx Abzohc Data transfer - Network connection RJ45 and USB interface Safety - CE marking - Multi-beam light barriers - Monitoring system for, among others, gas pressure, temperature, cooling water - Hydraulic quick shut-off - Protection against stray radiation - Compact extraction unit - TruFlow 4000 - Vibration-dampened installation - Thread forming function - MultiTool function - Chip conveyor with tilting container - Active die - Ejector for small parts - Brush tables with loading aid - Marking function - Repositioning cylinder - Warp detection

Condition: good (used), Year of construction: 1999, operating hours: 52,324 h, functionality: fully functional, X working area max.: 1270 mm Y working area max.: 1270 mm Control: Bosch Type 3 Basic Standard equipment: - Robust C-frame - Safety light barriers - Coordinate guide with integrated linear magazine - 2 clamping claws - Automatic tool changer - Automatic repositioning - Tool length compensation - Forming capability Lhjdpfxoylk T Ro Abzjc - Mono tool holder with 360° rotation for all tools - Programmable hold-down device - Multitool drive - Punch slug extraction - Brush tables - Part chute 200 x 200 mm, sorting of parts into 2 containers - NC-controlled, digital, maintenance-free three-phase drives - Network interface RJ34 - 3.5" floppy disk drive - TOPS 2000 graphical programming - Online diagnostics via modem - Operating manual + Vibration-damped installation + Multitool + Thread forming + Start post

Condition: good (used), functionality: fully functional, Year of construction: 2011, laser power: 5,000 W, CNC Laser Cutting System TruLaser 5030 (L16) 5000 Watt X Working Area max.: 3000 mm Y Working Area max.: 1500 mm Z Working Area max.: 115 mm Control: Siemens Sinumerik 840D SL Laser Power: 5000 Watts Operating hours: 56,521 h Laser on time: 23,563 h Sheet thickness St. max.: 25 mm Sheet thickness Va. max.: 20 mm Sheet thickness Al. max.: 12 mm Standard equipment: - Enclosed machine frame with integrated laser unit - Motion unit for high-precision machining - Gantry drive in combination with linear direct drives - Enclosed beam guidance - Single cutting head strategy - Cooling unit KKW Riedel from 2003 - TFT color display - Longitudinal conveyor for small parts and waste - Automatic pallet changer - Work area lighting - Positioning laser diode - Oil spray device - Piercline - FocusLine - NitroLine - PlasmaLine - CO2 laser TruFlow 5000 - Maintenance-free turbo radial blower - Cutting head with 250mm lens - Universal quick-change unit (UTI) with bus connection - ControlLine: Height control and sheet edge detection - SINUMERIK 840D - Automatic shutoff Ledpfeylk E Tsx Abzshc - ConturLine - FastLine - FlyLine - Microweld - USB interface - RJ-45 network connection - CE marking - Light barriers - Multi-chamber extraction system - Compact dedusting unit - High-speed cutting head 175mm focal length

Condition: good (used), Year of construction: 2023, operating hours: 5,001 h, functionality: fully functional, X working area max.: 3000 mm Y working area max.: 1500 mm Control: TRUMPF Control based on Rexroth IndraMotion MTX Machine: - Closed machine frame - Hybrid axis system - Linear magazine with 24 slots for clamps and tools - Hydraulic clamps (3 pieces) - Drives with maintenance-free three-phase motors - Repositioning with programmable hold-down device - Foot pedal for clamp closing - Parts chute on the right Punching Head: - Delta Drive - Rotatable mono-tool holder - Programmable hold-down position - Tool length compensation - Punch lubrication spray system - Punch slug extraction - Forming function - Stroke counter for punches Control: - TRUMPF Control based on Rexroth IndraMotion MTX - Touch panel with 19" TFT color display - Touchpoint - Programmable cutting gas pressure - Automatic shut-off - Remote support interface - Program management - Production planning Data Transmission: - USB interface - RJ-45 network interface - Central Link - Online Update Manager Safety: - CE marking and EC Machinery Directive - Dual-beam safety light curtain Extended Standard Equipment: - 1st positioning pin (inside right) + Brush tables + MultiTool + Thread forming with thread counter + Thread-former breakage monitoring + Lubricant level monitoring + Marking/rapid beading + Deburring and rolling technology + Adaptive stroke calibration + Die lubrication spray system + Smart Punch Monitoring Ledpfx Absylk H Dszohc + Parts flap on the left + Parts conveyor belt for parts flap left + Collection tray for parts conveyor left + Sensor for parts chute + Parts conveyor for parts chute right + Additional clamp + 4x individually openable clamps + 4x height-adjustable clamps + Automatic clamp closing loading sensor system + Optical loading sensor + Automatic repositioning movement to compensate for loading tolerance + Repositioning device for DeltaDrive + Vibration-dampened installation + Chip conveyor with tilting bin + Machine status light + Warpage detection + Wireless Operation Point SheetMaster Compact 3000 x 1500 (AK05): - Loading station with spreading magnet for sheet separation - Suction frame - Vacuum sensors - Double sheet detection - Unloading cart for residual grids and microjoint sheets - Second operator station for loading and unloading + Compact setup for light grid and reference point system + Peeling system SortMaster Compact: - Machine-integrated automated small part removal - Suction frame for unloading good parts up to 600 x 400 mm (X x Y) - 2 suction bars (each suction cup individually controllable) - Unloading area 600 x 800 mm - Vacuum sensors for the suction circuits + X-axis extension - Extension of the unloading area to 1200 x 800 mm

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2014, laser power: 3,000 W, X Working area max.: 2500 mm Y Working area max.: 1250 mm Control: IndraMotion MTX Laser power: 3000 watts Standard equipment: Machine - Coordinate guide for high-precision machining - Stable, easily accessible C-frame - Linear magazine with 21 tool positions and 4 clamps - Drives with maintenance-free three-phase servo motors - Repositioning device with programmable hold-down device - Foot switch for clamp closing - Ball tables - 2 part flaps 500 mm x 500 mm - FocusLine - NitroLine - FastLine - Ejection cylinder for laser parts - Slag cone detection TRUMPF laser - TruDisk 3001 solid-state laser with 1 LLK outlet - Excitation via pump diodes - LLK according to standard layout (10m) - TruControl laser control 1000 - Cooling unit - Laser logbook function Lhodpfx Abjylk D Nszjc Cutting head - Solid-state laser compact cutting unit - ControlLine Punching head - Electro-hydraulic punching head - Rotatable mono tool holder - Tool length compensation - Programmable hold-down device (active / passive / repositioning) - Punch stroke counter and thread stroke counter - Spray lubrication of punch - Punch slug extraction - Calculation of filling level in the punching console - Level monitoring of thread forming and tool lubrication Control - Open control based on Rexroth IndraMotion MTX - Control panel with 17" touch control panel - Program management - Production plan - Integrated technology data - Teleservice via Internet - Programmable cutting gas pressure - Automatic switch-off with wake-up mode Data transfer - USB interface - RJ-45 network connection Safety - CE marking - Two-beam light barriers - Monitoring system for, among others Gas pressure, temperature, cooling water - Quick shutdown hydraulics - Protection against scattered radiation - Compact dust extraction system - MultiTool function - MultiBend function - Thread forming function - Engraving function - Deburring and rolling technology function - SoftPunch function - StripLine - Lowerable die - Spray lubrication die including level monitoring - Additional clamping claw - 4 pcs. Height-adjustable clamping claws - Vibration-damped installation - Chip conveyor with tilting container - Blow-out device for small parts - Warping detection SheetMaster - Unloading platform - Suction frame with 36 suction cups - Peeling suction cup - Vacuum sensors for each suction cup - Double sheet detector for double sheet control - Central lubrication - TRUMPF control based on Rexroth IndraMotion MTX - Automatic clamp closing machine - Loading and unloading parallel to production time - Peeling system including positioning aid medium format (2500x1250) - First additional suction cup package standard - Second additional suction cup package standard - Unloading monitoring laser parts GripMaster - Parts conveyor belt punching station - Parts conveyor belt laser station ToolMaster with 70 stations (only for punching operation) - ToolMaster set-up parallel to production time

Condition: good (used), Year of construction: 2009, operating hours: 44,287 h, functionality: fully functional, X Working area max.: 2500 mm Y Working area max.: 1250 mm Operating hours: 44,287 hours Control system: Bosch PNC-P Standard equipment: Machine - Stable, easily accessible C-frame - Coordinate guide for high-precision machining - Linear magazine with 18 tool positions including 2 clamps - Drives with maintenance-free three-phase motors - Reloading device with programmable hold-down device - Ball tables - Part chute 180 x 150 mm - Automatic shut-off Punching head - Hydraulic punching head - Rotatable mono-tool holder - Programmable hold-down device - Tool length compensation - Punch spray lubrication - Punch slug extraction - Forming Control system - Open control system based on Bosch PNC-P - Control panel with 15" TFT color screen - Program management - Integrated Technology Data - Teleservice Lhsdpfx Abjylk Emszoc Data Transfer - USB Interface and Network Connection Safety - CE Marking - Multi-Beam Light Barriers - Hydraulic Quick Shutdown + Multitool Function + MultiShear Function + MultiBend Function + Thread Forming Function + Marking/Fast Beading Function + Deburring and Rolling Technology Function + Soft Punch Function + Movable Support Table + Part Slide Sensor + Vibration-Dampened Installation + 2nd Stop Pin + Bow Detection

Condition: ready for operation (used), Year of construction: 1996, functionality: fully functional, machine/vehicle number: 040808, punching force: 220 t, sheet thickness copper (max.): 8 mm, overall weight: 11,050 kg, table width: 1,250 mm, table length: 2,500 mm, control type: CNC control, degree of automation: automatic, actuation type: hydraulic, TC500 R Punching Center with Sheetmaster Medium format 2500mm x 1250mm Standard tools are included with the machine. Lhsdjx Th R Dspfx Abzjc However, there is an extensive tool arsenal available, which is sold separately. Also available: a Quick Sharp and Multiset. The machine and basic tool set can also be purchased as a package. Price is negotiable in this case. We are selling our used Trumpf TC 500R Punching Center. The reason for the sale is that the machine has hardly been in use for years and we need the space. This is a complete punching center with Sheetmaster and waste disposal unit. We acquired the machine in 2008. At our facility, it has only ever been operated up to a maximum of 2 shifts per week. Since 2015, it has been used more or less once a month, as the products it was used for are no longer required. The machine is offered with a standard tool set and is fully functional. Additional tools and a Trumpf Quicksharp are offered separately.

Condition: good (used), functionality: fully functional, Year of construction: 2013, control type: CNC control, degree of automation: automatic, actuation type: electric, laser power: 4,000 W, sheet thickness steel (max.): 20 mm, sheet thickness stainless steel (max.): 15 mm, sheet thickness aluminum (max.): 10 mm, FOR SALE: TRUMPF TruLaser 3030 L20 (4000 W) – Precision and Flexibility Available for purchase is a reliable TRUMPF TruLaser 3030 L20 laser cutting machine from the year 2013. This model is highly regarded for its balance of speed and precision, making it an excellent choice for versatile production environments. Key Technical Details: Power: 4000 W Max. Working Range: 3000 x 1500 mm Positioning Accuracy: 0.03 mm/m Axis Speeds: Up to 140 m/min (simultaneous) Cutting Speeds: 0.8 – 26 m/min Material Capacities: Mild Steel: Up to 20 mm Stainless Steel: Up to 15 mm Ljdpfxoyluv As Abzshc Aluminum: Up to 10 mm Special Features: Equipped with an open loading and unloading station, this machine allows for rapid switching between different sheet sizes, significantly increasing operational flexibility. It has been maintained within a high-standard production facility with a documented annual throughput of 800 tons.

Condition: used, functionality: fully functional, Year of construction: 2011, control type: CNC control, degree of automation: automatic, actuation type: electric, laser type: CO₂ laser, laser power: 5,000 W, FOR SALE: TRUMPF TruLaser 3030 L20 (5000 W) – High-Performance Laser Cutting Solution We are offering a high-quality, German-engineered TRUMPF TruLaser 3030 L20 laser cutting machine. Known for its reliability and precision, this 5000 W power-house is exceptionally well-suited for processing a wide range of material thicknesses with high efficiency. This machine has been utilized by Heizomat and features custom configurations designed for high-volume series production. Technical Specifications: Model: TruLaser 3030 L20 Lhodpfxoyluu Ss Abzec Power: 5000 W Year of Manufacture: 2011 Max. Sheet Size: 3000 x 1500 mm Positioning Accuracy: 0.03 mm/m Max. Axis Speed: 140 m/min Cutting Speed: 0.8 – 26 m/min Maximum Cutting Capacities: Mild Steel (Baustahl): 25 mm Stainless Steel (Edelstahl): 20 mm Aluminum: 12 mm
