Used Citizen Cnc Lathe for sale (88)

Condition: ready for operation (used), Year of construction: 1997, functionality: fully functional, turning length: 205 mm, spindle speed (max.): 10,000 rpm, turning diameter: 20 mm, controller model: Cincom Mitsubishi Meldas, counter spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Max. bar diameter: 20 mm Max. turning length: 205 mm Max. main spindle speed: 10,000 rpm Main spindle C-axis: 0.001 degrees Max. sub spindle speed: 10,000 rpm Sub spindle C-axis: 0.001 degrees Tool capacity: 18 tools Number of axes: 7 MACHINE DETAILS Control: Cincom Mitsubishi Meldas Hsdpfex U Ad Ujx Afcoi Dimensions & Weight Machine dimensions (LxWxH): 2,540 x 1,450 x 1,850 mm Machine weight: 1,750 kg Bar feeder dimensions (LxWxH): 3,900 x 900 x 1,450 mm Bar feeder weight: 850 kg EQUIPMENT Parts conveyor FMB Turbo 3-26 bar feeder

Condition: used, Year of construction: 2018, machine/vehicle number: IntNr231432, CNC short turning machine – Citizen Miyano BNE-51MSY Hsdpfox Tg Sgox Afcsi Year of manufacture: 2018 Condition: Very good, fully operational Availability: At short notice Brief description For sale is a Citizen Miyano BNE-51MSY CNC short turning lathe in MSY configuration featuring main and counter spindles, as well as a Y-axis. This machine is ideal for precise and cost-effective complete machining of complex turned and milled parts in series production. Equipment / Highlights - Fixed headstock (short turning) - Main spindle + counter spindle - Y-axis - 2 tool turrets, each with 12 stations - Driven tools - Simultaneous machining capability - High rigidity and process reliability Technical data - Max. bar capacity: Ø 51 mm - Max. turning diameter: approx. 165 mm - Max. turning length: approx. 380 mm - Main spindle speed: up to approx. 5,000 rpm - Counter spindle speed: up to approx. 5,000 rpm - Control: Mitsubishi MELDAS - Machine weight: approx. 8,000 kg The machine is fully functional, both electrically and mechanically. Complete technical documentation available. The machine can be inspected under power by prior appointment. Subject to technical changes, errors, and prior sale!

Condition: ready for operation (used), Year of construction: 2014, operating hours: 51,488 h, This Citizen CINCOM A32-VII CL swiss type turning machine was manufactured in 2014. It features a main spindle with a 32 mm capacity, a counter spindle, and a maximum turning length of 3000 mm. Equipped with a high-speed CHIDOMI system, it supports simultaneous movements across all axes and offers a feed rate up to 9,000 mm/min. Consider the opportunity to buy this Citizen CINCOM A32-VII CL swiss type turning machine. Contact us for more information about this machine. Hjdpfx Afox D Nhpocei Application Types Turning

Condition: ready for operation (used), Year of construction: 2016, operating hours: 46,976 h, Control Unit Brand FANUC Model Series Oi-TD Additional Equipment Transformer 8 KVA / Airblow through the spindle / LNS chip conveyor / Interface for high pressure coolant system with 4 M-codes This Citizen Miyano GN-3200 was manufactured in 2016. It features a Fanuc 0i-TD control, an 8 KVA transformer, MAS quick change toolholders, and a collet chuck device. Additional features include an airblow through the spindle, a tool breakage sensor, a Blum measuring probe, and an LNS chip conveyor. Interface for high-pressure coolant system with 4 M-codes also included. Contact us for more information about this machine. Application Types Turning Hedjx D Iq Aepfx Afcsi

Condition: ready for operation (used), Year of construction: 2009, General Data Machine weight 2200 kg Measurements height 1752 mm Dimensions Machine Length 2120 mm Hjdpfxsx D Ic Ej Afcoi Main Drive Spindle Speed 8000 RPM This Citizen A20 7PL was manufactured in 2009. It features a max turning diameter of Ø 20 mm and a length of 55/200 mm. Spindle speeds reach up to 8,000 rpm with 21 tool stations and rotary tools at 6,000 rpm. Includes an Iemca Boss 332 E/R bar loader. Dimensions are 2,120 x 1,226 x 1,752 mm, weighing 2,200 kg. Contact us for more information about this machine. Application Types Turning

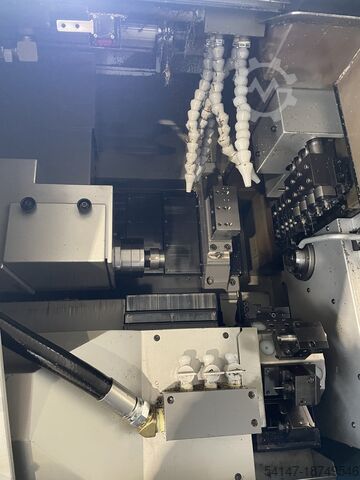

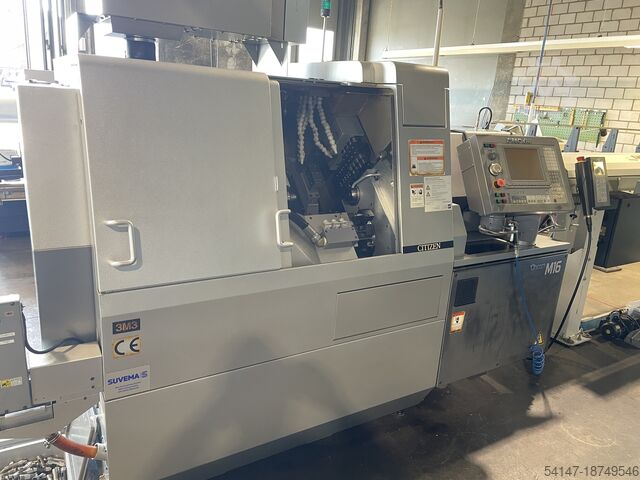

Condition: good (used), Year of construction: 2006, CNC Swiss-Type Automatic Lathe Citizen Cincom M16 Technical Specifications Year of manufacture: 2006 Maximum machining diameter: ø16 mm Maximum machining length: 200 mm per chucking Maximum diameter for frontal drilling: ø6 mm Maximum diameter for frontal threading: M6 Main spindle bore diameter: ø16 mm Hjdpfx Afsx Emnrecsi Main spindle speed: 200 to 10,000 min⁻¹ Main spindle C-axis: 0.001° Maximum clamping diameter sub-spindle: ø16 mm Maximum back-working length: 125 mm Maximum part overhang sub-spindle: 25 mm Maximum drilling diameter back-working: ø5 mm Maximum threading diameter back side: M5 Sub-spindle speed: 200 to 10,000 min⁻¹ Toolholder group: max. drilling diameter ø5 mm / max. thread cutting diameter M4 Spindle speed: 200 to 8,000 min⁻¹ Turret: max. drilling diameter ø5 mm / max. threading diameter M5 / spindle speed: 200 to 6,500 min⁻¹ Number of mountable tools: up to 21+α Axis rapid traverse speeds: 20 m/min Minimum programmable increment: 0.001 mm Axis travels: X1: 60.5 mm / Y1: 208 mm / Z1: 205 mm / X2: 107.5 mm / Z2: 133 mm / X3: 195 mm / Z3: 280 mm Main spindle motor power: 2.2 kW Sub-spindle motor power: 0.75 kW Driven tool spindle: 0.75 kW The Citizen Cincom M16 is a high-precision CNC Swiss-type automatic lathe designed for demanding series production of small and precision components. With a machining diameter up to ø16 mm, machining lengths up to 200 mm, and high spindle speeds up to 10,000 min⁻¹, this machine is ideal for complex machining tasks. The integrated C-axis on both main and sub-spindle enables precise positioning, as well as sophisticated milling and drilling operations. The machine offers extensive tool capacity with up to 21 tools and multiple driven tool stations, allowing even complex processes to be completed in a single setup. Generous axis travels and precise feed increments of 0.001 mm ensure the highest manufacturing quality with minimal tolerances. The delivery includes an LNS Express-220 bar feeder from 2011, providing automated material feed to significantly increase productivity and process reliability. Various toolholders are also included in the package. The machine is robustly built and designed for continuous industrial operation – ideal for the production of watch, medical, electronics, or automotive components. No guarantee is given for the correctness, completeness, or currentness of the information provided.

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, Equipment: rotational speed infinitely variable, Citizen M32-2M3 CNC Swiss-type Turning Machine Hedpfx Afsx Dncfocoi Year of manufacture: 2002 Control: Mitsubishi Meldas 635 Max machining diameter: 32 mm 7 controlled servo axes: X1/Z1/Y1/X2/Z2/X3/Z3 4 driven tools on the vertical holder C-axis: main and sub spindle Including accessories: FMB Turbo 5-42 bar feeder Extraction system Parts conveyor 5 driven tools for turret 5 standard holders (turning/boring holders) for turret - Available immediately -

Condition: used, Year of construction: 2017, operating hours: 21,752 h, functionality: fully functional, turning length: 100 mm, spindle speed (max.): 6,000 rpm, spindle speed (min.): 50 rpm, turning diameter: 42 mm, overall weight: 3,000 kg, Max. work length: 100 mm Max. machining diameter of bar work SP1: 42 mm Max. machining diameter of bar work SP2: 34 mm Turret slide stroke X1 axis: 140 mm Z1 axis: 235 mm Z2 axis: 310 mm Number of spindles: 2 Spindle speed range SP1: 60-6,000 rpm Spindle speed range SP2: 50-5,000 rpm Tool spindle speed range: 50-5,000 rpm Hedex Ig Ikspfx Afcsi Number of driven tools: max. 8 Spindle drive SP1: 11/7.5 kW Spindle drive SP2: 5.5/3.7 kW Power supply capacity: 28 kVA Fuse: 81A Bar feeder: SN542-3.2 m Quick tech Year of manufacture: 2017 Serial no.: 1438

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, machine/vehicle number: 1212/0058, turning length: 200 mm, spindle speed (max.): 12,000 rpm, bar diameter (max.): 12 mm, counter spindle speed (max.): 6,000 rpm, number of slots in tool magazine: 21, TECHNICAL DETAILS Maximum bar diameter: 12 mm Maximum machining length: 200 mm Axes: 7 linear axes + C axes for main and sub-spindle Main Spindle Spindle bore: 14 mm Motor power: 2.2 kW Speed range: 200 – 12,000 rpm Indexing: C axis, full-C (0.001°) Front machining maximum drilling diameter: 6 mm Hjdpfxoxxlvro Afcoi Maximum thread: M6 Sub-Spindle Maximum clamping diameter: 12 mm Part length (back side): 125 mm Maximum drilling diameter: 5 mm Maximum thread: M5 Maximum speed range: 250 – 6,000 rpm Gang Tool Holder Maximum drilling diameter: 5 mm Maximum thread: M4 Maximum speed: 200 – 8,000 rpm Turret Maximum drilling diameter: 5 mm Maximum thread: M5 Maximum speed: 200 – 6,500 rpm Maximum thread: M5 Maximum speed: 8,000 rpm Tool Stations Total tool capacity: 21 positions Gang slide: 8 positions Turret: 10 positions Back working tools: 3 positions Tool Holders Turning tool: 10 × 10 mm Drill sleeves: diameter 19.05 mm Rapid traverse X/Z/Y: 32 m/min Rapid traverse X2/Y2: 8 – 16 m/min MACHINE DETAILS Control: Mitsubishi Dimensions & Weight Footprint (L × W × H): 2.5 m × 1.25 m × 1.7 m Weight: 2,500 kg Power Consumption (Rated): 6 kVA EQUIPMENT Chip conveyor

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: 1216/0166, spindle speed (max.): 10,000 rpm, bar diameter (max.): 16 mm, counter spindle speed (max.): 8,000 rpm, number of slots in tool magazine: 21, Equipment: chip conveyor, TECHNICAL DETAILS Max. Bar Diameter: 16 mm Axes: 7 linear axes + C-axes for main and sub spindle Main Spindle Spindle bore (main spindle): 18 mm Main spindle motor power: 3.7 kW Main spindle speed range: 10,000 rpm Main spindle indexing: C-axis, Full-C (0.001°) Max. drilling diameter (main spindle): 10 mm Max. thread size (main spindle): M8 / M6 Sub Spindle Max. clamping diameter (sub spindle): 16 mm Workpiece length (sub spindle): 125 mm Max. drilling diameter (sub spindle): 8 mm Max. thread size (back side): M6 Sub spindle speed range: 250 – 6,000 rpm (Full C-axis) Gang Tool Carrier Max. drilling diameter: 4.8 mm Max. thread size: M4 Max. speed: 200 – 8,000 rpm Turret Max. drilling diameter: 4.8 mm Max. thread size: M5 Max. speed: 200 – 6,500 / 8,000 rpm Driven Tools on the Back Side Max. drilling diameter: 5 mm Max. thread size: M5 Max. speed: up to 8,000 rpm Tools Total tool capacity: 21 positions Gang slide: 8 positions Turret: 10 positions Back side tools: 3 positions Turning tool shank: 10 × 10 mm Drill sleeve shank diameter: 19.05 mm Hodpfx Afsxxlryocei Rapid traverse X/Z/Y: 32 m/min Rapid traverse X2/Y2: 8 – 16 m/min MACHINE DETAILS Control: Mitsubishi Dimensions & Weight Footprint (L × W × H): 2.0 m × 1.05 m × 1.7 m Weight: 2,500 – 2,950 kg Power Consumption (Rated): 7.9 kVA Main switch: 40 A EQUIPMENT Chip conveyor Parts conveyor Parts catcher Fire extinguishing system

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: M216/0316, spindle speed (max.): 10,000 rpm, bar diameter (max.): 16 mm, clamping diameter: 16 mm, counter spindle speed (max.): 8,000 rpm, Equipment: chip conveyor, TECHNICAL DETAILS Axes: 7 linear axes + C-axes for main and sub spindle Main Spindle Motor power: 3.7 kW Speed range: 10,000 rpm Indexing: 0.001° full C-axis Max. drilling diameter, frontal machining: 10 mm Max. thread size, frontal machining: M8 / M6 Sub Spindle Max. clamping diameter: 16 mm Workpiece length: 125 mm Max. drilling diameter: 8 mm Max. thread size, rear side: M6 Speed range: 250 – 6,000 rpm Hsdpfx Afexxll Tecji Gang Tool Holder (upper) Max. drilling diameter: 4.8 mm Max. thread size: M4 Speed: 200 – 8,000 rpm Turret, driven tools: Max. drilling diameter: 4.8 mm Max. thread size: M5 Speed: 200 – 6,500 / 8,000 rpm Driven Tools, rear side Max. drilling diameter: 5 mm Max. thread size: M5 Max. speed: 8,000 rpm Tools Tool stations: 21 Gang slide: 8 positions Turret: 10 positions Rear side tools: 3 positions Tool Holders Turning tool shank: 10 × 10 mm Drill sleeve diameter: 19.05 mm Rapid Traverse Rapid traverse X/Y/Z: 32 m/min Rapid traverse X2/Y2: 8 – 16 m/min MACHINE DETAILS Control: Mitsubishi Dimensions & Weight Footprint (L × W × H): 2.0 m × 1.05 m × 1.7 m Weight: 2,500 – 2,950 kg Power consumption (nominal): 7.9 kVA Main switch: 40 A EQUIPMENT Chip conveyor Parts conveyor belt Parts catcher Fire extinguishing system

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, turning length: 320 mm, spindle speed (max.): 8,000 rpm, turning diameter: 32 mm, spindle bore: 39 mm, controller model: Mitsubishi Meldas, TECHNICAL DETAILS Maximum machining diameter: 32 mm Maximum machining length per clamping: 320 mm Main spindle speed: 8,000 rpm Spindle bore: 39 mm Sub spindle (rear-side spindle): 32 mm Max. frontal milling/drilling: 12 mm Max. frontal thread cutting: M12 Tool capacity: 30 tools Number of axes: 7 MACHINE DETAILS Control: Mitsubishi Meldas Connected load: 10 kW Dimensions & Weight Dimensions (L x W): 2,800 mm × 1,240 mm Machine weight: 2,800–2,900 kg EQUIPMENT Hjdexxlkpepfx Afcji High-pressure coolant system Fire suppression system Chip conveyor Parts catcher Parts conveyor belt 4 driven tool holders Standard tool holders

Condition: ready for operation (used), Year of construction: 2021, General Data Machine weight 2500–2950 kg This 12-axis Citizen Cincom M16-4M8 was manufactured in 2021, featuring a robust configuration with up to 38 tools, including gang, turret, and back tool post options. It supports a rapid feed rate of 32 m/min, with specialized rates for X2, Y2, and B axes. The main spindle motor outputs 2.2/3.7 kW, ensuring efficient operations. Consider the opportunity to buy this Citizen Cincom M16-4M8 Swiss type turning machine. Contact us for more information about this machine. Hsdpfx Asx D Nfuofcsi Application Types Turning

Condition: ready for operation (used), Year of construction: 2005, General Data Measurements width 3040 Measurements depth 1370 Measurements height 1820 Hjdpfx Asx D N Eujfcoi Machine weight 3300 Main Drive Spindle speed range 200 - 8000 Number of axis 6 Workpiece Workpiece drm 32 mm Workpiece X 320 mm Additional Equipment Complete with bar feeders, manuals, and CE conformity declaration This 6-axis Citizen C32 VIII was manufactured in 2005. Ideal for precision swiss type turning, this machine offers robust functionality and reliable performance. Consider the opportunity to buy this Citizen C32 VIII swiss type turning machine. Contact us for more information. Application Types Turning

Condition: good (used), Year of construction: 2023, Description Machine: Cincom B16E-VI Type: 5-axis precision lathe with FANUC 0i-TD control system We are offering the machines together with an Iemca Elite 112/32 bar feeder (year of manufacture 2023). Technical Data Machining: Main spindle max. bar diameter: Ø 16 mm Max. machining length without re-clamping: 135 mm Main spindle max. drilling diameter: Ø 6 mm Main spindle max. thread diameter: M 6 Sub spindle max. bar diameter: Ø 16 mm Sub spindle max. drilling diameter: Ø 5 mm Sub spindle max. thread diameter: M 3 Spindles, Tools and Axes: Main spindle speed: 200 ~ 8,000 rpm Sub spindle speed: 200 ~ 6,000 rpm Driven tool speed: 200 ~ 4,500 rpm C-axis indexing main spindle: 1° Maximum number of tool stations: 16 pcs Rapid traverse X, Y: 21 m/min Rapid traverse Z1, Z2: 15 m/min Tool holder: 10 x 10 mm Drive Power: Main spindle: 3.7 / 2.2 kW Sub spindle: 1.0 kW Driven tools: 0.5 kW Coolant pump: 0.25 kW Central lubrication pump: 3 W Electrical Connection: 200 V, 50 Hz, 3-phase Main transformer: input voltage 400 V / output voltage 200 V Connected load: 5.2 kVA Pneumatic Connection: Compressed air connection: min. 5 bar Compressed air consumption: 44 NL/min Machine Data: Dimensions: 1,590 x 837 mm Machine height: 1,761 mm Spindle height (floor to spindle center): approx. 1,000 mm Machine weight: 1,150 kg Control – CNC contouring control Fanuc 01-TD Smallest input increment: 0.001 mm Hodpfovzg Skox Afcei Smallest output increment: 0.001 mm (Z) / 0.0005 mm (X) Input options: Incremental and absolute Interface: RS232 Main and sub spindle synchronization Standard Accessories Working area lighting Signal light (red/yellow/green) Part ejection and discharge device Coolant tank and central lubrication Door interlock Part catcher and finished parts container 5 turning tool holders (10 x 10 mm) Coolant system with movable jet arms Power chucking system for main and sub spindles

Condition: excellent (used), Year of construction: 2023, functionality: fully functional, The machine is offered with an Iemca Elite 112/32 bar feeder! TECHNICAL DETAILS Machining Main spindle max. bar diameter: 16 mm Max. machining length without regripping: 135 mm Main spindle max. drilling diameter: 6 mm Main spindle max. tapping diameter: M 6 Sub spindle max. bar diameter: 16 mm Sub spindle max. drilling diameter: 5 mm Sub spindle max. tapping diameter: M 3 Spindles Main spindle speed: 200–8,000 rpm Sub spindle speed: 200–6,000 rpm C-axis indexing on main spindle: 1° Rapid traverses Rapid traverse X, Y: 21 m/min Rapid traverse Z1, Z2: 15 m/min Tools Driven tool speed: 200–4,500 rpm Max. number of tool stations: 16 Tool holder: 10 × 10 mm MACHINE DETAILS Drive power Main spindle: 3.7 / 2.2 kW Sub spindle: 1.0 kW Driven tools: 0.5 kW Coolant pump: 0.25 kW Central lubrication pump: 3 W Hedoxgd Rkjpfx Afcsi Electrical connection Operating voltage: 200 V Frequency: 50 Hz Phases: 3 Main transformer input voltage: 400 V Main transformer output voltage: 200 V Connected load: 5.2 kVA Pneumatic connection Compressed air connection: Min. 5 bar Compressed air consumption: 44 NL/min Machine data Dimensions: 1,590 × 837 x 1,761 mm Spindle height (floor to spindle center): approx. 1,000 mm Machine weight: 1,150 kg Control Control type: CNC path control Fanuc 0i-TD Minimum input increment: 0.001 mm Minimum output increment: 0.001 mm (Z) / 0.0005 mm (X) Input mode: incremental and absolute Interface: RS232 Spindle synchronization: main and sub spindle EQUIPMENT Work area lighting Part ejector and removal unit Coolant tank and central lubrication Door interlock Parts catcher and workpiece container 5 turning tool holders 10 × 10 mm Coolant unit with swiveling spray arms Power chucking system for main and sub spindles

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, machine/vehicle number: MGL203279932, turning diameter: 32 mm, Equipment: bar feeder, documentation/manual, The machine has only been operated in single-shift use! TECHNICAL DETAILS Max. machining diameter: 32 mm Hjdpfxsxrcpve Afcoi Spindles Main spindle: with collet chuck Sub spindle: with collet chuck and air blast device MACHINE DETAILS Operating hours: estimated approx. 25,000 - 30,000 h EQUIPMENT Bar feeder FMB Turbo 5-42/3200C Documentation High-pressure coolant pump Workpiece removal unit Various collets Central lubrication system Ejector for workpieces with through-hole

Condition: used, Year of construction: 2000, max. working diameter 20 mm max. working lenght 320 mm passage of spindle 24 mm Spindle speed 200 - 10.000 min -1 control MITSUBISHI Turning Automatic Lathe - swiss lathe | CITIZEN - M-20 equipped with bar feeder. Hsdpfx Aovnwfzefcei The machine is in very good condition. Please refer to further technical details in the attachement of the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: M20 | M 20

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, turning length: 205 mm, spindle speed (max.): 10,000 rpm, turning diameter: 20 mm, controller model: Cincom Mitsubishi Meldas, counter spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Bar diameter max.: 20 mm Turning length max.: 205 mm Main spindle speed max.: 10,000 rpm C-axis (main spindle): 0.001 degree Counter spindle speed max.: 10,000 rpm C-axis (counter spindle): 0.001 degree Tool capacity: 18 tools Axes: 7 MACHINE DETAILS Control: Cincom Mitsubishi Meldas Dimensions & Weight Machine dimensions (LxWxH): 2,540 x 1,450 x 1,850 mm Machine weight: 1,750 kg Bar feeder dimensions (LxWxH): 3,900 x 900 x 1,450 mm Hjdpfx Afoxp Ngcecsi Bar feeder weight: 850 kg EQUIPMENT Parts conveyor belt Bar feeder FMB Turbo 3-26

Condition: ready for operation (used), Year of construction: 1997, functionality: fully functional, turning length: 205 mm, spindle speed (max.): 10,000 rpm, turning diameter: 20 mm, controller model: Cincom Mitsubishi Meldas, counter spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Max. bar diameter: 20 mm Max. turning length: 205 mm Max. main spindle speed: 10,000 rpm Hsdpexp Nd Uefx Afcei Main spindle C-axis: 0.001 degrees Max. sub spindle speed: 10,000 rpm Sub spindle C-axis: 0.001 degrees Tool capacity: 18 tools Number of axes: 7 MACHINE DETAILS Control: Cincom Mitsubishi Meldas Dimensions & Weight Machine dimensions (LxWxH): 2,540 x 1,450 x 1,850 mm Machine weight: 1,750 kg Bar feeder dimensions (LxWxH): 3,900 x 900 x 1,450 mm Bar feeder weight: 850 kg EQUIPMENT Parts conveyor FMB Turbo 3-26 bar feeder

Condition: good (used), Year of construction: 2005, CITIZEN K12 CNC lathe TECHNICAL DATA Hjdpevrz H Refx Afcei Max. machining diameter: 12 mm Max. machining length: 200 mm Max. extension length: 80 mm Max. front drilling diameter: 10 mm Max. front thread diameter: M8 Spindle diameter: 16 mm Spindle speed: 15000 rpm Max. machining diameter of the counter spindle: 12 mm Max. machining length of the counter spindle: 40 mm Max. drilling diameter for rear machining: 6 mm Max. thread diameter for rear machining: M5 Spindle speed, counter spindle: 10000 rpm Tool attachment, number of tools: 8 Speed of the driven tools: 6000 rpm X1 axis: 122 mm Z1 axis: 200 mm Z2 axis: 150 mm Weight: 1950 kg SCOPE OF OFFER Among other things: (list not exhaustive) Citizen K12 CNC lathe Chip tray Transformer Complete operating documentation Exact scope of offer according to photo gallery We assume no liability for the accuracy, completeness and timeliness of the information

Condition: excellent (used), Year of construction: 2008, operating hours: 9,000 h, functionality: fully functional, TECHNICAL DETAILS Control: Mitsubishi Meldas 700 Hjdpfx Afoxf Hqqscei Main Spindle Machining diameter: 20 mm Machining length without repositioning: 200 mm Spindle bore: 24 mm Spindle speed: 200 - 10,000 rpm Spindle indexing C-axis: 0.001° Motor power (built-in motor): 2.2 / 3.7 kW Sub-Spindle Machining diameter: 20 mm Spindle speed: 200 - 8,000 rpm Spindle indexing C-axis: 0.001° Motor power: 0.75 / 1.5 kW Driven Tools at Vertical Holder Speed: 200 - 4,500 rpm Motor power (AC servo motor): 1.0 kW Number of tools: 6 Tool System Turning tools (12x12x130): 5 Tool holder/parting-off blade (16x12x130): 1 Drilling tools (front): min. 3 Drilling tools (rear): 5 Tool holders, quills (diameter): 19.05 mm Tool holders, turning tools (shank cross-section): 12 mm Collets and Guide Bush Collet main/sub-spindle: F25 (145E) Guide bush (Neukomm): T223 (22.001) Rapid Traverse All axes: 32 m/min Machine Specification Required space (without magazine) L/W/H: 2,430 x 1,085 x 1,770 mm Spindle height: 1,050 mm Machine weight: 2,150 kg Power supply: 8 kVA EQUIPMENT - 6 turning tools (12 mm shank cross-section), - 3 driven tools for cross machining - 3 driven tools for face machining on the main spindle - 3 driven tools for face machining on the sub-spindle - Main spindle with C-axis - Sub-spindle with C-axis - 3x powered tool rear side machining - Yellow warning light - Interior lighting - Workpiece conveyor belt - FMB Turbo 3-26 bar feeder - Option for long parts - Spindle flushing (Scherzinger pump)

Condition: ready for operation (used), Year of construction: 2023, functionality: fully functional, turning length: 135 mm, spindle speed (max.): 8,000 rpm, bar diameter (max.): 16 mm, counter spindle speed (max.): 6,000 rpm, number of slots in tool magazine: 16, The machine is offered with an Iemca Elite 112/32 bar feeder! TECHNICAL DETAILS Machining Main spindle max. bar diameter: 16 mm Max. machining length without re-gripping: 135 mm Main spindle max. drilling diameter: 6 mm Main spindle max. thread diameter: M6 Sub spindle max. bar diameter: 16 mm Sub spindle max. drilling diameter: 5 mm Sub spindle max. thread diameter: M3 Spindles Main spindle speed: 200–8,000 rpm Sub spindle speed: 200–6,000 rpm Main spindle C-axis indexing: 1° Rapid traverse Rapid traverse X, Y: 21 m/min Rapid traverse Z1, Z2: 15 m/min Tools Driven tool speed: 200–4,500 rpm Max. number of tool stations: 16 Tool holder: 10 × 10 mm MACHINE DETAILS Drive capacity Main spindle: 3.7 / 2.2 kW Sub spindle: 1.0 kW Driven tools: 0.5 kW Coolant pump: 0.25 kW Central lubrication pump: 3 W Electrical connection Operating voltage: 200 V Frequency: 50 Hz Phases: 3 Main transformer input voltage: 400 V Main transformer output voltage: 200 V Connected load: 5.2 kVA Pneumatic connection Compressed air connection: min. 5 bar Compressed air consumption: 44 NL/min Machine data Dimensions: 1,590 × 837 × 1,761 mm Spindle height (floor to spindle center): approx. 1,000 mm Machine weight: 1,150 kg Control Control type: CNC path control Fanuc 0i-TD Smallest input increment: 0.001 mm Hedpfx Afsxlffyjcoi Smallest output increment: 0.001 mm (Z) / 0.0005 mm (X) Input modes: incremental and absolute Interface: RS232 Spindle synchronization: main and sub spindle EQUIPMENT Work area lighting Ejection and unloading device Coolant tank and central lubrication Door interlock Parts catcher and workpiece container 5 turning tool holders 10 × 10 mm Coolant system with movable jet arms Power clamping system for main and pick-off spindle

Condition: good (used), Year of construction: 2008, Max. bar diameter: 20 mm Max. machining length: 165 mm Max. gripping length: 100 mm Hsdoxb A Dfepfx Afcei Spindle speed: 8,000 rpm Max. bar diameter, sub-spindle: 20 mm Max. speed, sub-spindle: 8,000 rpm Number of usable tools: 21 Turning tools with multiple insert holders: 6 Driven tools for cross machining: 3 Front drilling tools: 4 Rear drilling tools: 8 Speed of driven tools: 8,000 rpm Bar feeder FMB turbo 3-26

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, turning length: 320 mm, spindle speed (max.): 8,000 rpm, bar passage: 32 mm, drill diameter: 12 mm, number of slots in tool magazine: 27, Swiss-type automatic lathe with 10-position turret! Equipped with FMB Turbo 3-36 bar feeder! TECHNICAL DETAILS Turning length: 320 mm Spindle speed (min.): 8,000 rpm Bar capacity: 32 mm Max. drill diameter (front): 12 mm Max. thread cutting size (front): M12 Back spindle speed: 8,000 rpm Number of tools: 25 to 27 MACHINE DETAILS Dimensions & Weight Dimensions (W x D x H): 2,860 mm x 1,465 mm x 1,900 mm Weight: 4,300 kg Hsdpfoxclncex Afcoi EQUIPMENT 10-position turret Rotating tools for complex machining operations FMB Turbo 3-36
