Used Takisawa Cnc Lathe for sale (24)

Year of construction: 2018, condition: ready for operation (used), Control Unit Brand FANUC Model 0i-TC Main Drive Spindle speed range 3500 Spindle bore 86 mm Number of axis 2 Movement X-Axis Movement 255 mm X-Axis Rapid Traverse 16 m/min Z-Axis Movement 800 mm Z-Axis Rapid Traverse 20 m/min Tail Stock Pinol diameter 110 mm Pinol tool taper MT5 Tools Number of station 12 This Takisawa LA-300 CNC was manufactured in 2018. A robust horizontal turning machine featuring a spindle speed of 3,500 rpm, maximum turning diameter of 450 mm, and a 12-position tool turret. It includes a FANUC Series 0i-TC control for precise operations. If you are looking to get high-quality turning capabilities, consider the Takisawa LA-300 machine we have for sale. Contact us for further details regarding this machine. Application Types Fpedpfx Afex D R Drened Turning

Condition: good (used), Year of construction: 2004, machine/vehicle number: GS2008, Offer 26079 Technical Data: - The machine features 2 spindles with C-axis + 2 turrets - Both turrets can operate on a single spindle - Driven tools - 2 VDI 40 turrets with 15 tool stations each - Maximum turning diameter: 350 mm - Turning length up to max.: 760 mm - Distance between spindle noses: 1,130 mm - Left spindle bore: 86 mm - Right spindle bore: 63 mm - Spindle speeds up to: 4,000 rpm - FANUC 180is control system Fjdpfx Afjypi S Hjnopd - High-pressure coolant unit - Drive: 400 V / 11 + 18.5 kW - Space requirement: approx. L 4,000 x H 2,300 x D 2,400 mm - Weight: approx. 10 t

Condition: good (used), Year of construction: 2004, machine/vehicle number: TBGP 4059, Offer 26080 Technical Data: - The machine is equipped with 2 spindles with C-axis and 2 turrets - Both turrets can operate on one spindle - Driven tools - 2 VDI 40 turrets with 15 tool stations each - Maximum turning diameter: 350 mm - Maximum turning length: 760 mm - Distance between spindle ends: 1130 mm - Left spindle bore: 86 mm Fpjdpfeypil Hjx Afned - Right spindle bore: 63 mm - Spindle speeds up to 4000 rpm - Control: FANUC 180 is - High-pressure coolant system - Drive: 400 V / 11 + 18.5 kW - Installation space: approx. L 4000 x H 2300 x W 2400 mm - Weight: approx. 10 t

Condition: good (used), Year of construction: 2008, Description: Takisawa Manufacturer: Takisawa Type: EX-310 Turning length approx. 500 mm. Rotation diameter: approx. 260 mm. Fpsdpfx Astrd Srofnod Equipment: Control: Fanuc 21i-TB Bar loader for bar length 1.5 m Tailstock Turret with 12 tool stations and driven tools. Three-jaw chuck Ø 250 mm.

Year of construction: 2018, condition: ready for operation (used), - USED- 2-AXIS CNC LATHE MAX ROTATING DIAMETER: 420 mm MAX TURNING LENGTH: 291 mm MAX TURNING DIAMETER: 320 mm SPINDLE: 3200 rpm; 7,5-11 kW X-AXIS TRAVEL: 190 mm Z-AXIS TRAVEL: 350 mm RAPID FEEDS X-Z: 24 - 30 m/min TURRET HEAD: 12 POS CONTROL UNIT: FANUC 0i-TF WEIGHT: 3500 Kg OVERALL DIMENSIONS: 2214 x 2220 x 2713 mm ACCESSORIES: SWARF CONVEYOR ; PORTABLE HANDWHEEL Fpjdpfoyry R Ejx Afned NOTE: WITH 16-POSITIONS GANTRY-TYPE LOADING SYSTEM

Year of construction: 2018, condition: ready for operation (used), A high-precision Takisawa CNC lathe with double spindles is available. Spindle power: 2x 7.5kW, speed: 5000rpm, spindle nose: F-80, tool holder: 2x 5 places, max. turning diameter: 50mm, max. turning length: 50mm, max. workpiece weight: 2x 0.5kg. Machine dimensions X/Y/Z: approx. 2600mm/2550mm/2150mm, weight: approx. 4300kg, control: 2x Fanuc Oi-TF, operating hours: 11179h. Including hinged belt conveyor to the rear, automatic central lubrication, machine cladding with coolant pump, portal loader type D, Raku Raku loader, turning station, automatic loading and unloading door per spindle and storage chute for test part. Documentation available. On-site inspection is possible. Fpodou Dm Izjpfx Afnjd

Condition: excellent (used), Year of construction: 2021, operating hours: 6,400 h, functionality: fully functional, turning diameter over cross slide: 600 mm, turning length: 750 mm, turning diameter: 370 mm, spindle bore: 82 mm, spindle speed (max.): 4,200 rpm, travel distance X-axis: 267 mm, travel distance Y-axis: 120 mm, travel distance Z-axis: 840 mm, spindle motor power: 22,000 W, rotational speed (max.): 6,000 rpm, total height: 2,300 mm, total length: 3,000 mm, total width: 2,140 mm, turning diameter over bed slide: 370 mm, overall weight: 6,200 kg, bar diameter (max.): 82 mm, Equipment: documentation/manual, rotational speed infinitely variable, TAKISAWA TS-4000YS FANUC 32i-B JAPAN Made in Japan High rigidity (6200 kg weight, 30° inclined machine bed, slide rails) - Built-in main and sub-spindle - High rigidity and built-in main and sub-spindle enable precise and vibration-free machining - 22 kW main spindle with 618 Nm max. torque - High performance and solid machine bed enable high-volume chip removal - Y-axis Technical data: Capacity Max. swing diameter Ø 600 mm Max. turning diameter and length Ø 370 x 750 mm Trought hole: Ø 82 mm Spindle Axle height from the ground 1,140 mm Spindle bearing/bore diameter Ø 140 / Ø 90 mm Spindle head A2-8 Spindle speed 4,200 rpm C-axis resolution 0.001 ° Sub spindle Axle height from the ground 1,140 mm Spindle bearing/bore diameter Ø 90 / Ø 53 mm Fpodpex Tf Rzjfx Afnod Spindle head F-140 Spindle speed 6,000 rpm C-axis resolution 0.001 ° Strokes and rapid traverses Strokes X-axis = 267 mm Z-axis = 840 mm Y-axis = - 50 ~ +70 mm A-axis = 780 mm Rapid traverse X-axis = 30 m/min Z-axis = 30 m/min Y-axis = 10 m/min A-axis = 30 m/min Power Spindle motor (30 min. / 100 % ED) AC 22 / 15 kW Max. torque: 618 Nm (S3 25%) Driven tools Number of tool positions on the turret 15 pcs Max. tools speed 6,000 rpm Drive power (30 min. / 100 % ED) 7.5/3.7 kW Maximum torque 48 Nm Tooling Driven tool positions 15 pcs Tool cross-section 25 x 25 mm For hole machining Ø 40 mm Dimensions Height 2,300 mm Depth (without chip conveyor) 2,140 mm Width (without chip conveyor) 3,000 mm Net weight 6,200 kg Including options: FANUC Data SERVER LNS Barfeeder interface Part catcher chip conveyor Renishaw tool mesaurement (main and subspindle also) Kitagawa BB-250 3 jaws hydraulic chuck – main spindle Kitagawa SS1881K hyraulic holow cylinder – main spindle Kitagawa B-206 3 jaws hydraulic chuck – sub spindle Kitagawa SS12640K hyraulic holow cylinder – sub spindle 15 pos turret High power coolant pump (520W) Work lamp 3-3 pcs live tool (radial-axial) Live center some static tool holder NOT INCLUDING: 2 pcs SMW chuck (possible buy) transporting

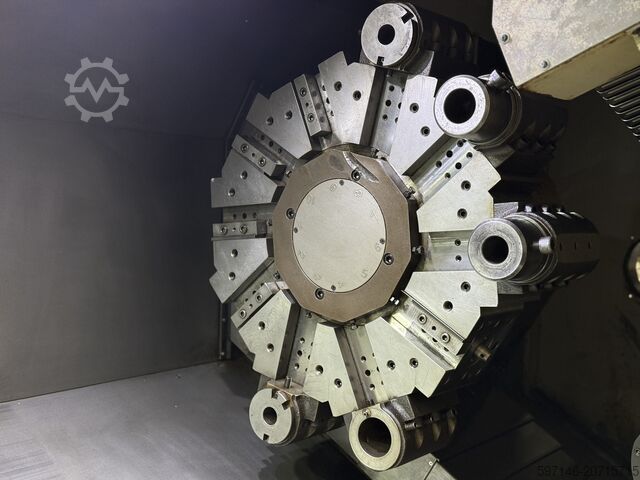

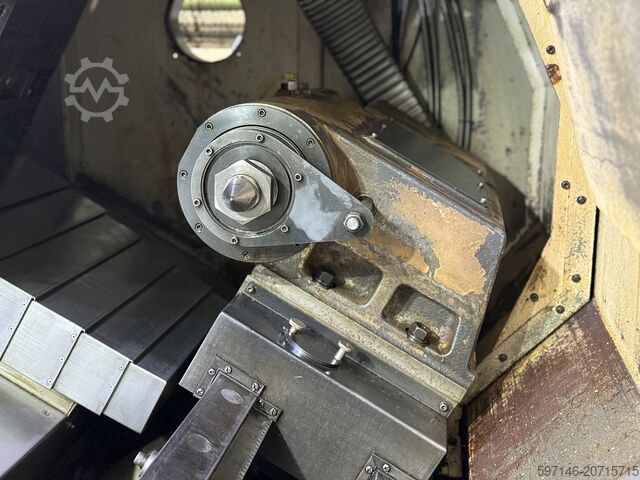

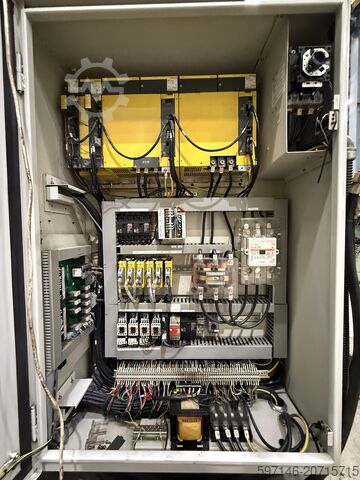

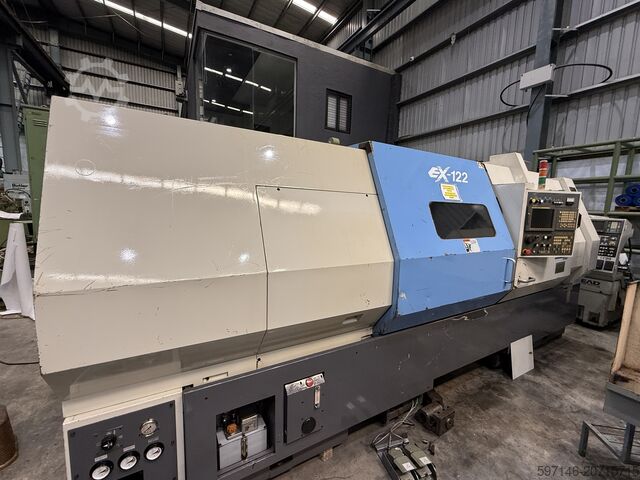

Condition: like new (used), Year of construction: 2007, functionality: fully functional, TAKISAWA EX-122 CNC LATHE Fpedox Ehhdopfx Afnjd Category: CNC Turning Centers Reference No.: 311121 Capacity: Ø610 X 1524 MM Year of Construction: 2007 Technical Specification: CNC Control : Fanuc 21iT WORKING CAPACITY Max Turning Diameter : 610 mm Max Turning Length : 1524 mm Swing : 910 mm Guideways : LM TURRET Turret : 10 Stations TAILSTOCK Tailstock : MT5 SPINDLE Max Rotation Speed : 1200 RPM Spindle Nose : A2-15 Spindle Bore : 200 mm Spindle Type : Gear Driven

Condition: ready for operation (used), Year of construction: 1998, Fanuc 18T control Distance between centers: 600 mm Fjdpjxai Sysfx Afnopd Max. turning diameter: 230 mm Standard turning diameter: 230 mm Max. turning length: 530 mm Max. bar capacity (main spindle): 76 mm X / Z axis travel: 185 / 660 mm B axis travel: 620 mm Spindle speed (main/sub-spindle): 4000 / 5000 rpm C-axis main spindle: 360 x 0.001 degrees Turret: 12 stations Driven tools: 12 stations Driven tool speed: 3600 rpm Machine dimensions (L x W x H): 3070 x 2030 x 1810 mm Machine weight: 5700 kg Chip conveyor, driven tools (1 x axial, 1 x radial)

Condition: used, Year of construction: 2015, TAKISAWA TS4000YS year 2015 CNC control FANUC 32i-MODEL B Max. turning diameter 315 [mm] Max. swing over bed 600 [mm] Max. Turning length 735 [mm] Stroke X axis 267 [mm] Stroke Z axis 840 [mm] Stroke Y axis -50 [mm] / +70 [mm] Stroke A axis 780 [mm] Rapid traverse rate X axis 30000 [mm/min] Rapid traverse rate Z axis 30000 [mm/min] Rapid traverse rate Y axis 10000 [mm/min] Rapid traverse rate A axis 30000 [mm/min] Spindle nose A2-8" Max. bar diameter 82 [mm] Spindle throughbore 94 [mm] Max. spindle speed 4200 [rpm] Spindle power 22 [kW] Counter spindle nose F140 Counter spindle throughbore 53 [mm] Max. counter spindle speed 6000 [rpm] Counter spindle power 11 [kW] Max. tool holder cross-section 25 [mm] Number of tool stations 15 Number of tool stations driven 15 Max. speed driven tools 6000 [rpm] Lubrication tank capacity 370 [l] Fpodpfx Ajwq Sf Tjfnsd Total power required 37 [kVA] Supply voltage 400 [V] Chip conveyor with machine 5 live tool holders Weight 6700 [Kg]

Condition: ready for operation (used), Year of construction: 2004, spindle speed (max.): 2,500 rpm, travel distance X-axis: 180 mm, travel distance Z-axis: 1,000 mm, spindle motor power: 26,100 W, total height: 2,083 mm, total width: 1,971 mm, overall weight: 8,800 kg, controller manufacturer: FANUC, controller model: 18-TA, product length (max.): 4,191 mm, number of axes: 2, Horizontal CNC lathe with tailstock manufactured in 2004. This Takisawa TS-35 features a maximum turning diameter of approximately 400 mm and a turning length of 1000 mm. It is equipped with a powerful 26.1 kW main spindle motor and a chuck size of 304 mm. If you are looking to get high-quality turning capabilities, consider the Takisawa TS-35 machine we have for sale. Contact us for further details. • Distance between centers: 1000 mm • Swing over bed: approx. 400 mm • Maximum turning diameter: approx. 350–400 mm • Maximum turning length: 1000 mm • Spindle: • Chuck size: 304 mm • Spindle bore / bar capacity: approx. 104 mm • Turret/tooling: • Number of stations: 10 • Boring bar capacity: approx. 40–50 mm • Tailstock: Manual quill for long shaft support Technical Specification Counter Spindle No Fjdpjyt Rtgefx Afnopd Driven Tools No

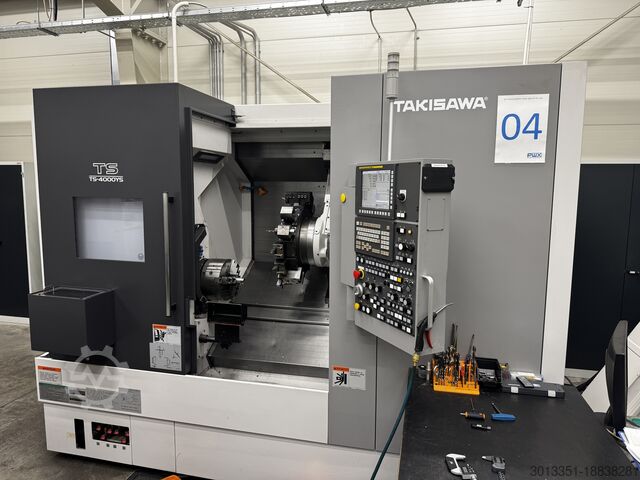

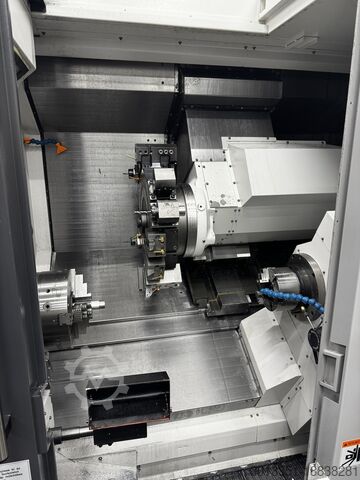

Condition: ready for operation (used), Year of construction: 2021, spindle speed (max.): 4,200 rpm, travel distance X-axis: 267 mm, travel distance Y-axis: -49 mm, travel distance Z-axis: 840 mm, total height: 2,300 mm, overall weight: 6,200 kg, controller manufacturer: FANUC, controller model: Series 32i-Model B, This 3-axis Takisawa TS-4000YS was manufactured in 2021. It features a robust 6200 kg frame with a 30° inclined bed for stability and precision. Key specs include a 22 kW main spindle, 618 Nm torque, and rapid traverses up to 30 m/min. It's equipped with a dual spindle, Y-axis, and a 15-position turret for versatile machining. If you are looking to get high-quality turning capabilities, consider the Takisawa TS-4000YS machine we have for sale. Contact us for more information. Additional equipment • LNS Barfeeder interface • Part catcher • Renishaw tool measurement (main and subspindle also) • Kitagawa BB-250 3 jaws hydraulic chuck – main spindle • Kitagawa SS1881K hydraulic hollow cylinder – main spindle • Kitagawa B-206 3 jaws hydraulic chuck – sub spindle • Kitagawa SS12640K hydraulic hollow cylinder – sub spindle • 15 pos turret • High power coolant pump (520W) • Work lamp Machine Benefits Qualitative Machine Benefits Fpedpfex D Iu Isx Afnjd • High rigidity and built-in main and sub-spindle enable precise and vibration-free machining. • High performance and solid machine bed enable high-volume chip removal. Technical Machine Benefits • Max. Swing diameter: 600 mm • Max. Turning diameter and length: Ø 370 x 750 mm • Max torque: 618 nm • A-axis: 780 mm • Trough hole: Ø 82 mm • Number of tool positions on turret: 15 pcs • Max. Tools speed: 6000 rpm • 3 pcs live tool (radial-axial) • Live center 2 pcs • Static tool holder Extra Information Machine still under power Dimensions Machine Depth 3000 mm

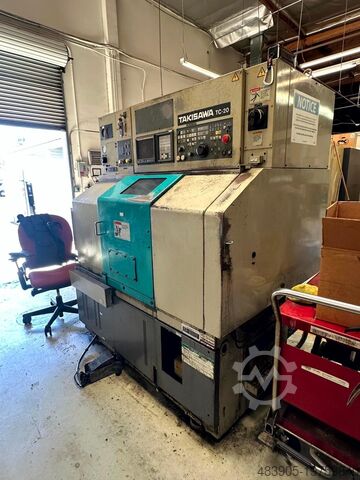

Year of construction: 2005, condition: ready for operation (used), General Data Machine weight 3300 kg Control Unit Brand FANUC Fsdsx D R Spopfx Afnjpd Model Series 21i-TB Main Drive Number of axis 2 Movement X-Axis Movement 185 mm Z-Axis Movement 370 mm This Takisawa TC 200 was manufactured in 2005. It features a standard turning diameter of 225 mm and a maximum of 340 mm. With X-axis movement of 185 mm and Z-axis movement of 370 mm, it also includes a 12-position turret. Consider the opportunity to buy this Takisawa TC 200 horizontal turning machine. Contact us for more information. Application Types Turning

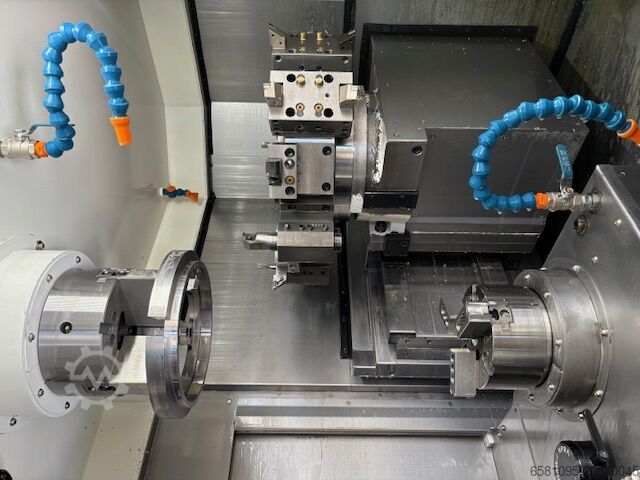

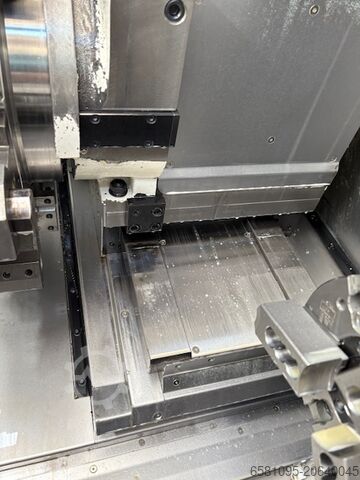

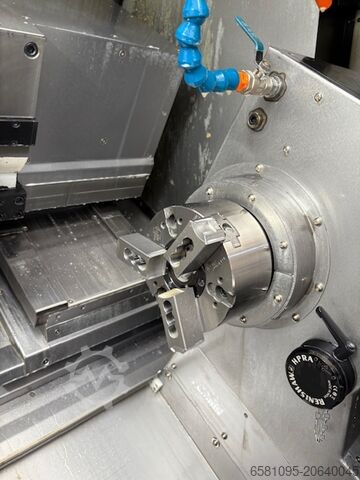

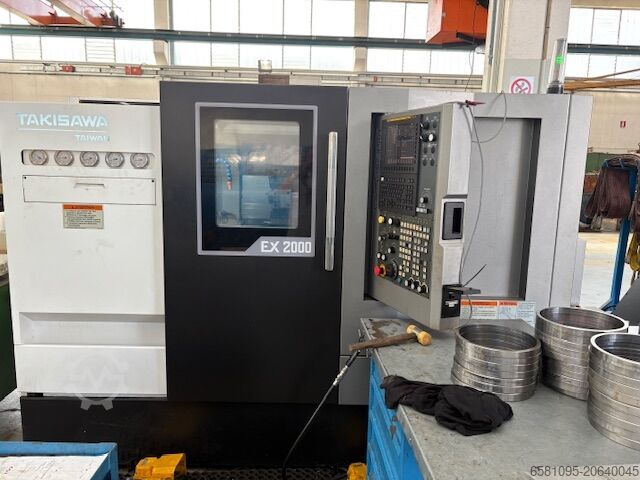

Year of construction: 2020, condition: ready for operation (used), General Data Measurements width 1987 mm Measurements depth 3847 mm Measurements height 1700 mm Machine weight 4200 kg Movement X-Axis Movement 250 mm X-Axis Rapid Traverse 30 m/min Y-Axis Rapid Traverse 36 m/min Z-Axis Movement 590 mm B-Axis Movement 570 mm This 4-axis Takisawa EX 2000 MS was manufactured in 2020, featuring a Fanuc 0i-T Plus control system. It offers a max turning diameter of Ø 390 mm and a length of 510.5 mm, with a bar capacity of Ø 65 mm. The machine includes a 12-position driven turret and rapid traverse rates of 30 m/min on the X-axis and 36 m/min on the Z-axis. If you are looking to get high quality turning capabilities consider the Takisawa EX 2000 MS machine we have for sale. Contact us for more information. Fodpfox D N Ddsx Afnepd Application Types Turning

Condition: ready for operation (used), Swing diameter over bed/cross slide: 800mm/500mm, max. turning diameter: 590mm, max. turning length: 650mm, spindle power: 30kW, speed: 2500rpm, bore: 105mm, bearing: 160mm, travel X/Z: 300mm/670mm, rapid traverse X/Z: 12m/min/16m/min, tool positions: 8. Machine dimensions X/Y/Z: approx. 1850mm/2700mm/3100mm, weight: approx. 8500kg, control: Fanuc. The spindle controller constantly goes into overload and is therefore defective. Dokumentation vorhanden. An on-site inspection is possible. Fodpfx Asxyk T Ssfnspd

Year of construction: 1990, condition: ready for operation (used), Turning diameter: 450mm, orbital diameter over bed/face slide: 600mm/500mm, turning length: 1020mm, traverse path X/Z: 250mm/1100mm, rapid traverse X/Z: 12m/16m/min. Speed: 2500rpm, power: 22kW, spindle diameter: 100mm, spindle bore: 91mm, tool positions: 10, quill diameter: 110mm, quill stroke: 180mm. Machine dimensions X/Y/Z: approx. 8000mm/3000mm/2000mm, weight: approx. 6500kg, control: Fanuc Series 15-T. The control system has a fault. An on-site inspection is possible. Fpodpfxjwmdvij Afnjd

Condition: new, Year of construction: 2022, operating hours: 173 h, functionality: fully functional, machine/vehicle number: TJPM1003, turning length: 640 mm, turning diameter over cross slide: 215 mm, turning diameter: 215 mm, spindle motor power: 15,000 W, spindle speed (max.): 5,000 rpm, spindle bore: 51 mm, travel distance X-axis: 190 mm, travel distance Y-axis: 90 mm, travel distance Z-axis: 660 mm, rapid traverse X-axis: 20 m/min, rapid traverse Y-axis: 40 m/min, rapid traverse Z-axis: 12 m/min, rotational speed (max.): 6,000 rpm, type of input current: three-phase, bar diameter (max.): 51 mm, Equipment: documentation/manual, rotational speed infinitely variable, Japanese Takisawa TM-2000 Y2 turning center with two turret, and Y axis (both), sub spindle and Fanuc 0iTF Plus controller. Demo machine with 173 h running time. Options: Kitagawa BB206 3 jaw chuck for main spindle Kitagawa B206 3 jaw chuck for sub spindle SMW (Mario Pinto) PPBE-42 collet chuck for main spindle SMW (Mario Pinto) collet chuck for sub spindle Raku-Raku monitor controller option Abnormal load detection function 9 bar high pressure coolant Bar feeder interface Fjdpfxsxn Sape Afnopd Remaining bar discharge device Tool setter (manual) Workpiece unloader with conveyor Chip conveyor Static toolholders 2 pcs axial rotary toolholder

Condition: good (used), Year of construction: 2011, Takisawa TMM 250 M3, year of manufacture 2011, Fanuc 160 is TB control, main spindle bar capacity up to 76 mm, sub spindle bar capacity up to 51 mm, 15-position turret, driven tools, C axis, sub spindle, max. turning length 1,230 mm, high-pressure coolant 8 bar, milling spindle B axis with Capto C6, 60-position Capto tool magazine, B axis swiveling +/- 115°, B axis clamping in 1° increments, B axis 7.5 kW / 8,000 rpm, Y axis +/- 130 mm. B axis overhaul in 2024 for €20,000. Fodoyazwpjpfx Afnopd

Condition: as good as new (ex-display), Year of construction: 2023, functionality: fully functional, TAKISAWA TM-3000Y2 FANUC 0iTF PLUS. TOTALLY AS NEW. BUILT 2023 CNC MULTITASKING LATHE WITH UPPER & LOWER Y-AXES. 8 INCH + 6 INCH STANDARD CHUCK SIZE WITH:- Y-AXIS TRAVEL +45 -45 MM - LOWER TURRET (Y2 AXIS) Y-AXIS TRAVEL +45 -45 MM - UPPER TURRET (Y1 AXIS) CHIP CONVEYOR RIGHT SIDE DISCHARGE HINGE TYPE (MORETECH JAPAN) AIR BLOW SYSTEM - RH SPINDLE WORK PHASE POSITIONING FUNCTION (C-AXIS TORQUE SKIP FUNCTION) COOLANT DELIVERY PIPE ABOVE THE SPINDLE - LH & RH SPINDLE COOLANT PUMP - 400W - 3 OFF OIL SKIMMER (OIL / WATER SEPARATOR) OIL SEPERATOR BOX HYDRAULIC PRESSURE SWITCH LED LIGHTING AUTO LUBRICATION SYSTEM AND COLLECTOR MACHINE MANUALS & OPERATOR HANDBOOKS TURRET MOUNTED MACHINE LEVELLING PLATE AUTO POWER OFF SYSTEM TRANSFORMER - 415V / 3PH / 50HZ STANDARD TOOLING PACKAGE TURRET COVER (6 EA) X 2 SERVO TURRET (LOWER) Y2 AXIS - 12 STATION WITH DRIVEN TOOLS SERVO TURRET (UPPER) Y1 AXIS - 12 STATION WITH DRIVEN TOOLS 6" 3-JAW THRU-BORE HYDRAULIC CHUCK ~ KITAGAWA B-206 RH SPINDLE 8" 3-JAW THRU BORE HYDRAULIC CHUCK (KITAGAWA BR-08) - LH SPINDLE DIRECT DRAWING DIMENSION INPUT HELICAL INTERPOLATION FUNCTION RAKU-RAKU TOOL MONITORING SYSTEM 9 BAR HI PRESS COOLANT PUMP (NIHON) 2 OFF CALL LAMP (3 COLOUR) BAR FEEDER INTERFACE - MULTI BAR MAGAZINE TYPE REMAINING BAR DISCHARGE DEVICE UNLOADER WITH PARTS DISCHARGE CONVEYOR QUICK TOOL SETTING DEVICE - MANUAL TYPE BOTH TURRETS AXIAL DRIVEN TH, ER25 OUTPUT, 6000 RPM, 1:1 RATIO, EXT COOLANT - 4 OFF RADIAL DRIVEN TH, ER25 OUTPUT, 6000 RPM, 1:1 RATIO, EXT COOLANT - 1 OFF MACHINE FEATURES TWIN SPINDLE, TWIN TURRET Y-AXIS CNC TURNING CENTRE. 2 OFF 12 STATION HIGH ACCURACY SERVO TURRETS LEFT HAND SPINDLE - 4,500 RPM RIGHT HAND SPINDLE - 6,000 RPM UPPER & LOWER TURRETS - 6,000 RPM LIVE TOOLING SPEED UPPER TURRET Y1-AXIS (+ - 45 MM) LOWER TURRET Y2-AXIS (+ - 45 MM) 8” + 6” STANDARD CHUCK SIZE MACHINE CAPACITIES Standard Turning Dia. 215 MM Maximum Turning Dia. 215 MM Maximum Turning Length 620 MM Bar Capacity Left Spindle Ø 65 MM Bar Capacity Right Spindle Ø 42 MM AXIS TRAVELS Upper Turret Travel X1 190 / 90 MM Upper Turret Travel Y1 90 (± 45) MM Upper Turret Travel Z1 660 MM Lower Turret Travel X2 190 / 90 MM Lower Turret Travel Y2 90 (± 45) MM Lower Turret Travel Z2 660 MM Travel A (RH Spindle) 660 MM LEFT SPINDLE Chuck Size Ø (8”) 203 MM Spindle Speed (RPM) 4,500 RPM Min. Indexing Angle (C-Axis) 0.001 DEG Spindle Nose A2-6 Spindle Bore Ø 77 MM RIGHT SPINDLE Chuck Size Ø (6”) 152 MM Spindle Speed 6,000 RPM Min. Indexing Angle (C-Axis) 0.001 DEG Spindle Nose A2-5 Spindle Bore Ø 53 MM TURRETS - UPPER & LOWER Number of Tools (Upper & Lower) 12 Turning Tool Shank 25 MM Boring Bar Shank Diameter 32 MM Milling Shank Diameter 16 MM Driven Tool Speed 6,000 RPM Number of Driven Tools (Upper & Lower) 12 FEEDRATES Upper Turret Rapids X1 / Y1 / Z1 20 / 12 / 40 M / MIN Lower Turret Rapids X2 / Y2 / Z2 20 / 12 / 40 M / MIN Fodpjxrpnrsfx Afnjpd Rapid Traverse Speed - A (Right Spindle) 40 M / MIN MOTORS Spindle Motor - LH 15.0 / 11.0 KW Spindle Motor - RH 11.0 / 7.5 KW Turret Driven Tool Spindle Motor 5.5 / 3.7 KW Axis Feed Motors - X1 / Y1 / Z1 2.5 / 2.5 / 3.0 KW Axis Feed Motors - X2 / Y2 / Z2 2.5 / 1.2 / 3.0 KW Axis Feed Motor - (A) 2.5 KW SUPPLY 35 KVA MACHINE L 4,254 MM W 2,460 MM H 2,230 MM 8,300 KGS

Condition: as good as new (ex-display), Year of construction: 2023, functionality: fully functional, machine/vehicle number: TJGP2065, TAKISAWA TM-4000Y2 FANUC 31i B2 - TOTALLY AS NEW BUILT 2023 CNC MULTITASKING LATHE WITH UPPER & LOWER Y-AXES 10 INCH + 8 INCH STANDARD CHUCK SIZE. WITH:- Y-AXIS TRAVEL -50 +70 MM - UPPER TURRET (Y1 AXIS) Y-AXIS TRAVEL -50 +30 MM - LOWER TURRET (Y2 AXIS) CHIP CONVEYOR - RIGHT SIDE DISCHARGE HINGE TYPE (MORETECH JAPAN) AIR BLOW SYSTEM - RH SPINDLE ABNORMAL LOAD DETECTION FUNCTION WORK PHASE POSITIONING FUNCTION (C-AXIS TORQUE SKIP FUNCTION) COOLANT DELIVERY PIPE ABOVE THE SPINDLE - LH & RH SPINDLE COOLANT PUMP - 400W - 3 OFF OIL SKIMMER (OIL / WATER SEPARATOR) OIL SEPERATOR BOX HYDRAULIC PRESSURE SWITCH LED LIGHTING AUTO LUBRICATION SYSTEM AND COLLECTOR MACHINE MANUALS & OPERATOR HANDBOOKS TURRET MOUNTED MACHINE LEVELLING PLATE AUTO POWER OFF TRANSFORMER - 415V / 3PH / 50HZ STANDARD TOOLING PACKAGE TURRET COVER (6 EA) X 2 Fpsdpfx Afsxrnwlened SERVO TURRET (LOWER) Y2 AXIS - 12 STATION WITH DRIVEN TOOLS SERVO TURRET (UPPER) Y1 AXIS - 12 STATION WITH DRIVEN TOOLS 8" 3-JAW THRU-BORE HYDRAULIC CHUCK ~ KITAGAWA BR-08 RH SPINDLE 10" 3-JAW THRU BORE HYDRAULIC CHUCK (KITAGAWA BR-10) - LH SPINDLE DIRECT DRAWING DIMENSION INPUT HELICAL INTERPOLATION FUNCTION RAKU-RAKU MONITORING SYSTEM BAR HI PRESS COOLANT PUMP (NIHON) 2 OFF CALL LAMP (3 COLOUR) BAR FEEDER INTERFACE FOR MULTI BAR MAGAZINE UNLOADER WITH PARTS DISCHARGE CONVEYOR QUICK TOOL SETTING DEVICE - MANUAL TYPE BOTH TURRETS AI CONTOUR CONTROL II CHIP CONVEYOR UPGRADE (MORETECH JAPAN) AXIAL DRIVEN TH, ER32 OUTPUT, 6000 RPM, 1:1 RATIO, EXT COOLANT - 4 OFF RADIAL DRIVEN TH, ER32 OUTPUT, 6000 RPM, 1:1 RATIO, EXT COOLANT - 4 OFF MACHINE FEATURES TWIN SPINDLE, TWIN TURRET Y-AXIS CNC TURNING CENTRE. 2 OFF 12 STATION HIGH ACCURACY SERVO TURRETS LEFT HAND SPINDLE – 4,200 RPM RIGHT HAND SPINDLE - 5,000 RPM UPPER & LOWER TURRETS - 6,000 RPM LIVE TOOLING SPEED UPPER TURRET Y1-AXIS (- 50 + 70 MM) LOWER TURRET Y2-AXIS (- 50 + 30 MM) 10” + 8” STANDARD CHUCK SIZE MACHINE CAPACITIES Standard Turning Diameter Ø 215 MM Maximum Turning Diameter Ø 215 MM Maximum Turning Length 800 MM Bar Capacity Left Spindle Ø 82 MM Bar Capacity Right Spindle Ø 65 MM AXIS TRAVELS Upper Turret Travel X1 230 / 120 MM Upper Turret Travel Y1 120 (- 50 + 70) MM Upper Turret Travel Z1 800 MM Lower Turret Travel X2 210 / 80 MM Lower Turret Travel Y2 80 (- 50 + 30) MM Lower Turret Travel Z2 800 MM Travel A (RH Spindle) 900 MM LEFT SPINDLE Chuck Size Ø (10”) 254 MM Spindle Speed (RPM) 4,200 RPM Min. Indexing Angle (C-Axis) 0.001 DEG Spindle Nose A2-8 Spindle Bore Ø 94 MM RIGHT SPINDLE Chuck Size Ø (8”) 203 MM Spindle Speed 5,000 RPM Min. Indexing Angle (C-Axis) 0.001 DEG Spindle Nose A2-6 Spindle Bore Ø 77 MM Inner Bearing Dia.120 TURRETS Number of Tools (Upper/Lower) 12 Turning Tool Shank 25 MM Boring Bar Shank Dia. 40 MM Milling Shank Diameter 20 MM Driven Tool Speed 6,000 RPM Number of Driven Tools (Upper & Lower) 12 FEEDRATES Upper Turret Rapids- X1 / Y1 / Z1 20 / 12 / 30 M / MIN Lower Turret Rapids - X2 / Y2 / Z2 20 / 12 / 30 M / MIN Rapids on A (Right Spindle) 30 M / MIN MOTORS Spindle Motor - LH 18.5 / 15.0 KW Spindle Motor - RH 15.0 / 11.0 KW Turret Driven Tool Motor 7.5 / 3.7 KW Axis Feed Motors - X1 / Y1 / Z1 2.5 / 2.5 / 2.5 KW Axis Feed Motors - X2 / Y2 / Z2 2.5 / 1.2 / 2.5 KW SUPPLY 50 KVA MACHINE L 4,741 MM W 2,748 MM H 2,444 MM 9,370 KG

Condition: excellent (used), Year of construction: 2015, Data Fpodpjxmid Nefx Afned Fanuc 32i B Chuck: 250 mm / 170 mm Bar passage: 65 mm Y-axis: 120 mm Turret: 20 positions Tool measurement Parts catcher Chip conveyor

Condition: excellent (used), Year of construction: 2016, Takisawa TMM 250 3 turn-mill center, year 2016, Fanuc turning length:1300 Turning diameter: 350 mm Spindle speed (max.): 4000 1/min 9 axes 2 x spindles 2 x C-axis Swing diameter 780 mm Turning diameter max. 350 mm Turning length max. 1,300 mm Fsdpfjrt Ip Njx Afnjpd Chuck diameter left 250 mm Chuck diameter right 200 mm Upper tool carrier with Y-axis 260 mm and B-axis 230° / +/- 115° Complete with 30-position tool changer Lower tool carrier 15-position turret - all positions driven Complete simultaneous 5-axis machining with turning/milling support. Tool changer with 30 tool positions Workpiece magazine, to the right of the machine, with gantry handling Driven tools on the turret. C-axis for left and right spindle Chip conveyor Internal coolant supply through milling spindle 20 bar Due to high office costs (customs regulations) we do not deliver to Turkey Turkey, Iran, Russia and Belarus.

Condition: good (used), Year of construction: 2008, operating hours: 60,000 h, functionality: fully functional, turning length: 800 mm, turning diameter: 350 mm, spindle speed (max.): 4,000 rpm, travel distance Y-axis: 100 mm, controller model: FANUC 180is-TB, TECHNICAL DETAILS Control: FANUC 180is-TB Turret Number of turrets: 2 Turret heads: 2 × 15 stations Y-axis: 100 mm (± 50 mm) Machining capacity Max. turning diameter: 350 mm Max. turning length: 800 mm (200 mm for flange machining) Fjdpfx Aewc Shfjfnepd Spindle and bar machining Chuck size left spindle: 250 mm Chuck size right spindle: 200 mm Bar capacity left spindle: Ø 76.2 mm Bar capacity right spindle: Ø 50.8 mm Spindle speeds Left spindle speed: 4,000 rpm Right spindle speed: 4,000 rpm Rotary tool speed: 4,000 rpm Travel speeds Upper Turret X1 / Y / Z1: 24 / 12 / 30 m/min Lower turret X2 / Z2: 24 / 30 m/min Motor power Left spindle: 22 kW (30 min), 15 kW (continuous) Right spindle: 18.5 kW (30 min), 11 kW (continuous) Rotary tool: 5.5 kW (S3 25%), 3.7 kW (continuous) MACHINE DETAILS Machine height: 2,250 mm Space requirement: 4,745 × 2,932 mm Weight: 8,500 kg Feed time: 14,850 h On-time: 60,000 h EQUIPMENT - Comprehensive tool package - Tool Eye (automatic tool measurement) - Internal coolant supply (IKZ) with 24 bar pressure and Filter system - Chip conveyor - Manuals

Condition: excellent (used), Year of construction: 2020, functionality: fully functional, spindle bore: 81 mm, TAKISAWA TM 4000 Y2 ! Very few operating hours ! Control: FANUC 31iB Standard turning diameter on both spindles: 215 mm Spindle bore: 81 mm 2 x Y-axis -50mm +70mm / -50mm +30mm Z-axis travel: 800 mm Max. main spindle speed: 4,200 rpm Max. sub spindle speed: 5,000 rpm Revolver: 2 x 12-position, driven tools up to 6,000 rpm 1 x power chuck 250 mm / 200 mm 1 x collet chuck Fedsw Hxidspfx Afnopd Signal lamp Tool presetting device Helical interpolation Raku-Raku tool monitoring Parts ejector Direct path measurement Y1 axis X1 Air blast sub spindle Bar feeder magazine BK 105L High-pressure coolant system KNOLL 30 bar
