Used Optimum Milling Machine for sale (105)

Condition: used, Year of construction: 2006, x-travel 600 mm y-travel 270 mm z-travel 430 mm 630 mm Fsdpfsv Sdz Rex Ag Tepd table-size 1120 x 270 mm spindle turning speed range 45 - 1660 U/min spindle taper SK 40 control konventionell spindle motor 2,2 kW total power requirement 2,4 KVA weight of the machine ca. 1,35 t dimensions 1,8 x 1,4 x 1,8 m Machine equipped with: - Digital display - Machine light - Coolant system - Machine feet

Condition: ready for operation (used), Year of construction: 2015, functionality: fully functional, travel distance X-axis: 355 mm, travel distance Y-axis: 190 mm, travel distance Z-axis: 245 mm, spindle speed (max.): 3,000 rpm, table width: 180 mm, table length: 530 mm, TECHNICAL DETAILS Number of axes: 3 X-axis travel: 355 mm Y-axis travel: 190 mm Z-axis travel: 245 mm Max. spindle speed: 3,000 rpm Interface: BT30 Table size (length): 530 mm Fpedpfxew Tzkis Ag Tod Table size (width): 180 mm Max. workpiece weight: 30 kg Control type: Siemens 808D Control system: CNC Motor power: 1.5 kW MACHINE DETAILS Dimensions (L x W x H): 1,400 x 1,380 x 2,000 mm Transport weight: 1,400 kg Number of transport packages: 1 Documentation available: Yes CE marking: Yes EQUIPMENT - Siemens 808D control - CNC controlled - Documentation available - CE marking - Large vise - Indexing head - Precision vise - 19 BT30 tapers - ER32 and ER25 collet sets - CamBamPro with license (drawing/programming) and postprocessor configured for Siemens - Complete technical documentation

Condition: good (used), Year of construction: 2017, feed length X-axis: 550 mm, feed length Y-axis: 305 mm, feed length Z-axis: 460 mm, CNC x-axis 550 mm y-axis 305 mm z-axis 460 mm Fpedsxpqhzspfx Ag Tod BT 40 tool holder 12-position tool changer Main spindle 4 kW up to 10,000 rpm with cooling system Chip conveyor Siemens Sinumerik 808 D control

Condition: ready for operation (used), Year of construction: 2019, functionality: fully functional, machine/vehicle number: 3501100, travel distance X-axis: 550 mm, travel distance Y-axis: 305 mm, travel distance Z-axis: 460 mm, spindle speed (max.): 10,000 rpm, rapid traverse X-axis: 10 m/min, TECHNICAL DETAILS Travel Paths X-axis travel: 550 mm Y-axis travel: 305 mm Z-axis travel: 460 mm Main Spindle Main spindle speed range: 10 - 10,000 rpm Drive power - main spindle: 11 / 7.5 kW Max. torque: 70 / 48 Nm Tool holder: BT 40 Worktable Clamping surface: 800 x 320 mm Max. table load: 300 kg T-slots: 3x 14 x 100 mm Distance spindle / table: 100 - 600 mm Tool Changer Number of tool stations: 12 Tool holder: BT 40 Max. tool diameter: 70 mm Max. tool weight: 6.0 kg Tool-to-tool change time: 7.0 sec Feed Rates Rapid traverse (X / Y / Z): 10 m/min Feed rate: max. 10,000 mm/min Repeatability: +/- 0.008 mm Positioning accuracy: +/- 0.01 mm MACHINE DETAILS Control: Siemens Sinumerik 808D adv. Space & Weight Required space approx.: 3.5 x 2.5 x 2.4 m Machine weight approx.: 2,800 kg Fodpjxb Aczofx Ag Tepd Total power requirement: 15 kVA EQUIPMENT Documentation Chip removal system Coolant system Tool changer RENISHAW - Primo touch probe

Condition: excellent (used), 3-axis visualization Universal spatial head milling machine, “HURON” type, 360° orientation 3-axis visualization Vertical spindle power: 2.2 kW X-axis travel: 600 mm manual / 480 mm automatic Y-axis travel: 270 mm manual Z-axis travel: 380 mm manual / 340 mm automatic Fsdpfx Aowlggueg Tspd Feed rate: 24 – 402 mm/min Number of spindle speeds: 11 Spindle speed: 45 – 1600 rpm Dimensions: 1540 x 1355 x 1650 mm Weight: 1500 kg

Condition: like new (used), Year of construction: 2021, Optimum OPTImill MZ 2S tool milling machine Ideal for training workshops!!! Available now With digital 3-axis position display DP 700 from NEWALL. With inverter drive of the feed axes controllable via the control panel. Versatile range of applications Excellent damping properties and stability of the machine frame All guides are hardened and precision-ground and can be adjusted using wedge strips Automatic feed in X-, Y- and Z-axis, infinitely adjustable via an electronic joystick on the control panel Electric feed limit stop Ball screw in all axes Central and clearly arranged control panel with integrated digital position and speed display Massive cross table, generously dimensioned and precisely surface-machined with 5 T-slots Coolant device Large handwheels with scale Machine lamp Smooth running Manual central lubrication TECHNICAL DATA Dimensions and weights Length (product) approx. 1239mm Width/depth (product) approx. 1168mm Height (product) approx. 1900mm Weight (net) approx. 1400kg Drilling/milling head Milling head swivel range ± 90 Fodpfouqix Ujx Ag Tjpd Drilling/milling capacity Cutter head size max. 100mm Drilling capacity steel (S235JR) 30mm Continuous drilling capacity steel (S235JR) 26mm End mill size max. 25mm Electrical data Drive motor power 2.2kW Supply voltage 400V Mains frequency 50Hz Horizontal milling table Horizontal milling table length 750mm Horizontal milling table width 320mm Distance vertical spindle - horizontal milling table min. 75mm Distance vertical spindle - horizontal milling table max. 410mm Horizontal milling table T-slots size 14mm Horizontal milling table T-slots quantity 5 Horizontal milling table T-slots distance 63mm Distance horizontal spindle - horizontal milling table min. 70mm Distance horizontal spindle - horizontal milling table max. 400mm Horizontal milling table max. load 285kg Vertical milling table Vertical milling table length 830mm Vertical milling table width 250mm Vertical milling table T-slots size 14mm Vertical milling table T-slots quantity 2 Vertical milling table T-slots distance 63mm Coolant system Coolant pump(s) Drive power 95W Travel distance Manual X-axis travel 400mm Manual Y-axis travel 200mm Manual Z-axis travel 335mm Travel path X-axis automatic approx. 310mm Travel path Y-axis automatic approx. 160mm Travel Z-axis automatic 295mm Vertical spindle Vertical spindle throat depth 100mm Vertical spindle Spindle holder ISO 40 DIN 2080 Vertical spindle Speed range 50 - 1890min¯¹ Vertical spindle Number of speed ranges 12 steps Vertical spindle Tightening bar M 16 Vertical spindle Quill stroke 120mm Vertical spindle Load max. 1100Nm Feed speed Bjpvld3Hbf Feed speed X-axis 10 - 600mm/min Feed speed Y-axis 10 - 600mm/min Feed speed Z-axis 10 - 600mm/min Electrical connection Total connected load 4kW Motor(s) Rapid traverse X-axis power drive motor 0.375kW Rapid traverse Y-axis power drive motor 0.375kW Rapid traverse Z-axis power drive motor 0.375kW

Condition: used, Year of construction: 2003, x-travel:930 mm y-travel:400 mm z-travel:406 mm turning speeds:9-6750 1/min table::1370 x 254 Fpedpfxst U Rm Ie Ag Tjd quill stroke:127 mm quill feed:(3) 0,04; 0,08; 0,15 mm/U bore capacity in steel:32 mm feed range:19 - 890 (x) mm/min spindle cone:SK 40 column arm:200 - 680 mm total power requirement:4 kVA weight of the machine ca.:1,15 t dimensions of the machine ca.:1,5 x 1,45 x 2,2 m 3-axis RSF-electronic Z503 digital display, swivelling vertical head +/- 90°, all 3 axes with Feeds, spindle quill (60 mm), switchable spindle brake, coolant system, bore-feed 0.03; 0.12; 0.06 mm/rev. machine light, angled table, extensive accessories (counter bearing, milling spindles with distance rings, tool holders etc.)

Condition: new, Universal milling machine Make: OPTimill Fpjdpfsg Anfnox Ag Tod Model: MT 60 Item no.: 3336090 Condition: New machine Travels: - X-axis 750 mm - Y-axis 230 mm - Z-axis 360 mm equipped as standard with - 3-A digital readout DPA 31 PLUS - Automatic feed in X-axis - B 18 drill chuck holder - Gear rim drill chuck 3-16 mm / B 18 - Reducing sleeve MK 2 with drive-out slot - Reducing sleeve MK 3 with drive-out slot - T-nuts - Coolant device - LED lamp - Operating tool - Operating instructions

Condition: new, Year of construction: 2021, Drilling/milling machine Make: OPTimill Model: MF 4V Item no.: 3336050 Condition: New machine travels: - X-axis 900 mm - Y-axis 400 mm - Z-axis 406 mm Spindle speed: 9 - 6,750 rpm (infinitely variable) equipped as standard with: - 3-A digital display DPA 21 - Reversing switch right/left rotation - Drilling depth stop - cross table 1.244 x 230 mm (T-slot: 16 mm) with motorized table height adjustment (Z-axis) - chuck guard - Coolant device Fpsdjgmd Dbjpfx Ag Tsd - Operating instructions

Condition: new, Universal milling machine Make: OPTimill Fjdebnfxuopfx Ag Topd Model: MT 50 Item no.: 3336005 Condition: New machine Travels: - X-axis 580 mm - Y-axis 200 mm - Z-axis 340 mm serially equipped with: - 3-A digital readout DPA 31 PLUS - Automatic feed in X-axis - Long milling arbor 16 mm - Mandrel long 22 mm - Drill chuck holder B 18 - Gear rim drill chuck 3-16 mm/B 18 - Reducing chuck MK 2 with drive-out slot - Reducing sleeve MK 3 with drive-out slot - Machine light - Coolant device - Operating tool - Operating instructions

Condition: excellent (used), Year of construction: 2025, machine/vehicle number: 0987, functionality: fully functional, Optimum Metal Band Saw OPTIsaw S 275NV Metal band saws with pivoting saw frame. S 275NV with continuously adjustable saw blade speed The machine was bought in 2025 and has been working for about half a year. TECHNICAL DATA Dimensions and weights Length approx. 1400 mm Width/Depth approx. 685 mm Weight 185 kg Fpedpoythuzjfx Ag Tjd Electrical data Drive motor power: 1.1 kW Connection voltage: 230 V Mains frequency: 50 Hz Coolant pump motor power: 90 W Machine data Saw blade speed(s): 45 – 90 m/min Saw blade length: 2480 mm Saw blade width: 27 mm Saw blade thickness: 0.9 mm Cutting angle: 0 – 60° Feed: continuously variable Adjustable Manual saw frame lifting Coolant pump

Condition: ready for operation (used), Year of construction: 2011, spindle speed (max.): 1,600 rpm, total height: 1,430 mm, overall weight: 3,920 kg, This Optimum D 560x3000 was manufactured in 2011. It features a spindle bore of 80 mm, a swing diameter over bed of 560 mm, and a maximum workpiece weight of 600 kg. The machine offers a spindle speed up to 1600 rpm and includes a coolant pump. Ideal for precision turning operations. Contact us for more information. Additional equipment • Lead Screw Thread Pitch: 6mm • Longitudinal Feed [mm/rev] in the Range: 0.059 - 1.646 • Cross Feed [mm/rev] in the Range: 0.020 - 0.573 • Metric Pitch [mm/rev] in the Range: • Inch Pitch [Threads/Inch] in the Range: 112 - 2 • Modular Threads in the Range: • Diametrical Threads (ISO 678) in the Range: 4 - 112 Machine Benefits Technical Machine Benefits • Top slide adjustment range: • Top slide travel (mm): 130 • Cross slide travel (mm): 326 • Center height (mm): 280 // center width (mm): 3010 // bed width (mm): 350 • Swing diameter in bed bridge (mm): 788 Fpjdpfx Agjx Nr S Rs Tjd • Passage of stationary steady rest (mm): 19-165 • Passage of follower steady rest (mm): 16-95 • Special stationary steady rest (not included) (mm): 0-270 • Turning length in bed bridge (mm): 200 • Spindle mount: camlock asa d 1-8 Extra Information Tail Stock Tailstock - Transverse Adjustment (mm): +-13 Tools Maximum Tool Holder Size for Turning Tools in Quadruple Tool Holder (mm): 25x25 Media Total Connected Load: 3 x 400V / 8 kW ~ 50 Hz Spindle Motor Drive Power: 3 x 400V / 7.5 kW ~ 50 Hz Coolant Pump: 3 x 400V / kW ~ 50 Hz Machine Lighting: kW Control Voltage: 24 V / 160 VA Dimensions Machine Depth 4400 mm

Condition: ready for operation (used), Year of construction: 2017, General Data Machine weight 4350 kg Measurements height 2310 mm Measurements depth 1950 mm Fpedpfx Aox H U Eusg Tsd Dimensions Machine Length 3000 mm Main Drive Number of axis 3 Spindle Speed 10000 RPM Spindle motor power 9 kW Movement X-Axis Movement 760 mm Z-Axis Movement 460 mm Y-Axis Movement 440 mm Tools Max weight 8 kg This 3-axis Optimum Optimill F150 was manufactured in 2017 and features a Siemens Sinumerik 828D control system, a vertical spindle type SK40 with a speed range of 10-10,000 rpm, and a carousel tool changer with a 16-tool capacity. It supports a maximum table load of 350 kg and includes a screw-type chip conveyor. If you are looking to get high-quality milling capabilities, consider the Optimum Optimill F150 machine we have for sale. Contact us for more information. Application Types Milling

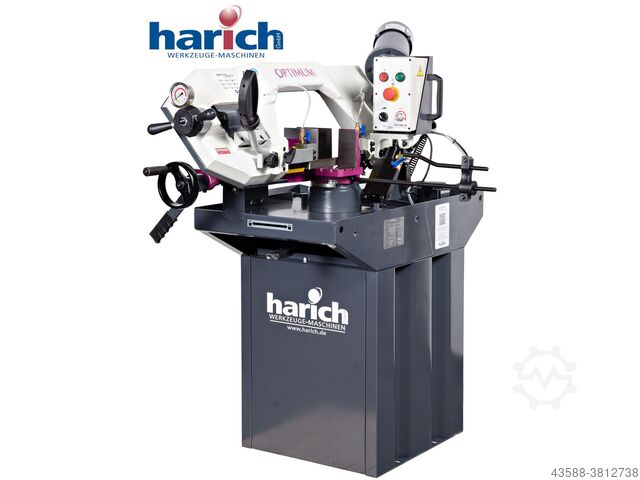

Year of construction: 2022, condition: new, Motor power: 1,1kW / 230V Cutting area: 100mm x 145mm feed: stepless saw band speed: 22 / 31 / 55 m/min Saw band dimension: 1638 x 13 x 0.65 mm Fedpfsgulr Aex Ag Topd Cutting angle: -45° to 60 Dimension: 1085mm x 498mm x 978mm Weight: 78kg

Year of construction: 2025, condition: new, Motor power: 1,1kW / 400V Cutting area: 100mm x 145mm Coolant device: Yes Fedpjha Nz Ujfx Ag Tspd Feed: stepless Saw band speed: 45 /90 m/min Saw band dimension: 2480 x 27 x 0.9 mm Cutting angle: 0° to 60 Dimension: 1400mm x 685mm x 1235mm Weight: 185kg

Condition: as good as new (ex-display), Year of construction: 2025, Machine is in the exhibition and was only used for demonstration purposes. Optiturn S400 HSC CNC Premium CNC lathe direct from the manufacturer. S400 HSC - The OPTIMUM Premium CNC milling machine with Siemens control SINUMERIK 828D is characterized by performance, speed, precision and long service life. Heavy-duty design - Compact design - .SIEMENS servomotors in all axes - Renishaw measuring arm for tool measurement - All servomotors with integrated encoder for maximum accuracy - Main spindle designed as motor spindle - 45° inclined bed design for particularly large machining diameters and unhindered chip flow into the chip flow into the chip tray - Hydraulic three-jaw lathe chuck Ø 170 mm with soft jaws - Servo tool changer VDI 30 with 12 tool positions - Hardened and precision-ground ball screws for high rapid traverse speeds in all axes axes - Faster tool change speed - High hydraulic clamping force - Heavy-duty cutting without vibration, to realize machining automation and high efficiency in extreme cases - Dimensionally stable linear guides ensure a long service life thanks to maximum static and dynamic rigidity rigidity - Device for manual tool measurement - Heat exchanger - Portable, electronic handwheel with enabling switch and emergency stop switch makes it much easier to run in programs. programs considerably - Belt-type chip conveyor ensures efficient chip removal - Work light for complete illumination of the work area - Coolant device with cleaning gun - RJ45 and power interface - EMC (electromagnetic compatibility) - Additional package SIEMENS material liability for defects and free online/on-site service OSS Plus see "Additional package SIEMENS OSS Plus" on page 117 - 1 year maintenance contract Basic included Machine data Electrical connection 400 V / 3 Ph ~50 Hz Total connected load 25 kVA Spindle Fpodeymlhropfx Ag Ted Drive motor S1 operation 11.6 kW Torque drive motor S1 operation 65 Nm Drive motor S6-30% operation 14.4 kW Torque drive motor S6-30% operation 81 Nm Spindle holder A2-5 Spindle bore Ø 56 mm Chuck opening Ø 45 mm Hydraulic lathe chuck Ø 170 mm Coolant system Coolant pump power 700 W Tank capacity 160 liters Hydraulic system Hydraulic pump output 1.5 kW Tank capacity 36 liters Machine data Turning Ø max. 220 mm Turning length 320 mm Rotation Ø over cross slide 300 mm Rotation Ø over machine bed 500 mm Inclined bed 45° Speed range Spindle speeds* 30 - 6,000 min-1 Tool changer Type Servo VDI 30 Number of tool positions 12 Accuracy Repeat accuracy ± 0.004 mm Positioning accuracy ± 0.004 mm Travel distance X-axis 180 mm Z-axis 350 mm Feed force Dynamic X-axis 3.6 kN Z-axis 3.6 kN Feed speed X-axis / Z-axis 30 m/min. Motor torque X-axis / Z-axis 6 Nm Dimensions Length x width x height 2,000 x 2,250 x 1,550 mm Total weight 2,600 kg

Condition: as good as new (ex-display), Year of construction: 2025, Optiturn L28 HS CNC lathe directly from the manufacturer. L28 HS - The OPTIMUM CNC lathe with Siemens control SINUMERIK 808D Advanced PPU 150. Strutted machine bed made of gray cast iron - Elaborate spindle bearings - Emergency stop impact switch - Central lubrication - Reference switch - Maintenance-friendly protective housing - Rear access flap for maintenance - Safety switch on the front sliding door - Turning turret is located behind the turning center (left turning tool) - Linear guide - Software package "SINUMERIK 808D on PC" included. (Practical training software, so that workpieces can be programmed and simulated offline on the PC. Free to download free of charge - Two-year SIEMENS warranty included Technical data Electrical connection 400 V / 3 Ph ~50 Hz Total connected load 3.75 kVA Spindle Drive motor S1 operation 2.2 kW Torque drive motor S1 operation 14 Nm Torque at the spindle 28 Nm Spindle holder DIN 6350 A2-3 Spindle cone 5C Spindle bore Ø 30 mm Cooling lubricant system Coolant pump output 95 W Tank capacity 25 liters Machine data Center height 169 mm Center width 430 mm Rotation Ø over cross slide Ø 200 mm Rotation Ø over machine bed Ø 300 mm Speed range Spindle speeds* 40 - 4,000 min-1 Tool turret Type electric Number of tool positions 6 tools Mounting height, width square max. 16 mm Mounting diameter of boring bar max. 16 mm Accuracy Repeat accuracy ± 0.01 mm Positioning accuracy ± 0.01 mm Bhajn7pvcu Fsdpfxoymlf Rj Ag Topd Travel distance X-axis 145 mm Z-axis 465 mm Feed speed X-axis 10,000 mm/min. Z-axis 12,000 mm/min. Machine leasing possible via Siemens Finance. Liquidity required.

Condition: as good as new (ex-display), Year of construction: 2025, Optiturn L34 HS CNC lathe directly from the manufacturer. L34 HS - The OPTIMUM CNC lathe with Siemens control SINUMERIK 808D Advanced PPU 150. Strutted machine bed made of gray cast iron - Elaborate spindle bearings - Emergency stop switch - Central lubrication - Spindle and feed motors from Siemens - Maintenance-friendly protective housing - Rear access flap for maintenance - Safety switch on the front sliding door - Turning turret is located behind the turning center (left turning tool) - Linear guide Fodpfx Agsymlfkj Tjpd - Software package "SINUMERIK 808D on PC" included. (Practical training software, so that workpieces can be programmed and simulated offline on the PC. Free to download Technical data Electrical connection 400 V / 3 Ph ~50 Hz Total connected load 6.5 kVA Spindle Drive motor S1 operation 3.7 kW Torque drive motor S1 operation 23.6 Nm Torque at the spindle 40 Nm Spindle holder DIN 6350 A2-3 Spindle bore Ø 46 mm Coolant system Coolant pump output 95 W Tank capacity 75 liters Machine data Center height 165 mm Center width 600 mm Rotation Ø over cross slide Ø 146 mm Rotation Ø over machine bed Ø 350 mm Speed range Yvwdh0 Spindle speeds* 30 - 3500 min-1 Tool turret Type electric Number of tool positions 6 tools Mounting height, width square max. 16 mm Mounting diameter of boring bar max. 16 mm Accuracy Repeat accuracy ± 0.01 mm Positioning accuracy ± 0.01 mm Travel distance X-axis 145 mm Z-axis 465 mm Feed speed X-axis 6,000 mm/min. Z-axis 8,000 mm/min. Machine leasing possible via Siemens Finance. Liquidity required.

Condition: as good as new (ex-display), Year of construction: 2025, The machine is currently on display. Optiturn Premium CNC lathe directly from the manufacturer. S600M – The OPTIMUM Premium CNC lathe equipped with a Siemens SINUMERIK 828D control system. • Heavy-duty construction • Renishaw measuring arm for manual tool measurement • Ball screw with enhanced precision, rigidity, and thermal stability • Siemens servo motors on all axes • All servo motors with integrated encoders for maximum accuracy • 45° slant bed design for particularly large workpieces • Hydraulic three-jaw chuck, Ø 200 mm • Sauter tool turret VDI 40 with 8 tool stations and driven tool capability • Hardened and precision-ground ball screws for high rapid traverse speeds on all axes • Manual tool measurement setup • Tailstock with hydraulic quill • Heat exchanger • Portable electronic handwheel with enabling button and emergency stop impact switch greatly simplifies program setup • Belt-style chip conveyor • Worklight for complete illumination of the work area • Coolant system with cleaning gun Linear Guideways • Maximum static and dynamic rigidity • High positioning accuracy • Smooth, backlash-free movement • Hydraulic turret head VDI 40 • All 12 turret stations powered by an integrated motor capable of speeds up to 4,000 rpm Machine Bed • Heavily ribbed • 45-degree inclination • High rigidity and durability • Facilitates chip removal SAFETY Integrated – Setup with the door open • Functional safety also protects against high costs! Complete Package • Safety Integrated • Remnant detection and machining • ShopMill step programming • Manage network drives • 3D simulation • Remote view/assistance SIEMENS OSS Plus Additional Package • 12 months; Item no. 3589020 Fpsdpfx Ageymk Uko Tjd • 24 months; Item no. 3589021 • 36 months; Item no. 3589022 Dimensions and Weights Length approx. 4570 mm Width/depth approx. 1845 mm Height approx. 1955 mm Weight approx. 4200 kg Work Area Chuck diameter: 320 mm Turning length: 475 mm Swing over bed: 570 mm Swing over cross slide: 400 mm C-Axis (factory option) Angular accuracy: 51 '' Repeatability: 20 '' Motor Torque X-axis: 11 Nm Z-axis: 11 Nm Speed Range Speed range: 30 – 4000 rpm Rapid Traverse Speed X-axis: 24 m/min Z-axis: 30 m/min Electrical Data Supply voltage: 400 V Mains frequency: 50 Hz Electrical connection Total connected load: 40 kVA Accuracy Repeatability: ± 0.002 mm Positioning accuracy: ± 0.004 mm Chuck passage diameter: 51 mm Slant bed: 45° Tailstock Mount: MT 5 Quill stroke: 100 mm Quill diameter: 100 mm Quill actuation: hydraulic Spindle Spindle nose: DIN ISO 702-1 No. 6 Main spindle hydraulic chuck: 200 mm Spindle taper: A2-6 Main spindle bore: 65 mm Travel X-axis: 235 mm Z-axis: 530 mm Vertical Spindle Drive motor power S1 continuous duty: 11 kW Drive motor power S6-30% duty: 22 kW Drive motor torque: 70 Nm Drive motor torque S6-30%: 140 Nm Feed Force Feed force, X-axis: 8.4 kN Feed force, Z-axis: 5.6 kN Tool Turret Type: Servo VDI 40 - DIN 5480 Number of tool stations: 12 Drive motor power: 4.82 kW Max. permissible speed at tool coupling: 6000 rpm Max. tool torque: 20 Nm

Condition: as good as new (ex-display), Year of construction: 2026, The machine is on display and has only been used for demonstration purposes. Optiturn L44 CNC Premium CNC Lathe – directly from the manufacturer. L44 CNC – The OPTIMUM Premium CNC lathe with Siemens SINUMERIK 828D control system stands out for its performance, speed, precision, and long service life. Dimensions and Weight: - Max. width/depth: 2300 mm - Approx. length: 2530 mm - Approx. width/depth: 1595 mm - Approx. height: 1795 mm - Approx. weight: 2600 kg Working Range: - Chuck diameter: 150 mm - Chuck clamping actuation: hydraulic - Centre height: 223 mm - Centre distance: 850 mm - Swing diameter over bed: 446 mm - Swing diameter over gap: 520 mm - Swing diameter over cross slide: 240 mm - Bed width: 300 mm Servo Torque: - X-axis: 6 Nm - Z-axis: 8.5 Nm Spindle Speed Range: - Number of speed ranges: 1 - Spindle speed range: 10 – 3000 rpm Electrical Data: - Drive motor power: 7 kW - Voltage: 400 V - Network frequency: 50 Hz - Total connected load: 23 kVA Accuracy: - Repeatability: ± 0.005 mm - Positioning accuracy: ± 0.005 mm Hydraulic System: - Motor power: 0.75 kW - Tank capacity: 50 l Ball Screw: - X-axis diameter: 25 mm - X-axis lead P: 5 mm - X-axis accuracy grade: C3 - Z-axis diameter: 40 mm - Z-axis lead P: 5 mm - Z-axis accuracy grade: C3 Coolant System: - Coolant pump power: 270 W - Tank capacity: 90 l Machine Data: - Spindle bore diameter: 40 mm - Drive motor torque: 33 Nm Tailstock: - Taper: MT 4 - Quill travel: 165 mm - Quill diameter: 52 mm Spindle: - Spindle nose: DIN ISO 702-1 No. 5 - Spindle bore/bar capacity: 52 mm Controller: - Type: Sinumerik 828D PPU 240 - System software: SW 24 - CNC memory: 3 MB - Look Ahead: 50 - Block change time: 3 ms - Number of tools: 128 Travel: - X-axis: 250 mm - Z-axis: 760 mm Vertical Spindle: - Drive motor continuous power S1: 7 kW - Drive motor S6-30% duty cycle power: 16 kW - Drive motor torque: 33 Nm - Drive motor torque S6-30% duty cycle: 80 Nm Feed Rate: - X-axis: 15,000 mm/min - Z-axis: 15,000 mm/min Feed Force: - X-axis: 7.5 kN - Z-axis: 5.3 kN Tool Changer: - Type: hydraulic; VDI 30 - Number of tool stations: 8 - Max. square tool shank height/width: 20 x 20 mm - Max. boring bar diameter: 25 mm Features: - Siemens spindle and servo motors - Full enclosure with safety interlock - Standard with max. spindle speed up to 3000 rpm - Automatic central lubrication - Swiveling control panel - Tailstock cover - Electronic hand wheels for X and Z axes - Coolant system with 90-liter tank - RJ45 connection, USB port, and 230 V power socket - EMC (Electromagnetic compatibility) - Six leveling feet - Operator tools included SINUMERIK 828D Basic – COMPLETE PACKAGE - Safety Integrated - Remainder material detection and machining - ShopTurn step programming - Network drive management - 3D simulation - Graphical tracking Control: - 10.4” color display - 4:3 format Fsdpeymkwrjfx Ag Tjpd - User-friendly SINUMERIK Operate software - Front interfaces: USB 2.0, RJ45 Ethernet, Compact Flash (CF) Card Guides: - Rigid flat-bed guideways Ball Screw: - For high rapid traverse speeds on all axes - Reduced wear - High positioning and repeat accuracy

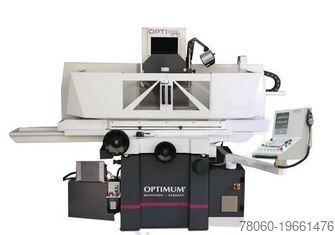

Condition: as good as new (ex-display), Year of construction: 2025, GT 25 – The OPTIMUM Premium NC Grinding Machine with Siemens Touchscreen. • Electromagnetic chuck for securing the workpiece, with automatic demagnetization function • High-quality spindle with precision tapered roller bearings • Hardened and ground table guideways • Turcite-B coated counter-guides for high wear resistance and low friction • Grinding spindle with premium precision bearings • Grinding wheel can be dressed directly on the machine with an integrated dressing device • Digital position display • Machine base made of stable, torsion-resistant cast iron for maximum rigidity and stability • Longitudinal, cross, and vertical axis guideways are backlash-free and self-centering, designed as V and flat guideways • Precision ball screws • Central lubrication for guideways and feed screws • All flat guides are finely scraped, guaranteeing maximum precision in all manual movements • Safety electronics with 24 V DC • Large, decoupled handwheels on all three axes • Hydraulic lines according to DIN EN 853 • Grinding accuracy: 0.005 mm • Corundum grinding wheel, grit 46, suitable for all standard steels • Swivel control panel makes operation significantly easier • Separate hydraulic unit with heat exchanger prevents vibrations and thermal loading • Dual-channel safety electronics • Grinding table splash guard • EMC filter class • Equipped with IE3 motor – significantly reduces energy consumption, providing substantial cost savings Technical Data: Dimensions and Weights Length approx. 2300 mm Width/Depth approx. 1600 mm Height approx. 1675 mm Weight approx. 1700 kg Electrical Data Total connected load: 3 kW Supply voltage: 400 V Phases: 3 Ph Current type: AC Mains frequency: 50 Hz Surface Grinding Table Length: 254 mm Width: 508 mm Grinding Wheel(s) Outer diameter: 200 mm Width: 20 mm Bore: 31.75 mm Peripheral speed: 33 m/s Spindle Speed: 2850 rpm Radial runout accuracy: 0.005 mm X-Axis Feed speed: 5 – 25 m/min Packaging unit: 1 Scope of Delivery Unit: Piece Packing unit: 1 Digital position display Coolant system Balancing arbor Fsdpfx Aoymdwfsg Tspd Grinding wheel, grit 46 Diamond dresser Operating tools Manual oil pump LED lamp Electromagnetic chuck Demagnetization function Features Electromagnetic chuck Table splash guard enclosure Automatic demagnetization device Parallel dressing device 40 W coolant system LED work lamp Leveling feet

Condition: as good as new (ex-display), Year of construction: 2025, GT 40 – The OPTIMUM Premium NC Grinding Machine with Siemens Touch Screen. • Electromagnetic clamping plate for securing the workpiece, featuring automatic demagnetization function • High-quality spindle with precision tapered roller bearings • Hardened and ground table guideways • Turcite-B coated counter-guides for high wear resistance and low friction • Grinding spindle equipped with premium precision bearings • The grinding wheel can be dressed directly on the machine using the dressing device • Digital position display • Machine base made from stable, torsion-resistant cast iron for maximum rigidity and stability • Guideways for longitudinal, cross, and vertical movements are backlash-free and self-centering, designed as V and flat ways • Precision ball screw drives • Guideways and feed screws with centralized lubrication • All flat guides are hand-scraped, guaranteeing the highest precision for all manual movements • Safety electronics with 24 V DC voltage • Large, decoupled handwheels on all three axes • Hydraulic lines compliant with DIN EN 853 • Grinding accuracy: 0.005 mm • Corundum grinding wheel, grit 46, suitable for all common steels • Swiveling control panel for greatly simplified operation • Separate hydraulic unit with heat exchanger to prevent vibrations and thermal stress • Dual-channel safety electronics • Grinding table splash guard • EMC filter class • Equipped with IE3 motor – significantly reduces energy consumption and provides substantial cost savings Dimensions and Weights Length approx. 3600 mm Width/Depth approx. 2400 mm Height approx. 1900 mm Weight approx. 3600 kg Electrical Data Total connected load: 7.5 kW Supply voltage: 400 V Mains frequency: 50 Hz Surface Grinding Table Clamping area length: 400 mm Fsdpjymduqefx Ag Tspd Clamping area width: 800 mm Grinding Wheel(s) Outer diameter: 350 mm Width: 40 mm Bore: 127 mm Peripheral speed: 27 m/s Spindle Speed: 1450 rpm Run-out accuracy: 0.005 mm X-Axis Feed rate: 5 – 25 m/min Standard Features • Digital position display • Coolant system • Balancing arbor • Grinding wheel, grit 46 • Diamond dresser • Operating tools • Manual oil pump • LED lamp • Electromagnetic clamping plate • Demagnetization function Equipment • Electromagnetic clamping plate • Table enclosure with splash guard • Demagnetization device • Parallel dressing device ✔ • Coolant system 125 W • Working light: LED lamp • Leveling feet ✔

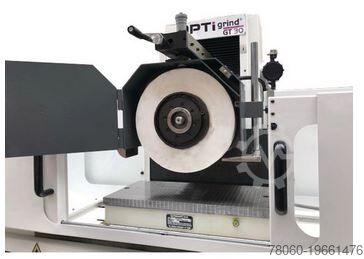

Condition: as good as new (ex-display), Year of construction: 2025, GT 30 - The OPTIMUM premium NC sanding machine with Siemens touch screen. - Electromagnetic clamping plate for fixing the workpiece with automatic demagnetization function - High-quality spindle with precision tapered roller bearings - Hardened and ground table guideways - Turcite-B coated counter guides for high wear resistance and low friction - Grinding spindle with high-quality precision bearings - Grinding wheel can be resharpened directly on the machine using a sharpening device - Digital position indicator - Machine base made of sturdy torsion-resistant cast iron for maximum rigidity and stability - Guideways for longitudinal, transverse and vertical movements are backlash-free and self-centring as V and flat tracks - Precision recirculating ball screws - Guideways and transport spindle with central lubrication - All flat guides are finely scraped and thus guarantee maximum precision of all manual movements - Safety electrics with 24 V DC voltage - Large decoupled handwheels in all three axes - Hydraulic lines according to DIN EN 853 - Sanding accuracy: 0.005 mm - Grain 46 corundum grinding wheel for all common steels - Swivel-mounted control panel makes work considerably easier - Separate hydraulic unit with heat exchanger, avoids vibrations and thermal stress - Two-channel safety electronics - Grinding table splash guard - EMC filter class - With IE3 motor - consumes considerably less energy, resulting in significant cost savings Dimensions and weights Length approx. 3200 mm Width/depth approx. 2200 mm Height approx. 2100 mm Weight approx. 3000 kg Electrical data Total connected load 6.5 kW Supply voltage 400 V Mains frequency 50 Hz Surface grinding table Clamping surface length 300 mm Clamping surface width 600 mm Fpodpfjymdtyox Ag Tsd Grinding wheel(s) Outer diameter 350 mm Width 40 mm Bore 127 mm Peripheral speed 27 m/s Spindle Speed 1450 min¯¹ Concentricity 0.005 mm X-axis Feed speed 5 - 25 m/min Scope of delivery Unit of measure: piece Packaging unit: 1 Digital position indicator Coolant device Balancing mandrel Grinding wheel grit 46 Diamond pin Operating tool Manual oil pump LED lamp Electromagnetic clamping plate Demagnetizing function Equipment Electromagnet clamping plate Splash guard table enclosure Automatic demagnetizing device Parallel dressing device ✔ Coolant device 125 W Work light LED lamp Alignment feet ✔

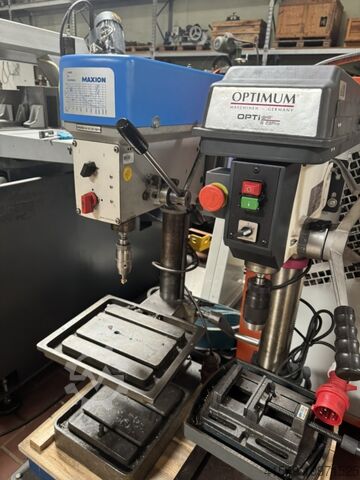

Condition: used, Year of construction: 2002, Drilling capacity: 25 mm, spindle mount: MK 3 Fpodpfx Aovvi Aueg Tjd Storage location: Nattheim

Condition: used, Year of construction: 2011, Technical details: bore capacity in steel (diameter): 35 mm throat: 350 mm bore stroke: 180 mm threading: ST M 24 mm spindle taper MT: MK4 spindle speed:: 50 - 1450 U/min Distance spindle/table max.: 780 mm table clamping surface:: 560 x 560 mm weight of the machine ca.: 500 kg dimension machine xH: 0,73 x 0,56 x 0,22 m Fedpfxoyli Sfe Ag Tjpd
