Used Mikron Milling Machine for sale (187)

Condition: good (used), Year of construction: 1991, weight of the machine ca. ca. 6 t The design of the basic machine is characterised by the following features: - horizontal position of the workpiece spindle; vertical position of the milling spindle or milling head of the milling head - The workpiece is held between the workpiece headstock (left) and the tailstock (right). - the radial slide is mounted on the base (X-axis) - the axial slide moves on the radial slide (Z-axis) - the shift milling head is equipped with an automatic angle adjustment (A-axis); the shift slide (Y-axis) moves diagonally to the workpiece diameter - CNC controlled - IBH control Crjdpfx Afoub Amfe Hsk - loading device - Many accessories Technical data: - largest milling module with hobs according to DIN 8002: 4.5 mm - largest milling module for high-performance milling: 3.0 mm - Number of teeth: 2 - 999 - max. workpiece diameter for manual loading: 200 mm - max. workpiece diameter for automatic loading: 150 mm - maximum workpiece length: 400 mm - largest / smallest milling cutter diameter: 102/40 mm - maximum cutter length: 230 mm - largest / smallest milling arbor diameter (standard): 32/16 mm - Axial slide path = largest milling length Z-axis: 300 mm - Radial slide path X-axis: 140 mm - Milling cutter shift path Y-axis: 100 mm - Milling stock path W-axis: 420 mm - Swivelling angle of shift milling head (left/right) A-axis: 50°/60° Milling coordinates: - Z-axis: 100 - 400 mm - X-axis: 1ß0 - 150 mm - Y-axis (end face of milling spindle): 50 - 230 mm - W-axis (face of tailstock spindle): 165 - 585 mm - Milling cutter speed range standard B-axis: 0 - 1500 rpm - Workpiece speed C-axis: 0 - 350 rpm Feed speeds: - X-axis: 3500 mm/min - Z-axis: 3500 mm/min - Y-axis: 4000 mm/min - W-axis: 5500 mm/min - V-axis (gantry loader): 80000 mm/min

Year of construction: 2010, condition: used, Technical details: stations: 24 weight of the machine ca.: 3,5 t Cjdpfxjw Udx Sj Af Hjrk ·Precise serial production of part families and demanding workpieces ·Table index repeatability of ± 2.5 µm ·24 stations with up to 44 machining units for very high output rates ·Ideal for high volume production with fast cycle times *

Condition: ready for operation (used), Year of construction: 1994, Stations: 24, substations: 20, side stations: 20, axes: 2/station, collets: 24, production output single/double cycle: 120/240 pieces/min, stroke: 35mm, max. workpiece diameter: 25mm, spindle speed: 20000rpm, machine weight: approx. 2650kg, control: Mikron MAC 50, operating hours: approx. 17335h. Documentation available. An on-site inspection is possible. Crsdpfx Ajw Emx Rof Hok

Condition: used, Main spindle with drive motor, universal milling head, milling holder, milling extension, angle milling head, upper support, upper slide, dovetail guide, tool slide, cross table Croderc Ik Hepfx Af Hjk -Manufacturer: Mikron, upper support tool slide from CNC milling machine Mikron UME 600 -Motor: Siemens 380V 3.7/5.25 kW see photo nameplate -Speed: 1500/9000 rpm -Spindle head: SK40 mount -Dimensions: 1550/560/H735 mm -Weight: 555 kg

Condition: used, Year of construction: 1985, max. wheel diameter 80 mm gear width 150 mm max. module 2,5 min. module Credpfst Hw D Rox Af Hsk total power requirement 10 kW weight of the machine ca. 2400 kg M I K R O N (Switzerland) Fully Automatic Gear Hobber for Worm Gears Model A 33 / 1 Year 1985 Ser.-No. 14.06/14.07/14.15 _____ max. gear- without feed magazine approx. 80 mm max. gear- with feed magazine approx. 50 mm Module max. 2, / 2,5 Axial milling length approx. 150 mm max. workpiece-mounting length approx. 200 mm Milling slide can be swivelled up to 90 degrees Milling cutter - 24 - 50/63 mm Max. radial distance of milling slide 0-14/18 mm Milling cutter adjustment max. 25 mm Milling cutter speed 212 - 2.000 rpm Axial feed range infinitely adjustable 0,05 - 4,0 mm/workpiece rotation radial infinitely adjustable 0,2 - 200 mm/min. Milling spindle drive 3 kW Total electrical load approx. 10 kW - 50 Hz - 380 Volt Weight approx. 2.400 kg Accessories/Special Features: " Fully automatic operation cycle and minimum idle times due to programmable SIEMENS Program Controls S 5 for all machining steps i.e. rapid gear, feed, milling cutter on/off for the loading device, tailstock, possibly shifting, etc. with unit counter, program numbering including 30 different numeric error displays Pneumatic workpiece-loading and unloading facility parallel to work piece axis upright for rod workpieces approx. 140 mm long x 8 mm , including pneumatic double gripper for loading and unloading of work pieces. Raw parts are inserted into change cassettes externally and then placed into the loading device. The double gripper places the parts between workpiece spindle and tailstock, the tailstock spindle sleeve pushes the parts in the main spindle collet and clamps them simultaneously. The finished parts are ejected from the main spindle, then placed back again into the finished parts cassette by the gripper. The whole process is electrically monitored and checked. The complete loading facility is encased by plexiglass. " Hydraulic work piece clamping device including collets and hydraulic ejector " separate cooling system with magnetic separator * separate hydraulic system * various change gears This machine is set up for worm gears/armature shafts that can be used for adjustable car seats, window lifters, etc.

Condition: ready for operation (used), Year of construction: 2020, functionality: fully functional, travel distance X-axis: 110 mm, travel distance Y-axis: 150 mm, travel distance Z-axis: 150 mm, workpiece length (max.): 40 mm, workpiece width (max.): 80 mm, The rotary indexing machine is comprehensively equipped; the machine's original price is approximately €3,000,000. No reserve price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Travel distance X-axis: 110 mm Travel distance Y-axis: 150 mm Travel distance Z-axis: 150 mm Work spindles Max. speed: 20,000 rpm Max. torque: 50 Nm Workpiece Maximum workpiece dimensions: Ø 40 x 80 mm Number of workpiece spindles: Max. 24 Number of tools on the machine: Max. 63 Lubrication pressure at tool center (bar): 80/110 Number of stations: 16 Table positioning repeatability: Ø 20 x 60 mm MACHINE DETAILS Electrical Data Voltage, phase frequency: 400 V / 50 Hz Weight & Transport Dimensions Weight: 19,000 kg Transport dimensions: 400 x 300 x 340 cm EQUIPMENT Chip conveyor Rack for oil tubing, extraction system and tubing Codewy I Tlspfx Af Herk Loading systems Vibrators Cabinets / side panels / upper channel / cabinet tops Platform Polycarbonate partitions Fire protection system with control console Further information on transportation dimensions can be found in the attached packing list.

Condition: used, Year of construction: 1995, x-travel 750 / 1000 mm y-travel 600 mm z-travel 600 mm control Heidenhain TNC 426 weight of the machine ca. 6500 kg required space 2500 x 3300 x 2500 mm MIKRON VC 750/1000 – CNC Vertical Machining Center Travels: X-axis: approx. 750 / 1000 mm Y-axis: approx. 600 mm Z-axis: approx. 600 mm Table: Table size: approx. 1080 x 580 mm Number of T-slots: 7 T-slot spacing: 90 mm T-slot width: 14 mm Max. table load: approx. 1000 kg Spindle: Spindle speed: 50 – 5000 rpm Spindle taper: ISO 40 Spindle power: approx. 11 kW Tool Changer: Number of tool stations: 30 – 36 Tool interface: ISO 40 Feedrates and Rapid Traverse: Rapid traverse X/Y/Z: approx. 15 m/min Crsdpfxowm Rqye Af Hsk Control System: Heidenhain TNC 426 Machine Dimensions and Weight: Dimensions (L x W x H): approx. 2500 x 3300 x 2500 mm Machine weight: approx. 6500 kg

Condition: used, Year of construction: 1998, x-travel 710 mm y-travel 630 mm z-travel 500 mm table surface area 1100 x 585 mm rotary table dia. 500 mm spindle taper SK 40 spindle turning speed range 5 - 6300 U/min spindle power 11 kW no. of tools in magazin 2 x 22 Csdjtz Sqhjpfx Af Hjrk control HEIDENHAIN, TNC 426 total power requirement 20 kW weight of the machine ca. 5,8 t Accessories: various tool holders, probe RENISHAW OMP 60, coolant

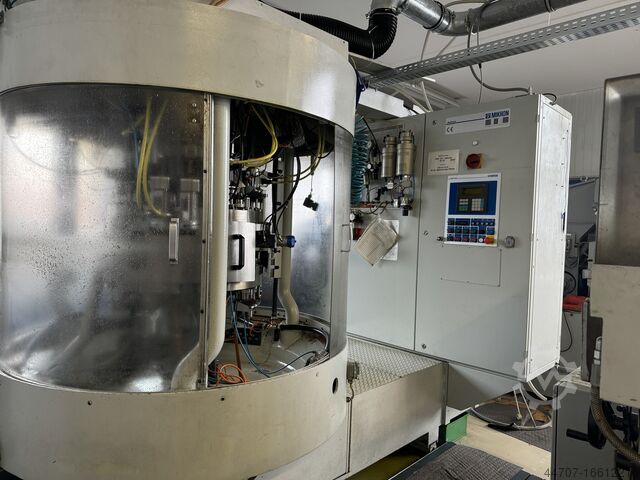

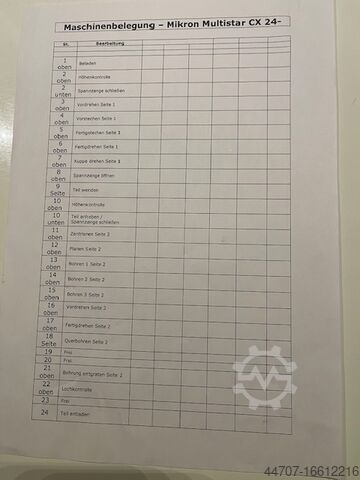

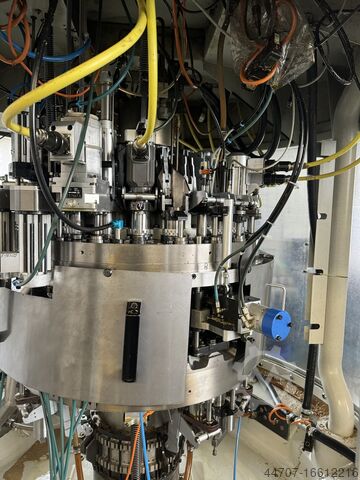

Condition: excellent (used), Year of construction: 1996, NEW ARRIVAL Cjdpjt I T N Eofx Af Herk +++++ 1 used, very well-maintained MIKRON MULTISTAR CX 24 transfer machine / rotary transfer machine Machine can be inspected under power. Part setup is no problem. With MITSUBISHI AACPU-S1 control system - Machine Year of manufacture 1996 - Detailed technical data as per appendix - Machine can be inspected under power. Conversion - INSTALLATION - Setup - Application can be offered. Pricing: ex-site, unpacked, uninsured. Delivery time: immediately - subject to prior sale. Technical data is non-binding - errors excepted. Payment: As is customary for used machines, net before removal.

Condition: used, Main spindle with drive motor, universal milling head, milling holder, milling extension, angle milling head, upper support, upper slide, dovetail guide, tool slide, cross table Credpfokvrptex Af Hek -Manufacturer: Mikron, upper support tool slide from CNC milling machine Mikron WF 51C/155 -Motor: AEG 380V 8 kW 1400/2850 rpm -Dimensions: see photos / technical. drawing -Dimensions: 1700/580/H700 mm -Weight: approx. 525 kg

Condition: used, Year of construction: 1992, max. wheel diameter 150 mm gear width 300 mm Cedpfxjt Hwxbo Af Hjrk max. module 4,5 min. module total power requirement 20 kW weight of the machine ca. 6 t dimensions of the machine ca. m

Condition: good (used), Mikron C axis machine table - with Heidenhain control 430 - Siemensservermotor - table: 60 x 110 cm - 4th axis, diameter: 50 cm - weight: 650 kg Good condition fully functional can be viewed and tried on site. Shipping also abroad. Viewing : Crjdpfxoic Rvie Af Hsk Basically, I would like to point out that to avoid misunderstandings, the item is welcome to be inspected and tested under power before purchase. Please ask questions before buying to avoid ambiguity. For general questions or to make an appointment for a viewing, I am, at the phone number below or above, always available. Errors in the description and subject to prior sale. VAT is shown separately on my invoices. Shipping with forwarding agent.

Condition: repair required (used), Year of construction: 2003, Parts shown by hand not come. Pallete changer EROWA not come. Crjdpfxem Dtnrs Af Hek

Condition: good (used), Year of construction: 2016, Traverses XYZ: 800 x 800 x 550mm, 500 x 500mm table, Crodpfjwq A Rgox Af Hsk A axis -91 / + 121 degrees, C axis , 360 degrees, Heidenhain TNC530, Spindle Speed 20000rpm, 36kW Spindle Motor, HSK A63 Spindle Taper, 60 tools, swarf conveyor.

Condition: ready for operation (used), Year of construction: 2007, Always in connection. SPECIAL GRAPHITE WITH EXTRACTION UNIT INCLUDED Csdpfxex Dihvo Af Hsrk • 5 axes• 42,000 rpm spindle• 21-pallet Erowa changer• Year 2007• 40,000 h• No coolant• Used for graphite• Heidenhain 530i control• Extraction unit INCLUDED

Condition: excellent (used), Year of construction: 1993, travel distance X-axis: 750 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 500 mm, rapid traverse X-axis: 1 m/min, rapid traverse Y-axis: 1 m/min, rapid traverse Z-axis: 1 m/min, total height: 2,690 mm, total length: 2,230 mm, total width: 2,360 mm, spindle speed (min.): 10 rpm, spindle speed (max.): 7,500 rpm, mount diameter: 200 mm, load capacity: 340 kg, Micron VCE 750 – Despite its age, the machine is in excellently maintained condition and has only been operated in single-shift use. Manufacturer: Mikron Model: VCE 750 Year of manufacture: 1993 Control: Mikron CNC (Haas) Travel: X = 750 mm Y = 400 mm Z = 500 mm Spindle speed: 10 – 7,500 rpm Drive power: 7.5 kW Spindle Tool holder: SK 40 Credpjp Sq Trsfx Af Hjk Tool changer: 20 tools Rapid traverse: 12.7 m/min Max. feed rate: 5.0 m/min Worktable: 356 x 914 mm clamping surface Max. table load: 340 kg Weight: 3,620 kg Dimensions: 2,230 x 2,360 x 2,690 mm (L x W x H)

Condition: good (used), Year of construction: 1995, travel distance X-axis: 1,000 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 600 mm, x-travel 1000 mm y-travel 600 mm z-travel 600 mm Control: Heidenhain TNC 426 Csdpsx A Tpujfx Af Hork Spindle nose: 100–700 mm Work table: 1,080 x 580 mm Max. workpiece weight: 550 kg T-slots: 7 pcs. T-slot width: 14 mm Tool magazine with 36 positions Max. tool weight: 8 kg Max. tool length: 340 mm Machine weight approx. 6.2 t Space requirement approx. 4,790 x 5,330 x 2,905 mm

Condition: used, Year of construction: 2004, x-travel 530 mm y-travel 450 mm z-travel 450 mm Control Heidenhain iTNC 530 a-axis +122-90 ° c-axis 360 ° Spindle hours New 2.450 h Crodox Dc T Sjpfx Af Hok 30 pos. handwheel Inkl. weight of the machine ca. 6,5 t

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, machine/vehicle number: 107.32.99.077, travel distance X-axis: 530 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 450 mm, rapid traverse X-axis: 22 m/min, rapid traverse Y-axis: 22 m/min, rapid traverse Z-axis: 22 m/min, (Please tell us your offer price) Sale only within Europe, incl. Turkey Price without packaging; delivery condition: FCA (machine location) ===== Technical data see handout. All warranty rights are excluded. For the correctness of the technical data and year of construction, for the completeness of accessories and tool equipment, and for compliance with all safety and environmental protection requirements specified in the accident prevention regulations. No sale to private individuals. Sales only within Europe, incl. Turkey Price without packaging; Delivery condition: FCA (machine location) ===== Technical data please see handout in attachment. German text leading language. Without any guaranty and warranty, including completeness of tools & accessories as well as environmental and safety regulations. No private sales. Credpfxjxrc Sqe Af Hek

Condition: used, Year of construction: 2011, Serial no. 107.88.00.177, control system by Heidenhain, type iTNC530, 5 axes, travel X/Y/Z 800 x 600 x 500 mm, rotary/swivel table 280 x 280 mm, electrospindle STEP TEC, max. speed 42,000 rpm, 68-position tool changer, tool holder HSK 40, 40-position electrode changer, extraction system by Extor, type 4500-SMPIP, cooling unit, enclosure, BLUM laser measuring system, tool and accessory package, 2 roller tables, 2-door sliding cabinet, contents: tool holders, setup tools +++ Attention: Machine is part of an online auction! +++ Crsdexugy Dopfx Af Hsk

Condition: ready for operation (used), Year of construction: 2004, operating hours: 24,998 h, General Data Machine weight 6500 kg Control Unit Brand HEIDENHAIN Model ITNC530 Codpfx Aexzlq Isf Hsrk Main Drive Spindle speed range 24000 Tool taper HSK-A63 Number of axis 3 This 3-axis MIKRON HSM 800 was manufactured in 2004. It features a 24,000 rpm spindle, HSK A 63 interface, and ITNC530 control. Equipped with a tool changer, protective cabin, chip conveyor, and band filter system. Includes a pallet changer and vacuum docking table. If you are looking to get high-quality milling capabilities consider the MIKRON HSM 800 machine we have for sale. Contact us for more information about this machine. Application Types Milling

Condition: used, Year of construction: 1998, functionality: fully functional, machine/vehicle number: 13378, travel distance X-axis: 500 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, rapid traverse X-axis: 500 m/min, rapid traverse Y-axis: 400 m/min, rapid traverse Z-axis: 400 m/min, spindle speed (max.): 7,500 rpm, Working machine. Being Used every Day Crodpfxjxlikao Af Hok

Condition: used, Year of construction: 2005, travel distance X-axis: 1,020 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 600 mm, controller model: Heidenhain iTNC 530, total height: 2,770 mm, total length: 3,300 mm, total width: 2,687 mm, The Micron VCE 1000 Pro is a powerful and precise CNC machining center designed for demanding milling tasks. With travel distances of 1020 x 560 x 600 mm, it enables flexible machining of medium-sized workpieces. The machine is equipped with a Heidenhain iTNC 530 control, an ISO 40 tool taper, and a spindle speed of up to 10,000 rpm, making it ideal for high-precision, high-speed machining. Cjdpfx Aoxyig Rsf Herk The robust table with a 1000 x 560 mm T-slot area supports workpieces up to 1,350 kg. Fitted with a chip conveyor, coolant pump, and a 18.5 kW motor, the VCE 1000 Pro offers a reliable combination of power and precision.

Condition: used, Year of construction: 2015, x-travel 1.200 mm y-travel 600 mm z-travel 675 mm Control C 620 HSCI FS table-size 1.220 x 620 mm 40 fach Distance between table and spindle 735 mm turning speeds 10.000 U/min spindle drive 18 kW Internal cooling system 30 bar -Electronic steering wheel. Codpfx Aox Ak Hdjf Hsrk -LINEAR RULES. -Laser probe measuring tools. -Preparation for piece measuring probes. PROBE NOT INCLUDED.

Condition: excellent (used), Year of construction: 2004, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 380 mm, Description WE OFFER VERY NICE CONDITION - MIKRON WF3 S technical details: X-travel longitudina 500 mm Y-travel cross 500 mm Z-travel vertical 380 mm spindle speed 12-steps 50-2240 UpM /rpm feed 1-750 mm/min spindle taper SK40 table size 800x445 mm drive capacity 7kW weight 1650 kg FOR MACHINE WE ALSO ORGANIZE TRANSPORT FOR OUR CLIENT Specifications Manufacturer MIKRON SWITZERLAND Model WF3 S Condition Used Cjdpfevlaw Usx Af Hjrk
