Used Mikron Milling Machine for sale (187)

Condition: used, Year of construction: 1985, x-travel 500 mm y-travel 500 mm z-travel 350 mm table surface area 800 x 450 mm spindle taper: ISO 40 Codjtv Ia Tspfx Af Hsrk quill stroke mm feed - longitudinal/cross mm/min feeds vertical mm/min turning speed range max. 3150 U/min voltage 380 V / 50 Hz power capacity 4 kW weight of the machine ca. 1,7 t dimensions of the machine ca. 2,5 x 2,3 x 2,0 m • HEIDENHAIN TNC 155 - control, • with electrical hand wheel, • several tool tapers, • new set of bevel gears,

Condition: good (used), Mikron WF31D Precision milling and drilling machine Machine with chip and splash guard cabin Equipped with a Heidenhain TNC355 control system Technical specification The WF 31 D is a precision milling and drilling machine for series production and CNC training. Driven by an automatically shiftable stepped gearbox and Poly-V-belt. Vertical spindle can be extended by 90 mm; changeover from vertical to horizontal machining possible. Recirculating ball screws with DC drives enable simultaneous feed movements. Guides are protected against dust, chips and coolant. Technical data Manufacturer: Mikron Type WF31D Control: Heidenhain TNC 355 Longitudinal movement (X): 560 mm Transverse movement (Y): 500 mm Vertical movement (Z): 400 mm. Drive power: 3.3/4.0 kW Speed range: 40-4000 rpm. Feed speed: 2-3000 mm/min Rapid traverse speed X/Y: 6000 mm/min, Z: 5000 mm/min. Codpfx Afswiucfj Herk Electrical equipment Total installed rated power: 10.0 kW installed effective power: 7.3 kW. Operating voltage: 3 x 380 V - 50/60 Hz Protection class: IP 54. Max. permissible ambient temperature: +35 °C Relative humidity: 75 %. Dimensions and weights Width 2450mm Length 2800mm Height 2000mm Net weight of the machine: approx. 2570 kg. Further articles - new and used - can be found in our store! International shipping costs on request!

Condition: used, Year of construction: 1982, x-travel 400 mm y-travel 400 mm z-travel 380 mm total power requirement 2,6 kW weight of the machine ca. 1,5t t Csdpfx Aeu U Sabjf Hsrk

Condition: ready for operation (used), Year of construction: 1995, functionality: fully functional, machine/vehicle number: 5.47.07.02, feed length X-axis: 600 mm, feed length Y-axis: 500 mm, feed length Z-axis: 450 mm, rotational speed (max.): 6,300 rpm, number of slots in tool magazine: 44, TECHNICAL DETAILS Drive power at 44% duty cycle: 9 kW Drive power at 100% duty cycle: 6 kW Max. torque: 52 Nm Machining spindles (vertical and horizontal) Max. torque at the spindle at 44% duty cycle: 800 Nm Number of gear stages: 4 Speed range adjustable (vertical and horizontal): 10 – 6,300 rpm Tool holder / Pull stud: SK 40 / DIN 69871 Max. tool weight: 13 kg Tool diameter: 130 mm Pull force: 10,000 N Ejector force: 3,500 N Travel paths in automatic mode Longitudinal movement, spindle feed (X-axis): 600 mm Cross movement, spindle slide (Y-axis): 500 mm Vertical movement, spindle slide (Z-axis): 450 mm Feed drive (AC) Feed rate programmable X / Y axis: 0 – 15,000 mm/min Feed rate programmable Z axis: 0 – 12,000 mm/min Rapid traverse speed X-/Y-axis: 15,000 mm/min Rapid traverse speed Z-axis: 12,000 mm/min Coolant Coolant tank capacity: 150 l Flow rate: approx. 20 l/min Noise emission Sound power: 75 dB(A) Clamping table Table size: 530 × 900 mm Number of T-slots: 4 T-slot width: 14 H7 Table load capacity: 400 kg Tool changer TCD 44 Tool stations: 2 × 22 Tool diameter: 80 / 130 mm Tool length (max.): 350 mm Tool weight (max.): 6 kg Workpiece weight max. in drum magazine: 200 kg Chip-to-chip time: 20-25 s Tool change time: 12 - 16 s MACHINE DETAILS Total weight with protective enclosure: 3,000 kg Total weight with cabin roof: 3,100 kg Crodpfx Afswm I N Ho Hjk Ambient conditions Max. permissible ambient temperature: 35 °C Max. permissible relative humidity: 75 % Electrical connection data Total installed nominal power: 15.8 kW Utilized and connection power: 12.3 kW Operating voltage and frequency: 3 × 400 V / 50 Hz

Condition: good (used), Year of construction: 1990, 1 used universal tool milling machine made by Mikron type WF 2 SA year 1990 Cjdpferywgzsx Af Hsrk with Heidenhain active digital readout TNC 114 Stepless feed Lamp Coolant device Travel X / Y / Z 420 / 250 / 345 mm Speed 50 - 2240 rpm Clamping surface 635 x 250 mm Feed in 3 axes 0 - 750 mm/min Rapid traverse in 3 axes 1400 mm/min Holder ISO 40 Vertical / horizontal quill extendable Dimensions approx. 1.2 x 1.2 x 1.6 m Weight approx. 1200 kg

Condition: used, Year of construction: 1981, x-travel 800 mm y-travel 500 mm z-travel 460 mm table surface area 1000 x 500 mm spindle taper SK 40 control HEIDENHAIN TNC 150 spindle turning speed range 31,5 - 3150 U/min feeds longditudinal/cross/vertical 1 - 3000 mm/min rapid traverse longitudinal and cross 6 m/min rapid traverse vertical 4 m/min quill stroke 110 mm distance spindle nose and table max. 559 mm table load capacity max. 500 kg total power requirement 14 kW weight of the machine ca. 3,1 t Cjdpfotqqplox Af Herk dimensions of machine L x W x H 2,15 x 1,8 x 2,15 m Accessories: vertical head with hydr. tool clamping and quill retraction, solid table, coolant

Condition: used, Heidenhain Active - Digital Display Stepless feed Codpecmzzgofx Af Hjrk Lamp Cooling device Travel X / Y / Z 420 / 250 / 345 mm Speed 50 - 2240 rpm feed in 3 axes 0 - 750 mm/min Rapid traverse in 3 axes 1400 mm/min ISO 40 mounting vertical / horizontal quill extendable Dimensions approx. 1.2 x 1.2 x 1.6 m

Condition: used, Year of construction: 1980, x-travel:500 mm y-travel:500 mm z-travel:400 mm turning speed range:30 - 2240 U/min feeds -stepless-:1 - 750 mm/min rapid traverse:1500 mm/min table surface area:400 x 800 mm tool taper:SK 40 Crodpfx Aecxxq Dsf Hsk total power requirement:7,8 kW weight of the machine ca.:1.8 t dimensions of the machine ca.:2,1 x 1,6 x 2,2 m

Condition: good (used), Mikron milling machine WF2/35 - Width: 120 cm - Depth: 140 cm - Height: 180 cm Good condition, fully functional, can be viewed and tested on site. Shipping also abroad. Codsum Rpyjpfx Af Hsrk Inspection : Basically, I would like to point out that the item can be inspected and tested under power before purchase to avoid misunderstandings. Please ask questions before buying to avoid any ambiguities. For general questions or to make an appointment for a viewing, I can be reached at any time at the telephone number below or above. Errors in the description and prior sale reserved. VAT is shown separately on my invoices. Shipping with forwarding agent.

Condition: used, control: Heidenhain TNC 155 tool taper: SK 40 quill stroke: 110 mm table size: 1000 x 500 mm travel: x-710, y-500, z-460 mm Crjdpsc Tt Hrefx Af Hok spindle speed: 31,5-3150 rpm accessories: angle table, coolant equipment, div. retainers

Condition: good (used), functionality: fully functional, 1 used tool milling machine Micron brand Type WF 2/3 DP with Heidenhain Type 135 linear motion control Travel X/Y/Z 400/410/400 mm Table clamping area 800 x 450 mm Speed 30 – 2240 rpm Credpfov N Dzfjx Af Hek Feed rates 1 – 750 mm/rev Rapid traverse 2000 mm/min Tool holder ISO 40 Machine weight approx.: 1.4 t Space required approx.: 2.1 x 1.6 x 2.2 m

Condition: used, Year of construction: 1989, machine/vehicle number: 6766, x-travel:560 mm y-travel:500 mm z-travel:400 mm table-size:900 x 530 mm control:Heidenhain TNC 355 B/Q tool taper:ISO 40 / M 16 turning speed range:40 - 4000 U/min rapid traverse X-axis:6 m/min rapid traverse Y-axis:6 m/min rapid traverse Z-axis:5 m/min feeds x/y/z -stepless:2 - 3000 mm/min total power requirement:9 kW weight of the machine ca.:2,6 t dimensions of the machine ca.:2,6 x 1,8 x 2,2 m Credpfxscxxpqs Af Hek

Year of construction: 1997, condition: used, Price: On request - Year: 1997 - Documentation available: No - CE certificate present: No - Drive system: CNC - Power [kW]: 22.0 - Number of axes [pcs]: 3 - X-axis travel [mm]: 1000 - Y-axis travel [mm]: 750 - Z-axis travel [mm]: 750 - Tool holder: ISO40 - Max. spindle speed [rpm]: 12000 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Codjwnh Hhepfx Af Hjrk Lukas van Rossum

Condition: used, Empty weight: 2.000 kg Dimensions (LxBxH): 245 x 210 x 186 cm - Documentation available: Yes - CE certificate present: No - Drive system: CNC - Number of axes [pcs]: 3 - X-axis travel [mm]: 560 - Y-axis travel [mm]: 500 - Z-axis travel [mm]: 560 - Table length [mm]: 750 - Table width [mm]: 425 - Tool holder: ISO40 - Min. spindle speed [rpm]: 40 - Max. spindle speed [rpm]: 4000 - Options: Digitale uitlezing - └ Type of digital readout: Heidenhain TNC 114 - Transport dimensions: 2450mm x 2100mm x 1860mm (l x w x h) - Transport weight [kg]: 2000kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum Crodpfswnhqtjx Af Hok

Condition: excellent (used), Mikron Gear Hobbing Machine A33/0 – for Module 0.5 to 2.5 – rarely used Manufacturer: Mikron Model: A33/0 – Gear Hobbing Machine (vertical) Version: Base machine with standard milling head Condition: used, very good condition, machine has been rarely operated Color: green Technical Data Max. workpiece diameter: approx. 80 mm Max. hobbing length: approx. 150 mm Module range: approx. 0.5 – 2.5 Ideal for small gears in the module range 0.5 – 1.0 Main drive: 3 kW Electrical connection: 3 x 380 V AC, 50 Hz Total power consumption: approx. 9.5 kVA Dimensions & Weight L x W x H: approx. 1,450 x 1,380 x 2,080 mm Weight: approx. 2,200 kg Special Features Very well-suited for manufacturing small gears (module 0.5 – 1.0) Machine was rarely used in production, therefore minimal wear Availability / Service Detailed photos and operating video available upon request Quotation including price, delivery terms, and lead time possible Subject to prior sale and errors. Csdpfx Afsx A D Ize Hsrk

Condition: good (used), Year of construction: 2005, functionality: fully functional, travel distance X-axis: 600 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 450 mm, CNC control Heidenhain iTNC530 NC swivel-rotary table (B-axis and C-axis) pallet changing device with 7 places 300mm x 300mm 30-fold automatic tool changer electronical hand wheel coolant through spindle device (IKZ) chip conveyor Crjdpfxovmqkuo Af Hjk coolant device Technische Daten / technical details: Verfahrweg X / X-Travel 600 mm Verfahrweg Y / Y-Travel 450 mm Verfahrweg Z / Z-Travel 450 mm B-Achse Schwenktisch / B-axis swivel table -115 / +30 ° C-Achse Rundtisch / C-axis rotary table 360 ° Tischgröße / table size 300 x 300 mm Werkzeugschaft / spindle taper HSK 63 Drehzahlbereich / spindle speed 20-20000 UpM /rpm Werkzeugwechsler / tool changer 30 fach /fold Gewicht der Maschine ca. / weight ca. 7700 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

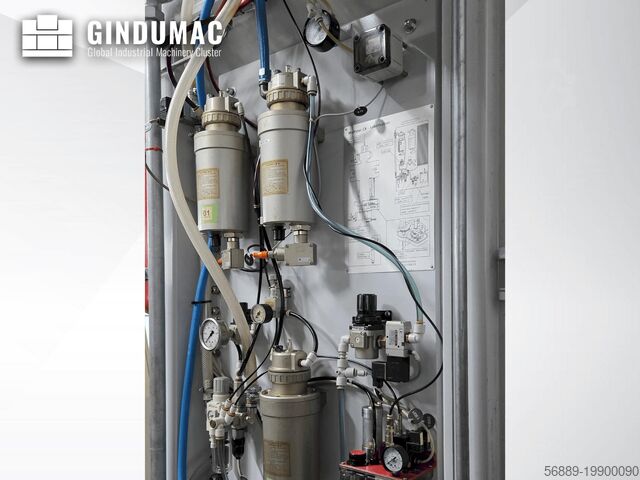

Condition: used, MIKRON Multistar CX-24 / 1500 is a Rotary transfer machine of high precision, engineered for superior accuracy and reliability. Capacities: 24 stations; max. no. of upper stations 23, lower 22, side 22; workpiece diameter up to 24 mm; production 70 pce/min (multiple-cycle 280 pce/min). Key specs: spindle speeds 500–32,000 t/min; voltage 50 Hz 3x 400 V; air connect 6 bar; machine weight ~3500 kg; control cabinet ~1200 kg. Capable of achieving tight tolerances; typical applications include automotive, aerospace, medical, watchmaking and machine tools Cedpfsxx U A Uox Af Hjrk

Condition: used, x-travel 450 mm y-travel 400 mm Crjdexv D U Ispfx Af Hek z-travel 400 mm Control Heidenhain TNC 355 turning speed range 40 - 4000 U/min number of speeds 21 tool taper ISO 40 quill stroke 90 mm feed speeds 2-3000 mm/min rapid traverse longitudinal and cross 6000 m/min rapid traverse Z-axis 5000 m/min distance spindle nose and table 450 mm table travel 495 mm table surface area vertikal 300 x 450 mm fixed clamping table 460 x 800 mm max. loading 350 kp dimensions ca. 3150 x 1800 x 2125 mm weight - pallet system ca. 2380 kg weight of the machine ca. 2,4 t incl. variois tool holders SK 40 manual included

Condition: used, Year of construction: 2015, Serial no. 72.83.015, control unit by Heidenhain, model ITNC530, 5 axes, travel X/Y/Z 1,350 x 1,170 x 700 mm, swivel spindle, CNC rotary table, motor spindle by Steptec, max. speed 24,000 rpm, 3-position pallet changer, pallet size 1,000 x 850 mm, 238-position tool magazine, 5 levels, HSK 63 tool holder, belt filter by BMF, high-pressure coolant system, enclosure, infrared measuring probe by Renishaw, tool and accessory package: tool container with 4 drawers, single-door, 2 table carts, telescopic drawer cabinet with 11 drawers, contents: HSK 63 tool holders, FCS Breil zero-point clamping system, 3 grid plates, 25 mm grid, setup tools, accessories. Cedpfxjxug Dis Af Hork +++ Important: Machine is part of an online auction! +++

Condition: good (used), Condition: Used Stock number: 968859 State: Good Maximum diameter: 100 mm (4") Maximum length: 100 mm (4") Number of teeth: 6-400 Maximum pitch in steel: 15 D.P. 12 indexing tables Geometrically calibrated between 200 and 2,400 rpm Feed: Horizontal cut or plunge cut Main motor: 1.5 HP Coolant pump motor: 0.1 HP Codpfsxlabiox Af Hjrk Hydraulic system motor: 0.1 HP Dimensions: 1120x1120x1680 mm Machine weight: 500 kg

Year of construction: 2009, condition: ready for operation (used), General Data Machine weight 3000 kg Main Drive Spindle speed range 500 – 32000 rpm Tools Number of station 24 Additional Equipment Environmental conditions: +10 °C to +40 °C, max. humidity 50% at 40 °C, 90% at 20 °C, max. altitude 1000 m a.s.l. Machine lifetime: 20 years General Data Crsdpfx Afow Ulz Io Hsk Machine weight 3000 kg Main Drive Spindle speed range 500 – 32000 rpm Tools Number of station 24 Additional Equipment Environmental conditions: +10 °C to +40 °C, max. humidity 50% at 40 °C, 90% at 20 °C, max. altitude 1000 m a.s.l. Machine lifetime: 20 years This MIKRON Multistar CX-24/500R was manufactured in 2009. It features a high production capacity with up to 280 pcs/min in multiple cycles and a main motor power of 2.2 kW. The machine accommodates a maximum workpiece diameter of 24 mm with swivel clamp and operates efficiently with a spindle rotation speed up to 32,000 rpm. Ideal for high-volume production environments. Contact us for more information about this machine. Application Types Other Machine Tools

Condition: good (used), Year of construction: 1997, travel distance X-axis: 1,000 mm, travel distance Y-axis: 750 mm, travel distance Z-axis: 750 mm, CNC control Heidenhain TNC426 30-fold tool changer electronical handwheel chip screw coolant device Technische Daten / technical details: Verfahrweg X / X-Travel 1000 mm Verfahrweg Y / Y-Travel 750 mm Verfahrweg Z / Z-Travel 750 mm Tischgröße / table size 1150x700 mm Werkzeugschaft / spindle taper SK40 Crodpfsua S Hrjx Af Hek Drehzahlbereich / spindle speed 12000 UpM /rpm Anzahl der Werkzeugplätze / tool places in ATC 30 Gewicht der Maschine ca. / weight ca. 10500 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: used, MIKRON Multi X P-16 is a rotary transfer machine engineered for precision, high accuracy and reliability. It has 16 stations and spindle speeds up to 20,000 t/min. Main specs: 50 Hz 3x400 V, total power 45 kW, weight ≈19,000 kg. Accessories: coolant system, lamp, oil-mist extractor, loading/pick-up attachments, chip conveyor. Enables tight tolerances; typical applications: automotive, aerospace, medical, watchmaking and machine tool industries. Crodpfx Ajxx Uvzsf Hek

Condition: good (used), Year of construction: 1991, weight of the machine ca. ca. 6 t The design of the basic machine is characterised by the following features: - horizontal position of the workpiece spindle; vertical position of the milling spindle or milling head of the milling head - The workpiece is held between the workpiece headstock (left) and the tailstock (right). - the radial slide is mounted on the base (X-axis) - the axial slide moves on the radial slide (Z-axis) - the shift milling head is equipped with an automatic angle adjustment (A-axis); the shift slide (Y-axis) moves diagonally to the workpiece diameter - CNC controlled - IBH control - loading device - Many accessories Technical data: - largest milling module with hobs according to DIN 8002: 4.5 mm - largest milling module for high-performance milling: 3.0 mm - Number of teeth: 2 - 999 - max. workpiece diameter for manual loading: 200 mm - max. workpiece diameter for automatic loading: 150 mm - maximum workpiece length: 400 mm - largest / smallest milling cutter diameter: 102/40 mm - maximum cutter length: 230 mm - largest / smallest milling arbor diameter (standard): 32/16 mm - Axial slide path = largest milling length Z-axis: 300 mm - Radial slide path X-axis: 140 mm - Milling cutter shift path Y-axis: 100 mm - Milling stock path W-axis: 420 mm - Swivelling angle of shift milling head (left/right) A-axis: 50°/60° Crjdpfeub Amfsx Af Hsk Milling coordinates: - Z-axis: 100 - 400 mm - X-axis: 1ß0 - 150 mm - Y-axis (end face of milling spindle): 50 - 230 mm - W-axis (face of tailstock spindle): 165 - 585 mm - Milling cutter speed range standard B-axis: 0 - 1500 rpm - Workpiece speed C-axis: 0 - 350 rpm Feed speeds: - X-axis: 3500 mm/min - Z-axis: 3500 mm/min - Y-axis: 4000 mm/min - W-axis: 5500 mm/min - V-axis (gantry loader): 80000 mm/min

Condition: good (used), ⚙️ Mikron Gear Hobbing Machine Type 132-02 (M23) – Now available at our facility in Ireland: Mikron Gear Hobbing Machine Type 132-02 (M23) in very good condition. This precision Swiss-made machine is ideal for the production of small gears, toolrooms, and manufacturers seeking reliable, high-precision gear cutting capabilities. Mikron is renowned for its robust construction and long-lasting performance in gear hobbing applications, making it an outstanding solution for hobbing spur gears, helical gears, and splines with consistent accuracy. Condition: Used Stock number: 968859 State: Good Maximum diameter: 100mm (4") Maximum length: 100mm (4") Number of teeth: 6–400 Maximum pitch in steel: 15 D.P. 12 table revolutions Credsxlabcspfx Af Hsk Geometrically calibrated between 200 and 2,400 rpm Feed: Horizontal or plunge cutting Main motor: 1.5 HP Coolant pump motor: 0.1 HP Hydraulic system motor: 0.1 HP Dimensions: 1120 x 1120 x 1680 mm Machine weight: 500 kg
