Used Mori Seiki Cnc Lathe for sale (190)

Condition: ready for operation (used), Year of construction: 2006, General Data Measurements width 3755 mm Measurements depth 2300 mm Measurements height 2610 mm Machine weight 9600 kg Main Drive Spindle speed range 14000 rpm Tool taper 7/24 Taper No. 40 Number of axis 4 Movement X-Axis Movement 560 mm X-Axis Rapid Traverse 50000 mm/min Y-Axis Movement 560 mm Y-Axis Rapid Traverse 50000 mm/min Z-Axis Movement 630 mm Z-Axis Rapid Traverse 50000 mm/min Table Outer length 400 mm Outer width 400 mm Table load 400 kg This 4-axis MORI SEIKI NH 4000 DCG was manufactured in 2006 and features a horizontal machining centre with only 1,300 hours on the main spindle, which was overhauled in April 2022. If you are looking to get high-quality milling capabilities, consider the MORI SEIKI NH 4000 DCG machine we have for sale. Contact us for more information. Application Types Milling Gbjdpfox D D U Rex Aa Iog

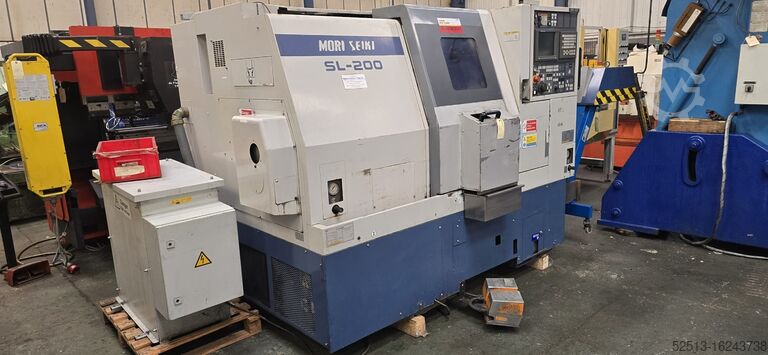

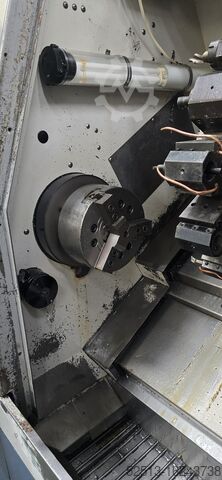

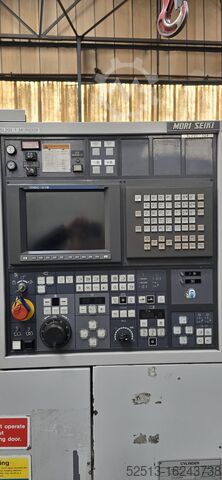

Condition: used, Year of construction: 1998, MORI SEIKI SL-200 SMC, 4- AXIS TURN MILL CENTRE MAKE MORI SEIKI, MADE IN JAPAN MODEL SL-200 SMC YEAR 1998 CONTROL FANUC MSD- 518 (18-T) MAX. TURNING DIA. 390mm MAX. TURNING LENGT 507mm SWING OVER BED 680mm OVER CROSS SLIDE 510mm BAR WORK CAPACITY 51.0mm Gbjdpstt Da Iefx Aa Isg MAX. SPINDLE SPEED 0--4000rpm TURRET 12 stations, ALL DRIVEN stations TAILSTOCK YES SPINDLE BORE 65mm POWER TOOL SPEED (C-AXIS) 67- 3000rpm SPINDLE NOSE A8 (TBC) RAPID TRAVERSE RATE X: 18,000mm/min & / Z: 24,000mm/min ELECTRICAL POWER SUPPLY 37.9kVA MACHINE FLOOR SPACE 2650.0 X 1900.0 mm MASS OF MACHINE 4500 KGS PLUS 4- AXIS MACHINE SUB SPINDLE RENISHAW TOOL SETTING PROBE SWARF CONVEYOR GOOD RANGE OF TOOLING MACHINE MANUALS SWARF BIN MIST EXTRACTOR VERY CLEAN

Condition: used, Year of construction: 1999, x-travel 560 mm y-travel 510 mm z-travel 510 mm control Fanuc MSC 501 (Fanuc 16i) spindle speeds 10000 U/min spindle drive 22 kW rapid travel x/y/z 32 mm/min Number of tool station 40 SK40 Pallet dimension 2 x 400x400 mm table load 0,5 t table index 1 ° Gbjdpexyabxjfx Aa Iog total power requirement 56 kVA weight of the machine ca. 8,7 t dimensions of the machine ca. 2,9x4,1x3 m Control Fanuc MSD 501, 40 tool stations, it has trough spindle coolant, chip conveyor and two paletts.

Condition: good (used), Year of construction: 1990, CNC Machining Center Manufacturer: MORI SEIKI Model: Partner M300 A-1 Year of manufacture: 1990 Control: FANUC O-M Travels: X/Y/Z: 400 x 300 x 495 mm Distance between spindle center and pallet table (Y-axis): 25 – 325 mm Distance between spindle nose and pallet table (Z-axis): 125 – 620 mm Gbedot Rg E Sopfx Aa Isg Rapid traverse: 24 m/min Feed rate: up to 5 m/min Spindle: Ball screw spindle: 36 mm diameter Feed drives: FANUC AC X/Y-axis Model 5, Z-axis Model 10 Main spindle speed: 100 – 6000 rpm Main spindle motor: AC 5.5 kW Main spindle taper: BT 40 Pallet: Pallet size: 315 x 315 mm Pallet indexing angle: 7.5 degrees Indexing accuracy: +/- 2 seconds Repeatability: +/- 1 second Pallet clamping force: 3,400 kg Max. workpiece weight: 150 kg Automatic Tool Changer: Number of tools: 30 Tool change time: 2.5 sec Collet clamping time: 7 sec Max. tool diameter: 110 mm Max. tool length: 250 mm Max. tool weight: 8 kg Special accessories: Work completion indicator with signal lamp Magazine for 30 tools Operating hours counter Tool life monitoring Coolant system Work area lighting Weight: approx. 4,500 kg Footprint: 1,900 x 2,300 mm 101225ä

Condition: used, BAZ Mori Seiki NV5000A/40 is available for sale. The machine can be inspected under power! Gjdpsxy I Itefx Aa Ijbg

Condition: used, MORI SEIKI NH 4000 DCG is a Horizontal machining center by MORI SEIKI designed to deliver precision, high accuracy and operational reliability. Working capacities (travels, diameters, workpiece lengths) are not provided. Main technical specifications (spindle speeds, feed rates, power supply, dimensions, weight) are not provided. Accessory and equipment details are not specified. Built to achieve tight tolerances, suitable for automotive, aerospace, medical, watchmaking and machine tool applications Gbsdpfxjxykrbs Aa Ieg

Condition: good (used), Year of construction: 1997, functionality: fully functional, travel distance X-axis: 510 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 510 mm, CNC control MSC 803 25-fold automatic tool changer coolant device Technische Daten / technical details: Verfahrweg X / X-Travel 510 mm Verfahrweg Y / Y-Travel 510 mm Verfahrweg Z / Z-Travel 510 mm Tischgröße / table size 750x550 mm Drehzahlbereich / spindle speed 8000 UpM /rpm Anzahl der Werkzeugplätze / tool places in changer 25 fach Spindelaufnahme / spindle taper BT40 Gewicht der Maschine ca. / weight 4500 Kg Gedpewhkcxefx Aa Iobg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: used, Year of construction: 2000, travel distance X-axis: 600 mm, travel distance Y-axis: 430 mm, travel distance Z-axis: 460 mm, MORI SEIKI SV-400 WITH 4TH AND 5TH AXIS VERTICAL MACHINING CENTRE MAKE MORI SEIKI, MADE IN JAPAN MODEL SV-400 YEAR 2000 CONTROL MORI FANUC MSC 501 TABLE SIZE 900.0 x 500.0 mm TRAVERSES (XYZ) X: 600.0 mm Y: 430.0 mm Z: 460.0 mm SPINDLE SPEED Up to 12,000 rpm SPINDLE TAPER BT 40 ATC 30 STATIONS RAPID TRAVERSE XYZ: 32,000 mm/min FEEDRATE 1-16000mm/min PLUS Gjdpetvau Hjfx Aa Iobg NIKKEN 4th and 5th AXIS UNIT RENISHAW PROBBING TWIN SWARF CONVEYOR COOLANT SYSTEM

Condition: good (used), Year of construction: 2005, MACHINE SPECIFICATIONS CNC controller: MSX-501 Axes X-axis travel mm: 630 Y-axis travel mm: 600 Z-axis travel mm: 670 B-axis degrees: 360º (0.001º index) Gbodpfxexq Hcwo Aa Ieg Feed rates m/min: 50 Rapid traverse m/min: 50 Worktable Number of pallets: 2 Table dimensions mm: 500x500 Maximum workpiece size (D x H) mm: ø800x1,000 Max. workpiece weight kg: 500 Spindle Spindle speed rpm: 8,000 Spindle drive power kW: 18.5/22 Tool system Tool holder: ISO-50 Tool magazine slots: SK50 Equipment Chip conveyor Signal lamp High-pressure pump Internal coolant supply

Condition: used, Year of construction: 2008, Technical details: x-travel: 1400 mm y-travel: 1200 mm z-travel: 1350 mm control: MSX- 701 Mapps III table surface area: 800 x 800 mm rapid traverse: 50 m/min table rotating: 360.000 x 0,001 B-Achse ° table load: 2,0 t numbers of pallets: 2 turning speed range: 8000 1/min power capacity - milling spindle: 37 kW no. of tools in the magazine: 60 Stück tool taper: HSK-A 100 weight: 31 t dimensions: 5,5 x 2,8 x 3,68 m Equipment: - Thru-the-spindel coolant system Mayfran Consep 2000 70 bar with chipconveyor - Helical cutting + Synchronized tapping - storage 1 MB - Big Plus spindle - Knoll filter system - mechanical Oil dust collector - elect. hand wheel - renishaw - abso- scale i X/Y/Z- axis - 5 free m- funktions - 48 extra off sets - dual ballscrews on X/Y/Z- axis Gjdpfxjwi Ibuj Aa Iobg *

Condition: used, Year of construction: 2006, functionality: fully functional, turning length: 1,000 mm, turning diameter: 400 mm, spindle bore: 56 mm, travel distance X-axis: 800 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 460 mm, rapid traverse Z-axis: 80 m/min, rotational speed (max.): 12,000 rpm, overall weight: 10,500 kg, fuel: electricity, number of slots in tool magazine: 40, Mori Seiki MT 1500 SX 9-axis milling and turning center, manufactured in 2006, with Fanuc Series 18iB (MSX-501) control, maximum chuck length of 920mm, maximum diameter of 400mm, bore size of 56mm, 4000 and 6000 rpm spindle rotation, and 12,000 rpm milling spindle. 12-position turret with live tools, Y axis, B axis +/- 120, C axis 0.001, ATC 40 tools, and chip extractor. In excellent working condition and can be seen working in Portugal. Gsdpfx Aaeh Elp Eo Iebg

Condition: used, Year of construction: 2011, travel distance X-axis: 1,400 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 1,350 mm, controller manufacturer: Fanuc, controller model: i 31A, workpiece weight (max.): 2,200 kg, table width: 800 mm, table length: 800 mm, table load: 2,200 kg, spindle nose: MAS BBT 50, CNC Control MSX-701 lV (Fanuc i 31A) Pallet table size 800 x 800 mm Number of pallets 2x Table load 2200 kg Godpfexnmftjx Aa Ijbg Movement X-axis 1400 mm Movement Y-axis 1200 mm Movement Z-axis 1350 mm Table indexing 0,001° Spindle Taper MAS BBT 50 Spindle Speed 10 -8.000 R/min Spindle motor 37/30 kW Magazin capacity 100 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Year of construction: 2004, condition: good (used), You can check under power, after scheduling an appointment. Dismantling, moving and transporting the machine is entirely the customer's responsibility. We can help with loading as needed. Parity: EXW Székesfehérvár Gsdsidqwdepfx Aa Isbg

Condition: used, Year of construction: 2006, x-travel 600 mm y-travel 400 mm z-travel 400 mm control MSX 501 Mori Seiki table surface area 700 x 450 mm max. table load 350 kg number of T-slots 4 T-slot - width 18 mm T-slot - distance 100 mm Number of revolutions 12.000 U/min power capacity - main spindel 18,5 / 15 / 11 kW tool taper BT 40 max. Torque 110,5 Nm diameter of forward milling spindle bearing 70 rapid travel x/y/z 20.000 mm/min feed speeds 1 - 20.000 mm/min Tipp feed 15 Steps / 0 - 1.260 mm/min Number of Toolpositions in magazine 40 Pos. Max. mould width 80 mm max. tool-dia with free toolbox 125 mm max. tool length 250 mm Gbodpfx Ajv Az Ucea Isg max. tool weight 8 kg change-time chip to chip 2,8 sec change-time tool to tool 1,0 sec total power requirement 34 kVA weight of the machine ca. 7,2 t dimensions of the machine ca. 2,8 x 3,0 x 2,9 m Machining Center Vertical MORI SEIKI - NV 4000 DCG - ca. 14.000 Operating-Hours

Condition: good (used), Year of construction: 2003, CNC controller: MSX-501 Axes Gbsdoxq Hckjpfx Aa Isg X-axis travel mm: 630 Y-axis travel mm: 600 Z-axis travel mm: 670 B-axis degrees: 360º (0.001º indexing) Feed rates m/min: 50 Rapid traverse m/min: 50 Worktable Number of pallets: 2 Table dimensions mm: 500x500 Maximum workpiece size (D x H) mm: ø800x1,000 Max. workpiece weight kg: 500 Spindle Spindle speed rpm: 8,000 Spindle drive power kW: 18.5/22 Tool system Tool holder: ISO-40 Tool magazine slots: 60 Equipment Chip conveyor Signal lamp High-pressure pump Internal coolant supply

Condition: like new (used), Year of construction: 2010, CNC controller: FANUC FS-31iA5 (MAPPS 4) Capacity X-axis travel mm: 685 Y-axis travel mm: 125 Z-axis travel mm: 1075 Turning length mm: 1045 Max. turning diameter mm: ø: 600 Bar work capacity mm: 65 Turn-mill spindle Godpfx Aswwuaaoa Ijbg Full indexing specifications: YES B-axis degree: 120º FULL INDEXING SPECIFICATION Speed spindle rpm: 12000 Drive power kW: 18.5/11 Tool magazine Magazine places: 80 Tool holder: CAPTO C5 Tool length max. mm: 250 Tool diameter max. mm: 70/130 Tool weight max kg: 5 Lower turret Number of tool slots St .: 12 Drive power driven tools kW: 5.5/3.7 Main spindle Speed spindle rpm: 5000 Drive power spindle kW: 25/22 (100%/40%ED) Spindle bore mm: 73 Chuck type: HOLLOW CHUCK (8") Manufacturer: KITAGAWA Counter spindle Speed spindle rpm: 5000 Drive power spindle kW: 25/22 (100%/40%ED) Spindle bore mm: 73 Chuck type: HOLLOW CHUCK (8") Manufacturer: KITAGAWA Equipment Electronic Handwheel Chip conveyor Swivel head Signal lamp High pressure pump Mist collector Workarea light CE conformity Chuck foot switch (double) for main and counter spindle Coolant gun Toolholders are not included Precision NC rotary table, rapid traverse and feed rate 100 1/min incl. direct measuring system Oil skimmer Linear scales Gantry loader LG-10 AII RENISHAW MP700 Working time hours Under power: 76.510 Spindle 1: 11.521 Spindle 2: 9.271 Potencial nominal kVA: 102 Basic machine dimensions / weight Length mm: 8.000 Width mm: 4.000 Height mm: 3.000 Weight kg: 15.000

Condition: good (used), Year of construction: 2008, operating hours: 30,000 h, functionality: fully functional, On offer here is a horizontal machining center from the manufacturer Mori Seiki NH 8000 DCG. The machine is in good condition and can be inspected. Make: Mori Seiki Type: NH 8000 DCG Year of manufacture: 2008 Control system: Fanuc MSX-701III Technical Data: Travels: X-axis 1400 mm Y-axis 1200 mm Z-axis 1350 mm B-axis rotary table 360x0.001° automat. Tool changer with 60 tool places HSK 100 tool holder Gsdpoqu T N Aofx Aa Iebg 2-fold pallet changing system Pallet dimensions 800 mm x 800 mm max. tool length 800 mm max. tool weight 30 kg spindle power 37 KW Max. Spindle speed 8000 rpm IKZ cooling system

Condition: refurbished (used), Year of construction: 1996, functionality: fully functional, travel distance X-axis: 420 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 250 mm, rapid traverse X-axis: 48,000 m/min, rapid traverse Y-axis: 48,000 m/min, rapid traverse Z-axis: 48,000 m/min, controller model: Mitsubishi Meldas MSC-802M, The MORI SEIKI TV-30 is a compact and precise vertical machining center, designed for drilling, tapping, and milling operations on small components. Manufactured in 1996, it is equipped with a Mitsubishi Meldas MSC-802M control and features characteristics ideal for high-speed light machining work, with an automatic tool changer and a well-sized table relative to its compact footprint. General Technical Data Brand: MORI SEIKI Model: TV-30 Category: Vertical Machining Centers Year of manufacture: 08-1996 CNC Control: Mitsubishi Meldas MSC-802M Machine weight: 2 tons Machine Dimensions: Length: 1,200 mm Width: 1,720 mm Height: 2,260 mm Spindle Spindle speed: 8,000 rpm Spindle motor power (cont./30 min): - 3.7 / 2.2 kW (continuous) - 5.5 / 3.7 kW (30 min) Machining Capacity X-Axis travel: 420 mm Y-Axis travel: 300 mm + 60 mm Z-Axis travel: 250 mm Maximum drilling diameter: 13 mm Maximum tapping diameter: M12 Table Table size: 600 x 340 mm Table load capacity: 150 kg Gbjdpexfaw Djfx Aa Iog Feed Rates Rapid traverse X / Y / Z axes: 48,000 mm/min Working feedrates X / Y / Z in linear interpolation (max): 12,000 mm/min Manual feedrates: 0 – 1,260 mm/min Tool Changer Tool taper: BT-30 Shank: MAS-P30T-1 45° Tool magazine capacity: 10 stations Max. diameter of adjacent tools: Ø 80 mm Max. tool length: 200 mm Max. tool weight: 3 kg Other Equipment Manuals, Electrical Schematics and CE Declaration 100-liter coolant tank with pump Transformer

Condition: ready for operation (used), Year of construction: 1993, operating hours: 25,350 h, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 750 mm, spindle speed (max.): 6,000 rpm, spindle nose: BT50, number of spindles: 1, number of slots in tool magazine: 120, Equipment: chip conveyor, Tool breakage option included Gbedpfstqfk Nsx Aa Isg 7-pallet carousel NC FANUC MF-M6

Condition: used, Year of construction: 1999, x-travel 560 mm y-travel 510 mm Gbodpfx Aetqmt Tja Ieg z-travel 510 mm Control MSC 502 distance spindle center to table 50 - 650 mm distance Spindlenose and center of table 100 - 610 mm turning speed range - main spindle max. 12.000 min/-1 power capacity - main spindel 22 / 18,5 kW tool taper MAS BT-40 spindle bearing diameter 70 mm numbers of pallets 2 size of pallet 400 x 400 mm max. workpiecediameter 580 mm max. workpiece height 650 mm switching time 90°: 2,5 sec change time of pallets 6,0 sec number of toolpositions 60 pos. tool taper MAS BT-40 max. tool diameter 80 mm max. tool-dia with free toolbox 125 mm max. tool length 300 mm max. tool weight 8 kg change-time tool to tool 1,5 sec change-time chip to chip 3,7 sec rapid traverse ( X / Y / Z ) 32 m/min feed speeds 1 - 24.000 mm/min Tipp feed 0 - 1.260 mm/min total power requirement 63 kVA weight of the machine ca. 9,0 t dimensions of the machine ca. 5,5 x 4,5 x 2,7 m CNC - Machiningcenter Horizontal MORI SEIKI - SH 400

Year of construction: 2007, operating hours: 16,500 h, condition: good (used), functionality: fully functional, machine/vehicle number: NH631GF0405, LPP System (Linear Pallet Pool) automation system with 12 pallets only 16,500 spindle hours TECHNICAL DETAILS travel X / Y / Z: 1050 x 900 x 980 mm B-axis: 360 Control: MSX-701 Maps 3 speed: 8000 rpm tool holder: BT 50 number of tool places: 140 number of pallets: 12 table clamping surface: 630 x 630 mm table load: 1500 kg MACHINE DETAILS dimensions: 3,37 x 5,97 x 3,41 m weight: 19 t total power requirement: 64,7 kVA spindle hours: 16.500 Switch-on time: 127.000 Gbedpfx Aemfrtwoa Isg

Condition: excellent (used), Year of construction: 2006, travel distance X-axis: 730 mm, travel distance Y-axis: 730 mm, travel distance Z-axis: 850 mm, feed rate X-axis: 50 m/min, feed rate Y-axis: 50 m/min, feed rate Z-axis: 50 m/min, controller manufacturer: FANUC, controller model: FS-31IA (MAPPS III), workpiece length (max.): 1,000 mm, workpiece diameter (max.): 800 mm, workpiece weight (max.): 500 kg, total height: 3,138 mm, total length: 2,725 mm, total width: 4,610 mm, overall weight: 12,900 kg, spindle speed (max.): 14,000 rpm, number of slots in tool magazine: 120, tool length: 500 mm, CNC controller: FS-31IA (MAPPS III) Axes X-axis travel mm: 730 Y-axis travel mm: 730 Z-axis travel mm: 850 Rapid traverse m/min: 50 B-axis degrees: 360º (1º) Distance spindle nose - table surface mm: 100 – 830 Acceleration in the axes m/s2: 9.8 (X), 10.8 (Y), 6.9 (Z) Worktable Number of pallets: 2 Table dimensions mm: 500X500 Maximum workpiece size (D x H) mm: 800 X 1000 Max. workpiece weight kg: 500 Gbjdpevw Sc Tsfx Aa Iog APC time s: 7 Spindle Spindle speed rpm: 14.000 Spindle drive power kW: 22/18.5 Tool holder: No.40 Spindle torque Nm: 220 Tool system Tool holder: BT-40 Tool magazine slots: 120 With free neighboring places mm: 140 With occupied neighboring places mm: 70 Max. Tool Length mm: 500 Max tool weight kg: 12 Tool-to-tool time s: 0,9 Chip-to-chip time s: 3,3 Equipment Chip conveyor Workarea light CE conformity Coolant gun TOOL LIFE MANAGEMENT Cooling Tank capacity: 680 Machine running times Rated power kVA: 49 Basic machine dimensions / weight Length mm: 2.725 Width mm: 4.610 Height mm: 3.138 Weight kg: 12.900

Condition: used, Year of construction: 2007, x-travel 560 mm y-travel 560 mm z-travel 630 mm Control MSX 701 III MAPPS Max. rpm 14.000 min/-1 power capacity - main spindel 18,5 / 11 kW max. Torque 120 Nm tool taper MAS BT 40 distance spindle center to table 80 - 640 mm distance Spindlenose and center of table 100 - 730 mm numbers of pallets 2 size of pallet 400 x 400 mm max. workpiece weight 400 kg max. workpiecediameter 630 mm max. workpiece height 900 mm change time of pallets 6,0 sec b - axis 0,001 ° number of toolpositions 60 pos. tool taper MAS BT 40 max. tool diameter 70 / (140) mm max. tool length 400 mm max. tool weight 8,0 kg rapid traverse ( X / Y / Z ) 50 m/min feed speeds 0 - 50.000 mm/min Tipp feed 0 - 1.260 mm/min total power requirement 35 kVA weight of the machine ca. 9,8 t dimensions of the machine ca. 5,5 x 3,5 x 2,8 m CNC - Machiningcenter Horizontal MORI SEIKI - NH 4000 DCG - pallet-changer Gbodpfx Ajwbi Adoa Ijg - Control options Program restart, cylindrical and spiral interpolation High-speed milling cycles, island and pocket milling cycles

Condition: ready for operation (used), Year of construction: 2004, operating hours: 37,165 h, travel distance X-axis: 560 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 630 mm, rapid traverse X-axis: 50 m/min, controller manufacturer: FS-18IMB (MAPPS 2), workpiece height (max.): 800 mm, workpiece diameter (max.): 560 mm, workpiece weight (max.): 300 kg, table width: 400 mm, table height: 400 mm, table length: 400 mm, spindle speed (min.): 14,000 rpm, tool length: 400 mm, tool weight: 8,000 g, CNC controller: FS-18IMB (MAPPS 2) Axes X-axis travel mm: 560 Y-axis travel mm: 560 Z-axis travel mm: 630 Rapid traverse m/min: 50 Rotary Worktable (4th axis): FULL 4TH AXIS ROTARY TABLE Worktable Number of pallets: 3 Table dimensions mm: 400 Maximum workpiece size (D x H) mm: 560 x 800 Max. workpiece weight kg: 300 APC time s: 6 Spindle Spindle speed rpm: 14.000 Spindle drive power kW: 18.5/11 KW Spindle torque Nm: 120 Nm (10%ED) Tool system Tool holder: BT-40 Tool magazine slots: 120 With free neighboring places mm: 140 With occupied neighboring places mm: 70 Max. Tool Length mm: 400 Max tool weight kg: 8 Tool-to-tool time s: 0,9 Chip-to-chip time s: 2,8 Equipment Chip conveyor Signal lamp Gbsdpfx Aaowx Itvo Isg 4th axis Ready for internal cooling (40/80 bar) RENISHAW OMP60 CE Round pallet storage Measuring system (worktable) Cooling Tank capacity: 500 High-pressure bar: 70 Machine running times Under power: 135.042 Rated power kVA: 32,8 Operating Time: 37.165 Basic machine dimensions / weight Length mm: 4.004 Width mm: 2.397 Height mm: 2.711 Weight kg: 9.600

Condition: excellent (used), Year of construction: 2010, turning length: 800 mm, turning diameter: 430 mm, spindle motor power: 11,000 W, spindle speed (max.): 6,000 rpm, travel distance X-axis: 455 mm, travel distance Y-axis: 105 mm, travel distance Z-axis: 800 mm, rotational speed (max.): 12,000 rpm, total height: 8,500 mm, total length: 2,500 mm, total width: 2,495 mm, CNC controller: Fanuc FS31IA5 (MAPPS 4) Capacity Turning length mm: 800 Max. turning diameter mm: ø Ø430 Turn-mill spindle X-axis travel mm: 455 Gbsdpou Afizjfx Aa Ijg Y-axis travel mm: ±105 Z-axis travel mm: 800 B-axis degree: ±120 (0.001º) Speed spindle rpm: 12.000 Drive power kW: 9/5.5 Tool magazine Magazine places: 76 Tool holder: Capto C5 Tool length max. mm: 250 Tool diameter max. mm: 70/130 Tool weight max kg: 5 Lower turret X-axis travel mm: 160 Z-axis travel mm: 730 Number of tool slots St .: 10 Main spindle Speed spindle rpm: 6.000 Drive power spindle kW: 11/7.5 Spindle bore mm: 73 Chuck type: Hollow Chuck (8") Manufacturer: KITAGAWA Counter spindle Speed spindle rpm: 6.000 Drive power spindle kW: 7.5/5.5 Chuck type: Solid Chuck (8") Manufacturer: KITAGAWA Equipment Chip conveyor Signal lamp High pressure pump Chuck foot switch (double) for main and counter spindle Coolant gun Working time hours Under power: 76.482 Spindle 1: 14.010 Spindle 2: 4.306 Rated power kVA: 48 Basic machine dimensions / weight 4.170 Length mm: 2.500 Width mm: 2.495 Height mm: 8.500
