Used Okuma Cnc Lathe for sale (198)

Condition: ready for operation (used), Year of construction: 2005, operating hours: 23,082 h, functionality: fully functional, machine/vehicle number: 114599, turning length: 541 mm, turning diameter: 210 mm, travel distance X-axis: 192 mm, travel distance Y-axis: 50 mm, travel distance Z-axis: 700 mm, TECHNICAL DETAILS Machining specifications Turning length: 541 mm Turning diameter: 210 mm Axes and travels X-axis travel: 192 mm Y-axis travel: 50 mm Z-axis travel: 700 mm Spindle Spindle speed: 6,000 rpm Spindle motor power: 11 kW Feed Credpjw Ekruefx Af Hsk X-axis feed rate: 30 m/min Z-axis feed rate: 40 m/min MACHINE DETAILS Electrical data Supply voltage: 400 V Phases: 3 P Frequency: 50 Hz Operating hours On time: 92,265 h Spindle hours: 23,082 h Total weight: 8,000 kg EQUIPMENT Documentation/manual Chip conveyor Note: The machine will remain powered until the end of the auction, after which it will be dismantled.

Year of construction: 1998, condition: excellent (used), machine/vehicle number: 1728, CNC turret lathe Okuma LB15 immediately available The OKUMA LB 15 CNC lathe has been professionally serviced regularly since it was purchased and is in perfect technical condition. It has a hydraulic chuck with a diameter of 250 mm and a turret mount for 12 tools. The lathe spindle rotates at a speed of 70-3800 rpm and has a diameter of 75 mm. Specifications of the OKUMA LB-15 CNC lathe – CNC control: OSP 5000L-G CNC system (German) – Data transmission: RS232 – Tool turret: 12-position type BOLT ON – Lathe chuck: 250 mm – Spindle: 70-3800 rpm. (11 kW, 30 min; 7.5 kW – continuous operation) – non-continuous spindle – Spindle bore diameter: fi 75 mm (at a depth of 70 mm, measured from the face of the lathe chuck and without jaws) – Spindle bore diameter: fi 28 mm (at a depth of 200 mm, measured from the face of the lathe chuck and without jaws) – X-axis travel: 400 x 0.001 mm – Z-axis travel: 500 x 0.001 mm – Cutting speed XZ: 0.01-1000 mm / rev – XZ feed: 12,000 mm / min. – Power supply: 3 x 400V Codpfx Afem Ux A Ss Hsrk – Machine rated power: 21 kVA – maximum load current: 36A – Machine dimensions (width x depth x height): 2.9 (3.9 m with chip conveyor) x 1.8 x 1.72 m – Machine weight: 4500 kg NC control OKUMA OSP 5000 L-G very good repeatability with chip conveyor The machine can be inspected at any time Timely, insured delivery with forwarding agency possible Inexpensive financing / installment purchase possible

Condition: used, Year of construction: 1996, functionality: fully functional, travel distance X-axis: 260 mm, travel distance Z-axis: 1,020 mm, spindle motor power: 15 W, rapid traverse X-axis: 15,000 m/min, rapid traverse Z-axis: 20,000 m/min, OKUMA LB15II-MW CNC Turning Center The OKUMA LB15II-MW is a dual-spindle CNC turning center with a driven tool turret, designed to ensure high precision, flexible productivity, and complete machining in a single setup. Perfect for complex turning operations and series production. General data: Year of manufacture: 1996 CNC control: OKUMA OSP7000L Machine weight: 5,900 kg Dimensions (LxWxH): 3,315 x 1,895 x 1,905 mm Machining capacity: Max swing over bed: Ø530 mm Max turning diameter over cross slide: Ø340 mm Max turning length: 1,000 mm Distance between centers: 1,020 mm Spindle bar capacity: Ø62 mm Axes and travels: X axis: 260 mm Z axis: 1,020 mm C axis: 0.001° (full 360° continuous control) Spindles: Main Spindle: Speed: 45 – 4,500 rpm Spindle nose: ASA A2-6 Power: 11/15 kW (cont. 20/30 min) Credpfowxypiox Af Hsk Sub-Spindle: Speed: 45 – 4,500 rpm Spindle nose: ASA A2-5 Power: 7.5/11 kW Turret: 12 stations (powered tool positions available) Tool dimensions: 25 x 25 mm / Ø40 mm boring bars Powered tool speed: 3,000 rpm Included tooling: 17 fixed tools (10 boring bar holders + 7 external turning holders) 6 powered tools (3 angle heads + 2 double axial + 1 single axial) Feed rates: X-axis rapid traverse: 15,000 mm/min Z-axis rapid traverse: 20,000 mm/min Equipment and accessories: LNS MOVE bar feeder, capacity up to 3,200 mm Mayfran chip conveyor Coolant tank with wash-down pump High-pressure pump with integrated tank Tool presetting arm Manuals, electrical diagrams, and CE declaration A complete and compact solution, ideal for bar machining and secondary operations on the sub-spindle. The presence of the driven tool turret enables complex processes in a single cycle, reducing both machining and setup times.

Condition: good (used), Year of construction: 2018, operating hours: 6,177 h, functionality: fully functional, machine/vehicle number: L3M0060, turning length: 450 mm, turning diameter: 300 mm, rotational speed (max.): 4,500 rpm, bar diameter (max.): 69 mm, TECHNICAL DETAILS Max. turning diameter: 300 mm Max. swing diameter: 520 mm Max. turning length: 450 mm Main spindle Bar capacity: 69 mm Spindle nose: ASA8 Spindle motor power: 22 kW Spindle speed: 20 / 42 m/min Spindle chuck diameter: 10″ Driven tools Power: 7 kW Speed: 4,500 rpm Tailstock Tailstock taper: MT5, rotating MACHINE DETAILS Power-on time: 8,666 h Spindle hours: 6,167 h CNC control: CNC OSP P300LA-e (15″) Weight: 5,000 kg Connected load: 28.6 kVA Total power-on time: 16,620 h CNC control operation time: 8,667 h Spindle run time: 6,177 h Cutting time: 6,004 h EQUIPMENT Crodpfx Afjww Ikxs Hok - Manual presetting device - Roller-type chip conveyor - Rotating MT5 tailstock - High-speed driven tools - CNC control with large 15″ screen

Condition: good (used), Year of construction: 1997, Technically in good condition and functional. Year of manufacture 1997. Crodjwn Dbnepfx Af Hek Max. turning diameter 250 mm. Max. diameter over bed 530 mm. Max. turning length 500 mm. Length x Width x Height approx. 3315 mm, 1895 mm, 1900 mm. Machine weight approx. 6 tons.

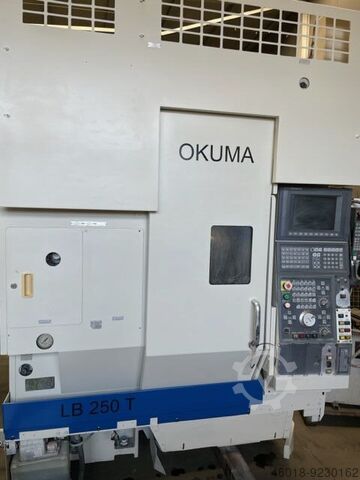

Year of construction: 2001, condition: good (used), CNC lathe Manufacturer: OKUMA Type: LB-250T Model: OSP-U10L YEAR OF MANUFACTURE: 2001 2-axis CNC lathe with robotized loading Description: two-axis X-Z lathe for short workpieces and with a robotized workpiece magazine X-AXIS: 180 mm Z-AXIS: 325 mm Crjdpfx Afek Hz Iwj Hok Spindl: 4500 1/min Coolant system and chip conveyor

Condition: good (used), Year of construction: 1998, functionality: fully functional, Controller OSP700L Swing dia 300 mm Turning dia 170 mm Between centers 340 mm X travel 150 mm Z travel 350 mm C axis 360/0,001 degree Spindle hole D42 mm Chuck dia 200 mm Turret 12-fold Tool holder type VDI30 Spindle speed 50 - 6000 rpm Spindle power 5,5/7,5 kW Power required 400V, 15 kVA Weight 3500 kg Dimensions LxWxH = 2300 x 1635 x 1850 mm Accessories - C axis and live tool turret - Hydraulic tailstock - Coolant unit - Chip conveyor - Hydraulic 3 jaws, D160 mm chuck - Machine light Good condition, still under power. Credpfx Asvmzc Uof Hek

Year of construction: 2018, operating hours: 1,256 h, condition: excellent (used), functionality: fully functional, machine/vehicle number: 2189, OKUMA LB3000EX-II - is particularly suitable for universal turned parts and complete machining of complex workpieces thanks to generous flatbed guides and the high-torque drives ensure high precision and continuous accuracy TECHNICAL DETAILS turning diameter over bed: 580 mm Machinable turning diameter: 340 mm workpiece length: 950 mm traverse X / Z / Y: 230 / 510 / 120 (+70/-50) mm C axis: 360 / 0.001 ° Control: OKUMA OSP-P300LA rapid traverse X / Z / Y: 25 / 30 / 12,5 m/min riveting stroke: 1015 mm spindle speed: 4200 rpm spindle end piece: JIS A2-8 spindle bore: 91 mm diameter spindle bearing: 140 mm tool holder: M-V12 with 12 places tool size: 25 x 25 mm tool diameter: 40 mm tool change time: 0,1 s Tool speed: 45 - 6000 rpm Operating hours: 1.256 h Control on: 1.660 h MACHINE DETAILS dimensions L x W x H: 3420 x 2041 x 2444 mm Crjdpfxjnt T Auj Af Hsk weight: 6600 kg Supply voltage: 400 V, 3 phases, 50 Hz Power drawn: 38,9 kVA Spindle power (30 min/continuous): 30 / 22 kW Spindle torque: (30 min/continuous): 700 / 512 Nm Tool power (25 min/continuous): 7.1 / 4.1 kW Tool torque (25 min/continuous): 40.4 / 23.4 Nm Note: The WTOH hobbing tool holder (see document in the appendix) is not part of the scope of delivery.

Condition: excellent (used), Year of construction: 2019, operating hours: 2,044 h, functionality: fully functional, machine/vehicle number: 223697, turning length: 950 mm, turning diameter: 340 mm, travel distance X-axis: 260 mm, travel distance Y-axis: 120 mm, travel distance Z-axis: 1,010 mm, rotational speed (max.): 5,000 rpm, Machine with Big-Bore Spindle TECHNICAL DETAILS Spindle speed: 45 to 4,200 rpm Spindle motor: 30/22 kW Spindle mount: JIS A2-8 Spindle bore: ø91 mm Axes and Travel Turning length: 950 mm Turning diameter: 340 mm C-axis control: 360° at 0.001° increments X-axis travel: 260 mm Y-axis travel: 120 mm; +70 mm / −50 mm Z-axis travel: 1,010 mm Tool Turret Turret type: V12, radial, for L and M tools Tool holder mount: VDI Speed: 45 to 6,000 rpm Rotary tool motor: VAC 7.1/4.1 kW Control CNC control: OSP-P300LA with 15" touch panel Pitch error compensation: X-/Y-/Z-axes Workpiece ejection detection: available Smart Interface: included API Library 2: activated Virus Protection System - OSP-VPS: available Software Functions One Touch IGF Advanced M-E Kit: standard Optional IGF Advanced M-D Kit: available Multitasking coordinate conversion: available Profile generation: available Cycle time inspection and reduction: available Hi-Cut Pro: available Crodpfx Ajwnqdisf Hjk Load monitoring, spindle & feed axes: available NC operation monitoring: available Spindle speed control: variable Y-axis turning: available Helical milling for MY machine: X/Y surface, Y/Z surface Cooling and Lubrication Coolant pump: 0.25 kW Coolant tank: L-type, replacing I-type High-pressure coolant pump: 0.8 kW Lubrication monitoring: A-1 incl. hydraulic pressure monitoring Dimensions and Construction CE marking and EMC: available IEC standard compliance: available Power supply CE-compliant: adapted to local standards Guideway extension for steady rests: available TAS-C: available Chip and Coolant Management Chip tray: side extraction Chip conveyor H-type: side, CE-compliant Fully enclosed with coolant protection: available MACHINE DETAILS Height: 2,444 mm Footprint: 3,420 x 2,041 mm Weight: 6,600 kg

Condition: good (used), Year of construction: 2008, functionality: fully functional, Control: OSP-P20L-R Swivel diameter over bed: 450 mm Swivel diameter over longitudinal slide: 350 mm Swivel diameter over cross slide: 300 mm Spindle bore: 43 mm Spindle speed range: 75 - 3,000 rpm X-axis feed: 0.00001 - 39.37 mm mm/rev X-axis rapid traverse: 20 m/min Cjdjvk Sqkopfx Af Hjrk Z-axis feed: 0.00004 - 38.37 mm/rev Z-axis rapid traverse: 25 m/min Tool turret: 12-way Driven tools Tool holder: VDI30 Machine weight: approx. 3,800 kg Bar loader BREUNING IRCO

Year of construction: 2019, operating hours: 1,370 h, condition: excellent (used), functionality: fully functional, OKUMA GENOS L-3000 - for powerful cutting and long tool life for all batch sizes thanks to flat guides and heavy turret design TECHNICAL DETAILS turning diameter over bed: 520 mm Machinable turning diameter: 300 mm Cjdpfx Afont T Afe Hsrk workpiece length: 450 mm traverse paths X / Z: 235 / 520 mm C axis: 360 / 0.001 ° Control: OKUMA OSP-P300LA-e rapid traverse X / Z: 25 / 30 m/min riveting stroke: 400 mm spindle speed: 38 - 3800 rpm spindle mounting: A2-8 spindle bore: 80 mm diameter spindle bearing: 120 mm tool holder: M-V12 with 12 places tool size: 25 x 25 mm tool diameter: 40 mm Tool speed: 45 - 4500 rpm switch-on time: 5267 h control time: 1919 h Spindle time: 1370 h MACHINE DETAILS dimensions L x W x H: 2545 x 1870 x 1791 mm Weight: 5000 kg Spindle power (20 min/continuous): 22 / 15 kW Spindle torque: (20 min/continuous): 412 / 281 Nm Tool power (30 min/continuous): 7.0 / 3.3 kW Tool torque (30 min/continuous): 23.7 / 14.2 Nm

Year of construction: 1995, condition: ready for operation (used), - USED- 2-AXIS CNC LATHE MAX ROTATING DIAMETER: 530 mm MAX TURNING LENGTH: 500 mm MAX TURNING DIAMETER: 340 mm BAR CAPACITY: 62 mm SPINDLE: 3800 rpm; 11-15 kW; ASA A2-6" X-AXIS TRAVEL: 260 mm Credpfx Afoiidpye Hek Z-AXIS TRAVEL: 520 mm RAPID FEEDS X-Z: 15 - 20 m/min TURRET HEAD: 12 POS CONTROL UNIT: OKUMA OVERALL DIMENSIONS: 2815 x 2815 x 1745 mm ACCESSORIES: SWARF CONVEYOR ; TOOL SETTER

Condition: excellent (used), Year of construction: 2013, operating hours: 1,719 h, functionality: fully functional, feed length X-axis: 470 mm, feed length Z-axis: 2,040 mm, feed rate X-axis: 5 m/min, feed rate Z-axis: 10 m/min, turning diameter over cross slide: 650 mm, turning diameter: 1,030 mm, spindle bore: 375 mm, spindle speed (max.): 500 rpm, spindle speed (min.): 5 rpm, overall weight: 23,000 kg, Okuma CNC Oil Country Hollow Spindle Lathe Model: LOC 650 Control: Okuma OSP P300L Year: 2013 Max Swing Over Bed: 1030mm Max Turning Dia: 650mm Spindle Bore: 375mm Spindle Speeds: 5-500 RPM Double Air Chucks 850mm Dia 12 Station Upper Turret Swarf Conveyor Credpfexzgkiex Af Hjk Coolant System

Condition: good (used), functionality: fully functional, turning length: 2,000 mm, For Sale: Okuma LB35 II – CNC Turning Center (Year 1997) Manufacturer: Okuma Model: LB35 II Year: 1997 Control Unit: Okuma OSP-7000L Technical Specifications Capacity Turning length (distance between centers): 2070 mm Maximum turning diameter: 460 mm Swing over bed: 700 mm Spindle bore: 90 mm Axis Travels Z-axis travel: 2070 mm X-axis travel: 330 mm Spindle Spindle speed range: 14 – 3200 rpm Spindle nose: A2-8 Chuck size: 18" Turret & Tooling Tool turret: 12-station Tool interface: VDI50 Tool holders: several included (exact quantity available on request) Tailstock Tailstock type: MT5 taper Dimensions & Weight Crodpfx Aex Dx E Ref Hjk Machine length: 6000 mm Machine width: 4100 mm Machine height: 2700 mm Machine weight: approx. 10,000–10,500 kg Included Equipment Chip conveyor Assorted tool holders and jaw sets Check the details with the seller! Ask for a quote including transportation!

Condition: good (used), Year of construction: 1999, functionality: fully functional, Okuma Macturn 30 1SW 1000, OSP 7000M, chip conveyor, ATC 24 BT40, coolant pump 8 bar, gear milling option, approx. 12,500 spindle hours, HS Big Bore, GS Standard Bore Neff The Okuma specialist and NeffBuy We are also happy to provide you with the all-round carefree package, a tour of our showroom (30 Okuma machines) including demonstration and acceptance, loading, transport, assembly and commissioning of the machine as well as instruction and subsequent service. Crjdpfxsvta Rkj Af Hek Bjsvkhv0lno We operate Okuma CNC service throughout Europe, both electronically and mechanically, and on top of that we have a 1200 m2 inventory of all Okuma spare parts, please visit us on our homepage.

Condition: excellent (used), Year of construction: 2014, operating hours: 3,000 h, functionality: fully functional, Year of manufacture: 2014, commissioning: 2017 OSP P300S control system Travel ranges: X1/X2-axis: 695/235 mm Y-axis: 300 mm Z1/Z2-axis: 1,600/1,461 mm B-axis: -30° to +210° Maximum turning diameter: 650 mm Big Bore main spindle 32/22 kW, spindle nose A2-11, max. speed: 3,000 rpm, max. torque: 955 Nm, bore diameter: 112 mm SMW VNK320-127 hollow clamping cylinder, through bore 127 mm Crjdpexy I T Asfx Af Hok 3-jaw chuck Forkardt 3QLK 315-88 Z11 Pressure reducing valve 8-70 bar Milling spindle 22 kW, max. speed: 12,000 rpm Tool magazine with 40 stations, HSK-A63 Lower turret with 12 tool stations Self-centering steady rest on lower turret Hydraulic steady rest SMW SLU-X-3.2-ZS, clamping range: 50-200 mm Programmable tailstock Renishaw RMP probe Drum chip conveyor TMF300 with 980 L tank 8 bar circulation pump 70 bar high-pressure pump Hinged belt chip conveyor Tool monitoring system for tool life and breakage Tool measuring device (with standard chuck) for safe setup MacMan machine management with integrated PDA (production data acquisition) Part program storage: 2 GB Max. length of individual part program: 2 MB 2x USB 2.0 ports Ethernet interface with browser and DNC-T1 for program transfer Harmonic speed oscillation via periodic speed variation Tool height offset in Y-axis for turning tools Circular thread milling X/Z/Y/B (helical interpolation) Including eccentric milling X/Y/C Hi-Cut Pro high-speed control for rotating tools 10 workpiece zero points (coordinate system selection function) Coordinate transformation

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, Dear Sir or Madam the details of the Okuma Multus B400 with main and counter spindle tool magazine HSK 63 with 80 places 1500mm turning length main spindle passage 100mm CNC turning/milling center with CNC control OKUMA OSP P200L Enlarged main spindle Ø110mm Ø150/110mm, spindle nose size 11 Speed range 38-2800 1/min. Counter spindle as W-axis incl. hollow clamping device with Ø70mm bore in the draw tube helical interpolation also for thread milling Tool height correction in Y-axis for turning tools Extension kit "M "OSP P200L (Kit One-Touch IGF-M-D) Software multifunction tool for the use of special tools 80-station tool changer instead of 20 stations C-axis synchronization software for simultaneous control of both C-axes Increased speed 10,000 rpm for driven tools 20/14 kW, max. 85 Nm Interlit ISF 540/6670 slat-band chip conveyor with integrated coolant tank Interlit SPB4 gravity belt filter with 900 L clean tank Supply pump TH 90/690 FSI frequency-controlled pump for gravity belt filter SPB 4 Manual rinsing gun for attachment to additional coolant tank SPB4 SMW VNK 250/110 Power clamping cylinder for hollow sp. m. Bore Ø 110.5 mm Chuck Rota THW Plus 315-104 A11 Cylinder SMW VNK 250/110 2-stage clamping pressure for power clamping device Call by program Door automation Multus B 400 Open/close via M command two doors, both open simultaneously Crsdpfetdg Evsx Af Hek Chuck Rota THW Plu 315-104 A8 Cylinder SMW VNK 225/95 mounted. Year of construction: 2011 Commissioning: June 2011 Warranty: A warranty for the used machine is excluded altogether. However, HAF Präzisionstechnik assures that defects, including hidden defects, are not known. Unknown defects can therefore not be excluded. Machine is under power and in very good condition. Viewing is possible by arrangement. We are also happy to process your acceptance parts in advance.

Condition: used, Technical details: turning diameter over bed: 460 mm turning diameter over support: 350 mm Credewa Nwfepfx Af Hjk turning length: 1500 mm centre height: 250 mm spindle bore of work spindle: 52 mm range of revolution per miute: 35 -1800 U/min tailstock quill adjustment:: 230 mm tailstock taper MT: MK4 weight of the machine ca.: 2,7 t dimension machine xH: 2,88 x 1,2 x 1,5 m Coolant pump with feed to manual valve Accessories: Steady rest D=130mm closed 3 Jaw chuck D=315mm from Forkhardt F315 *

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, OKUMA V-Turn LVT 400 CNC Vertical Turning Lathe (2 machine cell) Codjxwy S Eepfx Af Hjrk Model: LVT 400 Control: OKUMA OSP 1000L Year: 2006 12 – tool turrets Hi – Power 60 Bar High Pressure coolant Swarf Conveyor Work Measurement Carousel System linking with both machines with turnover station

Condition: used, Year of construction: 2022, operating hours: 450 h, CNC Turning and Milling Center, used Well-maintained, lightly used machine. On 15.09.2025, a geometry protocol was conducted by OKUMA Germany, confirming the machine’s 'generally very good condition.' Manufacturer: OKUMA Model: MULTUS B250II – C - 750 Year of manufacture: 2022 Control: OSP-P300SA incl. OSP Suite Operating hours (as of 15.09.2025): Spindle hours (total): 485 h Total power-on hours: 3,340 h Working area: Turning length: 750 mm Z-axis travel: 800 mm X-axis travel: 500 mm Y-axis travel: 200 mm (+/- 100 mm) C-axis: 360,000° B-axis: 225° W-axis (tailstock): 810 mm Tool spindle: 360,000° Main spindle: Max. speed: 5,000 rpm Power: 22 kW Milling spindle: Max. speed: 12,000 rpm Power: 12 kW Taper: HSK-A63 Cjdjwydv Aopfx Af Herk Equipment: - 40-position tool changer - 3-jaw Kitagawa chuck - High-pressure coolant system (IKZ) - Electronic handwheel - Right-side chip conveyor - Helical interpolation for thread milling + eccentric milling - Control extension for conversational programming + helical interpolation thread cutting INCLUDES approx. 40 x HSK-A63 tool holders (without tools) This is a well-maintained, regularly serviced machine from a renowned company. The machine has already been professionally dismantled by a specialist company (22.09.2025) and is therefore offered as free loaded.

Condition: excellent (used), functionality: fully functional, Year of construction: 1997, Technical data Okuma LT 10 M Horizontal Turning Machine equipped with Bar Loader and some tools Year 1997 Model LT 10-M Max Turning diameter: 210 mm Max Turning length: 130 mm Dimension width: 2100 mm Dimension depth: 2660 mm Dimension height: 1780 mm Machine weight: 6000 kg Control Unit : OSP700L Number of spindles : 2 Spindle speed range : 6000 rpm Codexfcmnepfx Af Herk Spindel bore : 53 mm X-axis movement : 195 mm Z-axis movement : 700 mm Center height: 1000 mm Number of turrets: 2 Number of tools: 12 BAR LOADER : YES make IEMCA

Condition: excellent (used), functionality: fully functional, Machine type: CNC Turning-Milling Center Manufacturer: Okuma Model: Multus U4000 2SC 1500 Year of Commissioning: 2017 (as ex-stock machine) Control: OSP P300S Spindle Hours: approx. 3,000 Included: Various tools and chuck jaws Condition: Very good Delivery: Short lead time – as agreed Equipment and technical details: ▪ Enlarged main spindle KK size 11 Front bearing Ø 160 mm Speed range: 3,000 rpm Bore diameter: Ø 112 mm Motor power: 32 kW Torque: 955 Nm ▪ Hollow power chuck cylinder Ø 127mm, SMW VNK 320-127 with Ø 127 mm bore ▪ Pressure reducing valve, adjustable range 8-70 bar ▪ Tailstock ▪ Turning length approx. 1,500 mm ▪ H1 turret (1 station) ▪ Y-axis ▪ B-axis 0.001° ▪ 40-station tool magazine ▪ Additional lower turret with 12 stations ▪ Tool spindle 12,000 rpm ▪ Hinge belt chip conveyor: Heavy-duty chip conveyor with low-maintenance self-cleaning function ▪ Drum sump filter TMF300 with clean fluid tank 980 L ▪ Supply pump TC160/740, 8 bar ▪ Supply pump RSP 20/32-070-1-1-0, 70 bar ▪ Self-centering steady rest on the lower turret (not possible in combination with driven tools for lower turret) ▪ Door automation ▪ Robot interface Type E for connecting additional loading/unloading systems to single-spindle machines ▪ 3D machine model for simulation in CAM system Main drive (Okuma motor spindle): 22kW / 700 Nm / 50–4,200 rpm Spindle nose KK size 8 Crodjxw Thmepfx Af Hsk Front spindle bearing Ø 140 mm Spindle bore Ø 91 mm Speed range: 2 steps Range switching at full speed ▪ Lower turret: 12 stations ZB-axis with cylindrical roller guide XB-axis with slideways ▪ Real-time Collision Avoidance System (CAS) ▪ 19" color LCD TFT (1280x1024) with 3D color graphics as touch screen/panel with vertical display and adjustable tilt keyboard ▪ Second operating system Windows 7 for operation and data communication, open and freely usable for Windows 7 compatible applications ▪ Programmable tailstock on W-axis with hydraulic quill ▪ Tool magazine 40 stations ▪ C-axis 360°, 0.001° positioning ▪ Y-axis travel +150 mm / -150 mm = 300 mm ▪ B-axis 240°, 0.001° positioning ▪ Tool spindle (Okuma motor spindle): 22 kW / 120 Nm / 12,000 rpm ▪ Internal coolant supply for rotating tools, pump with max. 20 bar pressure Including bag filter, external cooling of tool spindle, pump with max. 3 bar pressure ▪ Tool system: HSK-A63 ▪ Tool monitoring system for tool life and breakage ▪ Tool measurement device (using standard chuck) for safe setup ▪ Machine management MacMan with integrated BDE (operating data acquisition) ▪ Part program memory 2 GB ▪ Max. length of individual part program: 2 MB ▪ 2 USB 2.0 ports ▪ Ethernet interface with browser and DNC-T1 for program transmission ▪ Harmonic speed oscillation via periodic speed change ▪ Tool height correction on Y-axis for turning tools ▪ Circular thread milling X/Z/Y/B (helical interpolation) Including eccentric milling X/Y/C ▪ Hi-Cut Pro high speed control for rotary tools ▪ 10 workpiece zero points (coordinate system selection) ▪ Coordinate conversion (shift, rotate) ▪ Electronic spindle orientation +/- 0.1° Optional: ▪ Transport organization and implementation ▪ Machine installation and setup ▪ Commissioning of the machine

Year of construction: 2005, condition: excellent (used), Okuma MB-46 VAE 2005 Cjdpfoh If Spex Af Hjrk - max. machining dimensions 760x460 mm - max. loading weight 700 kg - table dimensions 1000x460 mm - travels X= 762, Y= 460, Z= 460 mm - distance table-spindle 150-610 mm - max. speed 15.000 rpm - tool capacity: 32 - tool holder SK 40 spindle makes noise ( videos available)

Condition: good (used), Year of construction: 2003, machine/vehicle number: 103848, travel distance X-axis: 210 mm, travel distance Y-axis: 330 mm, spindle speed (max.): 4,000 rpm, spindle speed (min.): 40 rpm, turning diameter: 330 mm, total length: 5,000 mm, total height: 2,400 mm, total width: 1,600 mm, overall weight: 6,500 kg, OKUMA LVT300-M Vertical CNC Lathe Serial Number: 103848 Swing diameter over bed: 320 mm Max. turning diameter: 280 mm Max. workpiece length: 200 mm Travel distances: X-axis: 210 mm Y-axis: 330 mm C-axis (indexing): 360° Spindle speed: 40–4000 rpm Spindle bore: 62 mm Number of tool positions in turret: 12 Turret can accommodate driven tools Important note: The tool holders (including tools) and the chuck visible inside the machining area are not included in the sale or delivery. The chip conveyor is included in the sale and delivery, but not the pallets located on the conveyor. The three pallets shown at the end of the photos are included in the sale and delivery. Any oil mist extraction system visible in the photos is not included in the sale and delivery. Control: OKUMA OSP-U100L Length of chip conveyor: approx. 3500 mm Manufacturer: EWA-B Type: PS800 Year of manufacture: 2003 Crodpfx Afexw Uawo Hok Machine number: 5746-01-358509.3 The technical documentation was not photographed but will be supplied with the machine. DIMENSIONS & WEIGHT: Dimensions (L x W x H): 5000 x 1500 x 2400 mm Weight: approx. 6500 kg

Condition: used, turning diameter over bed 460 mm turning length 1250 mm centre height 230 mm centre distance 1250 mm spindle turning speed range 35 - 1800 U/min weight of the machine ca. 2,7 t Cjdsxwp Ebspfx Af Hjrk Accessories: 3-jaw chuck 250 mmø, MULTIFIX-head with 3 inserts, solid steady
