Used Mini Metal Lathe for sale (3,196)

Condition: excellent (used), Year of construction: 2001, turning diameter over cross slide: 1,600 mm, turning length: 6,000 mm, turning diameter: 1,300 mm, spindle motor power: 100,000 W, total height: 2,875 mm, total length: 9,550 mm, total width: 2,950 mm, workpiece weight (max.): 40,000 kg, Swing over bed Ø 1600 mm Swing over cross slide Ø 1300 mm DBC Turning Length 6000 mm Spindle power 100 kW Tailstock spindle Ø 280 Ø Stroke pinole 200 mm Workpiece weight 40000 Lhedjymk E Aopfx Aaqec Power 125 A Speeds / ranges 250 Rpm Dimensions (Estimate) Length 9550 mm Width 2950 mm Height 2875 mm Weight 41000 kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: ready for operation (used), functionality: fully functional, center height: 90 mm, spindle bore: 16 mm, spindle speed (max.): 2,150 rpm, spindle speed (min.): 25 rpm, overall weight: 350 kg, total height: 1,400 mm, total length: 1,100 mm, total width: 600 mm, 3-phase 380V motor is running flawlessly! Left & right-hand operation. 14 spindle speeds with spindle clutch. Spindle RPM adjustable from 25 up to 2150. Back gear for stronger low-speed turning. Power cross feed. Norton gearbox for easy thread cutting. MT2 tailstock fitting. Distance between centers: 500mm Center height: 90mm Spindle bore: 16mm Dimensions: 110x60x140cm Lhodpsyl S E Isfx Aaqsc All accessories pictured in front of the lathe are included. Contact us for shipping options! € 2,150.00

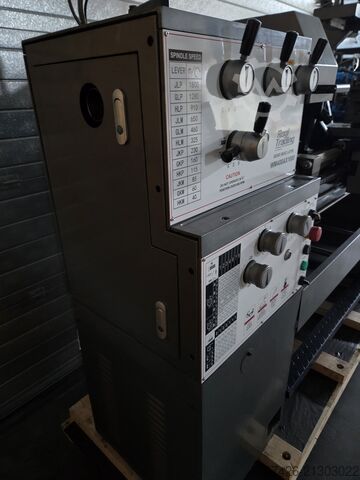

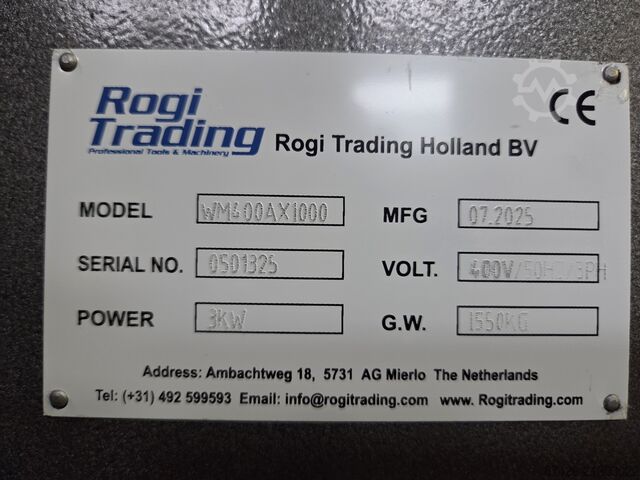

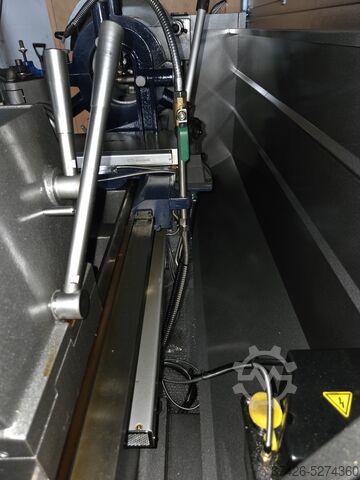

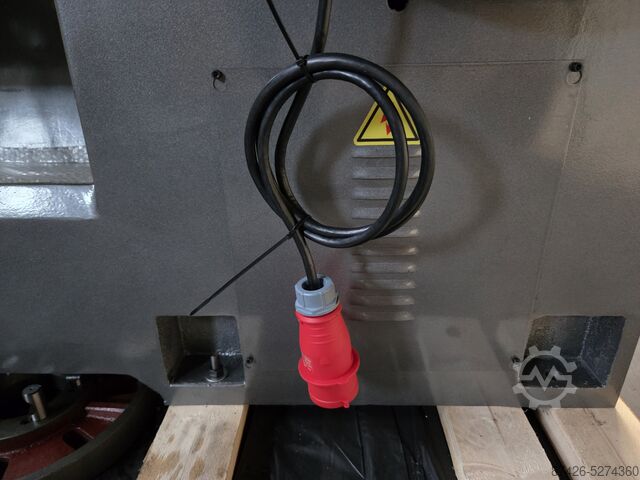

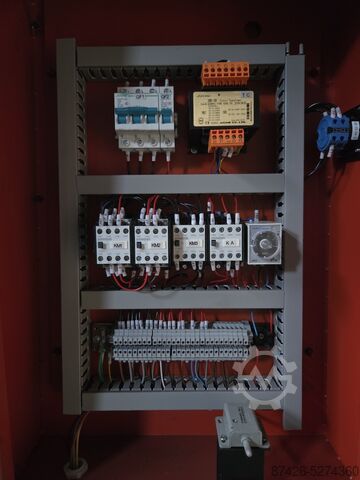

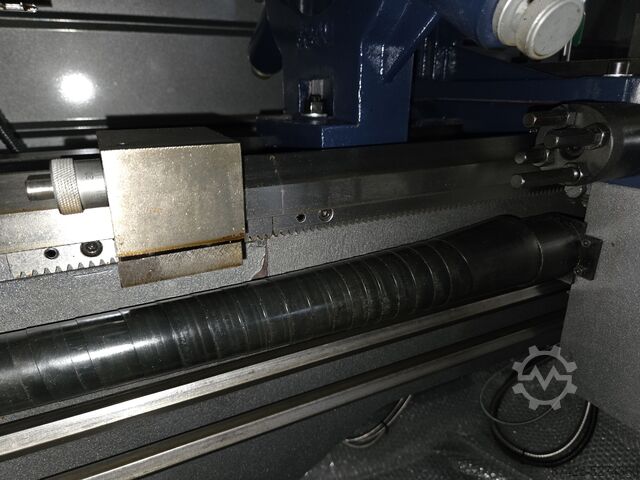

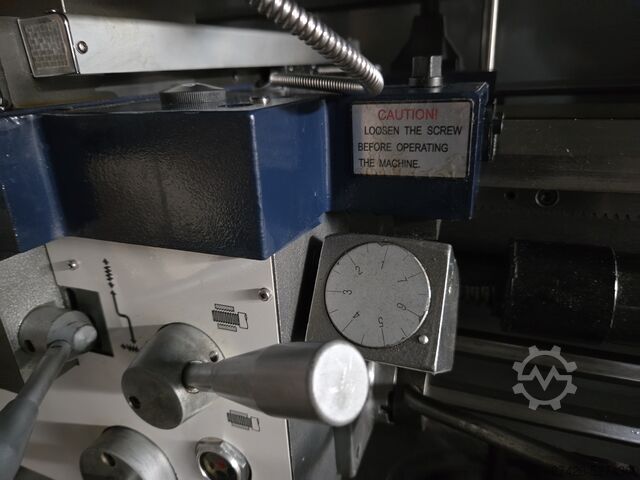

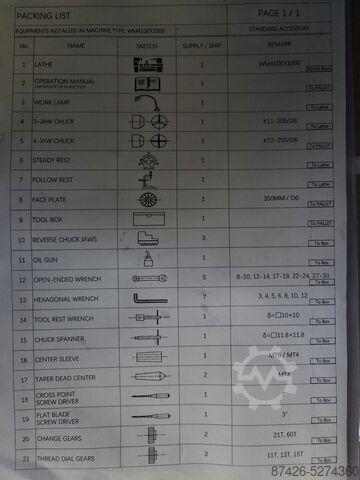

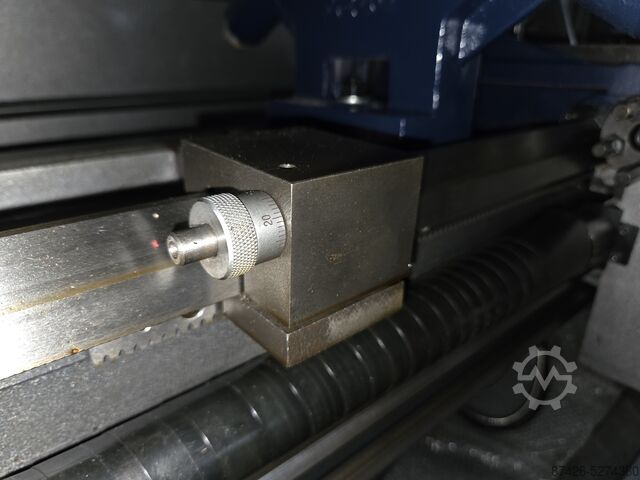

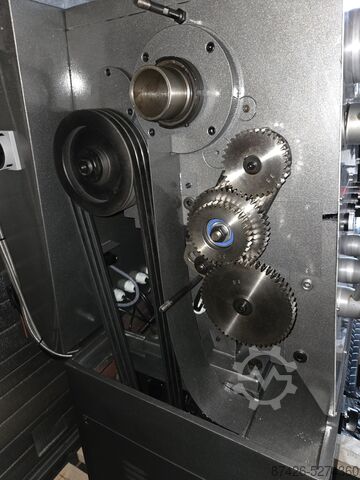

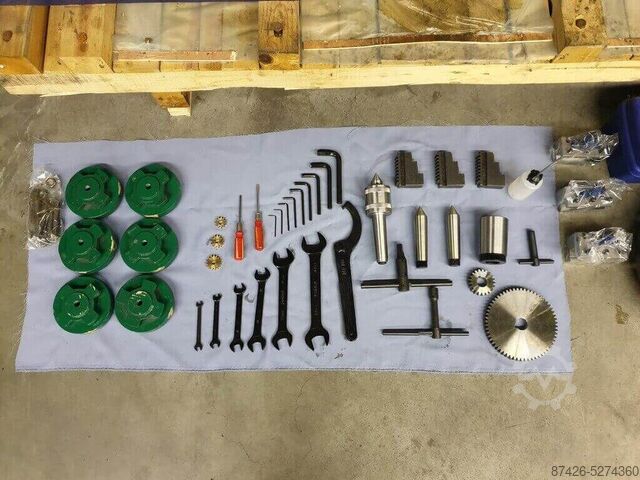

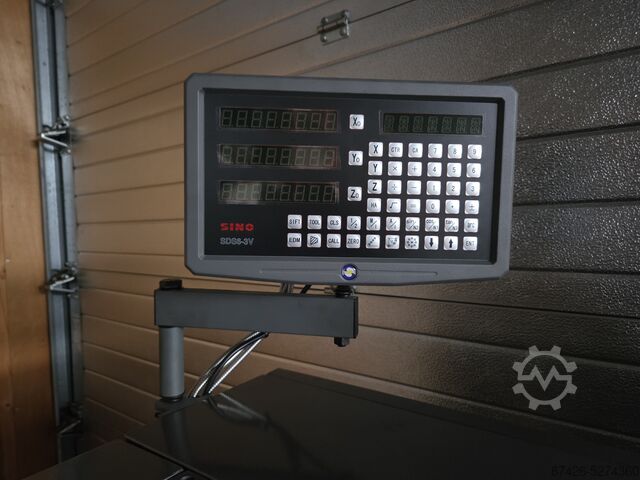

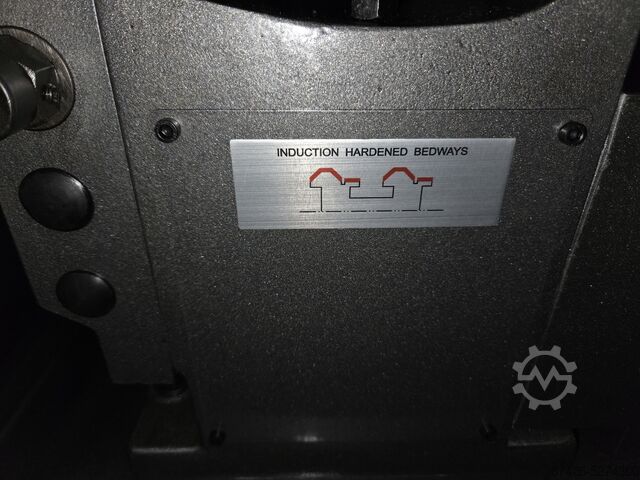

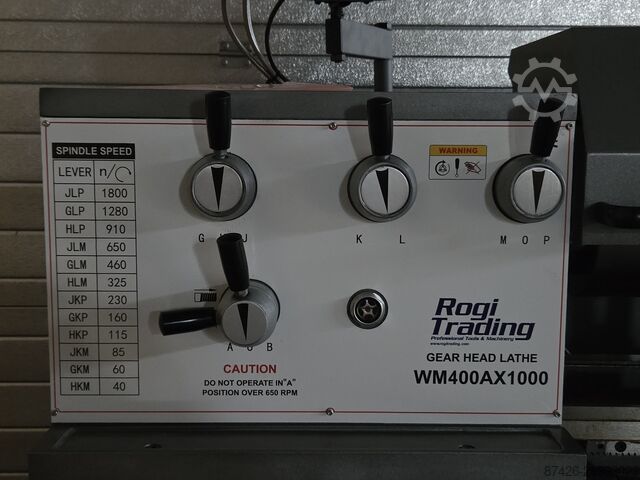

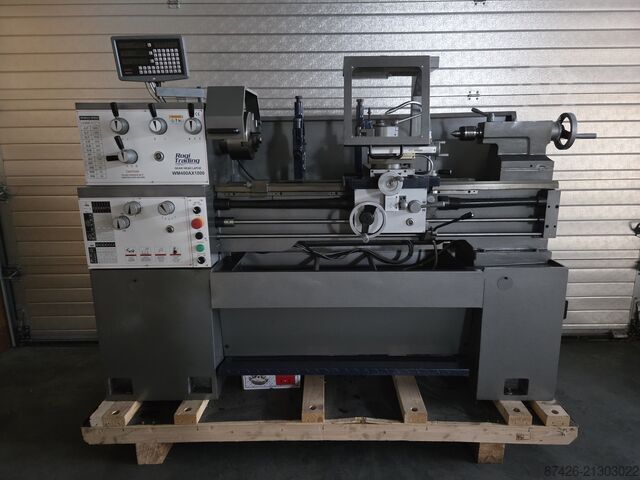

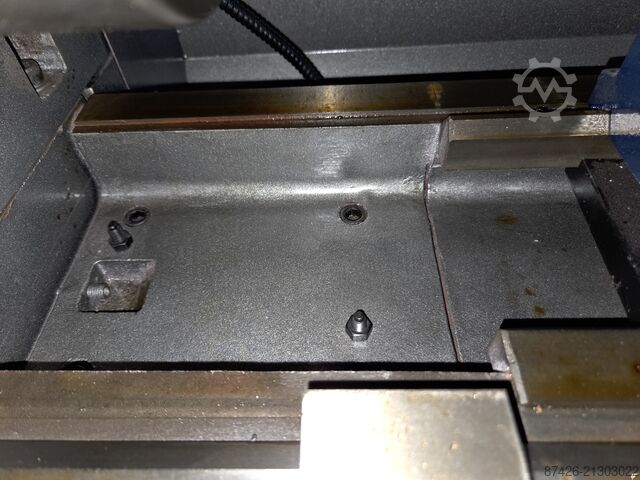

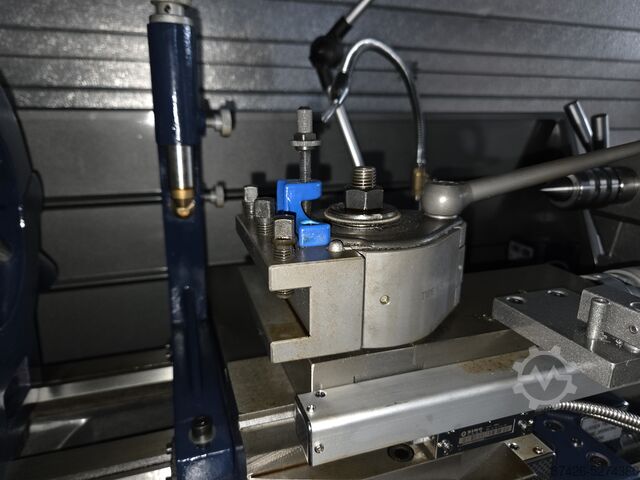

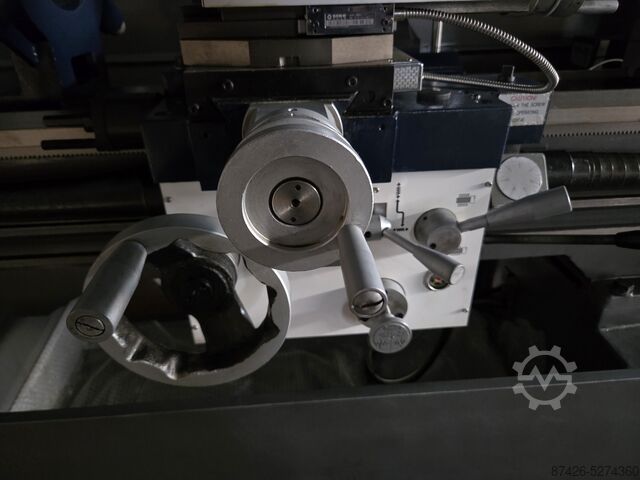

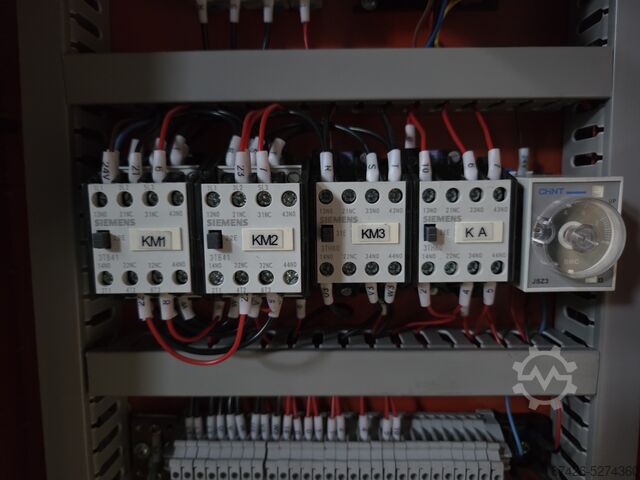

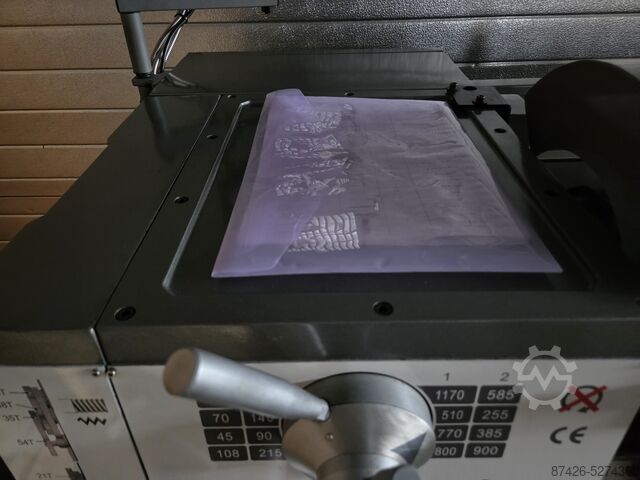

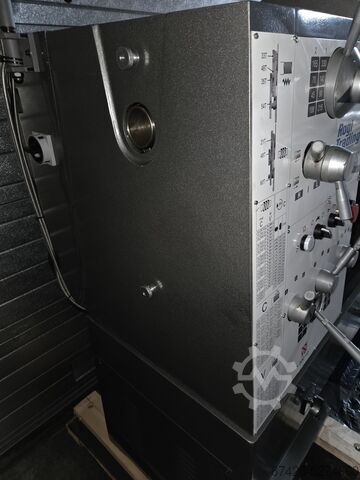

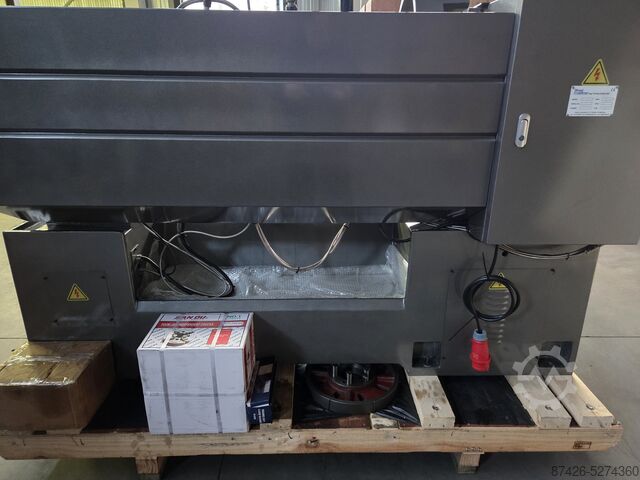

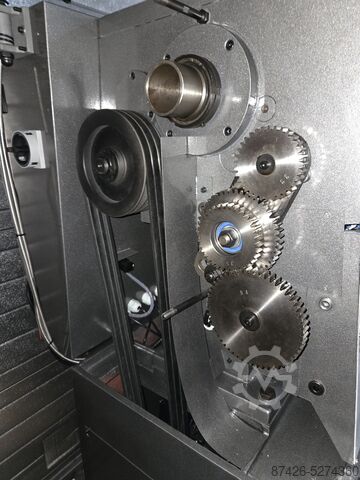

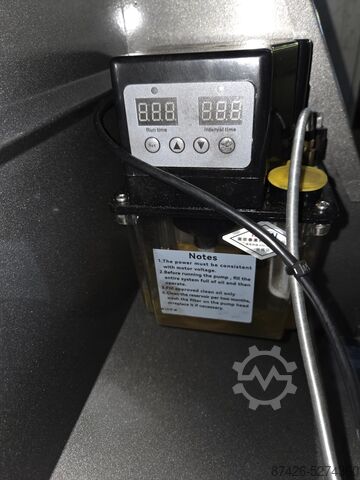

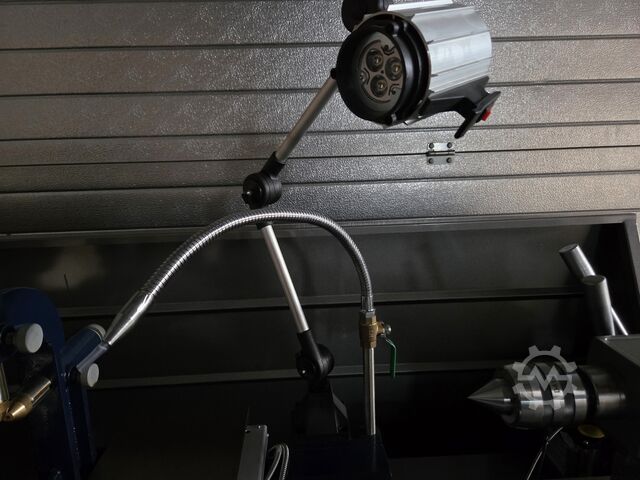

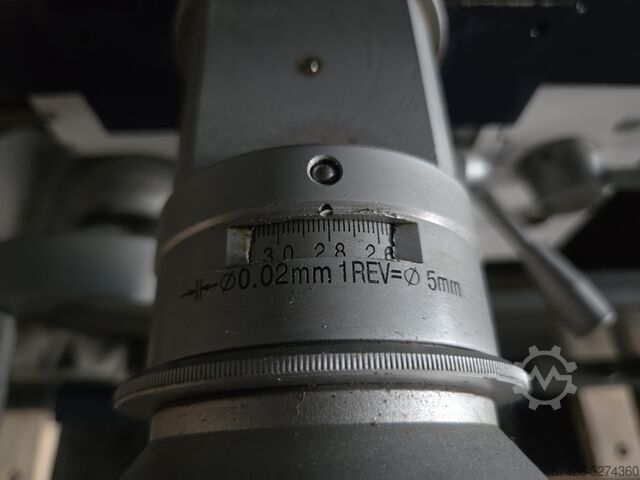

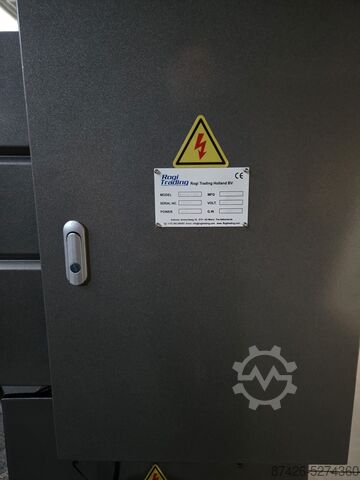

Condition: new, Year of construction: 2025, turning diameter: 410 mm, turning diameter over top slide: 255 mm, center height: 205 mm, turning length: 1,000 mm, total length: 1,940 mm, total width: 850 mm, total height: 1,550 mm, spindle speed (max.): 1,800 rpm, spindle speed (min.): 45 rpm, bed width: 250 mm, Turning diameter in gap: 580 mm, type of input current: three-phase, overall weight: 1,550 kg, three-jaw chuck diameter: 200 mm, Centre length ----- 1000 mm Centre height ----- 205 mm Swing diameter ----- 410 mm Main spindle bore ----- 52 mm Bed width ----- 250 mm Spindle speed ----- 45-1800 rpm Motor ----- 3 kW Ledpfsga T D Eox Aaqjhc INCLUDES * 3-axis digital readout, brand SINO * Multifix TOOB2 quick-change tool post with 4 tool holders * 3-jaw chuck 200 mm * 4-jaw chuck 250 mm * Face plate 350 mm * Fixed and travelling steady rest * LED work lamp and cooling system * Electric brake CE * Box with various tools

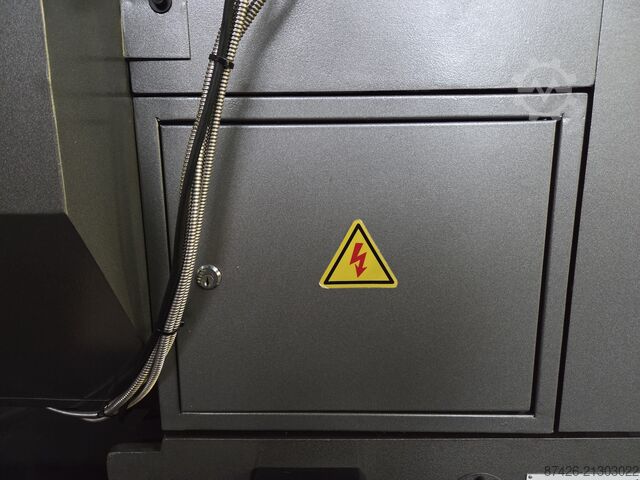

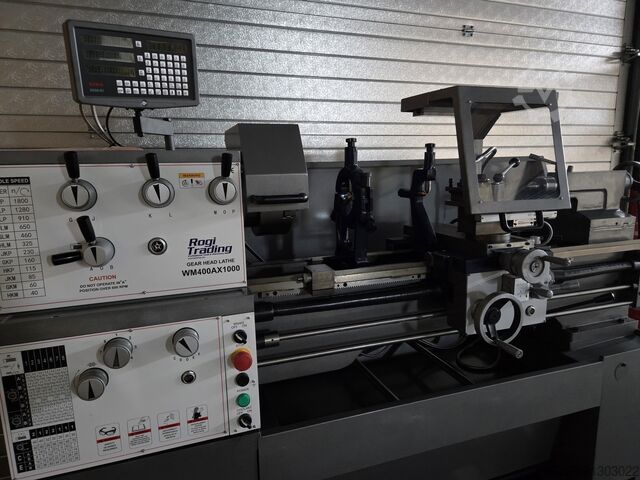

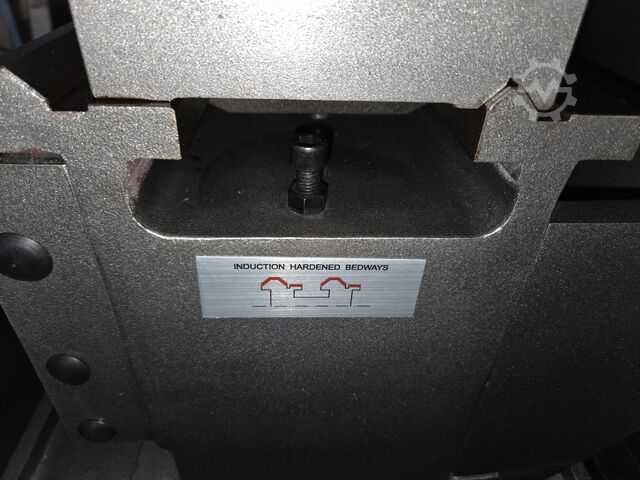

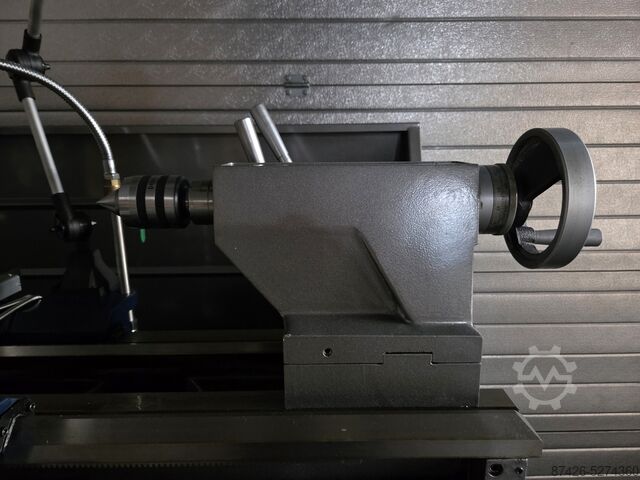

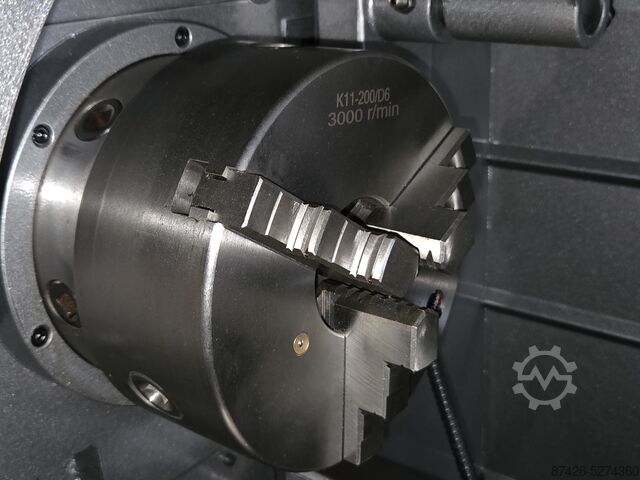

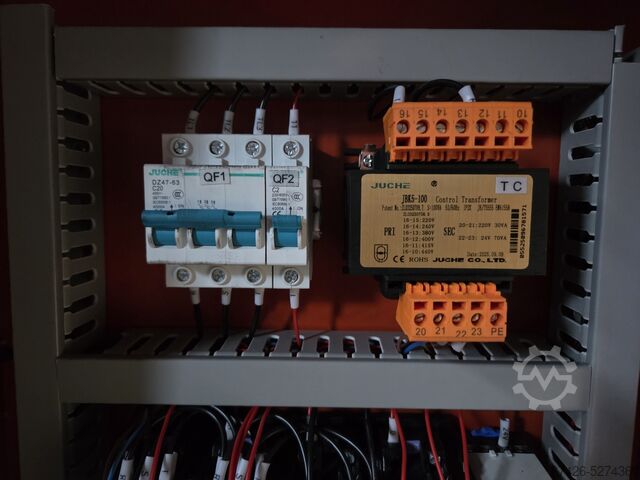

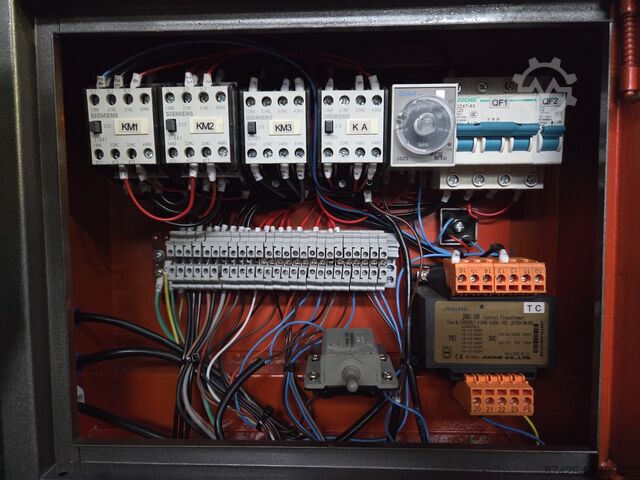

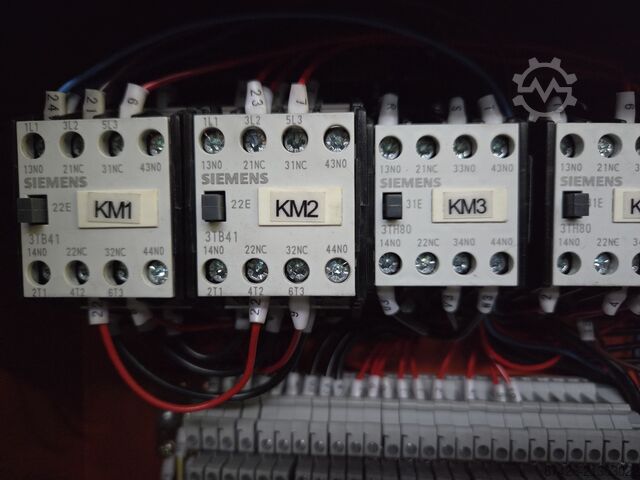

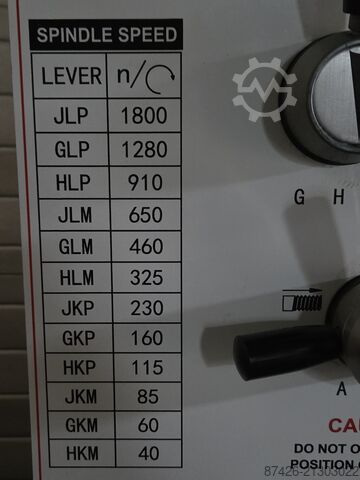

Condition: new, Year of construction: 2025, spindle bore: 51 mm, turning diameter over bed slide: 400 mm, turning diameter over top slide: 250 mm, center height: 200 mm, turning length: 1,000 mm, total length: 1,900 mm, total width: 750 mm, total height: 1,500 mm, spindle speed (max.): 1,800 rpm, spindle speed (min.): 40 rpm, type of input current: three-phase, overall weight: 1,550 kg, three-jaw chuck diameter: 200 mm, Centre distance ----- 1000 mm Centre height ----- 200 mm Swing over bed ----- 400 mm Spindle bore ----- 51 mm Bed width ----- 260 mm Spindle speed ----- 40-1800 rpm Motor ----- 3 KW Lhodpfx Aeymd Dreaqec Weight ----- 1550 kg INCLUDES * 3-axis digital readout brand SINO * Multifix quick-change tool post type TOOB2 with 4 holders * 3-jaw chuck 200 mm * 4-jaw chuck 200 mm * Faceplate 250 mm * LED work lamp and coolant system * Fixed and travelling steady rest

Condition: ready for operation (used), Year of construction: 2005, turning diameter over cross slide: 570 mm, turning length: 2,000 mm, spindle bore: 62 mm, spindle speed (max.): 2,500 rpm, spindle speed (min.): 3 rpm, workpiece weight (max.): 2,000 kg, Equipment: rotational speed infinitely variable, The VDF 560 DUS are the most popular teach-in lathes from VDF Boehringer in terms of turning diameter. With a standard chuck size of 315 mm or more, these machines offer optimal machining efficiency for the production of single parts and small series. This machine is currently on display in our showroom; an on-site inspection is possible! Scope of delivery: Includes drawer cabinet with various tools and Multifix holders. Specifications Lhjdpfxswv S Rte Aaqoc Manufacturer: VDF Boehringer Model: DUS 560 TI Year: 2005 Condition: Used Stock number: 00164 Maximum turning diameter: 570 mm Maximum turning length: 3000 mm Spindle bore: 62 mm Speed (min-max): 3 - 2500 rpm Spindle power: 19 kW Spindle mount: DIN 55 027 Gr. 8 Tool turret: Multifix Turret positions: 2 Tailstock taper: MK5 CNC control brand/type: Heidenhain Manual Plus 4110

Year of construction: 2022, condition: excellent (used), Machine Specifications​ Imperial Metric CNC Control Yes Control Type OSP-P300LA-e # of Axes 2 Swing 20.47" Turning Diameter 16.14" Center Distance 43.31" Chuck Size 10" Bar Capacity 3.15" X-Axis Travel 9.05" Z-Axis Travel 45.04" Spindle Nose A2-8 Spindle Speed Lhsdpfeymq Ukex Aaqjc 3,000 rpm Main Motor 20 HP Turret Capacity 12 Tailstock (Yes/No) Yes

Year of construction: 2006, condition: excellent (used), Turning capacity: Max. turning diameter: 190 mm – 200 mm Max. turning length: 620 mm – 780 mm Bar capacity: 51 mm / 65 mm Spindles (main & sub-spindle): Spindle speed: 4,500 – 6,000 rpm Drive power (main spindle): 15/11 kW Spindle nose: A2-5 / A2-6 Lhodpfxeymqx No Aaqec Turret & axes: Number of turrets: 2 (upper turret with B-axis, lower turret) B-axis swivel range: (or approx. total) Y-axis (stroke): (total) Number of axes: total 9 Dimensions & Weight: Footprint: approx. (width x depth) Machine weight: approx. 12,500 kg – 13,500 kg

Year of construction: 2011, condition: excellent (used), 2 units Technical Data (Overview): Bar capacity: 42 mm Max. turning diameter: approx. 190 mm Max. turning length: approx. 500 mm Spindle speed (main & sub-spindle): 6,000 rpm Spindle motor power: 11/7.5 kW Turret: 2x 12 stations (often driven) Y-axis: Upper, mm Lsdpfx Aajymqxioqshc Control: Fanuc 31i/T (or NT SmartX) Machine weight: approx. 5,650 kg

Condition: good (used), Year of construction: 1984, Used Killinger wood lathe Model KM 2000 S Year 1984 with KM-300 copying device Center distance 1050 mm Center height 220 mm Spindle mount M 33 Tailstock with MT2 taper quill Tool rest 300 mm 4 speeds: 530-1100-1700-2600 rpm Motor 400V/0.75 kW Length 174 cm Width 50 cm Lodpjwd Nldefx Aaqohc Height 115 cm Weight approx. 110 kg

Condition: good (used), Year of construction: 2008, turning length: 12,000 mm, spindle motor power: 60,000 W, total height: 3,800 mm, total length: 23,000 mm, total width: 7,600 mm, swing diameter over cross slide: 1,520 mm, turning diameter over bed slide: 1,140 mm, workpiece weight (max.): 20,000 kg, overall weight: 58,000 kg, Equipment: documentation/manual, CNC Lathe Giuseppe Giana - GGH 1100/760 x 12.000 CNC MACH-ID 9439 Lhjdpfx Aasyl Uh Seqec Make: Giuseppe Giana Type: GGH 1100/760 x 12.000 CNC Control: Siemens 840 D-SL Year: 2008 3 bed way construction Bed width 1100 mm 3 x C-Type Steady rest on lower base with in feed 2 x Fixed steady rest 300 - 800 mm with 5 ton 2 x Chip conveyor 4 Chuck 1000 mm Barafuldi 4 way turret head Swing over bed Ø: 1520mm Swing over cross slide Ø:1140mm DBC Turning Length: 12000mm Spindle bore: 155mm Spindle power: 60kW Bed width: 1100mm Tailstock spindle Ø: 310Ø Stroke pinole: 300mm Spindle taper: 1:4 taperMk Workpiece weight: 20000 Power: 80A Speeds / ranges: 0-800Rpm Feed rate X-Axis: 0-8000mm/min. Feed rate Z-Axis: 0-8000mm/min. Length: 23000mm Width: 7600mm Height: 3800mm Weight: 58000kg

Condition: good (used), turning diameter over cross slide: 530 mm, spindle bore: 90 mm, turning diameter over bed slide: 800 mm, center height: 400 mm, Poreba TPK 80 x 4000mm Heavy Duty Lathe Model: TPK 80/4m Swing over Bed: 800mm Swing over Cross Slide: 530mm Swing in GAP: 1080mm Distance Between Centres: 4000mm Lhsdpfsyimzaex Aaqjc Spindle Bore: 95mm dia. Spindle Speeds: 800 RPM Machine with: Fixed Steady

Condition: used, Year of construction: 1995, turning diameter 560 mm turning length 1250 mm control Sinumerik 805 turning dia. over face-slide 340 mm spindle bore 63 mm spindle turning speed range 3 - 2500 U/min feeds - longitudinal 0,001 - 3 mm/U feeds - cross 0,001 - 3 mm/U rapid traverse longitudinal 7 m/min rapid traverse cross 3,5 m/min Lhodpsymp Suofx Aaqsc thread - mm pitch 0,5 - 140 mm thread - inch 1/4 - 56 Gang/ inch. thread - module mm main drive 19 kW clamping length max. 2250 mm total power requirement 24 kW weight of the machine ca. 4,8 t dimensions of the machine ca. 4,0 x 1,65 x 1,75 m controll Siemens 805, for cone turning, contour turning and threat cutting. Machine has MULTIFIX toolholder system size "C", steady and 3 jaw chuck.

Condition: used, Year of construction: 1976, turning diameter over bed 0300 mm turning diameter over slide rest 180 mm Lhedpfx Aaexu Nrceqoc turning length 750 mm turning speed range 44 - 1300 U/min spindle bore 41,0 mm quill stroke 105 mm morse taper 3 MK bed width 245 mm total power requirement 2,2 kW weight of the machine ca. 1250 t dimensions of the machine ca. 2000 x 1200 x 1500 m We supply the machine with a 3 jaw chuck, a 4 jaw chuck, a face plate, a collet chuck with collets, a quick tool changer with holders and change gears for threat cutting.

Condition: used, Year of construction: 1998, turning diameter over bed 0400 mm turning diameter over slide rest 260 mm turning length 1500 mm centre height 200 mm centre distance 1500 mm spindle bore 50,8 mm speeds 20- 3150 U/min feeds longitudinal slide 0,01 - 3,24 mm/U Lhodpfx Asxp Rzbeaqjc feeds cross slide 0,005- 1,62 mm/U weight of the machine ca. 2 t dimensions of the machine ca. 3,35 x 1,4 x 1,9 m voltage 400 V connected load 7,7 kVA With chuck, Multifix toolholder and digital readout.

Condition: good (used), Year of construction: 2003, functionality: fully functional, Technical details working diameter max. 32 mm spindle passage 36 mm turning length 320 mm Control MITSUBISHI MELDAS 635LC travel max. (X1) 108 mm travel max. (Y1) 275 mm travel max. (Z1) 325 mm travel max. (X3) 238 mm travel max. (Z3) 410 mm main spindle speeds: 200 - 8000 U/min c-axis 0,001° deg. Subspindle spindle speeds 200 - 7000 U/min c-axis 0,001° deg. rapid traverse 20 m/min main drive 3,7 / 5,5 kW Subspindle motor 1,5 / 2,2 kW dimensions of machine 2,77 x 1,24 x 1,79 m weight of the machine ca. 2850 kg Additional information CNC Swiss-Type Lathe First put into operation December 2005 Lhsdpfx Aoymli Aeaqec The machine was used for a single shift and is in good condition with no maintenance backlog. Equipment: FMB Turbo 5-42/3200C bar loader, built 2004 High-pressure pump Many collet chucks for main spindle Various collets Drive unit for synchronously driven guide bush Synchronously driven guide bush Drive unit for transversely driven spindle on linear support Pick-up spindle Collet chuck for pick-up spindle Blow-out device for pick-up spindle Five fixed tool holders on the rear Workpiece removal device Coolant tank Central lubrication system Door lock Ejection device for workpieces with through holes Machine documentation The machine will be sold without tools and extraction system.

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, Technical details swing over bed 730 mm centre distance 3000 mm control Heidenhain MANUALplus4110 weight of the machine ca. 6,5 t dimensions of the machine ca. 7400 x 2100 mm Additional information Lsdpfx Asymliijaqehc Very well-maintained cycle lathe with only 15652 operating hours. Working area: Center distance 3000 mm Swing diameter over bed 730 mm Swing diameter over cross slide 450 mm Bed width 480 mm Main spindle: Spindle mount according to DIN 55027 size 11 Spindle bore 130 mm Spindle diameter at front bearing 170 mm Spindle taper 1:20 Tap in center sleeve MT 6 Main drive: AC drive with 2-stage ZF gearbox (automatic shifting gearbox) Drive power (100/60% duty cycle) 22/28 kW Total speed range 1 - 2200 rpm Maximum spindle torque: approx. 2200 Nm X-axis (cross slide) performance data: Maximum travel: 400 mm Feed force: 14 kN Speed: 4 m/min Z-axis (bed slide) performance data: Feed force: 18 kN Speed: 7 m/min Max. workpiece weight: Between centers without steady rest: 2000 kg With one steady rest: 2200 kg With two steady rests: 2500 kg In the chuck: 750 kg Tailstock: Quad diameter: 115 mm Quad stroke: 225 mm Quad taper: MK 6 Equipment and accessories: Heidenhain MANUALplus 4110 CNC control SCHUNK ROTASplus 400-102 3-jaw manual chuck 2 steady rests PARAT tool holder Chip conveyor Coolant system Work area enclosure with two sliding doors. Machine length 5700 mm, with swarf converyor 7400 mm Machine width 2100 mm

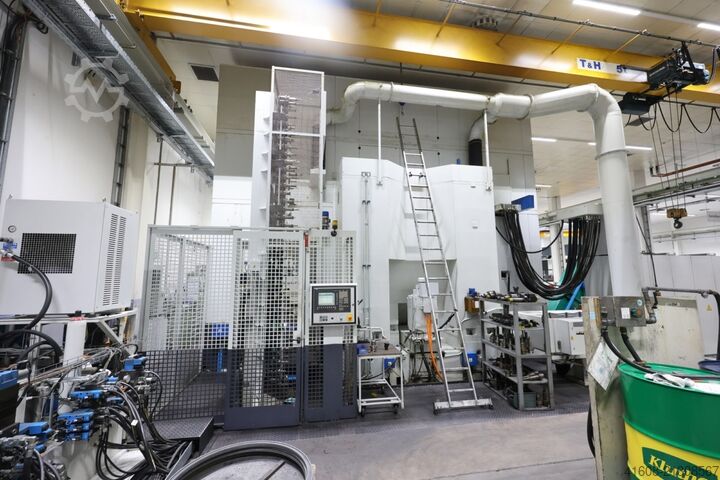

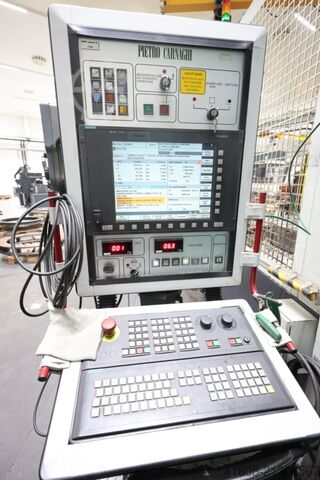

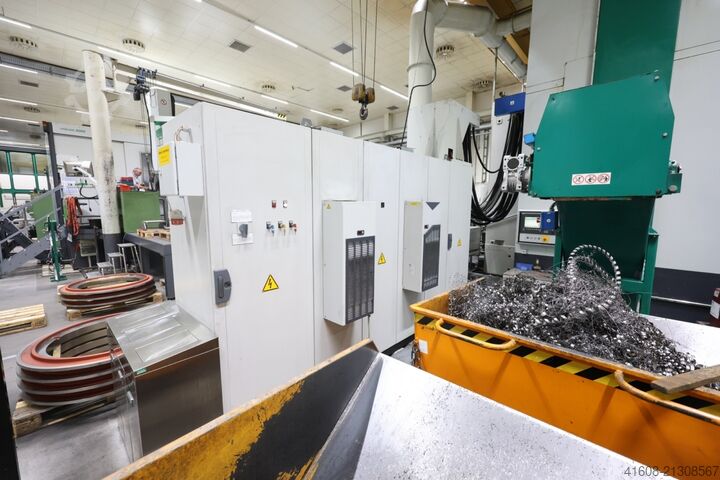

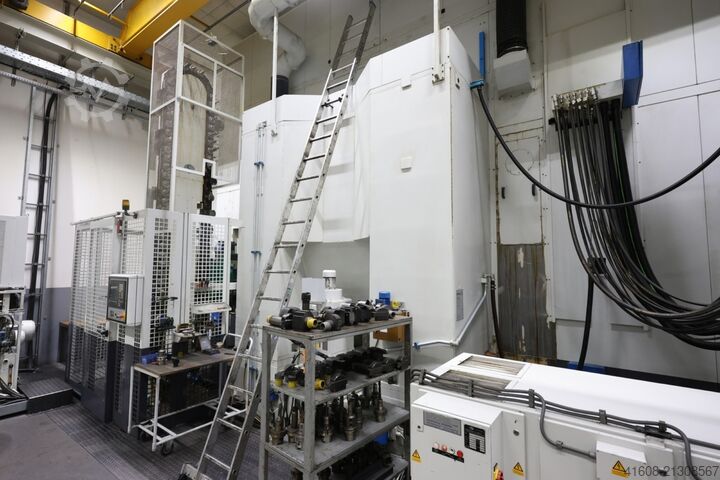

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, Technical details faceplate diameter 1800 mm swing diameter 2000 mm turning height 1270 / 1120 mm Control SIEMENS 840 D workpiece weight max. 5000 kg ram head dimension 250 x 250 mm table turning speeds 1 - 320 U/min cross rail - adjustment 400 mm ram head - cross travel (X) -2770 / +2275 mm ram head - vertical travel (Z) 1250 mm c-axis 360° (0,001°) deg milling drive 37 kW turning speed range - milling 10 - 3000 U/min power capacity - table 100 kW Torque 31784 Nm feed range (X/Z) 0,1 - 15000 mm/min weight of the machine ca. 55 t Additional information Used CNC vertical lathe for turning, drilling and milling First machine installation in the year 2011. Max. workpiece diameter: 2040 mm Max. workpiece height: 1270 mm Ram stroke: 1250 mm Lodjymlf Dopfx Aaqshc Max. workpiece weight: 5000 kg (per pallet/chuck) Table speed range: 1.0 - 320 rpm Table drive motor: 100 kW Drilling and milling spindle: 37 kW Crossbar travel: 2 steps of 200 mm each Total electrical connection value: 218 kVA CNC control: Siemens 840 D Number of NC axes: 4 (X, Z, C, crossbar adjustment) Travels: X-axis: -1650 to + 2165 mm Z-axis: 1250 mm Rapid traverse X- Z-axis: 15 m/min Number of tool magazine spaces: 80 spaces in the chain magazine, of which 60 x HSK 100 and 20 x Capto C6 Disc magazine 12-pos. for rotary holders and attachment heads Coolant system with filter and circulation unit Chip conveyor Oil-mist-extractor 1 pallet with jaws, diameter 1800 mm 1 hydraulic chuck with base jaws, diameter 1800 mm Various drilling and milling heads 2 measuring probes Several turning tool holders Special feature: Pallet changer with two stations, equipped with a face plate Ø1800 mm and a six-jaw lever compensation chuck with mechanical centrifugal force compensation Ø1800 mm. Note: The machine is in a pit. Condition description: The cross roller bearing on the Carnaghi was replaced about half a year ago. The Siemens components in the control cabinet were also completely replaced at the end of 2023. The machine also has a measuring probe for tool measurement and an external Renishaw measuring probe for workpiece measurement. As a special feature, the machine also has a measuring probe installed on the Z-axis (Z1-axis). This brings an advantage in terms of accuracy and time, as the tool does not have to be put down for measuring. However, it is currently shut down and should be overhauled when it is put back into operation. The machine also has a Rotomors six-jaw lever compensating chuck with centrifugal force compensation, which was completely overhauled in 2020/21.

Condition: used, Lathe, turning machine, lead screw lathe, lead screw lathe -Handover: in the current condition as viewed -Condition: Gearbox makes noise (video) -Manufacturer: Colchester, Leadscrew and Feedscrew Lathe Type Triumph 2000 -Turning length: 1300 mm Lhsdpfx Aaorbm T Dsqec -Turning Ø over bed: 390 mm -Turning Ø over support: 240 mm -Spindle bore: Ø 55 mm -Spindle speeds: 22 - 2000 rpm -Three-jaw chuck: Ø 250 mm -Accessories: Tool holder/tools see photos -Tailstock mount: MK4 -Dimensions: 960/2435/H1640 mm -Weight: 1327 kg

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, * Okuma LB 3000 MY. * Included equipment valued at €20,000–24,000. * 4-axis machine. * Fully independent programmable tailstock with movement on the Z axis and clamping by M codes. * 12-station turret, all positions powered. * C axis. * Y axis. * Integrated main spindle motor: 18.5 / 22 kW. * Driven tool motor: 5.5 kW. * Motor starting torque: 620 Nm. * Integrated, beltless main spindle drive. * Main spindle nose size: A2-8. * Tailstock Morse taper: MT5. * Bar capacity: 75 mm. * Spindle chuck: Kitagawa B-210. * Box guideways on all axes. * Main spindle speed: 4,200 rpm. * Driven tool speed: 4,000 rpm. * Maximum swing diameter: 520 mm. * Maximum machining diameter: 380 mm. * Maximum machining length: 1,050 mm. * Headstock oil chiller. * IGF OSP P200-L conversational automatic programming system. * Automatic load monitoring and tool consumption display. * Parametric automatic anti-collision system for tools. Lodpfx Aeyl Tmaoaqehc * Tool life management and monitoring system. * Rapid traverse speed: 20 and 25 m/min in X and Z axes. * Turret indexing time: 0.2 seconds. * Renishaw automatic tool setting arm. * Communication ports: USB, PCMCIA card, and RS-232. * Dual pedal for main chuck and tailstock open/close. * Side-mounted chip conveyor, hinge-type. * Complete set of external and internal static toolholders. * Full set of axial and radial driven toolholders. * Electrical transformer. * Documentation: parts list, electrical diagrams, programming, and operating manuals. * Weight: 6,200 kg. * Machine currently in operation. * Immediate availability unless already sold.

Condition: used, functionality: fully functional, Swing diameter over bed: Ø 450 mm Swing diameter over carriage: Ø 280 mm Max. swing diameter: Ø 280 mm Turning length: 450 mm Lhsdpfx Aexg Itvsaqjc Distance between centers: 450 mm Speed range: stepless variable, approx. 50 – 5000 rpm Turret: 1x 8 tool positions 1x 12 tool positions Tool system: VDI-30 Travels: X-axis travel: 120 + 25 mm Z-axis travel: 450 mm Rapid traverse: 12 m/min Motors & Electrical: Spindle motor: approx. 5.5 / 7.5 kW (continuous / 30 min) Total connected load: 29 kVA Power supply: 380V, 3-phase, 50 Hz Full load current: 44 A Weight & Dimensions: Machine weight: approx. 4,800 kg Dimensions (L×W×H): 2,985 × 1,720 × 1,850 mm

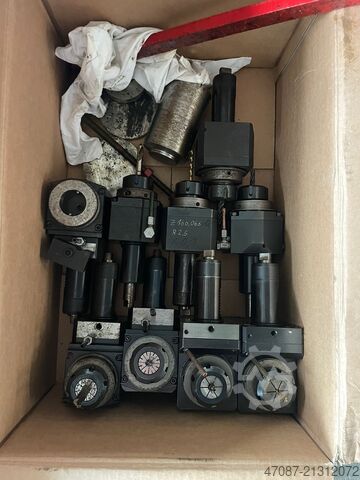

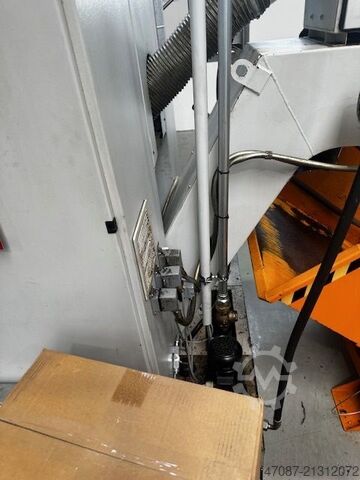

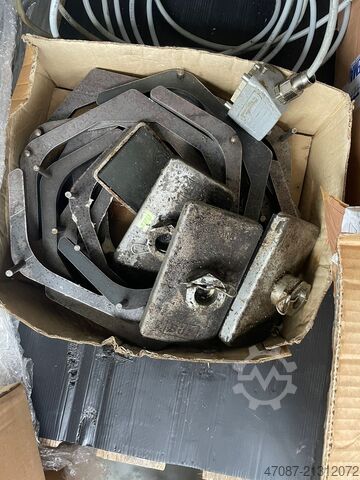

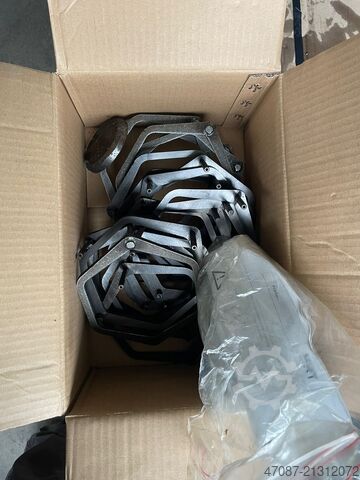

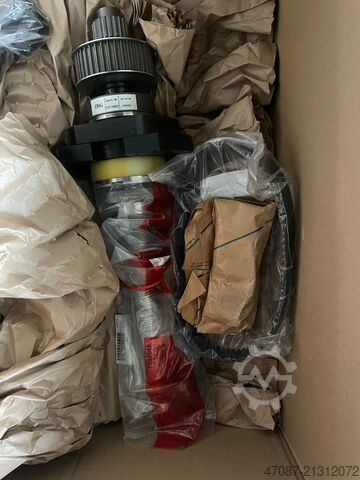

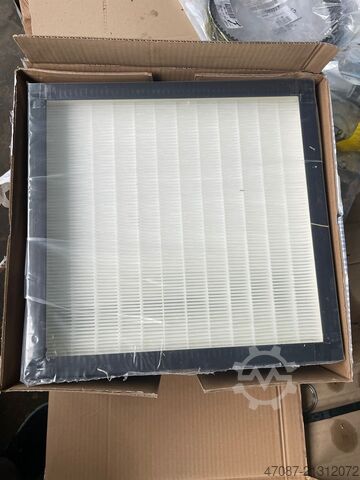

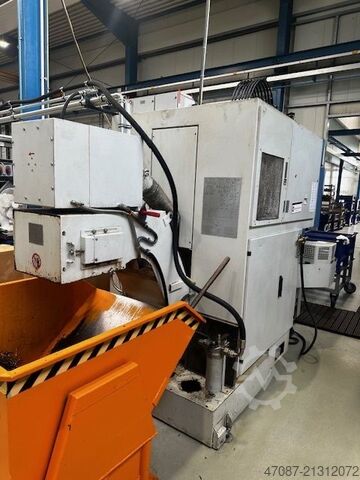

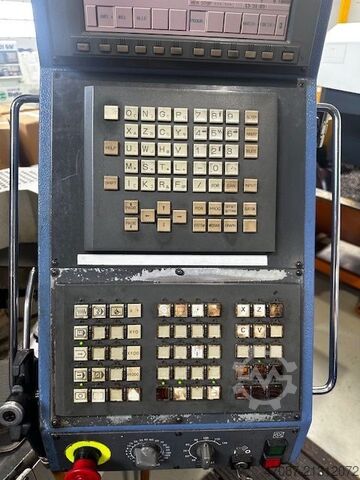

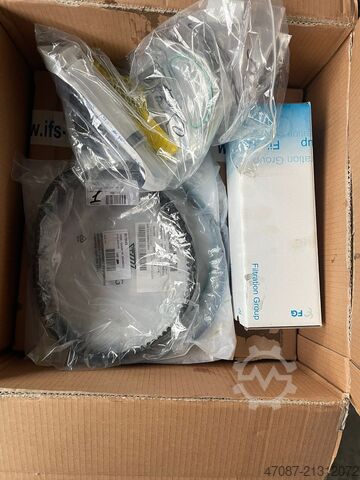

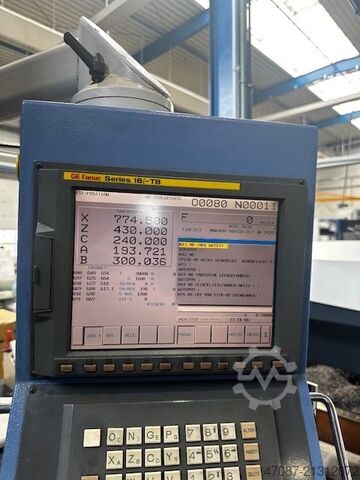

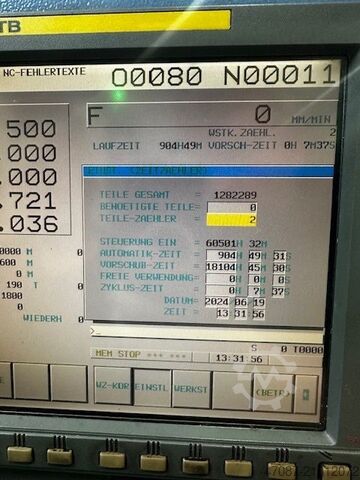

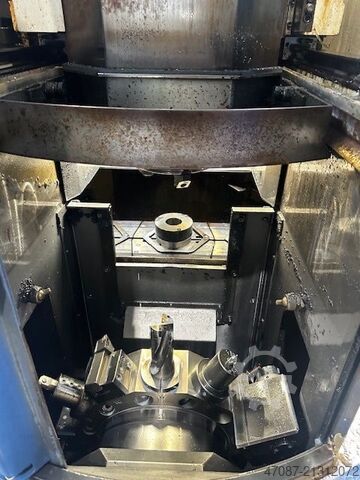

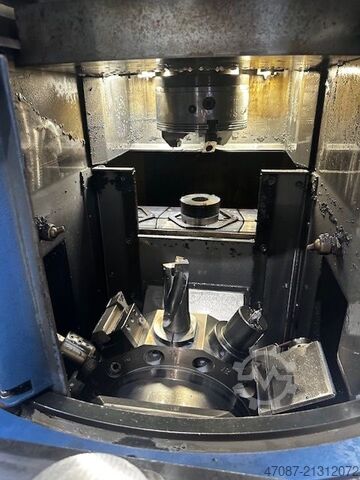

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, Manufacturer: EMAG Model: VL 3 Year of manufacture: 2006 Chuck diameter: 160 mm Swing diameter: 210 mm X-axis travel: 400 mm Z-axis travel: 200 mm Lsdpfx Aaeympwkeqshc Loading time: 2–4 s Main spindle Spindle flange according to DIN 55026 Size: 5 Spindle bearing diameter (front): 80 mm Max. speed: 7500 rpm Main drive AC asynchronous motor Power at 100/40% duty cycle: 16/24 kW Torque at 100/40% duty cycle: 102/158 Nm Feed drive Rapid traverse speed in X: 60 m/min Rapid traverse speed in Z: 30 m/min Feed force in X and Z: 5 kN Ball screw diameter in X and Z: 40 mm Turret Disc turret, 12 stations, cylindrical shank holders to DIN 69880 Shank diameter: 40 mm Driven tools: Maximum output: 12 kW Max. speed: 6000 rpm Max. torque: 37 Nm Full power from: 3000 rpm Turret indexing time: 0.3 s Dimensions and weight Length: 2500 mm Length incl. chip conveyor: 3500 mm Width: 1900 mm Height: 2300 mm Approx. weight: 5500 kg Includes 9 driven tools (axial and radial) and various spare parts Subject to prior sale and errors

Condition: excellent (used), Year of construction: 2003, turning diameter over cross slide: 390 mm, turning length: 2,250 mm, turning diameter: 610 mm, spindle bore: 118 mm, spindle speed (max.): 3,200 rpm, travel distance X-axis: 1,870 mm, travel distance Y-axis: 210 mm, travel distance Z-axis: 240 mm, Equipment: rotational speed infinitely variable, Siemens Sinumerik 840D control. CNC turning and milling center with main and counter spindle for efficient 4-axis complete machining of chuck, bar, or shaft parts. Lhjdpfx Ajw Ngmhjaqoc

Condition: ready for operation (used), Year of construction: 2007, operating hours: 32,700 h, functionality: fully functional, travel distance X-axis: 165 mm, rotational speed (max.): 5,000 rpm, bar passage: 65 mm, controller model: SIEMENS 840 D, Equipment: chip conveyor, TECHNICAL DETAILS X1 travel: 165 mm Z1 travel: 220 mm X2 travel: 165 mm Z2 travel: 150 mm X3 travel: 165 mm Z3 travel: 650 mm Y3 travel: 80 (+50/-30) mm Bar capacity: 65 mm Main and sub-spindle speed: 5,000 rpm Turrets: 3, each with 12 stations (all driven) Driven tool speed: 4,000 rpm Tool holder: VDI 30 with drive, DIN 5480 MACHINE DETAILS Control: SIEMENS 840 D Operating hours Power-on hours: 52,511 h Spindle hours: 32,700 h EQUIPMENT C-axis Y-axis Coolant system Chip conveyor Lhjdpfx Aeymmdbeaqoc Bar feeder TOP Automazioni XF 375

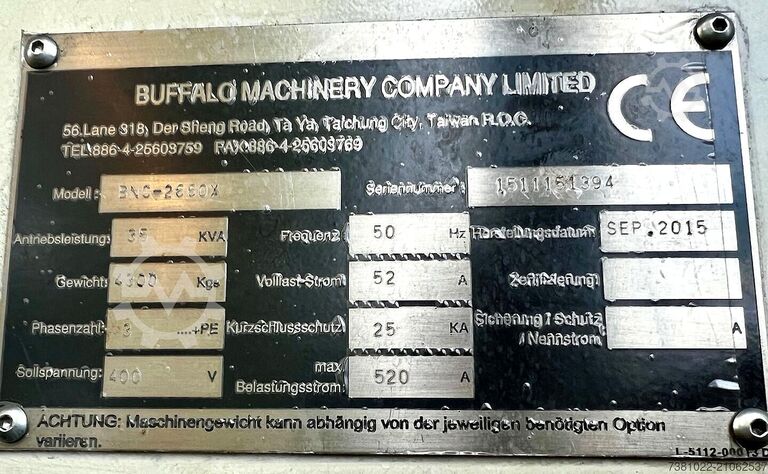

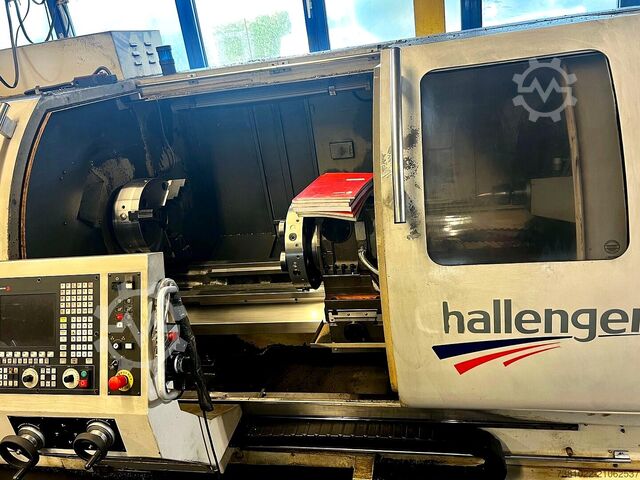

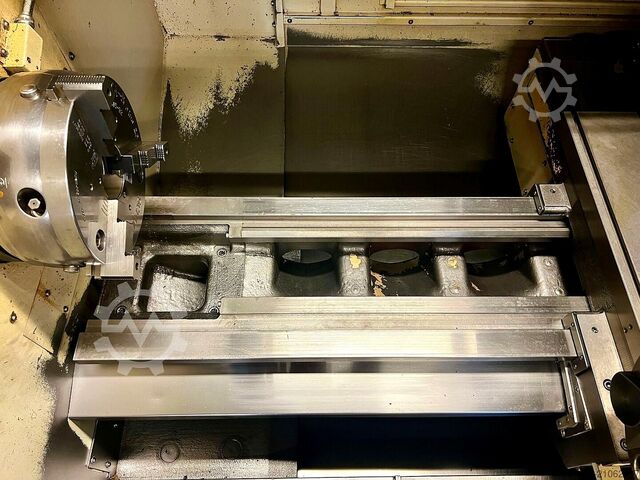

Condition: not inspected (used), Year of construction: 2015, functionality: unexamined, machine/vehicle number: 1511151394, turning length: 1,500 mm, turning diameter: 650 mm, spindle bore: 82 mm, spindle speed (max.): 2,400 rpm, overall weight: 4,300 kg, The machine was used without any restrictions or known defects until it was decommissioned. The original purchase price of the machine was EUR 79,000! TECHNICAL DETAILS Turning length: 1,500 mm Turning diameter: 650 mm Spindle bore: 82 mm Spindle speed range: 80 - 2,400 rpm MACHINE DETAILS Weight: 4,300 kg Drive power: 35 kVA Frequency: 50 Hz Full load current: 52 A Number of phases: 3 + PE Lhjdpfx Aaeymay Asqoc Short-circuit protection: 25 kA Nominal voltage: 400 V Max. load current: 520 A EQUIPMENT Documentation / Manual

Condition: ready for operation (used), WWDK 80 heavy duty lathe with 3 guideways max workpiece weight: 100 ton Distance between centers: 7500 mm Swing over bed: 1900 mm Swing over cross-slide: 1650 mm Lsdpfx Aeyl A D Uoaqjhc Power on main spindle: 150 HP Max weight between centers: 100 ton
