Used Mini Metal Lathe for sale (3,207)

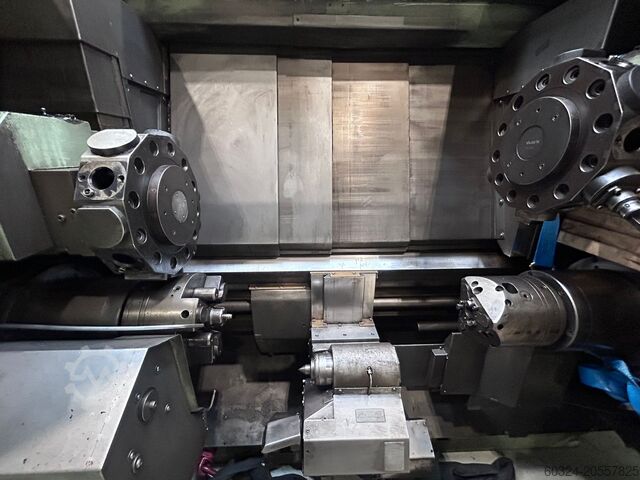

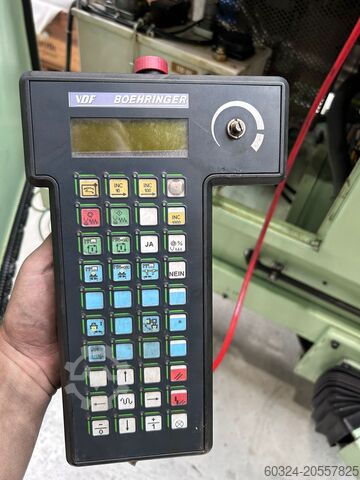

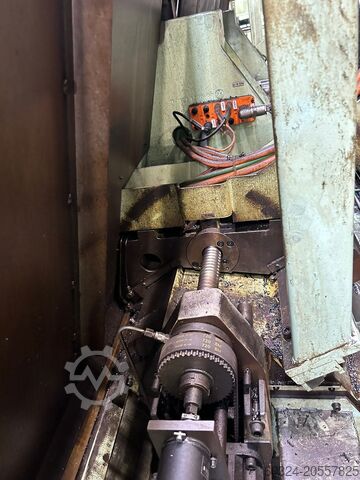

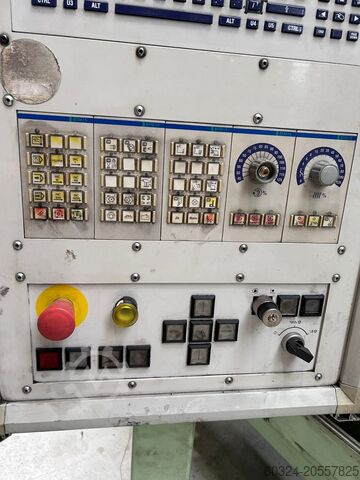

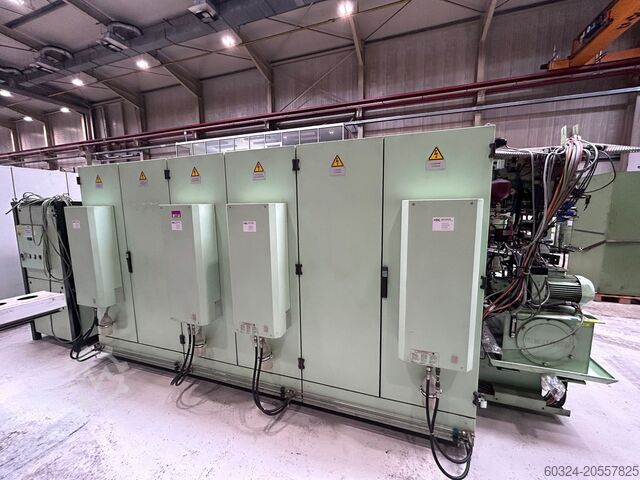

Condition: good (used), Year of construction: 1999, Ref. -No.: 10443 Manufacturer: VDF BOEHRINGER Type: 16 M - G Year of construction: 1999 Type of control: CNC Control: REXROTH INDRAMAT SYSTEM 200 BTV 30 Storage location: Halberstadt Country of origin: Germany Turning Diameter: 520 mm Turning Diameter Over Slide Rest: 150 mm Spindle Speeds: 25 - 4.500 RPM Spindle Bore: 78 mm Tool Taper: VDI 40 Rapid Traverse: 15.000 mm / min Distance Between Centres: 1110 mm Spindle motor drive: 18 kW Turret places: 12 Pcs Machine length: 5000 mm Machine width: 2800 mm Machine Height: 3200 mm Weight Of The Machine Ca.: 14,5 t Further information: 2x revolver (12 places) Machine can be inspected under power by appointment. Iodpfx Adsxxpabs Dstp

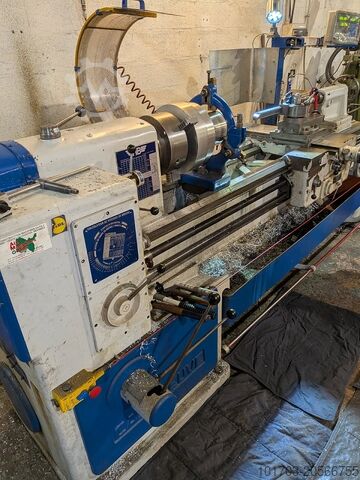

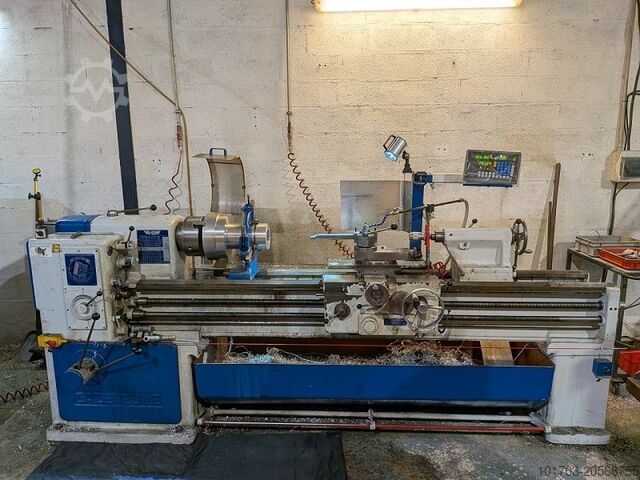

Condition: used, Parallel Lathe CAZENEUVE type HB 575 Between points: 2000 mm Itedexxy Ddopfx Ad Dep Maxi Ø on bench: 575 mm Maxi Ø over saddle: 300 mm Spindle diameter: Ø 51 mm Rotation: from 20 to 1600 RPM Turret Multifix Spindle motor: 15 CV Threadings: Metric + Whitworth Tailstock CM5 With 1 scale Voltage: 380 V Dimensions (L x W x H): 3500 x 1500 x 1400 mm Weight: approx 3 T

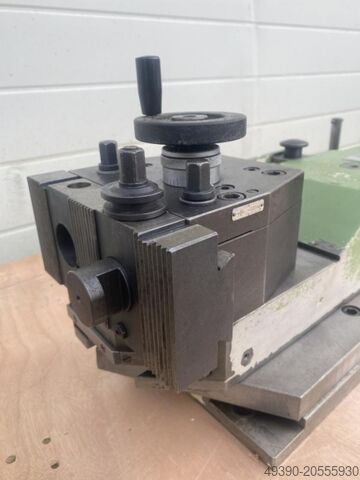

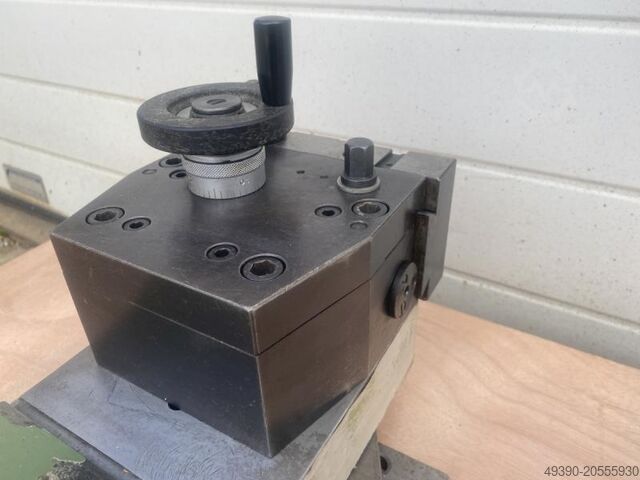

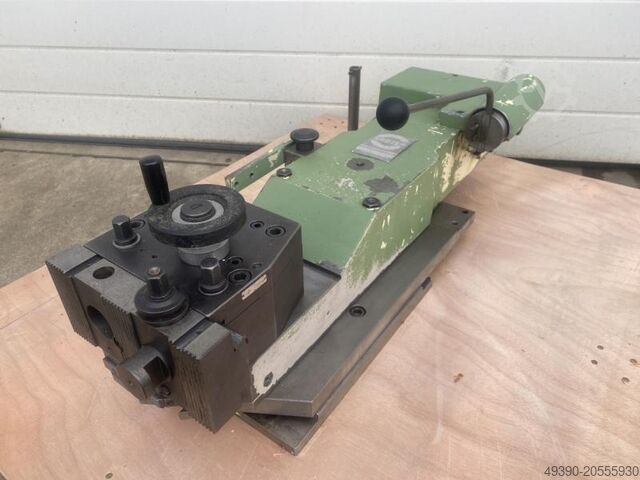

Condition: used, Hydraulic Copying Device SAUTER Type KMC 8001 Copy turning attachment, copying device for lathes The copying device comes from a lathe. Iedpfexxmf Isx Ad Dotp Connections for oil supply and oil return Copy stroke: approx. 140 mm Radial travel at 60° mounting: 120 mm Required operating pressure: approx. 25 bar Oil flow rate: max. 7 liters/min. Lathe drive power: max. approx. 15 kW Chip cross-section: max. 3.5 mm² Copying slide stroke: approx. 125 mm Distance from turning tool to tracer: 800 mm Net weight of copying device: 120 kg Good condition The matching hydraulic power unit and holders for the pattern parts can be found on our website under the search term 'Sauter'.

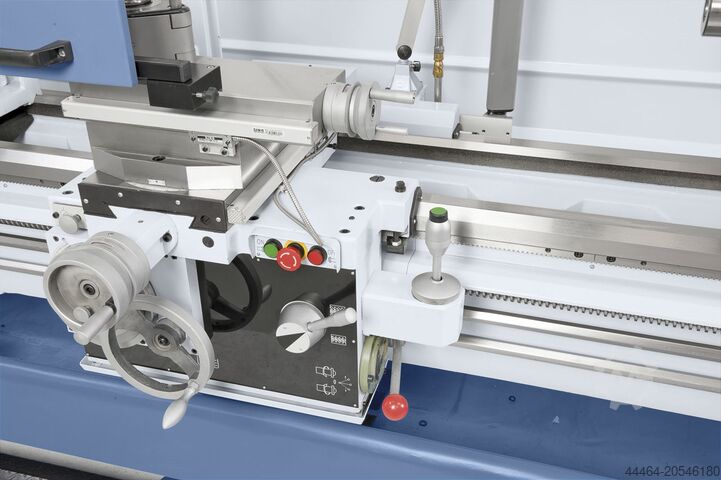

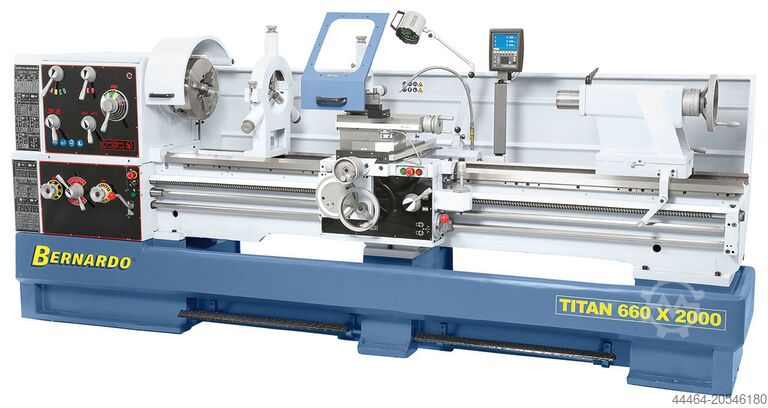

Condition: new, Bernardo Universal Lathe Titan 660 x 3000 Isdpfx Aexxayfsd Dstp Technical Specifications Distance between centers: 3000 mm Center height: 330 mm Swing over bed: 660 mm Swing over gap: 900 mm Swing over cross slide: 460 mm Bed width: 400 mm Spindle bore: 105 mm Spindle mount: DIN 55029, D1-8 Speed range: (16) 25 - 1600 rpm Longitudinal feed range: (25) 0.044 - 1.48 mm/rev Cross feed range: (25) 0.022 - 0.740 mm/rev Metric threads: (54) 0.45 - 120 mm Inch threads: (54) 7/16 - 80 TPI Tailstock quill diameter: 90 mm Tailstock quill travel: 235 mm Tailstock taper: MK 5 Motor power: 7.5 kW (10.0 HP) Machine dimensions (W x D x H): 4630 x 1200 x 1520 mm Approx. weight: 3300 kg Features • Versatile use in general mechanical engineering, production, single-part manufacturing, etc. • Central, user-friendly control for feeds and threading with leadscrew and feed shaft • Prism bed made of cast iron, inductively hardened and precision ground • Modern main spindle bearings with precision angular contact roller bearings • Hardened and ground gears and shafts, also in the feed gearbox • Rapid traverse longitudinal and cross as standard to reduce non-productive times • Large spindle bore (105 mm) for machining workpieces with large diameter • Smooth start-up via mechanical multi-plate clutch • Electromechanical foot brake to reduce non-productive times • Optimal cutting performance even during facing operations • Bed reinforced with robust ribs to stiffen the guideway and minimize vibration influences Scope of Delivery • 3-axis digital readout ES-12 V with LCD display • Slip clutch • Rapid traverse longitudinal and cross • LED machine light • 3-jaw steel chuck PO3-315 mm / D8 • Face plate 450 mm • Fixed steady rest – through hole diameter max. 180 mm • Travelling steady rest – through hole diameter max. 120 mm • 2 live centers • Motor with magnetic brake to CE standard • Foot pedal with brake function to CE standard • Initial filling with Shell Tellus 46 • Coolant system • Quick-change tool post with 4 holders • Safety device for quick-change tool post • Change gears • Reducing sleeve • Chip guard rear panel • Cable management via energy chain • Operating tools

Condition: excellent (used), EMCO Precision Lathe EMCOMAT 17 D Including 3-axis EMCO digital readout Year of manufacture: 2007 with CE mark 2 units available! Centre distance: 700 mm Centre height: 170 mm Swing over bed: Ø 340 mm Swing over cross slide: Ø 190 mm Bed width: 260 mm Longitudinal slide travel: 600 mm Cross slide travel: 220 mm Compound slide travel: 110 mm Compound slide length: 410 mm Compound slide width: 150 mm Bed slide guide length: 380 mm Tool section: 20 x 20 mm Distance spindle centre – compound slide: 34 mm Compound slide (support) swivel range: 60 / 120° Main spindle: Spindle mount: DIN 55029 (Camlock) Spindle bore: Ø 50 mm Internal taper to DIN 7178 1:22 Spindle diameter at front bearing: Ø 70 mm Max. chuck diameter: Ø 200 mm Ijdsxx S R Ajpfx Ad Dstp Max. faceplate diameter: Ø 200 mm Spindle speeds: 40 - 3,000 rpm Infinitely variable speed adjustment Mechanical speed ranges: 4 Main drive: Power at 40% duty cycle: 5.3 kW Max. rated torque at main spindle: 640 Nm Feed: 20 (28) longitudinal feeds Z: 0.045–0.787 mm/rev 20 (28) cross feeds X: 0.023–0.406 mm/rev Threads: 20 (28) metric threads (basic equipment): 0.4 – 7.0 mm Tailstock: Quill diameter: Ø 50 mm Quill internal taper: MT 3 Quill stroke: 120 mm Lateral offset: ±13 mm Permissible workpiece weight (between centers, unsupported): 50 kg, supported with tailstock: 150 kg Weight: 755 kg Dimensions: 1650 x 1060 x 1635 mm The EMCOMAT 17 D is a precision lathe suitable for all areas of mechanical engineering and training purposes. Equipment: - EMCO 3-axis digital display with color screen - Potentiometer - Emergency stop button - Digital speed display on control panel next to digital readout - 3-jaw chuck - MULTIFIX tool post, size B - Electrically interlocked chuck guard - Quick-action collet chuck - MICROJET coolant spray unit - Chip guard rear panel - Machine lamp - Machine feet - Bed stop Condition: Very good, from training facility Available from March 2026

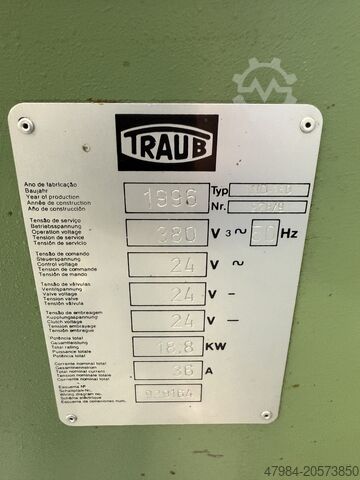

Condition: good (used), Year of construction: 1996, functionality: fully functional, machine/vehicle number: 978/9, turning length: 400 mm, travel distance X-axis: 120 mm, travel distance Z-axis: 300 mm, total height: 2,100 mm, total length: 3,500 mm, total width: 2,000 mm, overall weight: 3,000 kg, controller manufacturer: TRAUB, controller model: SYSTEM TX 8 F, TRAUB TND 160 CNC Lathe - Operating voltage: 380 V - Frequency: 50 Hz - Rated current: 36 A - Connected load: 18.8 kW The machine is equipped with a tailstock, a three-jaw chuck (diameter: 140 mm), an 8-position tool turret, and a chip conveyor. This is an item from a training workshop. FCA D-73235 Weilheim Teck, loaded onto truck Itsdpfx Ajxx Ny Ied Dsp

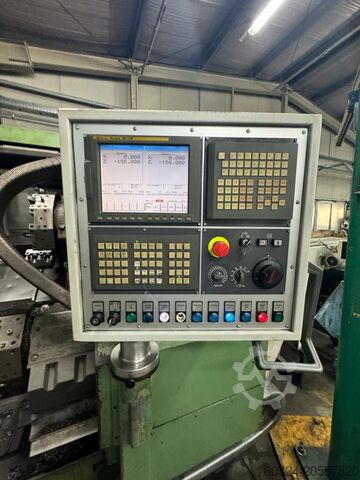

Condition: good (used), Year of construction: 2002, Ref. -No.: 10434 Manufacturer: OKUMA Type: LC 40 Itodpfx Ajxxn U Red Djp Year of construction: 2002 Type of control: CNC Control: FANUC 18-i TB Storage location: Halberstadt Country of origin: Germany Turning Speeds: 10 - 2.800 RPM Bar passage: 91 mm Chuck diameter: 450 mm Tailstock - diameter: 120 mm Turning Diameter: 550 mm Turning Length: 800 mm Swing Diameter: 800 mm Spindle passage: 90 mm Spindle nose: A2-8 Tailstock Quill Stroke: 150 mm Total Power Requirement: 44 kW Weight Of The Machine Ca.: 8 t Number of tool stations: 12 pc

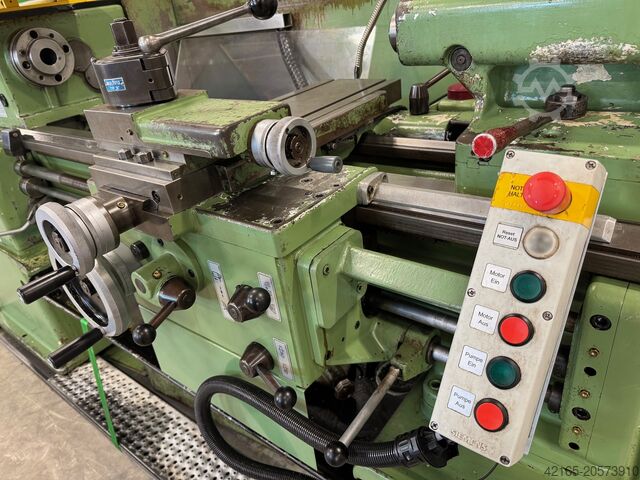

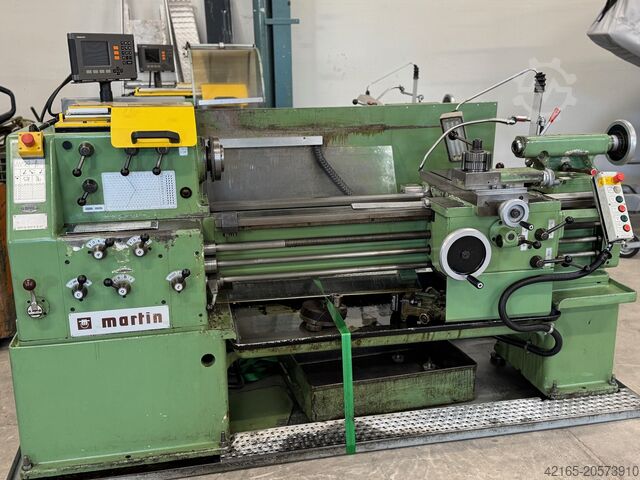

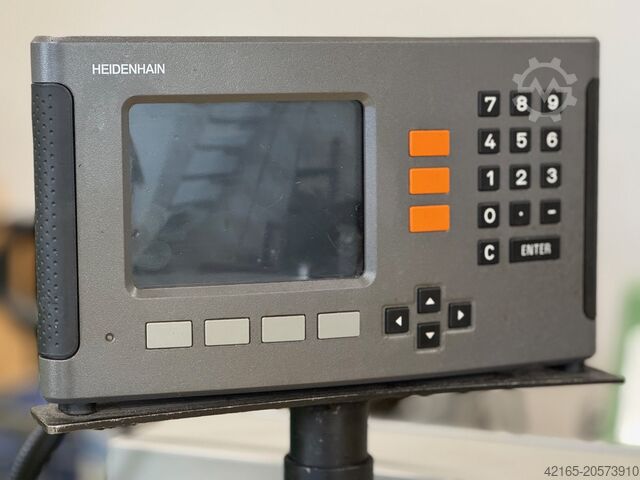

Condition: good (used), Year of construction: 1985, functionality: fully functional, Lead and Feed Screw Lathe MARTIN KM 200 x 1000 Year of manufacture: 1985 HEIDENHAIN 2-axis digital readout Ijdpfxjxx N A Aj Ad Djtp Technical Data: Center height: 200 mm Swing over bed: 400 mm Swing over cross slide: 220 mm Faceplate diameter: 400 mm Distance between centers: 1000 mm Bed width: 330 mm Spindle: Spindle nose: 6 DIN 55022 Spindle bore: 45 mm Spindle diameter at front bearing: 80 mm Morse taper in tailstock quill: MT4 Internal taper of main spindle: 1:20 metric 50 Spindle speeds: 40 to 1800 rpm Feeds: -- longitudinal: 1.10 mm/rev to 0.08 mm/rev -- cross: 0.40 mm/rev to 0.03 mm/rev Thread pitches: 18 metric threads: 0.5 - 7 mm 24 threads per inch (TPI): 56 - 4 TPI 13 module threads: module 0.25 - 3.5 Tailstock: Quill diameter: 60 mm Maximum quill travel: 170 mm Morse taper: MT4 Drive power: 5.5 kW Permissible max. workpiece weight between centers: without fixed steady rest: 750 kg with 1 fixed steady rest: 950 kg with 2 fixed steady rests: 1050 kg Installation dimensions: L 2,500 mm x W 1,500 mm x H 1,600 mm Weight: 1,400 kg

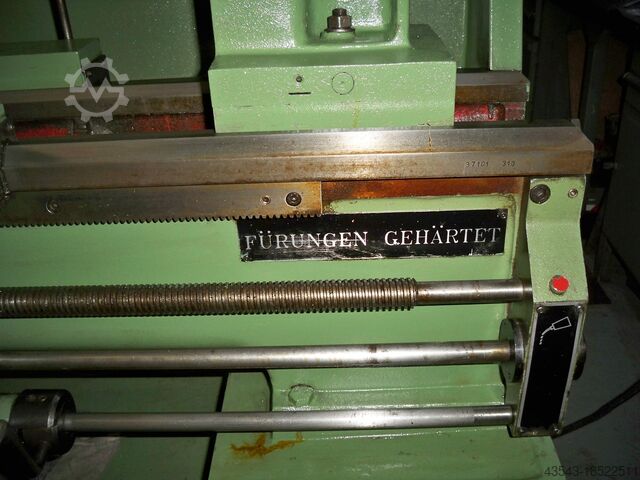

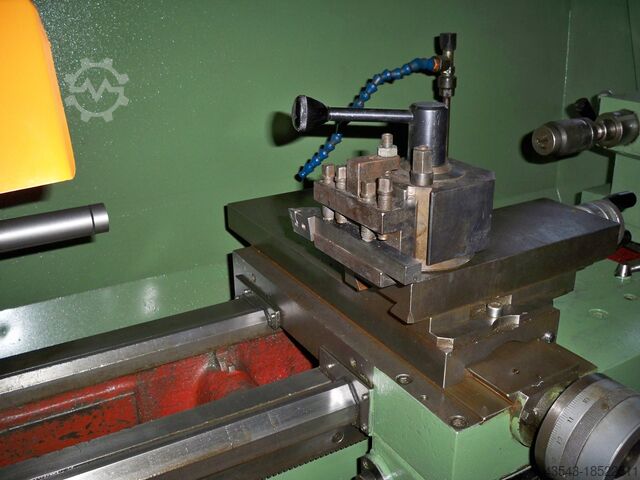

Condition: used, Lead screw lathe US 400 (probably Weiler replica) Turning length: 1000 mm Itedsvzkptjpfx Ad Dop Center height: 200 mm Multifix B Spindle speeds: 31 – 2000 rpm 3-jaw chuck (⌀ 200 mm) Spindle passage: 45 mm Motor with brake Emergency stop switch Chuck protection

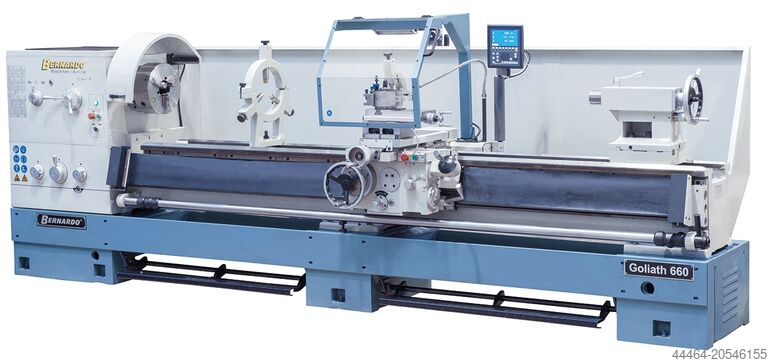

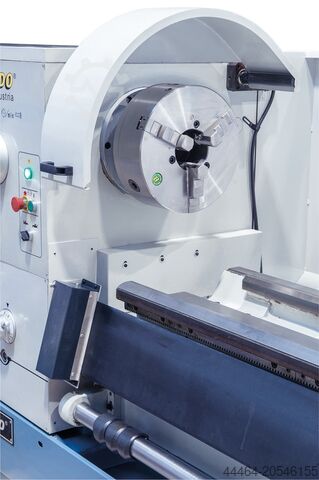

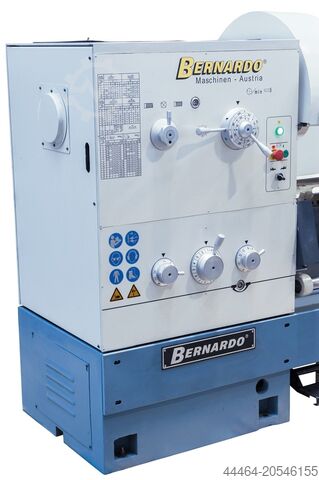

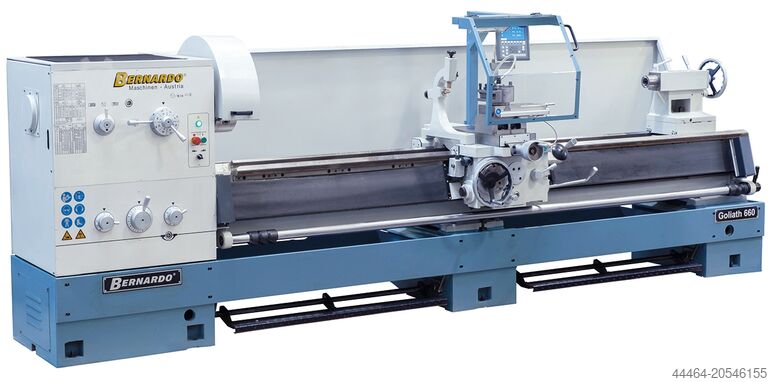

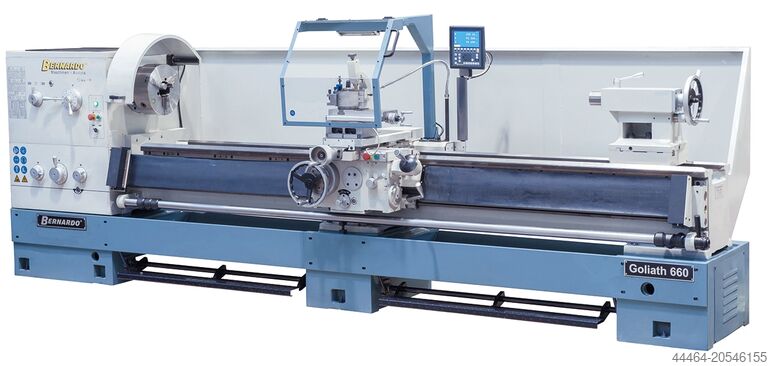

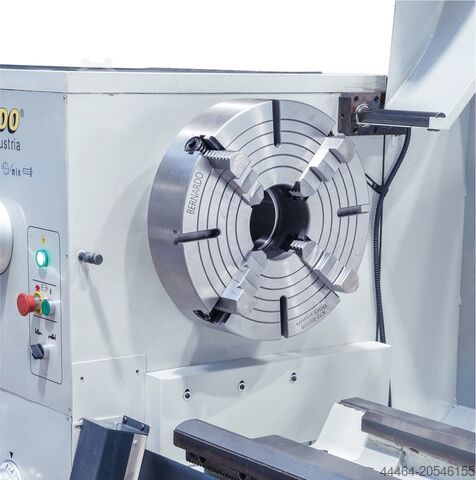

Condition: new, Bernardo Production Lathe Goliath 660 x 3000 incl. 3-Axis Digital Readout Technical Specifications Centre distance: 3000 mm Centre height: 330 mm Swing over bed: 660 mm Itedpfx Aoxxaxned Dop Swing over gap*: 870 mm Swing over cross slide: 420 mm Bed width: 400 mm Spindle bore: 105 mm Spindle mounting: DIN 55029, D1-8 Speed range (16 steps): 36 – 1600 rpm Longitudinal feed range (65 steps): 0.063 – 2.52 mm/rev Cross feed range (65 steps): 0.027 – 1.07 mm/rev Metric threads (22): 1 – 14 mm Inch threads (26): 2 – 28 TPI (G/1") Quill diameter: 75 mm Quill travel: 150 mm Quill taper: MT 5 Motor power: 9.0 kW (12.0 HP) Machine dimensions (W x D x H): 4500 x 1280 x 1650 mm Approx. weight: 3990 kg * Removable bed gap: 240 mm Features • Versatile applications in general engineering, production, single-part manufacturing, etc. • The one-piece cast machine bed offers extremely high rigidity and low vibration, fulfilling a key requirement for precision turning • Modern headstock bearing with precision angular contact ball bearings • Central, user-friendly control for feeds and threading, with lead and feed screws • Rapid traverse (longitudinal and cross) as standard to minimize non-productive times • Large-dimensioned, hardened, and precision-ground gears • Removable gap bridge enables machining of large-diameter workpieces • Adjustable tailstock for taper turning, handwheel with adjustable fine scale (0.02 mm) • Electromechanical foot brake to reduce non-productive times • Excellent machining performance even during facing operations Scope of delivery • Slip clutch • Rapid traverse (longitudinal and cross) • LED machine lamp • 3-axis digital readout ES-12 V with LCD display • 3-jaw chuck PS3-315 mm / D8 • Face plate 630 mm • Fixed steady rest – max. bore diameter 250 mm • Travelling steady rest – max. bore diameter 110 mm • 1 live centre / 1 revolving centre • Motor with magnetic brake according to CE standard • Foot pedal with brake function to CE standard • Factory fill with Shell Tellus 46 • Coolant device • Quick-change toolpost with 4 holders • Safety guard for quick-change toolpost • Reducing sleeve • Chip guard (swarf back panel) • Operating tools

Condition: good (used), WEILER Precision Lathe MADADOR with HEIDENHAIN 3-Axis Digital Readout Year of manufacture: approx. 1980, retrofitted with emergency stop (EMERGENCY-OFF) and electrically interlocked chuck guard. 2 units available! Centre height: 145 mm Centre distance: 500 mm Itjdexx S Hdjpfx Ad Dsp Swing diameter over cross slide: 160 mm Spindle nose: DIN 55022 Size 5 Spindle bore: 36 mm Spindle speeds: 30 – 3,000 rpm Motor power: approx. 3.0 kW Tailstock quill: MT 3 Quill stroke: 90 mm Weight: approx. 620 kg Dimensions: 1420 x 700 x 1200 mm Technical data not binding! Robust leadscrew/feedshaft lathe for workshop and advanced DIY users Condition: good Equipment: • 3-axis precision digital readout HEIDENHAIN • Lever-operated quick collet chuck • Electrically interlocked chuck guard • Multifix tool post head size A • 3-jaw chuck • Coolant system • Machine feet • Chip guard (rear panel) • Machine lamp • Bed stop • Emergency stop button • Lockable tool compartment • Automatic feeds for longitudinal and cross slide Available from March 2026

Condition: good (used), Year of construction: 1981, functionality: fully functional, machine/vehicle number: 6904-06, spindle bore: 65 mm, total length: 3,500 mm, total width: 1,200 mm, total height: 1,900 mm, spindle speed (max.): 2,240 rpm, spindle speed (min.): 11 rpm, overall weight: 2,500 kg, BOEHRINGER D 420 lead and feed screw lathe - Operating voltage: 380 V - Frequency: 50 Hz - Rated current: 35 A - Distance between centers: approx. 1200 mm - Center height over bed: approx. 220 mm - Swing over bed: 440 mm Iodoxx Nu Espfx Ad Dstp - Center height over cross slide: 120 mm - Swing over cross slide: 240 mm The machine is equipped with tailstock, MULTIFIX toolholder, and a RÖHM three-jaw chuck, diameter: 200 mm. Also features a two-axis digital readout by SONY. This item comes from a training workshop. FCA D-73235 Weilheim Teck, loaded onto truck.

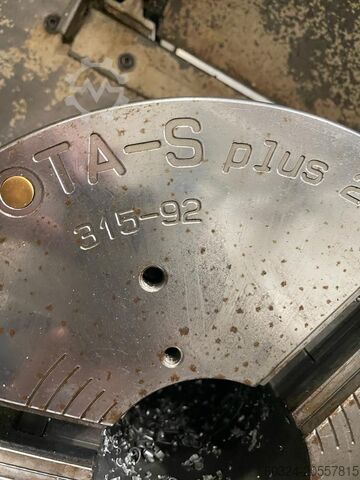

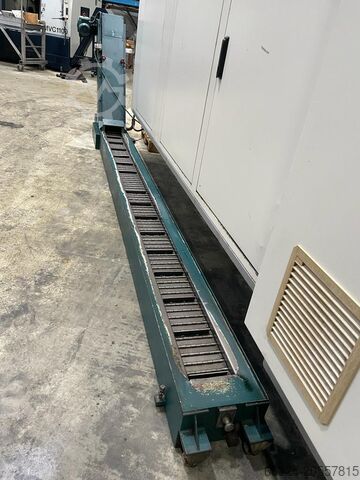

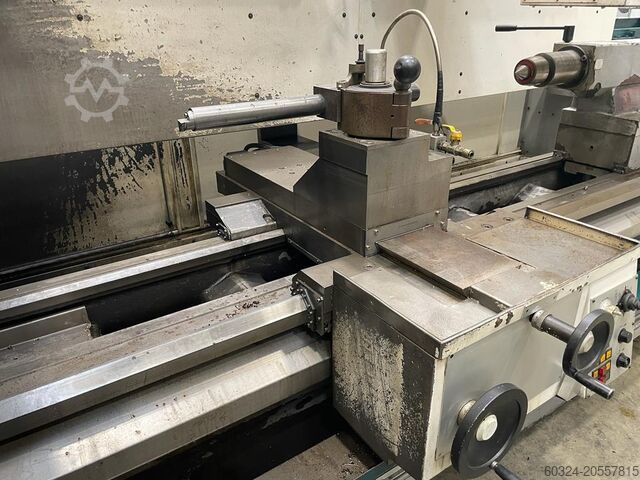

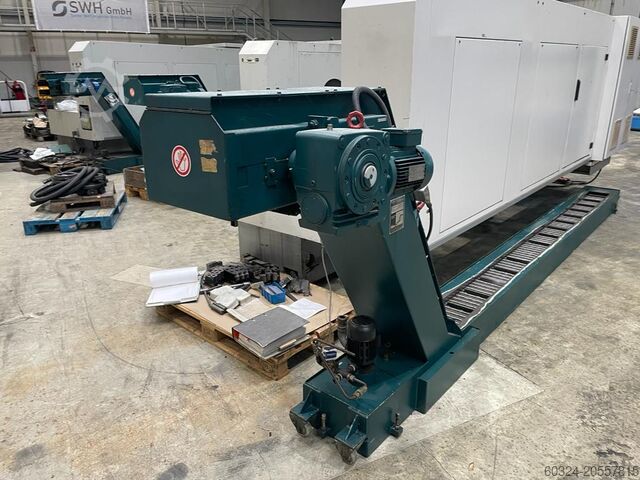

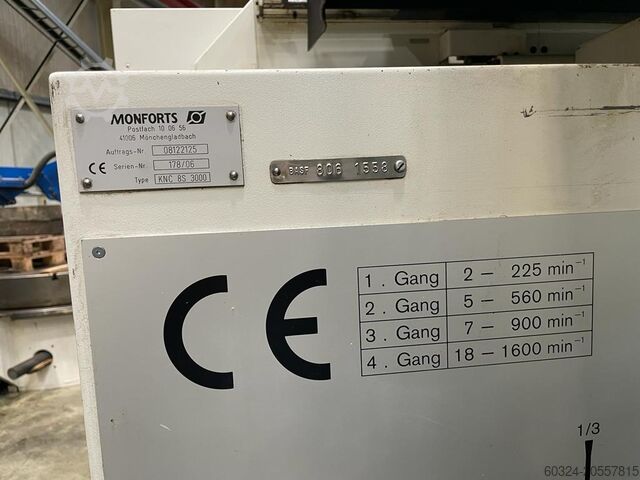

Condition: good (used), Year of construction: 1999, Ref. -No.: 10365 Manufacturer: MONFORTS Type: KNC 8 S - 3000 Year of construction: 1999 Type of control: CNC Control: MTC K Storage location: Halberstadt Country of origin: Deutschland Machine-No.: 178.05 X stroke: 455 mm Z - stroke: 2850 mm Chuck diameter: 315/400/500 mm Centre Distance: 3000 mm Itodpfxexxn U De Ad Djp Feed Capacity - Z: 23,9 kN Feed Capacity - X: 11,3 kN Rapid Travel Speed X-Axis: 6,8 m / min Rapid Travel Speed Z-Axis: 4 m / min Circumferential diameter over radial slide: 540 mm Max swing diameter: 830 mm travel of the cross slide: 450 mm Spindle head max. passage for violent material: 88 mm Spindle head max. passage for bare material: 90 mm Tailstock outside diameter of the quill: 125 mm Tailstock maximum quill stroke: 200 mm Tailstock inner cone: MK6 Type hydraulic tank: 15 L. coolant reservoir: 220 L. Coolant tank at chip conveyor: 160 L. Machine length: 5200 mm Machine width: 2110 mm Machine Height: 1995 mm Weight Of The Machine Ca.: 6,850 (Ohne Späneförderer und Kühlmittelbehäter) t Headstock Spindle Head: DIN 55027 - 11x290 Further information: Additional lubricating oil tank approx. 6l incl. tools Machine is under power and can be inspected by arrangement.

Condition: as good as new (ex-display), Year of construction: 2025, functionality: fully functional, turning diameter over cross slide: 250 mm, spindle bore: 58 mm, turning length: 930 mm, turning diameter over bed slide: 460 mm, quill stroke: 127 mm, quill diameter: 68 mm, center height: 230 mm, rapid traverse X-axis: 5 m/min, rapid traverse Z-axis: 5 m/min, spindle speed (min.): 40 rpm, spindle speed (max.): 3,000 rpm, bed width: 300 mm, total length: 2,500 mm, total width: 1,700 mm, total height: 1,800 mm, overall weight: 1,850 kg, torque: 1,012 Nm, travel distance X-axis: 210 mm, travel distance Z-axis: 800 mm, workpiece weight between centers: 350 g, controller manufacturer: Siemens, controller model: 828D + Shopturn, Equipment: rotational speed infinitely variable, Circumferential diameter over bed: 460 mm Center distance: 930 mm Max. speed range: 3000 rpm Spindle power (40/100% ED): 14/10 kW (AC drive) Max. Torque: 1012 Nm Spindle holder DIN 55029: Camlock D6 Spindle bore: 58 mm Including equipment a.o: - Siemens AC servo motors - Siemens supply and amplifier modules - Manual 3-stage gearbox - Multifix B type steel holder head - Processing area covered by 2 sliding doors and additional chuck protection for open operation - Chip tray can be pulled out to the front - Manual tailstock Ijdpfx Adju T Ippj Djtp - Rotating center point - Coolant system

Condition: excellent (used), Year of construction: 1990, Control: CNC contouring control including color screen TRAUB TX 8 D TECHNICAL DATA Swing diameter over longitudinal slide: 560 mm Swing diameter over cross slide: 445 mm Turning diameter: 360 mm Turning length: 1000 mm Chuck diameter: 250/315 mm Spindle bore: 80 mm Drive power: 40 kW Speed range: up to 40 - 3150 rpm Tool carrier: Number of turrets: 1 Number of tool holders: 14 Z-axis: 1070 mm X-axis: 285 mm Tailstock: -Quill diameter: 100 mm Itjdpfx Adjwfrhwj Dep -Quill stroke: 100 mm EQUIPMENT/ACCESSORIES Hollow clamping cylinder -Tailstock including live center -Coolant system: 300 l, 2-stage pump 1.5/5 bar  Chip conveyor  Central lubrication (with VOGEL piston distributor)  Measuring arm for measuring tools in the work area  Machine light  Three-jaw power chuck ø 250 mm FORKARDT 1512577 including clamping jaws  Mounting elements  Documentation

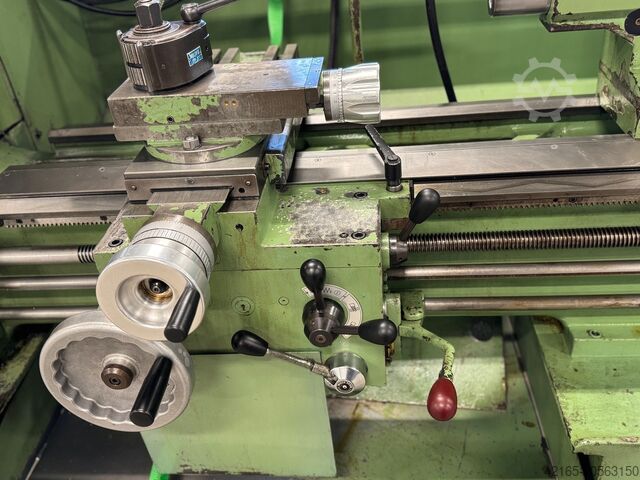

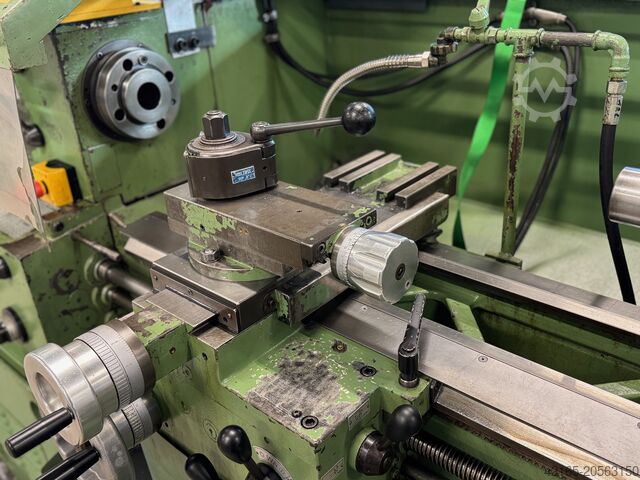

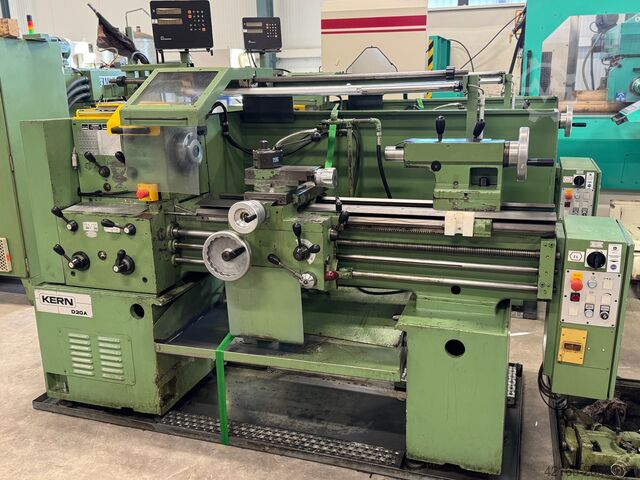

Condition: excellent (used), Year of construction: 1987, functionality: fully functional, Leadscrew and feed shaft lathe KERN Type D 20 A x 1000 Year of manufacture: 1987 HEIDENHAIN 2-axis digital readout Technical Specifications: Capacity • Center height: 200 mm • Swing over bed: approx. 400 mm • Swing over cross slide: approx. 200–250 mm • Distance between centers: 1000 mm Spindle / Drive • Spindle bore: typ. 52 mm • Spindle mount: Camlock • Speed range: approx. 12–1200 rpm • Main motor: typically 5–11 kW Feeds & Thread Cutting • Longitudinal and cross feed via feed gearbox • Capable of cutting metric and imperial threads • Leadscrew and feed shaft present • Automatic feed with safety clutches Carriage & Slideways • Heavy-duty cross and top slide • Top slide swivels ± 45° • Central lubrication for slideways • Gib strips adjustable Tailstock • Quill taper: MT4 or MT5 • Quill extension via handwheel • Longitudinally adjustable on bed • Partially with fine adjustment Bed & Construction • Heavily ribbed cast iron bed, flat or prism guideway based • One-piece bed, high rigidity • Precision ground guideways Coolant & Electrical Equipment • Coolant pump standard or optional • Electrics per machine guidelines at time of manufacture, often retrofitted • Direction of rotation switch, emergency stop, main switch Dimensions & Weight Itsdpfx Adsxxvhre Dep • Length: approx. 2.2–2.6 m • Width: approx. 1.0 m • Height: approx. 1.4–1.6 m • Weight: approx. 1500–2000 kg Description The KERN D 20 (D/DS series) is a robust universal lathe (focus: conventional turning, universally suitable for single and series production). It features a solid bed, fully enclosed cast iron bed with box-type base, and a wide range of commonly used accessories (Multifix toolpost, faceplate, coolant system, central lubrication).

Condition: excellent (used), WEILER Precision Lathe PRAKTIKANT VC, Infinitely Variable Speed Featuring original WEILER 3-axis digital readout Year of manufacture: 2002, with CE certification and stepless speed control Center height: 160 mm Center distance: 650 mm Swing over cross slide: 198 mm Infinitely variable speed range: 30 – 4,000 rpm Speed control: stepless Spindle nose: DIN 55027 size 5 Spindle bore: 40 mm Tailstock quill stroke: 85 mm Isdpfx Aoxx R T Ajd Detp Tailstock quill taper: MT 3 24 longitudinal feeds: 0.02 – 0.63 mm/rev 24 cross feeds: 0.006 – 0.2 mm/rev Connected load: 6.6 kW Weight: 920 kg Machine dimensions: 1600 x 800 mm Technical data without obligation! Equipment: - Original WEILER 3-axis digital readout - MULTIFIX quick-change tool post size A - Lever-operated quick-action collet chuck, electrically interlocked - Chuck guard, electrically interlocked - Coolant system - Fixed stop on bed - Machine leveling feet - Lockable tool compartment Condition: Good to very good, from a training workshop Available from March 2026

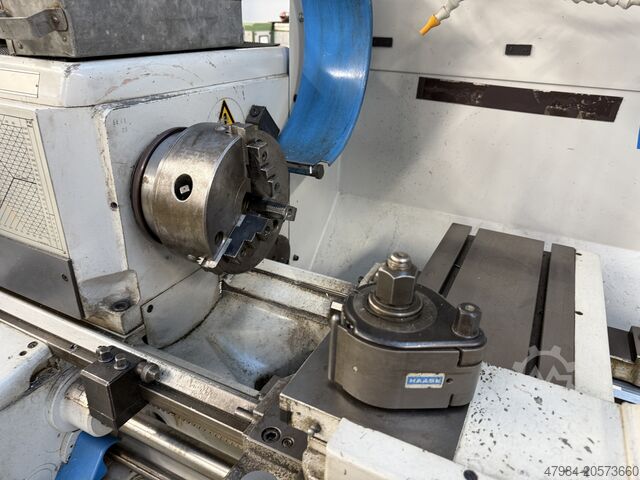

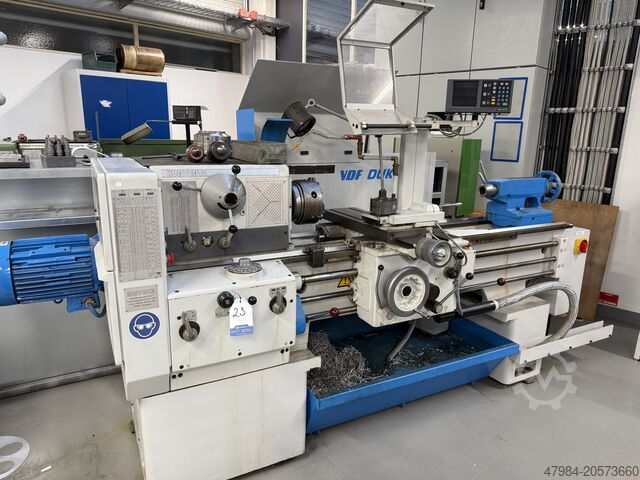

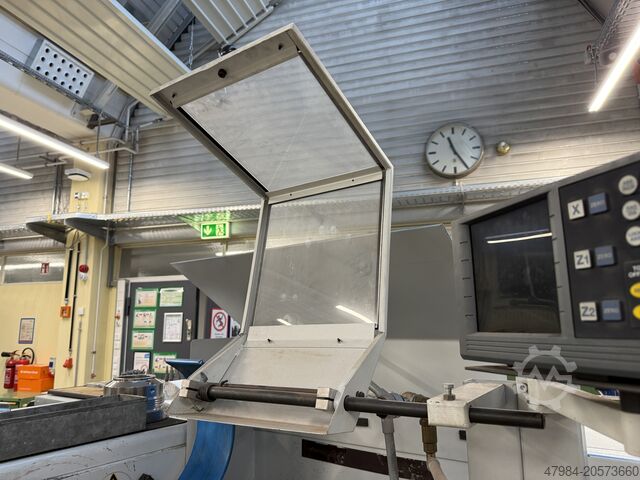

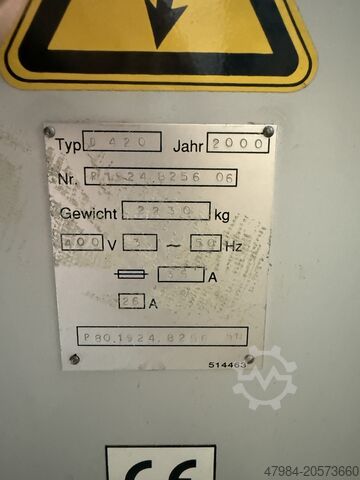

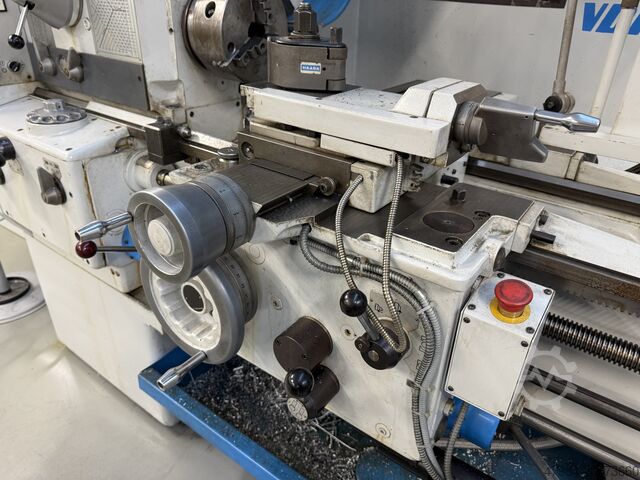

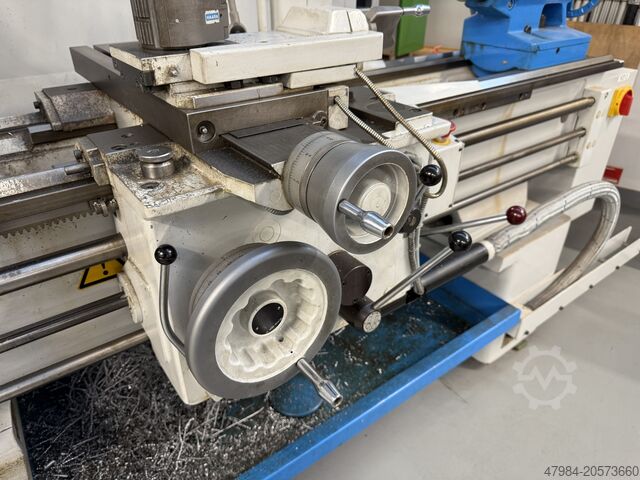

Condition: good (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: P1924825606, spindle bore: 65 mm, total length: 3,500 mm, total width: 1,200 mm, total height: 1,900 mm, spindle speed (max.): 2,240 rpm, spindle speed (min.): 180 rpm, overall weight: 2,500 kg, CONVENTA VDF DUK 420 Lead and Feed Screw Lathe - Operating voltage: 400 V - Frequency: 50 Hz - Rated current: 35 A - Centre distance: approx. 1100 mm - Centre height over bed: 220 mm Itedpjxx Nr Refx Ad Dep - Swing over bed: 440 mm - Centre height over cross slide: 120 mm - Swing over cross slide: 240 mm The machine is equipped with a tailstock, a MULTIFIX quick-change tool post, and a three-jaw chuck from FORKARDT, diameter: 200 mm. Also included are various centres and a three-axis digital readout from ACCU-RITE. This item comes from a training workshop. FCA D-73235 Weilheim Teck, loaded on truck

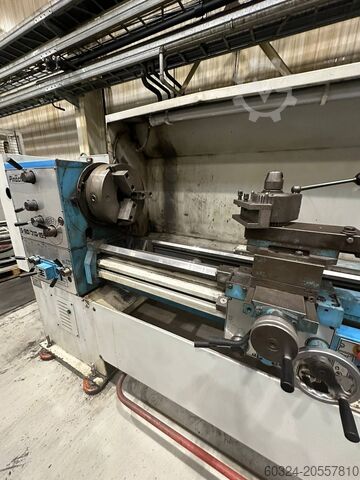

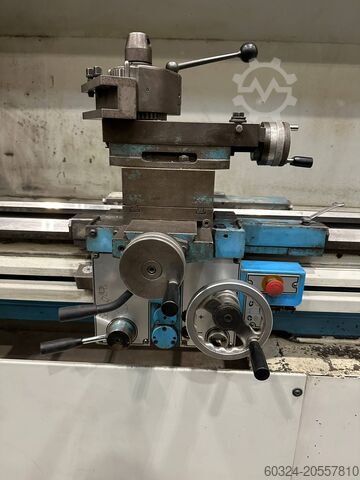

Condition: good (used), Year of construction: 2005, Ref. -No.: 10314 Manufacturer: PINACHO Type: S-90/ 310-155 Year of construction: 2005 Type of control: Konventionell Storage location: Halberstadt Country of origin: Spain Bar passage: 90 mm Travel quill: 180 mm Turning Diameter: 630 mm Turning Length: 3000 mm Turning Diameter Over Bed: 620 mm Tip length: 3000 Cross Movement. (X-Axis): 365 mm Spindle Bore: 155 mm Tailstock Quill Diameter: 72 mm Turning diameter over cross slide: 880 mm Jaw chuck diameter: 380 mm Turning Speed Range: 16 - 750 rpm Itjdpfx Adexxn Uwo Dop Further information: - The lathe has two jaw chucks on the headstock - metric, Whitworth and inch trapezoidal threads can be turned - adjustable feeds for cross face and longitudinal face turning (0.05 to 1.5 mm/u)

Condition: as good as new (ex-display), Year of construction: 2025, functionality: fully functional, turning diameter over cross slide: 240 mm, spindle bore: 86 mm, turning length: 1,120 mm, turning diameter over bed slide: 500 mm, quill stroke: 180 mm, quill diameter: 80 mm, center height: 250 mm, rapid traverse X-axis: 8 m/min, rapid traverse Z-axis: 10 m/min, spindle speed (min.): 20 rpm, spindle speed (max.): 3,000 rpm, bed width: 350 mm, total length: 3,300 mm, total width: 2,020 mm, total height: 1,900 mm, overall weight: 2,500 kg, travel distance X-axis: 165 mm, travel distance Z-axis: 1,200 mm, controller manufacturer: Siemens, controller model: 828D + Shopturn, Equipment: rotational speed infinitely variable, Circumferential diameter over bed: 500 mm Center distance: 1200 mm Max. speed range: 3000 rpm Spindle power (40/100% ED): 13/9 kW (AC drive) Spindle holder: Camlock D8 Spindle bore: 86 mm Including equipment a.o: - 8-station turret (Pragati BTP-80) with VDI-30 - Sliding control panel over the entire length - Pull-out chip tray - Siemens AC servo motors - Siemens supply and amplifier modules - Machining area covered by 2 sliding doors Ijdpfx Adeu T Iqyo Detp - Manual tailstock - Automatic central lubrication - Coolant system

Condition: excellent (used), Year of construction: 2001, functionality: fully functional, turning length: 1,000 mm, turning diameter: 480 mm, •Turret overhaul in 2021 •Cooling lubricant pump with higher pressure/output in 2021 •Draw tube renewed and headstock re-bearing and ground in 2022 •Prepared for automatic insertion of parts using a robot cell Control: CNC control including color screen Siemens 840 D TECHNICAL DATA Swing diameter max. 550 mm Turning diameter max. 480 mm Turning length 1000 mm Spindle bore 78 mm Drive power (50%) 53 kW Speed range (1-stage) 30 – 4000 1/min Drum turret Number of holders 12, of which 6 are driven Cylindrical shaft holder 40 mm Ijdpevr Tkzjfx Ad Dstp Speed range (2-stage) 20 – 2500 1/min Tailstock (hydraulic quill adjustment) EQUIPMENT/ACCESSORIES  Full enclosure including work area lighting  Automatic power-operated sliding door  C. axis  Tailstock dragged via program including various centering points  12-way drum turret  Turret drive device  Chip conveyor  Coolant device with reinforced pump, approx. 4 bar  Interface for automation  Various accessories  1 Heimbuch Spanntop SK 80, without collets  1 Schunk Rota NCF 315 three-jaw chuck  1 Schunk Rota NCF 250 three-jaw chuck  1 Schunk Rota NCF 250 two-jaw chuck  1 WTO impact head  2 driven tools CAPTO-Axial tool  2 driven tools CAPTO-Axial Radial tool  3 driven tools CAPTO-Radial tool  7 fixed tool holders  Installation elements  Documentation

Condition: used, Year of construction: 1967, turning diameter over bed 500 mm Iedpfjxwzdcjx Ad Djtp turning diameter over slide rest 320 mm turning length 2100 mm centre height 250 mm spindle bore 60 mm spindle turning speed range 11 - 2000 U/min total power requirement 7,0 kW weight of the machine ca. 2,9 t dimensions of the machine ca. 4,3 x 1,2 x 1,3 mm Lathes with: - 4-position tool post - 3-jaw chuck 315mm - Centering point

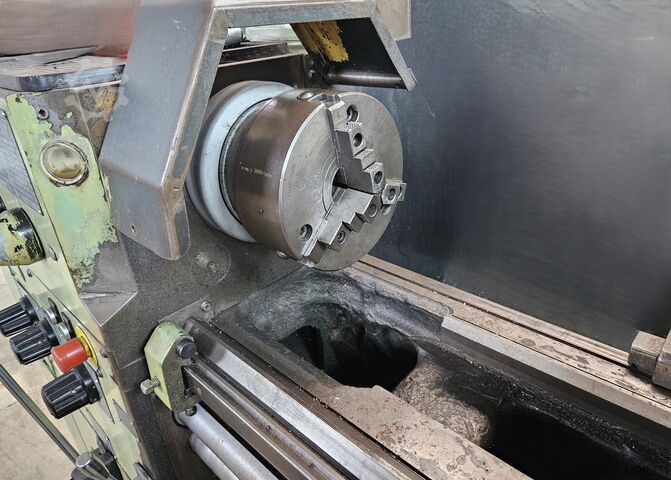

Condition: used, Year of construction: 1999, functionality: fully functional, overall weight: 2,100 kg, Equipment: type plate available, Lathe Stanko Samat 400 S / 750 Lead and feed screw lathe; turning machine 2-axis digital readout Brand: Heidenhain Year of manufacture: 1999 Weight approx. 2,100 kg Chuck with a set of hardened jaws is mounted Accessories: machine feet, digital readout, 2-3 toolposts Operating manual Inspection under power possible by prior appointment. Iedewxb T Nopfx Ad Dstp Price / details on request All technical information subject to typing errors/mistakes. We sell exclusively to countries of the European Community.

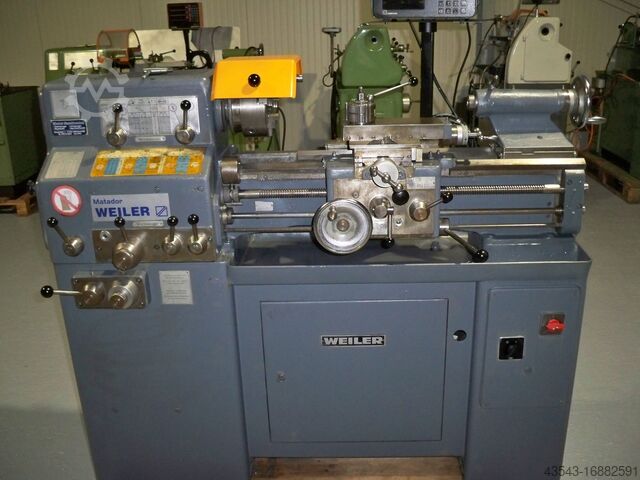

Condition: good (used), Lead/traction spindle lathe Weiler Matador (machine number: M2271) Turning length: 470 mm Center width: 500 mm Center height: 150 mm Itedsudh R Uepfx Ad Dop Turning diameter over face slide: 155 mm Turning diameter over bed: 295 mm Multifix A with cassettes Spindle bore: 36 mm 36 spindle speeds: 15-3550 rpm Heidenhain digital readout (1 axis) Chuck guard not locked 3-jaw chuck

Condition: new, Year of construction: 2022, functionality: fully functional, TAKAMAZ CNC Compact loader FC60 Lathe with automatic loader unloader quickest loading system in the world loading time new part 2,8 sec. loading cap. till 60 mm diameter. loading lenght max 50 mm max weight 1 kg per side loading feed 120 m min include part turning for loading Iedpfx Adsm E I D Ho Djtp Fanuc Control full warranty 2 year Lathe spec. Spindle motor 7,5/5,5 kw turning diameter max 180 mm turning lenght 240 mm bar cap. 35 mm collet chuck 173E till 40 mm diameter spindle nose A2-5 spindle speed 4500 rpm tool pos 8 stations tool shank 20x20 mm boring holder 25 mm diameter rapid speed X/Z 18/24 meter machine dimension 1,36 x 1,37 meter height 1,7 meter weight 2,7 ton total power 14 KVA installation and training not included. ( price depend on loacation and on request)
