Used Hyundai CNC lathe for sale (154)

Condition: ready for operation (used), Year of construction: 2021, operating hours: 3,316 h, spindle speed (max.): 3,500 rpm, This Hyundai Wia SE2200LMSC Lathe was manufactured in the year 2021 in Korea and has 3316 production hours, of which 538 are spindle hours. It is equipped with a Hyundai Fanuc i Series Smart Plus control unit. The machine has a spindle speed of 3500 rpm. Machine Benefits Technical Machine Benefits • 6. 000 rpm is the max. Speed for the counter spindle Extra Information power on 3316h run time 753h cutting time 538h Control – Hyundai Fanuc i Series Smart Plus 10” chuck spindle – 3500rpm - 270Nm 5” chuck spindle - 6000rpm C-Axis 0,001 degree Dkedpfx Aaozvvutsfst Turret – 24 tool holders

Condition: ready for operation (used), Year of construction: 2021, operating hours: 280 h, spindle speed (max.): 5,000 rpm, travel distance X-axis: 165 mm, travel distance Y-axis: 50 mm, travel distance Z-axis: 700 mm, spindle motor power: 11,000 W, controller manufacturer: FANUC, number of axes: 4, This 4-axis Hyundai Wia LM 1800TTSY horizontal turning machine was manufactured in 2021. It features a slant bed lathe with main and counter spindle, two turret heads, and Y-axis with driven tools. Equipped with a Fanuc F31i A control, it supports a turning diameter of 230 mm and a length of 673 mm. If you are looking to get high quality turning capabilities consider the Hyundai Wia LM 1800TTSY machine we have for sale. Contact us for more information. Additional equipment • USB interface • Three-colour signal light • 1 set of soft jaws • CHIP CONVEYOR HS with lateral ejection • Transformer incl. cable • Manual compressed air gun • Bar feeder interface // Bar loader interface • Parts catcher main spindle • Parts unloader: Parts unloading system for the counter spindle incl. parts conveyor belt • Workpiece ejector / Workpiece drm: 230 mm / Workpiece X: 673 mm Machine Benefits Technical Machine Benefits • Linear (z) and flat-guided (x/y) 45 degree • Turning Ø: 230 mm // turning length: 673 mm • Chuck size both spindles: 8 inch (~210 mm) • Turret c-axis, 0. 001° // turret y-axis, +- 50 mm - upper turret • Driven tools: 5000 rpm, 5. 5 kw • 1 x axially driven tools // 1 x radial driven tools • Automatic tool probe • Coolant tank 270 litres // standard coolant nozzle • Internal cooling 30 bar • 30 bar coolant pump (60hz) Extra Information Strongly reduced interference contour Better workpiece accessibility Workpiece stabilization through axial pull against workpiece stop Chuck Type: SPANNTOP mini Chuck Model: Axzug Chuck Size: 65 Short Taper Standard: DIN ISO 702-1 Short Taper Size: Size 6 Length of Clamping Device: 155.00 mm Frontal Diameter: 111.00 mm Maximum Outer Diameter: 165.00 mm Clamping Position: 65.00 mm Clamping Device Thread: M102x1.5 Basic Stop Design: Clamped Actuation Type: Power-actuated Additional Chuck Options: Yes Front Stop Mounting: Yes Balance Quality: 4.0 Pull Tube Adapter according to Drawing For Clamping Device [ZCHN]: A054288.0009C Connection [of Clamping Device]: Internal Thread Clamping Device Thread Designation: M102x1.5 Clamping Device Thread Length: 17.00 mm Thread Position Clamping Device: 65.00 mm Maximum Actuation Force: 65.00 kN Machine Manufacturer: Hyundai WIA Machine Designation: LM1800TTSY-HSP Connection [of Pull Tube]: External Thread Dodpfszvv Dzjx Aafskt Thread Designation: M74x1.5 Thread Length: 40.00 mm Front Position Pull Tube: 57.50 mm Stroke of Clamping Cylinder: 17.50 mm Spindle Bore Diameter: 76.00 mm Pull Tube Inner Diameter: 66.00 mm SPANNTOP mini Axfix 65 KK6 Chuck Type: SPANNTOP mini Chuck Model: Axfix Chuck Size: 65 Short Taper Standard: DIN ISO 702-1 Short Taper Size: Size 6 huck Type: SPANNTOP mini Chuck Model: Axfix Chuck Size: 65 Short Taper Standard: DIN ISO 702-1 Short Taper Size: Size 6 Length of Clamping Device: 138.00 mm Frontal Diameter: 119.00 mm Maximum Outer Diameter: 167.00 mm Clamping Position: 50.00 mm Clamping Device Thread: M94x1.5 Basic Stop Design: Clamped Actuation Type: Power-actuated Additional Chuck Options: Yes Front Stop Mounting: Yes Balance Quality: 4.0 Pull Tube Adapter according to Drawing For Clamping Device [ZCHN]: A071618.0004C Connection [of Clamping Device]: Internal Thread Clamping Device Thread Designation: M94x1.5 Clamping Device Thread Length: 17.00 mm Thread Position Clamping Device: 50.00 mm Maximum Actuation Force: 45.00 kN Machine Manufacturer: Hyundai WIA Machine Designation: LM1800TTSY-GSP

Condition: used, Year of construction: 2014, functionality: fully functional, Brand: HYUNDAI-WIA Model: LM-1800 / ITSY Category: CNC Turning Center Year of manufacture: 2014 CNC Control: FANUC Series 31i – Model A Machine weight: 8,500 kg Machine Dimensions Length: 4,600 mm Width: 2,100 mm Height: 2,090 mm Working Capacity Max swing diameter over upper/lower carriage: No.1: Ø 290 mm / No.2: Ø 290 mm Max turning diameter (spindle / sub-spindle): No.1: Ø 230 mm / No.2: Ø 230 mm Max turning length: 673 mm Bar capacity (spindle / sub-spindle): Ø 76 mm Axis Travels X1 / X2 axis: No.1: 165 mm / No.2: 195 mm Y axis (upper turret): 100 mm (± 50 mm) Z1 / Z2 axis: No.1: 700 mm / No.2: 720 mm ZB axis: 668 mm C axis (spindle and sub-spindle): 360° Min. programmable angle: 0.001° Main Spindle and Sub-Spindle Spindle speed: 50 – 5,000 rpm Spindle nose: ASA A2-6 Chuck diameter: Ø 210 mm Spindle motor power (max/cont.): 22 / 11 kW Turrets Configuration: Turret 1 + Turret 2 BMT-55 Stations per turret: 12 (live tool capable) Total stations: 24 Live tool speed: 5,000 rpm Live tool power: 5.5 kW Tool dimensions: Turning: 20 x 20 mm / Boring: Ø 32 mm Rapid Traverses X1 / X2 axes: 20,000 mm/min Y axis: 7,500 mm/min Z1 / Z2 / ZB axes: 40,000 mm/min Accessories TOP AUTOMAZIONI bar feeder – Fusion model Coolant collection tank with wash pumps Chip conveyor Fixed and driven toolholders Dksdpfxsyargue Aafst Automatic tool presetting arm with M code Manuals, electrical diagrams, and CE Declaration Overhauls Carried Out Complete overhaul of turrets 1 and 2 with replacement of seals and bearings Overhaul of X2 and Z2 axis ballscrews with bearing replacement Complete overhaul of the axis lubrication circuit and replacement of pneumatic hoses Overhaul of piece ejector pistons (Z2 unload hand) with gantry replacement Complete interior repainting Replacement of operator side glass Complete overhaul of telescopic covers on all linear axes

Condition: ready for operation (used), Year of construction: 2022, travel distance X-axis: 240 mm, travel distance Z-axis: 430 mm, overall weight: 4,500 kg, controller manufacturer: SIEMENS, controller model: Sinumerik, number of axes: 2, This complete automated production cell includes two Hyundai HIT-200C CNC lathes and a FANUC M-20iA industrial robot with a ROBOTOWER automatic loading and unloading system. Each lathe offers a maximum turning diameter of 340 mm and a maximum turning length of 420 mm. The complete cell is designed for automated serial production, especially for larger production batches. Contact us for further details regarding this production cell. • 2 x Hyundai HIT-200C CNC Lathes • Year of manufacture: 2003 • CNC control: Siemens Sinumerik • Maximum turning diameter: 340 mm • Maximum turning length: 420 mm • X-axis travel: 240 mm • Z-axis travel: 430 mm • Spindle nose: A2-8 • Spindle bore: 80 mm • Hydraulic chuck: 10" • Machine weight: approx. 4,500 kg each • Rigid and dimensionally stable construction • Capable of maintaining IT6 tolerance class Additional Equipment / Automation • FANUC M-20iA industrial robot, year 2014 • ROBOTOWER automatic loading and finished-part unloading station • Automatic handling of raw and finished parts • Set of robot grippers • Operating manuals • CE documentation • Complete production cell suitable for serial production, especially for batches of 500 parts or more • Robot and loading/unloading system in very good condition • LOSMA air filtration units (oil mist collectors) visible in the photos is not included in the offer Technical Specification Counter Spindle No Dedpjznm H Rjfx Aafekt Driven Tools No

Condition: new, Year of construction: 2022, functionality: fully functional, HYUNDAI-WIA HD3100M FANUC 0IT PLUS CNC HIGH POWER TURNING CENTRE WITH HARDENED & GROUND BOX GUIDEWAYS, HIGH SPEED SERVO TURRET, C-AXIS & DRIVEN TOOLS & 12" STD CHUCK Swing Over the Bed Ø 750 MM Swing Over the Carriage Ø 500 MM Maximum Turning Diameter Ø 420 MM Maximum Turning Length 740 MM Bar Capacity - Main Ø 102 MM MAIN SPINDLE Chuck Size Ø 12” – 305 MM Spindle Bore Ø 115 MM Spindle Speed (Rpm) 2,800 RPM Motor (Max. / Cont.) 26.0 / 18.5 KW Torque (Max. / Cont.) 1,123 / 657 NM Spindle Type BELT [GEARLESS] Spindle Nose A2-11 C-Axis Indexing 360° (0.001°) Travel X 265 MM Travel Z 830 MM Rapid Speed X 24 M / MIN Rapid Speed Z 30 M / MIN Slide Type HARDENED & GROUND BOX GUIDEWAYS TURRET Number of Tools 12 Tool Size - OD 25 MM² Tool Size - ID Ø 40 MM Indexing Time 0.15 SEC / STEP LIVE TOOLS Motor (Max / Cont.) 5.5 / 3.7 KW Milling Tool Speed 5,000 RPM Torque (Max. / Cont.) 70.0 / 35.4 NM Collet Size ER32 - Ø 25 Type BMT65P QUILL TYPE TAILSTOCK [PROGRAMMABLE BUILT IN TAILSTOCK] Taper MT5 [MT4] Quill Diameter Ø 100 MM Quill Travel 120 MM Tailstock Travel 830 MM TANK CAPACITY Coolant Tank200 L Lubricating Tank 1.8 L POWER SUPPLY Electrical Power Supply 27 [30 GEARLESS] KVA Voltage 415V / 50HZ / 3PH MACHINE Floor Space (L x W) 3,885 x 1,800 MM Height 1,850 MM Weight 6,050 KGS STANDARD FEATURES SPINDLE POSITIONING MAIN - 0.001 DEG INDEX (C1-AXIS) CHUCK CLAMP FOOT SWITCH MAIN SPINDLE 12 INCH 3 JAW HYDRAULIC CHUCK STD INC SET SOFT JAWS - MAIN SPINDLE CHUCK OPEN / CLOSE CONFIRMATION DEVICE MAIN SPINDLE STANDARD HYDRAULIC CHUCKING CYLINDER - HOLLOW 15" TOUCH SCREEN MONITOR FOR FANUC (SMART GUIDE i) HW ENERGY SAVING SYSTEM (HW-ESS) MACHINE GUIDANCE (HW-MCG) PART PROGRAM STORAGE - 2MB (1,000 REGISTERABLE PROGRAMS) SMART GUIDE-I (CONVERSATIONAL PROGRAMMING) COOLANT TANK (SIDE TYPE) STANDARD COOLANT SYSTEM (NOZZLE) STANDARD COOLANT SYSTEM 0.5 BAR FULL SPLASH GUARDING SYSTEM STANDARD HYDRAULIC UNIT 35 BAR (30 LITRES) CALL LIGHT (1 COLOUR) TOOLBOX MAIN SPINDLE - 2,800 RPM, 26.0 / 18.5 KW, 1123 NM BELT DRIVEN TOOLING PACKAGE QUILL TYPE TAILSTOCK WITH STD LIVE CENTER 12 STATION BMT65P SERVO TURRET, LIVE TOOLS 5,000 RPM, 5.5 KW, 47.0 NM FACTORY FITTED MACHINE OPTIONS CHIP BUCKET STANDARD CHIP CONVEYOR SIDE HINGED HIGH PRESSURE COOLANT SYSTEM 20 BAR IN LIEU OF STD (RATED AT 60HZ SUPPLY) BARFEED INTERFACE - MAIN SPINDLE PARTS CATCHER - MAIN SPINDLE 30 KVA TRANSFORMER AND CABLE QUICK TOOL SETTER - MANUAL PROGRAMMABLE TAILSTOCK IN LIEU OF STDMACHINE CONSTRUCTION & FEATURES 12” STANDARD CHUCK SIZE. 30° SLANT BED ONE PIECE HEAVY DUTY CAST IRON CONSTRUCTION FOR HIGH ACCURACY & RIGIDITY. HARDENED & GROUND BOX GUIDEWAYS FOR HEAVY DUTY CUTTING. 12 STATION HIGH SPEED RIGID SERVO DRIVEN TOOL TURRET – BMT65P. 2,800 RPM 26.0 / 18.5 [35.0 / 25.0 GEARLESS] KW HIGH POWER MAIN SPINDLE. 24 X 30 M/MIN RAPID TRAVERSE RATES – X & Z AXES. C-AXIS MAIN SPINDLE. Djdpfx Ajx Thzveafskt ERGONOMIC DESIGN FOR EASY ACCESS TO CHUCK & TURRET.

Condition: good (used), Year of construction: 2009, functionality: fully functional, machine/vehicle number: 63284-0012, turning length: 650 mm, turning diameter: 300 mm, spindle motor power: 15 W, spindle speed (max.): 5,000 rpm, spindle bore: 76 mm, travel distance X-axis: 215 mm, travel distance Y-axis: 110 mm, travel distance Z-axis: 680 mm, milling spindle length: 6,000 mm, type of input current: three-phase, bar passage: 65 mm, total height: 1,920 mm, total length: 3,130 mm, total width: 1,710 mm, spindle nose: A2-6, overall weight: 4,500 kg, Equipment: documentation/manual, MACHINE INFORMATION Manufacturer: Hyundai Model: KIA SKT2100SY Year: 2009 Condition: (Used) Great Serial Number: 63284-0012 Control: Fanuc Control Accessories: LNS Barfeed, Live & Static Tool holders, Swarf Conveyor, Parts Catcher, Tool Probe. Location: COVENTRY, UNITED KINGDOM Dkodpszwhp Ssfx Aafot MACHINE SPECIFICATIONS Control: Fanuc Control Bar Capacity: 65mm Chuck Size: 8″ Main, 6″ Sub Max Cutting Diameter: 300mm Max Cutting Length: 650mm Spindle Speed: 5000rpm Turret Positions: 12 Milling Speed: 6,000rpm Swing: 820mm X Axis Travel: 215mm Y Axis Travel: 110mm total (+55mm) Z Axis Travel: 680mm C Axis Travel: 0.001 degree

Condition: good (used), Year of construction: 2003, Good condition,live tools, measuring arm. Parts shown by hand not come. Technical details shown on pictures. Dksdpfswybg Ssx Aafet

Condition: good (used), Year of construction: 2002, functionality: fully functional, machine/vehicle number: 3425C 013, We will provide more detailed information about the equipment during a personal on-site visit, which we recommend. Dkodpfx Aajzpwunjfot

Condition: new, Year of construction: 2023, functionality: fully functional, HYUNDAI-WIA HD3100YA FANUC 0IT PLUS CNC LATHE WITH Y AXIS MACHINE CONSTRUCTION & FEATURES ▪ ONE PIECE HEAVY DUTY CAST IRON BED CONSTRUCTION FOR HIGH ACCURACY & RIGIDITY. ▪ 3,500 RPM MAIN SPINDLE. ▪ 5,000 RPM LIVE TOOLING SPEED. ▪ HEAVY DUTY CUTTING WITH EXCELLENT PERFORMANCE. ▪ WEDGE TYPE Y-AXIS. ▪ 12 STATION HIGH SPEED RIGID SERVO TURRET – BMT55P ▪ HARDENED & GROUND BOX GUIDE WAYS MACHINE CAPACITIES Swing Over the Bed Ø 800 MM Swing Over the Carriage Ø 670 MM Maximum Turning Diameter Ø 420 MM Maximum Turning Length 760 MM Bar Capacity – Main Spindle Ø 81 MM MAIN SPINDLE Chuck Size Ø 10” - 254 MM Spindle Bore Ø 91 MM Spindle Speed (Rpm) 3,500 RPM Motor (Max / Cont.) 26.0 / 18.5 KW Torque (Max / Cont.) 734 / 522 NM Spindle Type BELT Spindle NoseA2-8 FEED Travel X265 MM Travel Y120 (± 60) MM Travel Z830 MM Rapid Speed X24 M / MIN Rapid Speed Y10 M / MIN Rapid Speed Z30 M / MIN Slide Type HARDENED & GROUND BOX GUIDEWAYS TURRET Number of Tools12 Tool Size - OD25 MM² Tool Size - IDØ 20 MM Indexing Time0.2 SEC / STEP Y-Axis Type WEDGE TYPE LIVE TOOL Motor (Max / Cont.) 5.5 / 3.7 KW Milling Tool Speed 5,000 RPM Torque (Max / Cont.) 70/0 / 35.4 NM Collet Size Ø 16 – ER25 Type BMT-65P TAIL STOCK Taper MT 5 Quill Diameter Ø 100 MM Quill Travelb120 MM Travel b830 MM Voltage 415 V / 50 HZ / 3PH Floor Space (L x W) 3,630 X 1,910 MM Height 1,960 MM Dodox Thu Nopfx Aafekt Weight 6,200 KGS INCLUDED FACTORY FITTED MACHINE OPTIONS CONVEYOR & CHIP BOX HELICAL INTERPOLATION FUNCTION HIGH PRESSURE COOLANT SYSTEM 20 BAR IN LIEU OF STD CALL LAMP (3 COLOUR) - IN LIEU OF STD BARFEED INTERFACE - MAIN SPINDLE PARTS CATCHER - MAIN SPINDLE TRANSFORMER - 415V 3PH 50HZ QUICK TOOL SETTER - AUTO MAIN SPINDLE - 3,500 RPM, 26.0 / 18.5 KW, 734 NM BELT DRIVEN PROGRAMMABLE TAILSTOCK IN LIEU OF STD QUILL FORWARD / REVERSE CONFIRMATION DEVICE QUILL TYPE TAILSTOCK - MANUAL TYPE MT#5 100 MM DIA QUILL, 120 MM QUILL TRAV STANDARD FEATURES SPINDLE POSITIONING MAIN - 0.001 DEG INDEX (C1-AXIS) CHUCK CLAMP FOOT SWITCH MAIN SPINDLE 10 INCH 3 JAW HYDRAULIC CHUCK CHUCK OPEN / CLOSE CONFIRMATION DEVICE MAIN SPINDLE HYDRAULIC CHUCK PRESSURE INTERLOCK - MAIN SPINDLE STANDARD HYDRAULIC CHUCKING CYLINDER - HOLLOW 15" MONITOR HW ENERGY SAVING SYSTEM (HW-ESS) MACHINE GUIDANCE (HW-MCG) PART PROGRAM STORAGE - 2MB SMART GUIDE-I (CONVERSATIONAL PROGRAMMING) STANDARD COOLANT SYSTEM 0.5 BAR STANDARD COOLANT TANK 180 LITRES FULL SPLASH GUARDING SYSTEM CALL LIGHT TOOLBOX TOOLING PACKAGE QUILL TYPE TAILSTOCK 12 STATION BMT65P SERVO TURRET, LIVE TOOLS 5,000 RPM, 5.5 KW, 47.0 NM

Condition: new, Year of construction: 2023, functionality: fully functional, HYUNDAI-WIA SE2200LY WITH FANUC 0i-T PLUS CONTROL CNC LATHE WITH Y AXIS. TURRET UPGRADE - 12 STATION 24 POSITION BMT45, LIVE TOOLS 6K RPM, 2.75 KW MACHINE CONSTRUCTION & FEATURES ▪ 8” STANDARD CHUCK SIZE. ▪ 30° SLANT BED ONE PIECE HEAVY DUTY CAST IRON CONSTRUCTION FOR HIGH ACCURACY & RIGIDITY. ▪ HIGH PERFORMANCE ROLLER LM GUIDEWAYS. ▪ 12 STATION HIGH SPEED RIGID SERVO DRIVEN TOOL TURRET - BMT45. [24 POSITION OPTION] ▪ 4,500 RPM HIGH POWER MAIN SPINDLE. ▪ 30 X 36 M/MIN RAPID TRAVERSE RATES – X & Z AXES. ▪ C-AXIS SPINDLE & WEDGE TYPE Y-AXIS. Swing Over the Bed Ø 600 MM Swing Over the Carriage Ø 600 MM Maximum Turning Diameter Ø 300 MM Maximum Turning Length 508 MM Bar Capacity – Main Spindle Ø 65 MM MAIN SPINDLE Chuck Size Ø 8” - 203 MM Spindle Bore Ø 75 MM Spindle Speed 4,500 RPM Motor (Max / Cont.) 15.0 / 11.0 KW Torque (Max / Cont.) 167 [150.3] NM Spindle Type BELT Spindle Nose A2-6 FEEDS Travel X 210 MM Travel Y 110 (± 55) MM Travel Z 560 MM Rapid Speed X 30 M / MIN Rapid Speed Y 10 M / MIN Rapid Speed Z 36 M / MIN Slide Type ROLLER LM GUIDEWAYS TURRET Number of Tools 12 [24 POSITION INDEX] Tool Size - OD 20 MM² Tool Size - ID Ø 32 MM Indexing Time 0.15 SEC / STEP Y-Axis Type WEDGE TYPE Milling Tool Speed 6,000 RPM Motor (Max / Cont.) 2.75 / 1.85 [2.8 / 3.8] KW Torque (Max / Cont.) 26.2 [27.0] NM Collet Size ER 20 - Ø 13 Type BMT45 HYDRAULIC NC TAIL STOCK (STD. LIVE CENTER) Taper MT#4 Quill Diameter Ø 56 MM Travel 580 MM Coolant Tank 200 L POWER SUPPLY Electric Power Supply 18 KVA Thickness of Power Cable OVER 16 MM² Voltage 415V / 50HZ / 3PH Floor Space (L x W) 2,960 X 1,730 MM Height 1,920 MM Weight 4,200 KGS STANDARD FACTORY FITTED MACHINE OPTIONS SPINDLE POSITIONING MAIN - 0.001 DEG INDEX (C1-AXIS) CHUCK CLAMP FOOT SWITCH MAIN SPINDLE 8 INCH 3-JAW HYDRAULIC CHUCK STD INC SET SOFT JAWS - MAIN SPINDLE CHUCK OPEN / CLOSE CONFIRMATION DEVICE MAIN SPINDLE STANDARD HYDRAULIC CHUCKING CYLINDER - HOLLOW 15" MONITOR FOR FANUC FOR STANDARD CNC SPECIFICATION - SEE MANUFACTURER'S BROCHURE HW ENERGY SAVING SYSTEM (HW-ESS) MACHINE GUIDANCE (HW-MCG) MANUAL VIEWER OPERATION MEMO PART PROGRAM STORAGE - 2MB (1,000 REGISTERABLE PROGRAMS) PREMIUM TOOL OPERATION SCHEDULING SMART GUIDE-I (CONVERSATIONAL PROGRAMMING) STANDARD COOLANT SYSTEM (NOZZLE) STANDARD COOLANT SYSTEM 0.5 BAR STANDARD COOLANT TANK 200 LITRES FULL SPLASH GUARDING SYSTEM STANDARD HYDRAULIC UNIT 35 BAR (15 LITRES) CALL LIGHT (1 COLOUR) BACK SPIN TORQUE LIMITER Dsdpfx Aex Tqkmeafjkt FRONT DOOR INTERLOCK TOOLBOX MAIN SPINDLE - 4,500 RPM, 15.0 / 11.0 KW, 167 NM BELT DRIVEN STANDARD TOOLING PACKAGE - SEE MANUFACTURER'S BROCHURE HYDRAULIC TYPE NC TAILSTOCK - MT#4 56 MM QUILL, STD LIVE CENTER 12 STATION BMT45 TURRET, LIVE TOOLS 6K RPM, 2.75 KW, 26 NM INCLUDED FACTORY FITTED MACHINE OPTIONS CHIP - BUCKET STANDARD CONVEYOR SIDE HINGED HIGH PRESSURE COOLANT SYSTEM 20 BAR IN LIEU OF STD CALL LAMP (3 COLOUR) - IN LIEU OF STD BARFEED INTERFACE - MAIN SPINDLE PARTS CATCHER - MAIN SPINDLE TRANSFORMER - 415V 3PH 50HZ QUICK TOOL SETTER - AUTO QUILL FORWARD / REVERSE CONFIRMATION DEVICE

Condition: good (used), Year of construction: 2007, travel distance X-axis: 1,060 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 635 mm, table width: 500 mm, table length: 1,200 mm, Spindle speed 10.000 Rpm Coolant tank with IKZ 20 bar Chip conveyor X - Travel: 1060mm Y - Travel: 510mm Z - Travel: 635mm Table Length: 1200mm Table Width: 500mm Feed rate X-Axis: 20000mm/min. Feed rate Y-Axis: 20000mm/min. Feed rate Z-Axis: 20000mm/min. Spindle Taper: 40ISO/Bt/Mk Power on spindle: 15kW Speeds / ranges: 10000Rpm Dksdpfx Aajxdxhrsfjt ATC / revolver: 24 Coolant through spindle / Bar:20 Number of controlled axis: 3 Chip conveyor: Yes Coolantsystem: Yes Length: 2915mm Width: 2361mm Height: 2800mm Weight: 7000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: ready for operation (used), Year of construction: 2019, operating hours: 12,055 h, functionality: fully functional, turning length: 760 mm, turning diameter: 420 mm, spindle motor power: 37,000 W, spindle speed (max.): 3,000 rpm, spindle bore: 102 mm, travel distance X-axis: 265 mm, travel distance Y-axis: 120 mm, travel distance Z-axis: 830 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 10 m/min, rapid traverse Z-axis: 30 m/min, bar passage: 102 mm, overall weight: 6,900 kg, The Hyundai WIA L3000SY represents the flagship model in Hyundai WIA’s turning center lineup, designed for high precision machining, productivity, and long-term reliability. The machine is equipped with true direct-drive spindles (without belts), ensuring excellent torque transmission, high dynamic performance, and improved machining accuracy. Key technical features include: • Main spindle: 12” chuck with 37KW • Sub spindle: 6” chuck • True Direct Drive spindles (belt-free design for higher precision and reliability) • BMT65 turret with 24 positions and 12 driven tool stations • Driven tools: up to 5,000 rpm with 7.5 kW power • Through-tool coolant system – 15 bar • Gun coolant system • Digital scales for improved machining precision • Pneumatic part pusher through the sub-spindle, including part flushing with M code • Part catcher on both main and sub spindle • Part extraction conveyor Dkedpfx Aey T Iuieafet • Bar feeder connection • Bore-Max bar capacity: Ø102 mm • Chip conveyor • Automatic Q-Setter tool measuring system • Latest generation FANUC control • Oil mist / emulsion extraction unit with the machine • Hainbuch main spindle chuck The machine was installed at the customer site in 2020 and has been used only lightly. The current owner is changing production profile, which is why the machine has become available. This configuration offers an excellent opportunity to acquire a high-end multi-tasking turning center with very strong specifications and low operating hours. Machine has regular Maintenance done and machine is working! With box guide design – the most rigid solution used in turning centers.

Condition: ready for operation (used), Year of construction: 2006, travel distance X-axis: 210 mm, travel distance Y-axis: 110 mm, travel distance Z-axis: 550 mm, controller manufacturer: FANUC, number of axes: 3, This 3-axis HYUNDAI KIA SKT250SY was manufactured in 2006. It features an X-axis travel of 210 mm, Z-axis travel of 550 mm, and Y-axis travel of 110 mm. The machine is equipped with live tools for enhanced functionality. If you are looking to get high-quality turning capabilities, consider the HYUNDAI KIA SKT250SY horizontal turning machine we have for sale. Contact us for further details. Dksdpfx Aszw Dzkjafjt Technical Specification Counter Spindle No Driven Tools Yes

Condition: like new (used), Year of construction: 2023, operating hours: 343 h, functionality: fully functional, machine/vehicle number: G3791-0010, turning length: 705 mm, turning diameter over cross slide: 290 mm, turning diameter: 230 mm, spindle motor power: 20 W, spindle speed (min.): 10 rpm, spindle speed (max.): 6,000 rpm, spindle bore: 51 mm, travel distance X-axis: 190 mm, travel distance Z-axis: 700 mm, rapid traverse X-axis: 20 m/min, rapid traverse Z-axis: 40 m/min, bar diameter (max.): 51 mm, overall weight: 8,200 kg, • High-performance, integrated spindle motor • High productivity through simultaneous use of the upper and lower turrets • Robust BMT turret • Integrated machining through synchronized control of the main and counter spindle Specifications: • Max. turning diameter 230 mm • Max. turning length 705 mm • Chuck size, main/auxiliary 6" / 6" • Drive type: Integrated • Spindle speed 6,000 rpm • Spindle power 15/11 kW • Spindle torque 208/140 Nm • Travel distances (X1/X2/Z1/Z2/ZB) 65/195/700/720/700 mm • Rapid traverse (X1/X2/Z1/Z2/ZB) 20/20/40/40/40 m/min • Guide type: LM (linear motion) • Number of tools 2 x 12 Dkodpfxezd Dizo Aafst • Tool size 20/32 mm • Milling spindle speed 5,000 rpm

Condition: like new (used), Year of construction: 2023, operating hours: 506 h, functionality: fully functional, machine/vehicle number: G3790-0043, turning length: 705 mm, turning diameter over cross slide: 290 mm, turning diameter: 230 mm, spindle motor power: 20,000 W, spindle speed (max.): 6,000 rpm, spindle bore: 51 mm, travel distance X-axis: 195 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 700 mm, rapid traverse X-axis: 20 m/min, rapid traverse Y-axis: 8 m/min, rapid traverse Z-axis: 40 m/min, rotational speed (max.): 5,000 rpm, feed length Z-axis: 700 mm, bar passage: 51 mm, Equipment: rotational speed infinitely variable, 1. CNC turning machine with a 12-position tool turret, capable of simultaneously controlling up to 8 spindles for 2 systems. 2. Enables single-setup machining. 3. Powerful, integrated spindle motor. 4. Robust BMT turret. 5. Multitasking capabilities can be achieved by adding a Y-axis to the upper turret (TTSY specifications). Djdpfozd D Nujx Aafjkt 6. Integrated machining through synchronized control of the main and counter-spindle. 7. Construction with hybrid guides: a combination of box guides (XY-axis) and linear guides (Z-axis).

Condition: ready for operation (used), Year of construction: 2020, operating hours: 19,990 h, functionality: fully functional, turning length: 2,100 mm, turning diameter: 560 mm, spindle motor power: 37,000 W, spindle speed (max.): 2,000 rpm, spindle bore: 117 mm, travel distance X-axis: 320 mm, travel distance Z-axis: 2,200 mm, rapid traverse X-axis: 20 m/min, rapid traverse Z-axis: 20 m/min, overall weight: 11,000 kg, Hyundai WIA L400LMC – Heavy-Duty Long-Bed Turning Center The Hyundai WIA L400LMC is a robust and powerful turning center designed for machining large and heavy workpieces with high stability and precision. With its high torque spindle, large machining capacity, and integrated automation-ready features, this machine is ideal for demanding industrial applications. With box guide design – the most rigid solution used in turning centers. Key technical specifications: • Main spindle power: 37 kW • Maximum torque: 3,073 Nm • Maximum spindle speed: 2,000 rpm • Maximum turning length: 2,100 mm • Chuck size: 15” Dksdpfx Aoy T Ixboafot • Maximum bar capacity through spindle: Ø117 mm Machine configuration: • 12-position turret with BMT75 interface • C-axis for advanced machining operations • High-pressure through-tool coolant system – 15 bar • Bar feeder interface • Automatic Q-SETTER tool measuring system • FANUC control system • Hydraulic steady rest, programmable via M-code • Large programmable tailstock, controlled via M-code • Coolant spray gun • Wide machine door opening (>2000 mm) for easy loading of large parts • Oil mist / emulsion extraction system Additional equipment included: • 4 driven tools included • SMW-Autoblok SLUB-5-ZS-050310 self-centering steady rest o Monitoring of open/closed position o Clamping range: 50–310 mm The machine was commissioned in 2020 and has been in regular industrial use. The equipment remains in good working condition and offers a powerful solution for heavy-duty turning applications requiring high torque and long part capacity.

Condition: ready for operation (used), Year of construction: 2019, spindle speed (max.): 3,000 rpm, total height: 1,997 mm, overall weight: 7,800 kg, controller manufacturer: SIEMENS, controller model: Sinumerik 828D, This HYUNDAI WIA L300 LMC Lathe was made in 2019. It is equipped with a Siemens Sinumerik 828D control unit. The machine has a spindle speed of 3000 rpm. Machine Benefits Technical Machine Benefits • Max swing over bed: 750 mm • Swing over carriage: 480 mm Dkjdpfx Aajyi Elcsfjt • Max turning diameter: 500 mm • Max turning lenght: 1260 mm • Sub spindle: 4000 rpm • C axis indexing: 0. 001º • X, z and b axis • Turret with 12 live tool position • Mt5 tailstock Dimensions Machine Depth 2002 mm

Condition: ready for operation (used), Year of construction: 2012, spindle motor power: 15,000 W, spindle speed (max.): 4,500 rpm, travel distance X-axis: 210 mm, travel distance Z-axis: 580 mm, total height: 2,225 mm, total width: 1,725 mm, bar diameter (max.): 65 mm, overall weight: 4,570 kg, controller manufacturer: FANUC, controller model: Series 18i-TB, product length (max.): 3,039 mm, workpiece diameter (max.): 335 mm, number of slots in tool magazine: 12, number of axes: 4, This 4-axis Hyundai Wia L2100SY turn-mill centre was manufactured in 2012. It features a maximum turning diameter of 335 mm and a turning length of 455 mm. The machine is equipped with a 12-station turret and a spindle speed of up to 4,500 rpm. If you are looking to get high-quality turning capabilities, consider the Hyundai Wia L2100SY machine we have for sale. Contact us for further details. Dksdpfx Aaozimmgsfjt Control Unit: FANUC Series 18i-TBVoltage: 380 V (3Ø)Frequency: 50 HzRated Power: 33 kVAFull Load Current: 51 AControl Voltage: AC 110 V / DC 24 VSwing Over Bed: Ø630 mm (24.8")Swing Over Carriage: Ø390 mm (15.4")Max. Turning Diameter: Ø335 mm (13.2")Max. Turning Length: 455 mm (17.8")Bar Capacity: Ø65 mm (2.6")Chuck Size: Ø210 mm (8")Spindle Bore: Ø76 mm (3")Spindle Speed Range: 45–4,500 rpmSpindle Motor (Continuous): 15/11 kW (20/15 HP)Spindle Motor (Maximum): 25.4/18.5 kWSpindle Torque (Continuous): 254.2 NmSpindle Torque (Maximum): 597.7 NmSpindle Nose: A2-6Rapid Traverse X/Y: 24/24 m/minRapid Traverse Z: 18/12 m/minSlide Type: Box GuideTurret: BMT65OD Tool Size: □25 × 25 mmID Tool Size: Ø50 mm (2")Indexing Time: 0.2 sec/stepX-Axis Motor: 5.5/3.7 kWZ-Axis Motor: 5.5/3.7 kWTorque: 5,000 NmCoolant Tank Capacity: 220 L (58.1 gal)Lubrication Tank Capacity: 0.9 L (0.5 gal)Power Requirement: Over 35 kVAMain Spindle Chuck: Samchully MH-208Sub Spindle Chuck: Samchully HS-06Chuck Jaws optional Technical Specification Counter Spindle Yes Driven Tools Yes

Condition: used, Year of construction: 2011, functionality: fully functional, machine/vehicle number: G3640-0539, nominal power (apparent): 93 kVA, rotational speed (min.): 11 rpm, rotational speed (max.): 8,000 rpm, overall weight: 12,000 kg, spindle speed (min.): 11 rpm, spindle speed (max.): 8,000 rpm, input voltage: 220 V, type of input current: AC, We offer this used Hyundai WIA KH50G horizontal machining center, year of construction 2011. (German template: "Wir bieten diesen gebrauchten Hyundai WIA KH50G Horizontal-Bearbeitungszentrum, Baujahr 2011, an.") Model: KH50G Serial number: G3640-0539 Voltage: 220 V Dsdpfxezxiz Sj Aafekt Frequency: 60 Hz Rated power: 93 kVA Full load current: 87 A Control voltage: AC 110 / DC 24 V Electric diagram: 2010-H3 AY1 Spindle speed: 11-8000 min^-1 Ultimate breaking capacity: 50 kA Service breaking capacity: 25 kA Weight: 12000 kg Produced date: 2011.06 If you have any questions or need more information, feel free to send us a message or give us a call.

Condition: ready for operation (used), Year of construction: 2014, controller manufacturer: FANUC, controller model: 21‑i TB, This 4-axis HYUNDAI KIA SKT 21 LMS was manufactured in 2014. It features a Fanuc 21-i TB control unit, a maximum machining diameter of Ø 254 mm, and a length of 531 mm. The spindle speed reaches up to 6,000 rpm, and it includes a 12-position tool magazine and a chip conveyor. If you are looking to get high-quality turning capabilities, consider the HYUNDAI KIA SKT 21 LMS machine we have for sale. Contact us for more information. Machine Benefits Technical Machine Benefits • Number of axes: 4 (x, z, c, b) /x axis travel: 221 mm /z axis travel: 549 mm Djdjyaln Eepfx Aafjkt • Max. Machining diameter: Ø 254 mm/ max. Machining length: 531 mm • Tool magazine: 12 positions • Equipment: chip conveyor /bar feeder: top automazioni mod. Magic

Condition: ready for operation (used), Year of construction: 2003, travel distance X-axis: 240 mm, travel distance Z-axis: 430 mm, overall weight: 4,500 kg, controller manufacturer: SIEMENS, controller model: Sinumerik, number of axes: 2, Horizontal turning machine manufactured in 2003. This Hyundai HIT-200C features a maximum turning diameter of 340 mm and a turning length of 420 mm. It is equipped with a Siemens Sinumerik CNC control and has an X-axis travel of 240 mm and Z-axis travel of 430 mm. If you are looking to get high-quality turning capabilities, consider the Hyundai HIT-200C machine we have for sale. Contact us for further details. • Maximum turning diameter: 340 mm Dedpezmxt Tjfx Aafskt • Maximum turning length: 420 mm • Spindle nose: A2-8 • Spindle bore: 80 mm • Hydraulic chuck: 10" • Machine condition/accuracy: very rigid and dimensionally stable construction; capable of maintaining IT6 tolerance class Additional equipment • Optional automation package: • FANUC industrial robot • ROBOTOWER loading and finished-part unloading station • Set of grippers • Operating manuals • CE documentation • Note: Feeder/robot reported in very good condition; complete production cell suitable for serial production (e.g., batches of 500 parts or more) Technical Specification Counter Spindle No Driven Tools No

Condition: refurbished (used), Year of construction: 2005, functionality: fully functional, travel distance X-axis: 570 mm, travel distance Y-axis: 410 mm, travel distance Z-axis: 580 mm, rapid traverse X-axis: 36,000 m/min, rapid traverse Y-axis: 36,000 m/min, rapid traverse Z-axis: 30,000 m/min, Machine Tool Description The HYUNDAI-WIA HI-V410D is a vertical machining center designed for high-precision and high-productivity operations. Manufactured in 2005, it features a Siemens 810D CNC control and is particularly suited to multi-axis machining with automatic tool change and twin-pallet capability. General Technical Data Brand: HYUNDAI-WIA Model: HI-V410D Category: Vertical Machining Centers (Rotary Pallet) Year of manufacture: 2005 CNC Control: Siemens 810D Machine weight: 6,500 kg Machine Dimensions: Length: 5,100 mm Width: 2,150 mm Height: 3,060 mm Spindle Spindle taper: ISO 40 Spindle speed: 10,000 rpm Spindle motor power (continuous / 30 min): 12 / 16 kW Working Capacity X-axis travel: 570 mm Y-axis travel: 410 mm Dodjxfaqwopfx Aafekt Z-axis travel: 580 mm Distance spindle nose to table surface: 197 – 777 mm Distance column to spindle center: 495 mm Table Table size: 2 x (650 x 410 mm) Number of tables: 2 Maximum table load: 2 x 200 kg No. 2 rotary tables Ø160 mm with tailstock support Feed Rates Rapid feedrate X/Y axes: 36,000 mm/min Rapid feedrate Z axis: 30,000 mm/min Working feedrate X/Y/Z axes: 1 ÷ 10,000 mm/min Tool Changer Tool taper: BT-40 Tool magazine capacity: 24 stations Maximum tool diameter: Adjacent tools: Ø90 mm Non-adjacent tools: Ø150 mm Maximum tool length: 300 mm Maximum tool weight: 8 kg Accessories Chip conveyor Coolant tank with pumps Spindle line air conditioner Transformer Manuals, electrical diagrams and CE Declaration

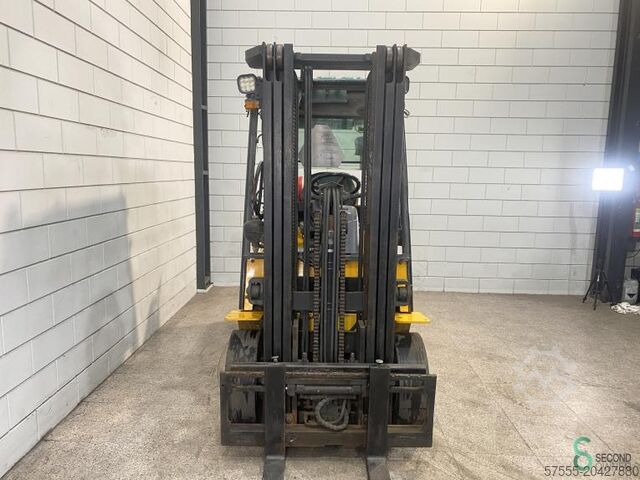

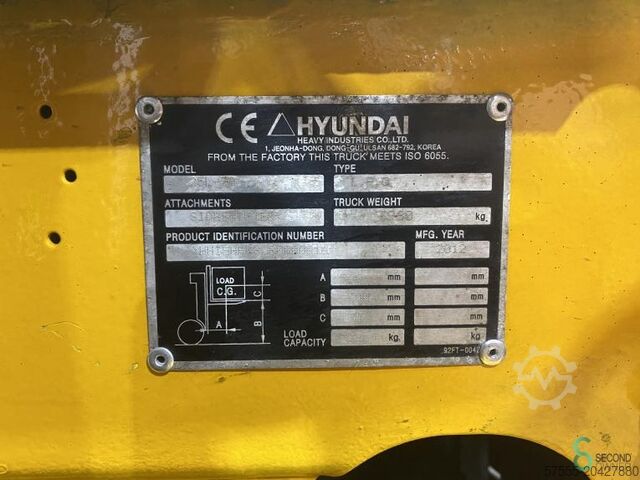

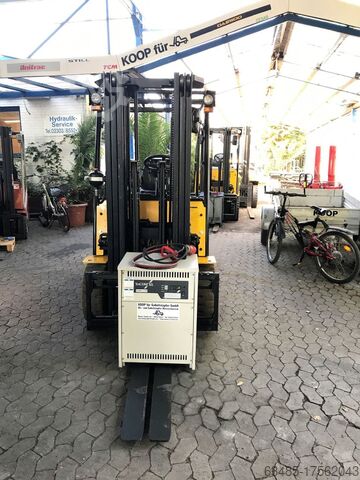

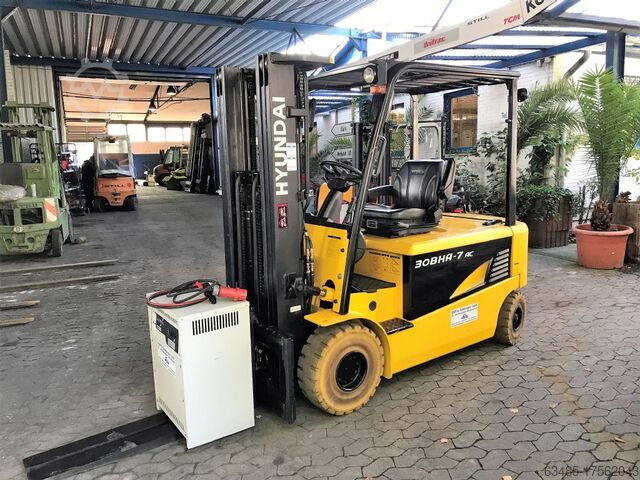

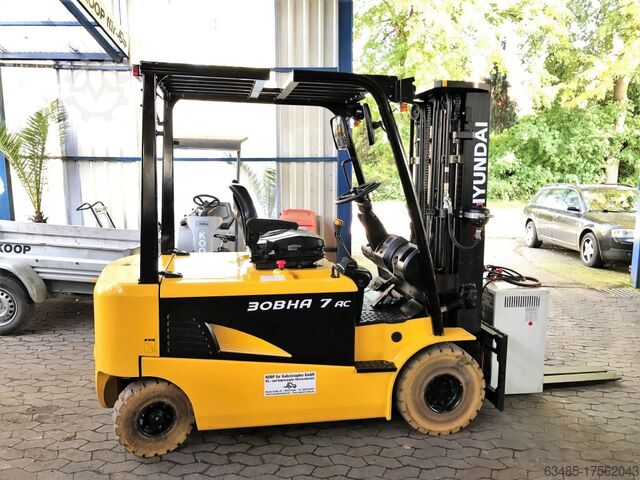

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: HHKHHU03EE0000073K, Year of construction: 2014, operating hours: 5,581 h, load capacity: 3,000 kg, lifting height: 4,685 mm, free lift: 1,430 mm, fuel type: electric, mast type: triplex, TECHNICAL DETAILS Lifting height: 4,685 mm Free lift: 1,430 mm Dkodpszxcicjfx Aafst Clearance height: 2,200 mm Lifting capacity: 3,000 kg Fork length: 1,070 mm Minimum fork width: 250 mm Maximum fork width: 1,075 mm MACHINE DETAILS Mast type: Triplex Drive type: Electric Battery manufacturer: Hawker Battery type: 80 V 5 PZS 775 Battery year of manufacture: 2014 Battery voltage: 80 V Battery capacity: 775 Ah Battery tray length: 1,025 mm Battery tray width: 850 mm Battery tray height: 790 mm Number of wheels: 4 Dimensions & Weight Dimensions (L x W x H): 2,450 x 1,190 x 2,200 mm Unladen weight: 4,900 kg Operating hours: 5,581 h EQUIPMENT Documentation CE marking Side shift Work lights Non-marking tires

Condition: used, Year of construction: 2014, operating hours: 6,890 h, Equipment: all wheel drive, MAKE: HYUNDAI TYPE: ROBEX 145LCR-9 Dkjdpjzyfn Dsfx Aafet YEAR: 2014 CE MARKED: YES OPERATING HOURS: 6890 HOURS TIRES/UNDERCARRIAGE: 80% POWER: 85KW ENGINE: MITSUBISHI D04FD WEIGHT: 16950KG OPTIONS: TRIPLE BOOM BLADE AIR CONDITIONING ROTOTILT HYDRAULIC QUICK COUPLER BUCKET HAMMER HYDRAULIC LINES SORTING FUNCTION VERY GOOD CONDITION

Condition: used, Year of construction: 2012, operating hours: 7,653 h, Equipment: all wheel drive, MAKE: HYUNDAI TYPE: ROBEX 210W-9 YEAR: 2012 CE MARKED: YES OPERATING HOURS: 7653 HOURS TYRES/UNDERCARRIAGE: 70% POWER: 123KW ENGINE: CUMMINS WEIGHT: 21020 KG OPTIONS: TRIPLE BOOM BLADE SUPPORT LEGS AIR CONDITIONING Dodpfx Aszyfnwoafekt CENTRAL LUBRICATION SYSTEM BUCKET HYDRAULIC QUICK-CHANGE COUPLER HAMMER LINES SORTING FUNCTION VERY GOOD CONDITION
